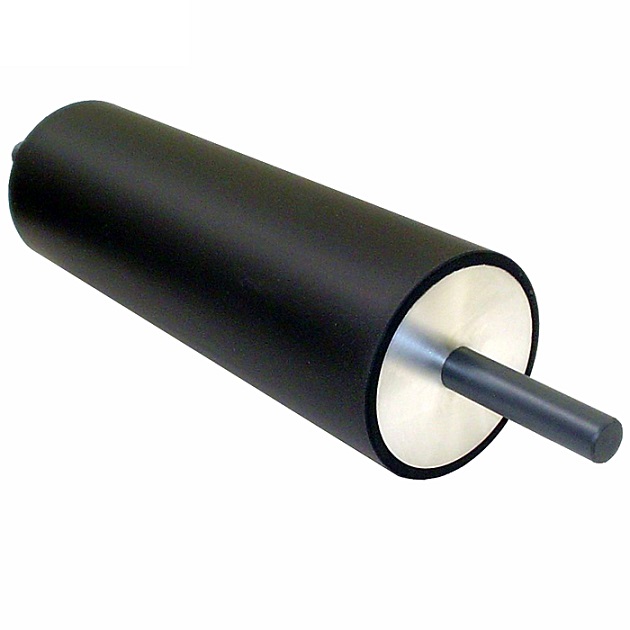

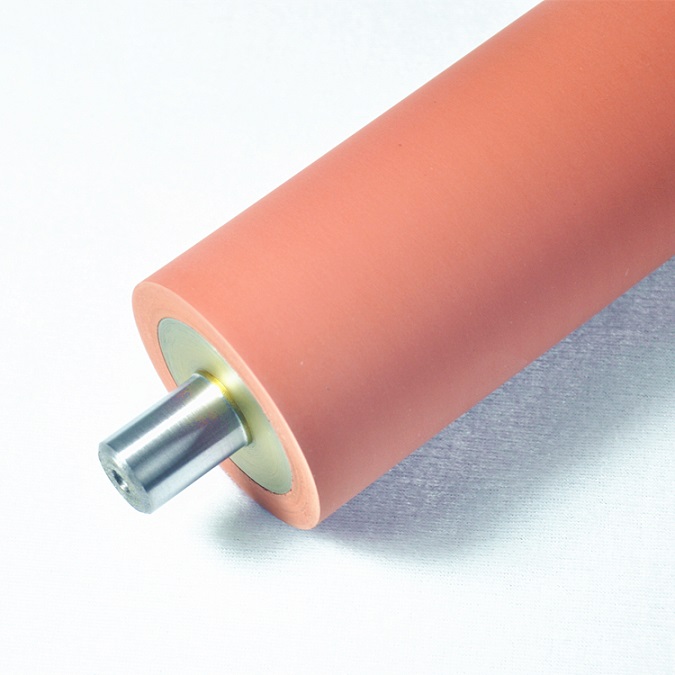

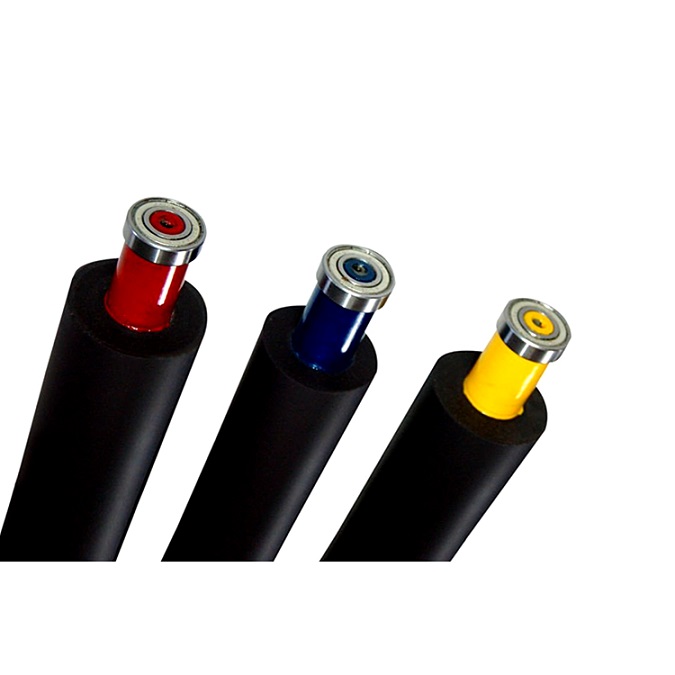

Small bearing rubber coated roller for flexograpic machine
Small bearing rubber coated roller for flexograpic machine Small bearing rubber coated roller for flexograpic machine Small bearing rubber coated roller for flexograpic machine Small bearing rubber coated roller for flexograpic machine Small bearing rubber coated roller for flexograpic machine

Small bearing rubber coated roller for flexograpic machine

Product ID : JCT-RR-001
Product Tags :
Product Attributes :

We generally adopt 45 # steel, alloy steel seamless pipe, precision forgings as the material.The surface of the roller finish degree can reach RA0.01. Mirror processing can ensure the roller surface flatness, balance, non-roundness, coaxial degree meet the customers’requirements.

Product Description

Small bearing rubber coated roller for flexograpic machine

Product Description:

1. Specification of rubber rollers



Size According To Customer's Drawing
Dimension di10MM-670MM,Length:50MM-8200MM
Material NBR,Silicone,Rubber,Polyurethane,NR,PU FFPM,ETC,EPDM
Hardness 18A-100D
Tolerance 0.05mm
Temperature According customers's requirements
Color Red, Black, White, Clear, etc can do the color base on your pantone NO.
Roll core 304 or 201stainless steel,45#steel or 5#aluminum seamless pipe
Spindle head 304,316,2Cr13,45steel
Application industrial machine, printing machine and packaging machines and so on



2. Classification and characteristics of rubber roller



1. NBR rubber roller

NBR rubber roller can be used as printing roller, food industry rubber roller, dyeing roller in textile printing in dustry and the soft rubber roller for contacting solvent and so on.

Note: The NBR has poor ozone resistance and the operation should be avoided in a high concentration ozone environment during processing.

2. Neoprene roller

Suitable for the soft printing roller, gravure printing roller and so on.

3. Silicone roller

High temperature resistance which can reach 200-250 degrees, and good chemical resistance,but it has low tensile strength.Silicone roller can be used in fabric heat setting, plastic heat setting embossing, calendering, photocopying and so on.

4.Polyurethane rubber

It has outstanding tensile strength wear resistance and crack resistance and good resistance to a variety of solvents.

5. Mirror roller

We generally adopt 45 # steel, alloy steel seamless pipe, precision forgings as the material.The surface of the roller finish degree can reach RA0.01. Mirror processing can ensure the roller surface flatness, balance, non-roundness, coaxial degree meet the customers’requirements.

3.Processing Flow of rubber roller

→Chemical test for the raw materials

→Automatic ingredients

→Rolling

→Machining and handling of mandrels

→Rubber coating

Vulcanization

→Grinding

→Polishing the printing roll

→Laser tester testing



4. Advantages of our rubber roller



A.Raw materials :

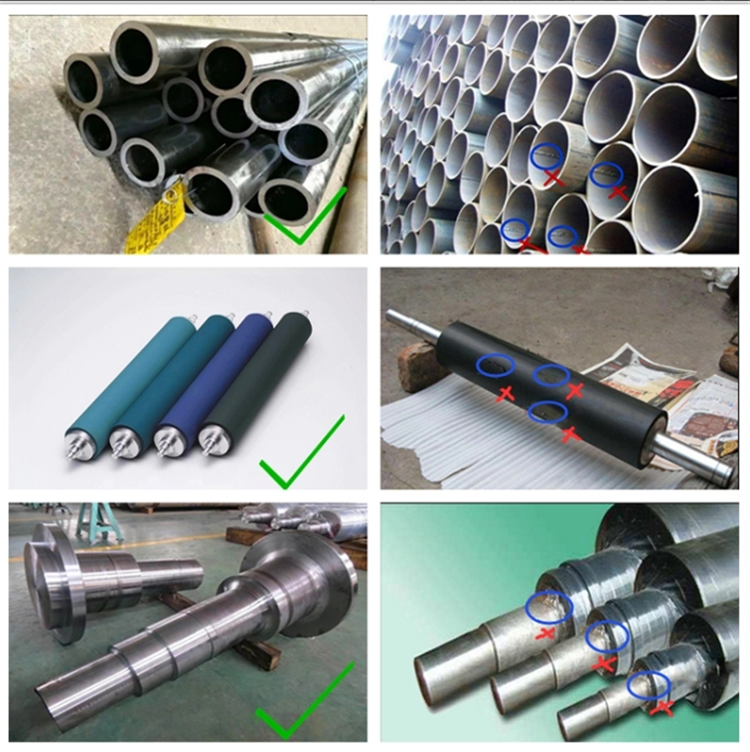

1) Base roller:

We are using  #45 steel , #201stainless steel #304stainless steel and 5# aluminum seamless pipe as the base roller.And we are adopting a reasonable thickness base roller according to customer’s drawing. Some manufacturers will reduce the thickness of the steel pipe in order to get the price advantage.Such roller can’t meet the standards.But we won’t do that.

pk 图.png

2)Rubber:
Our rubber are all imported from Germany or the US and then we mix them in our factory.The rubber coating technical we are using is winding technical. we casting the rubber on the base roller layer by layer and then vulcanize it to make the green rubber into mature rubber.

While other manufacturers are using sheet coating technical,and the rubber is cold in processing and will cause adhesion problems easily.


B. Production process:

1)Dynamic balancing:

We will do 3 times of dynamic balancing test in the process of production of each rubber roller,which will ensure the using effect. In general,If it can displayed within 10g on the dynamic balancing device, it is called dynamic balancing. But we can do less than 2g.




2) Hot charging technicals:

Adopt hot charging technicals to install the shaft head, and then weld after contraction to ensure the quality of shaft installation.While other supplier are welding the shaft head directly.

3)Testing by making small sample before mass production

We will make a small sample before the official production, after vulcanization, 24 hours later we will check the hardness, color, and Impurity situation. We will control the hardness tolerance within 3degree. If it is not qualified we will change the formulated immediately and to make the sample again till all the data reach the customer’s request.


C. Quality control Department

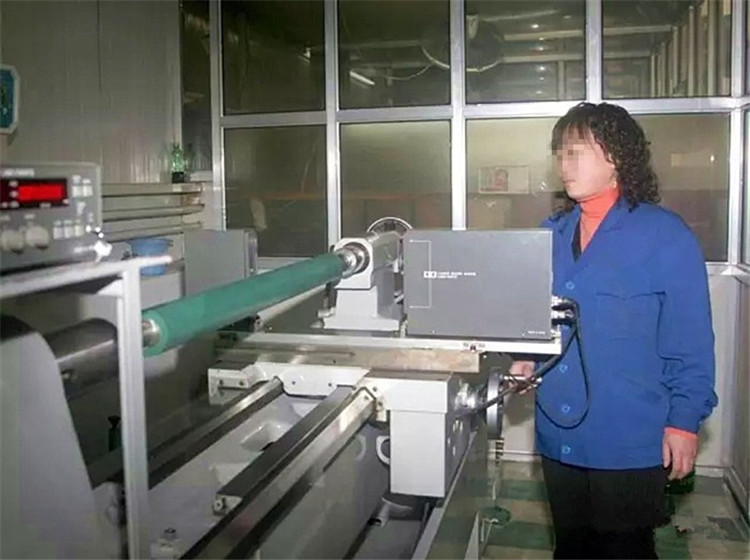

Using all-imported laser tester to ensure that the geometric size and the accuracy of the roller can reach 0.01 mm;

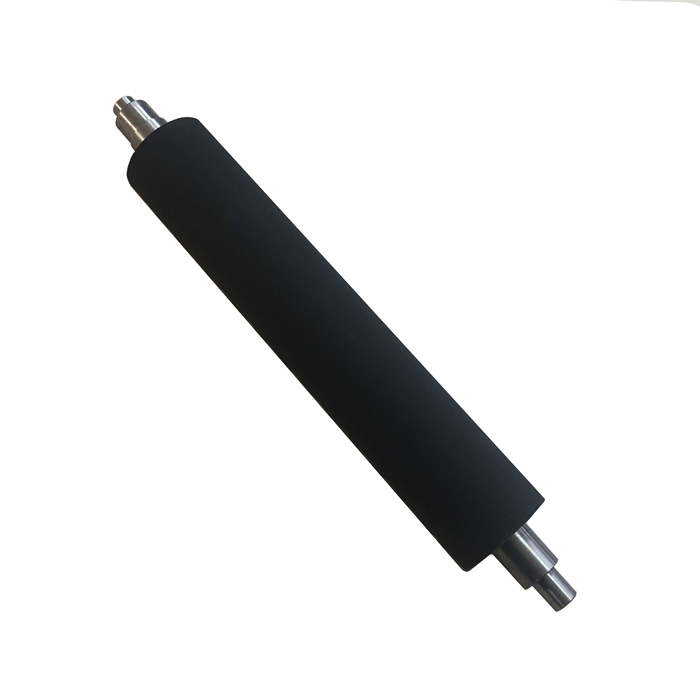

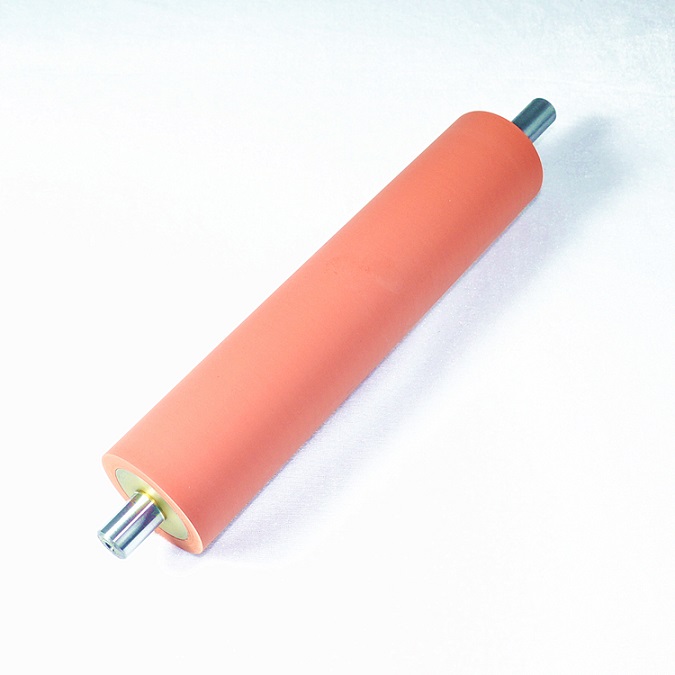

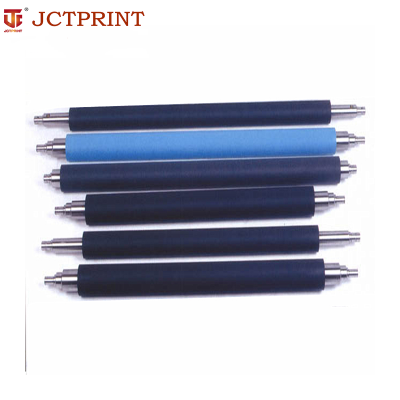

Product Pictures:

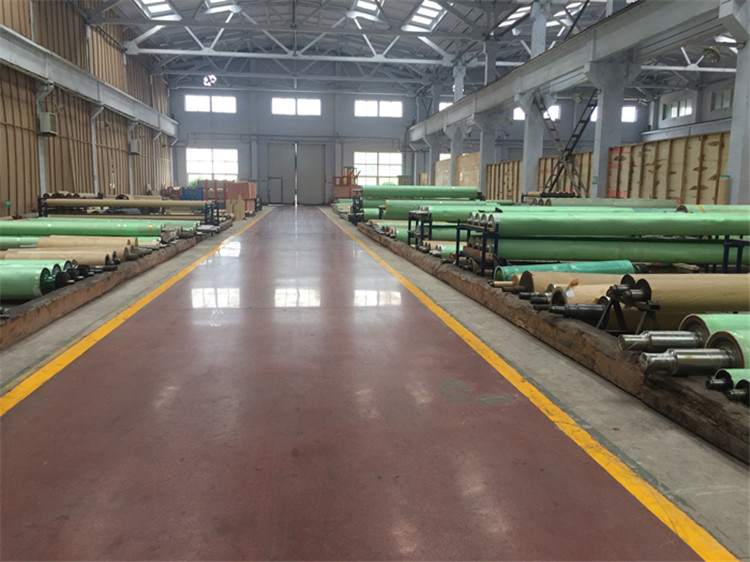

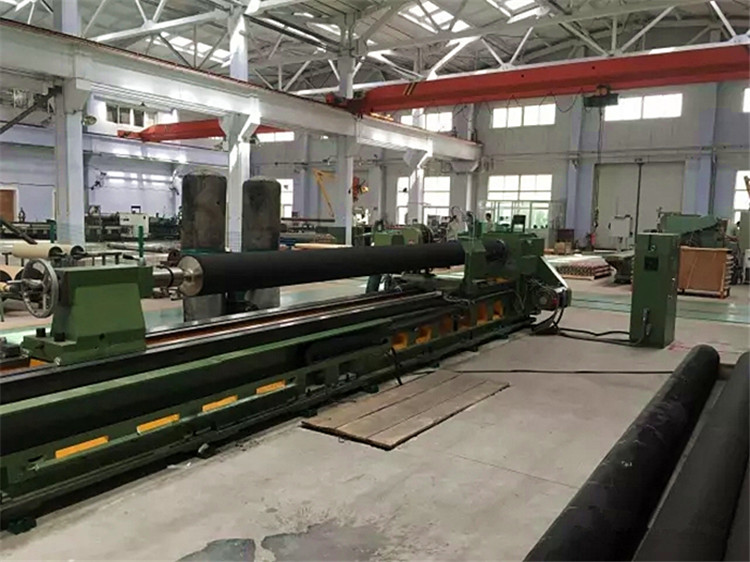

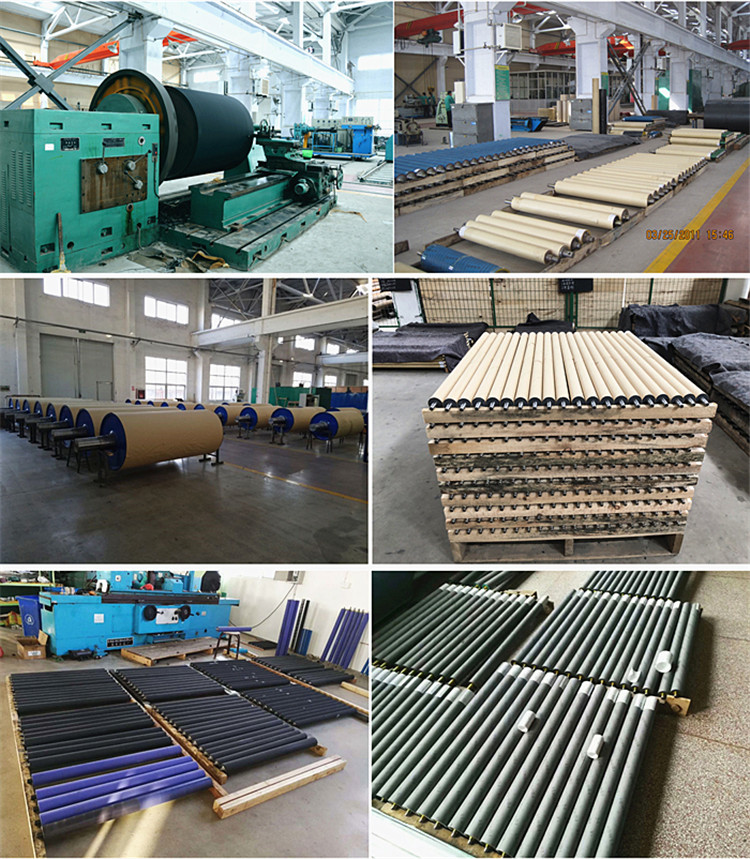

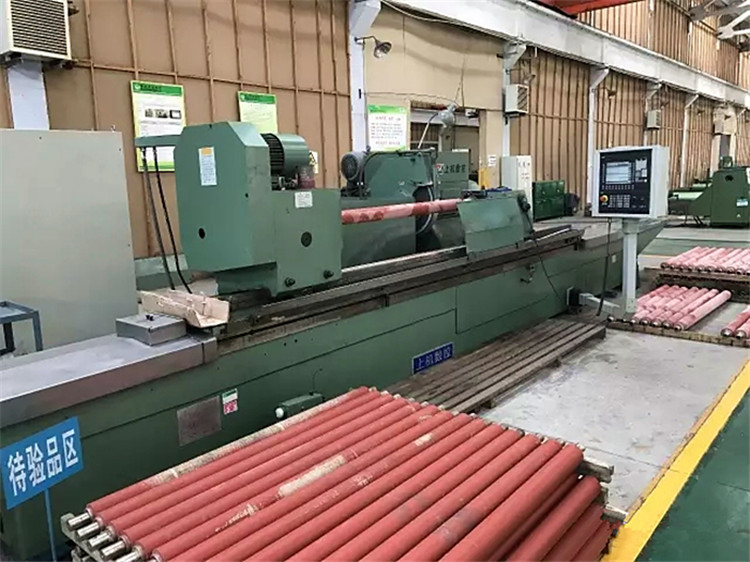

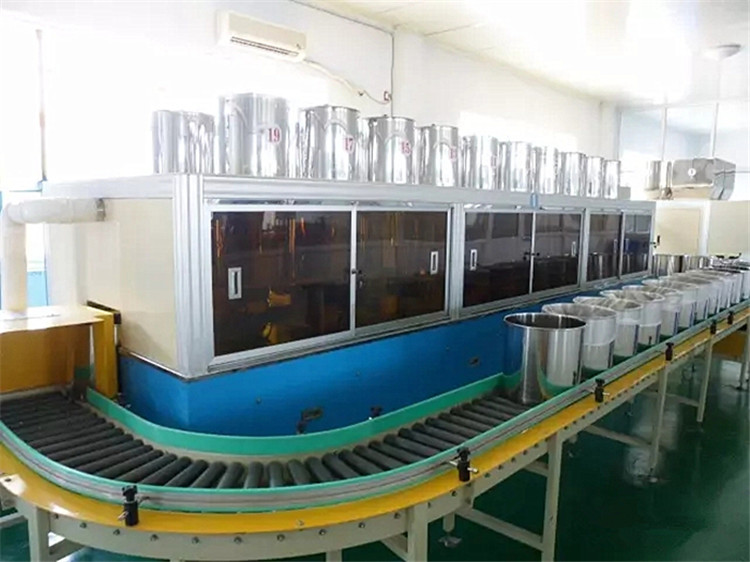

Work shop:




公司介绍 (6).jpg

公司介绍 (8).jpg

公司介绍 (7).jpg

Contact us:

Melody

Jinan Jinchangtai Industry And Trade Co.,Ltd

Add:Lushangshengjing Plaza Building B-1406,No.6 Qingfeng Road,

Jinan Shandong,250014,China

TEL:86 531 61300169   FAX:86 531 61300169
Whatsapp/Phone number +8613884990797
Skype Number:liliangmenglu
Email: [email protected]
http://www.jctprinting.com/





FAQ:

1.    When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2.    How should I place the order?

Please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.Or you need rollers for famous brand machine ,we normally have its drawing,so you just need to tell us your machine model number.

3.    What’s your MOQ basis?

1 piece or 1 set,it depends on your actual requirement.

4.    What about the lead time for production?

Usually 20-25days,but it also depends on the order quantity and the type of our products
