Lath/leaf type air expanding shaft for winding unwinding machine
Lath/leaf type air expanding shaft for winding unwinding machine Lath/leaf type air expanding shaft for winding unwinding machine Lath/leaf type air expanding shaft for winding unwinding machine Lath/leaf type air expanding shaft for winding unwinding machine Lath/leaf type air expanding shaft for winding unwinding machine

Lath/leaf type air expanding shaft for winding unwinding machine

Product ID : JCT-QZZ-A005
Product Tags :
Product Attributes :

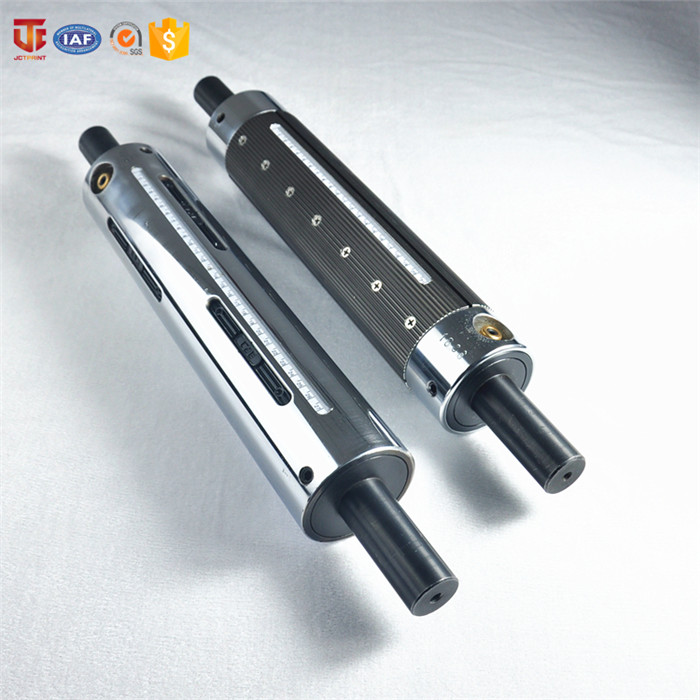

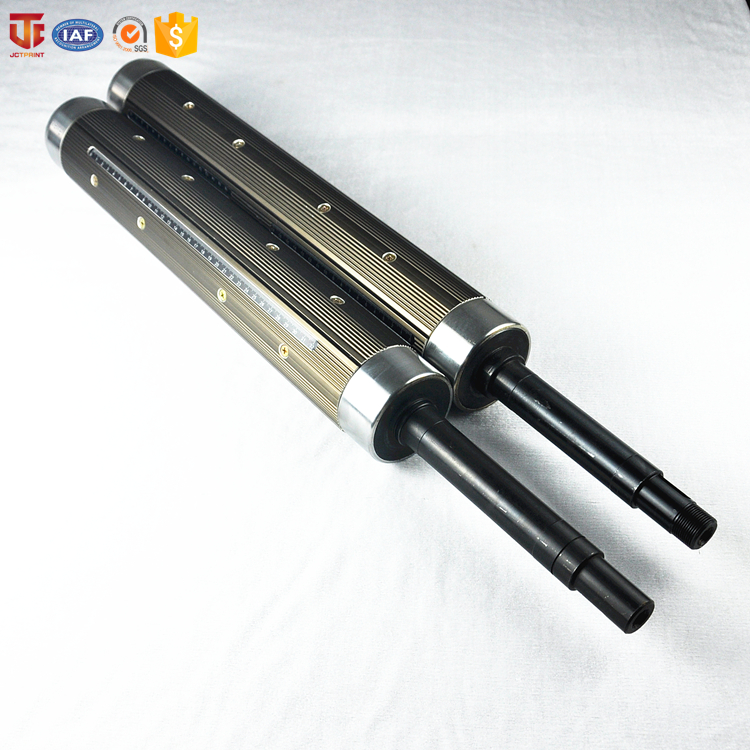

Lath/leaf type air expanding shaft for winding unwinding machine

The lath type air shaft is generally used in the case of winding (Rewinding thinner paper core) or thin paper tube of the slitter. Because the paper tube is thin and easily deformed. The lath type air shaft is bulged into three whole pieces of tile with good roundness.

Product Description

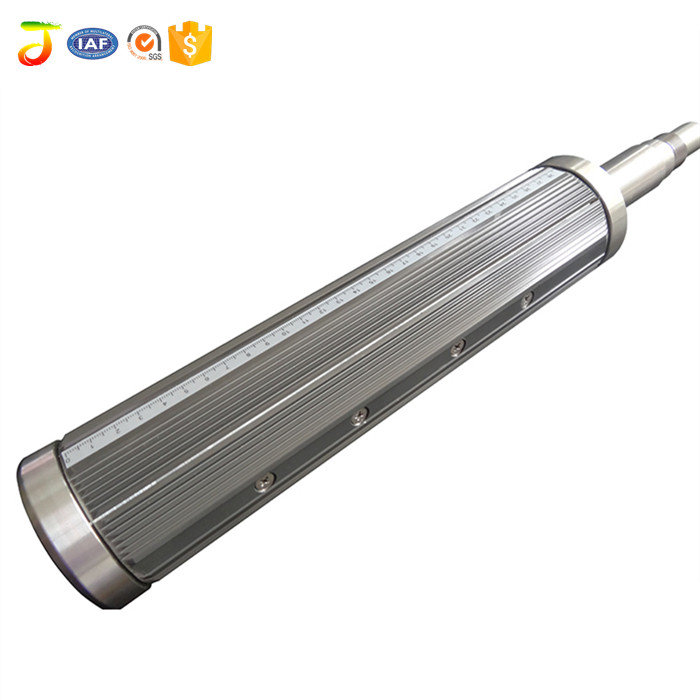

Lath/leaf type air expanding shaft for winding unwinding machine

1.Product Introduction

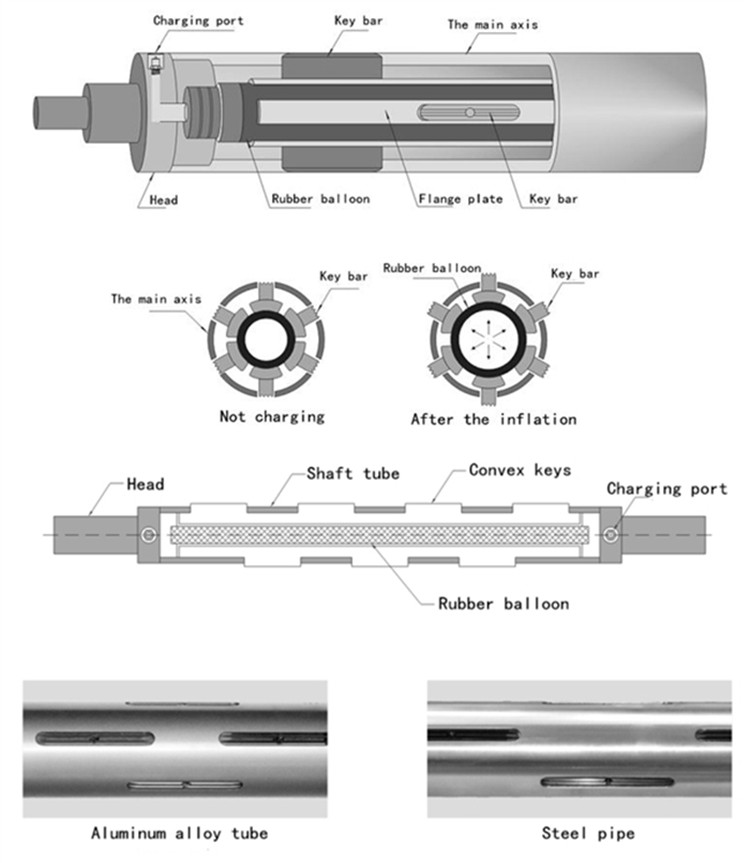

The lath type air shaft is generally used in the case of winding (Rewinding thinner paper core) or thin paper tube of the slitter. Because the paper tube is thin and easily deformed. The lath type air shaft is bulged into three whole pieces of tile with good roundness. However, if a convex-type air expanding shaft is used, the paper tube may be broken if the air pressure is large. Compared with the key type inflation shaft, the lath type air expansion shaft has a small strength, a light loading weight.

内页-qqs (36).jpg

2.Specification of air shaft



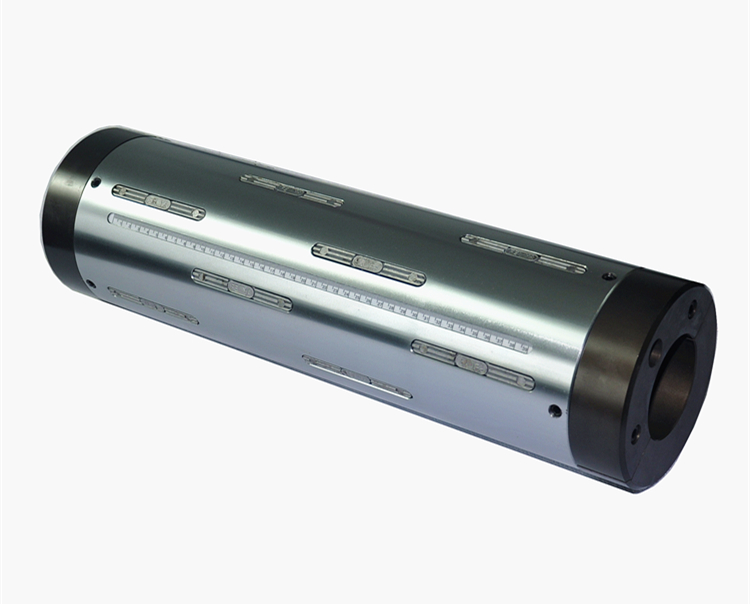

Type

Material

Spec.

Unaerated   diameter

(ømm)

Inflated   diameter

(ømm)

Applicable   volume tube

inner   diameter

(ømm)

Key strip/Lug/Leaf Type





No.45 steel/ Aluminum









1″

24.8

24.8-28

25-26

1.5″

37

40-42

38-38.5

2″

49

52-54

50-51

3″

74-75

80-82

75.5-78

4″

99-100

104-106

101-102

5″

125

130-133

126-128

6″

150

154-156

151-153

8″

200

206-264

202-204

10″

250

260-264

 252-256

12″

 300

 308-310

 302-305

内页-qqs (32).jpg

3.Why choose us

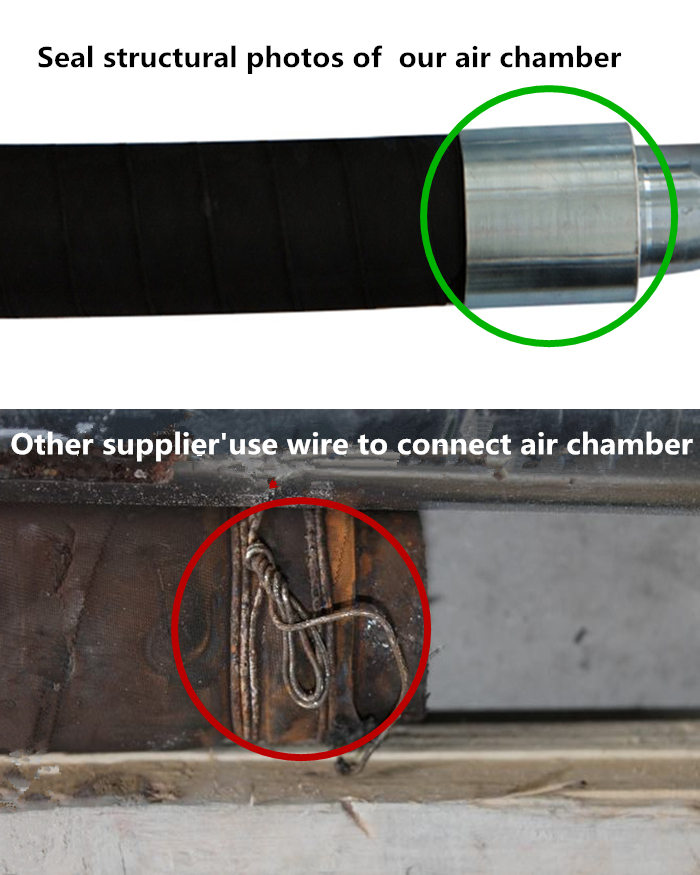

1)We adopt  hi-precision cold-drawn steel tube as the shaft body.The thickness of this kind of tube is uniform so when the rubber balloon inside is inflated , the three whole pieces of tile will stick out at same height .And it will  greatly weaken centrifugal force of the whole air shaft when it is rotating and will keep a dynamic balance.

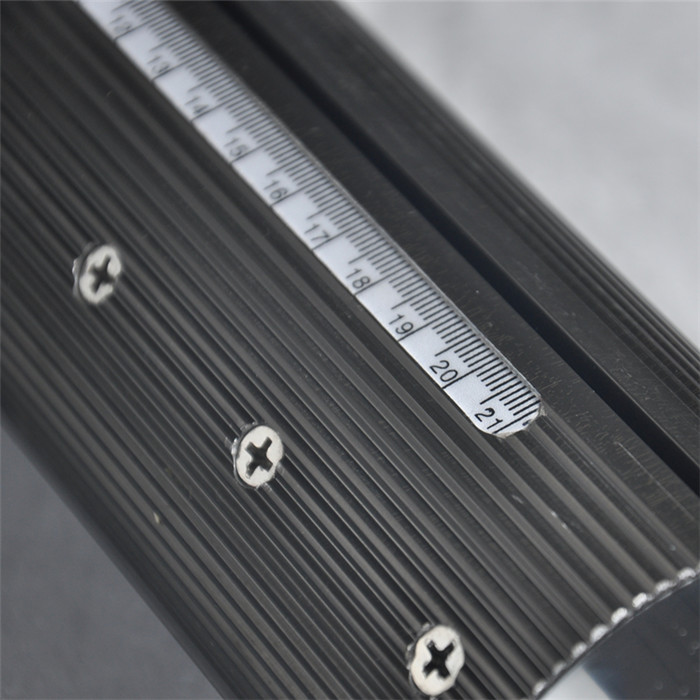

2)For the key strip,we adopt a whole piece of aluminum plate to make it.And it can form a good protective ring around the air  bladder. We adopt the pagoda springs to support the air  bladder which can bear 300000 compressions.

3)We are using a high power press machine which can produce 80T thrust to realize all the combination of spindle head and steel tube. While other suppliers knock the spind head into the steel tube with a big hammer,no quality and accuracy.

4)We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each shaft  is qualified.



内页-qqs (25).jpg

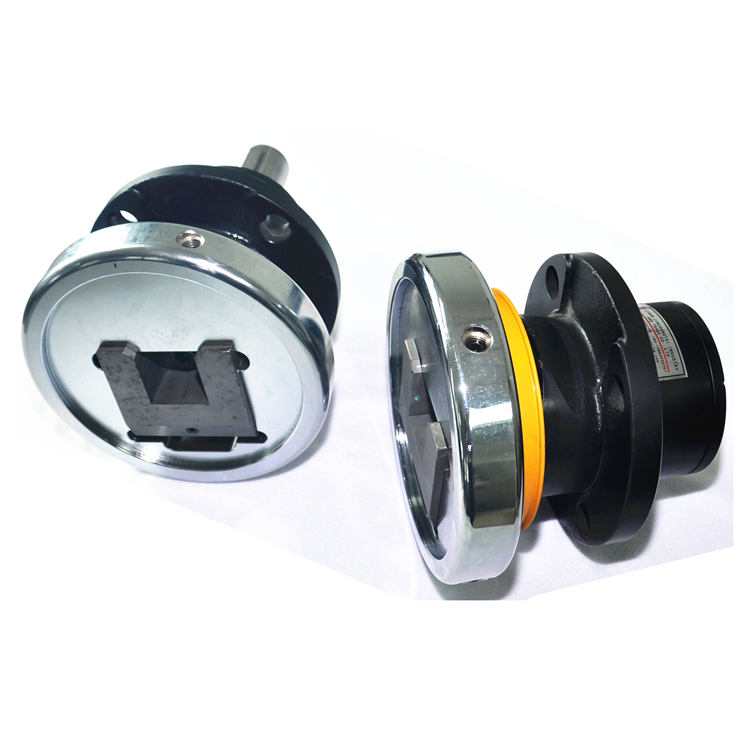

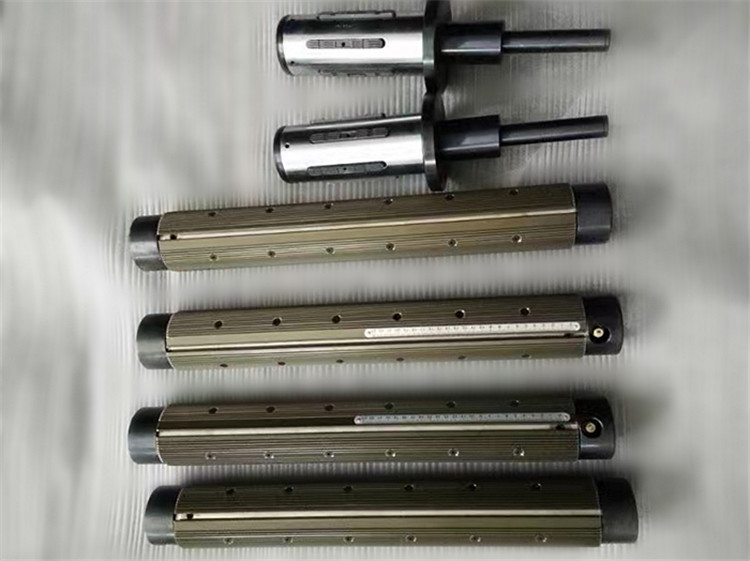

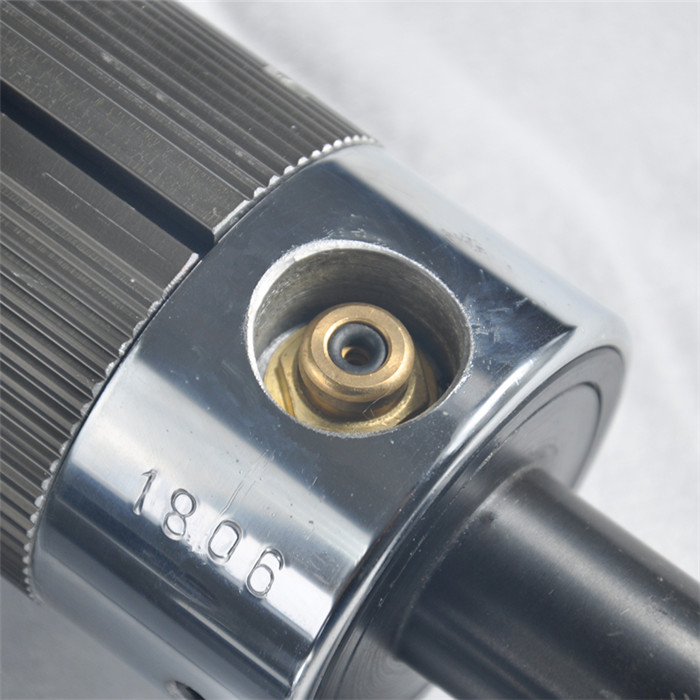

4.Spare parts of air shaft







Company Information

公司介绍 (4).jpg

公司介绍 (1).jpg

 FAQ



1. How should I place the order?

 For air shaft , please send us your drawing, or let us know your request.



2.What is your MOQ?

1 Piece.



3.What’s your packaging of air shafts?

We have two types of packaging wooden box and strong carton.



4.What's the delivery time?

Around 25days after payment received,and it also depends on the quantity you want.



5.What’ s the terms of payment?

Usually T/T 100% in advance payment.We can also accept Western Union,paypal and credit card.
