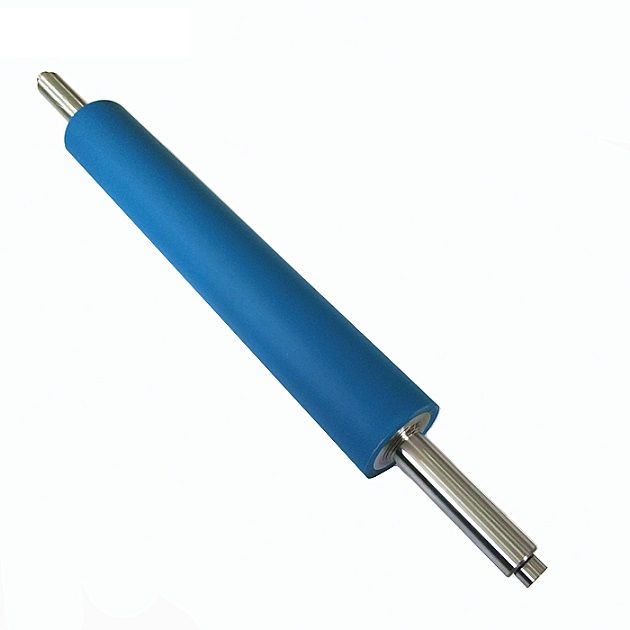

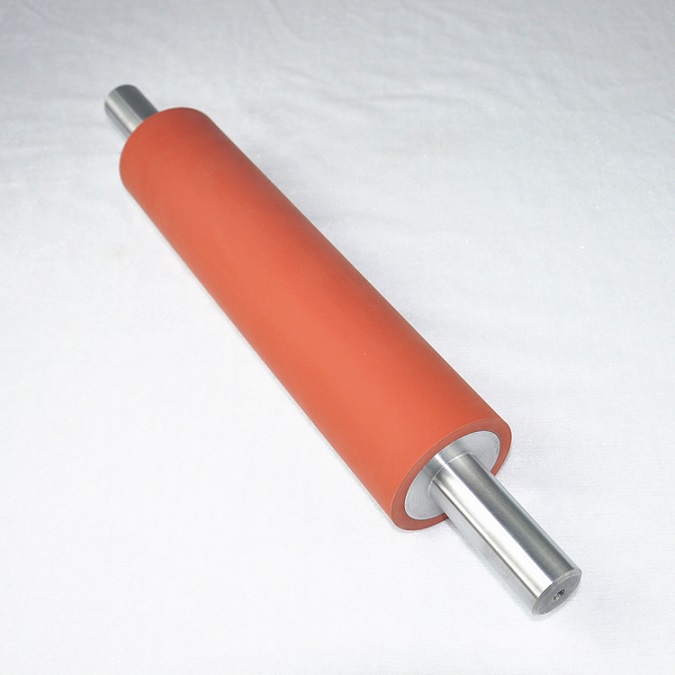

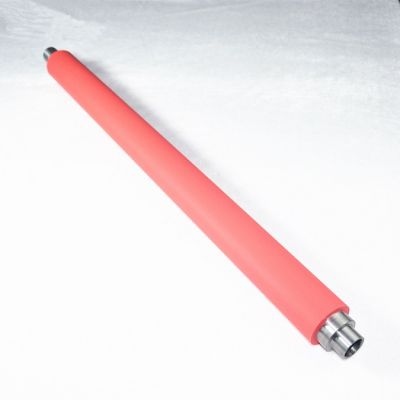

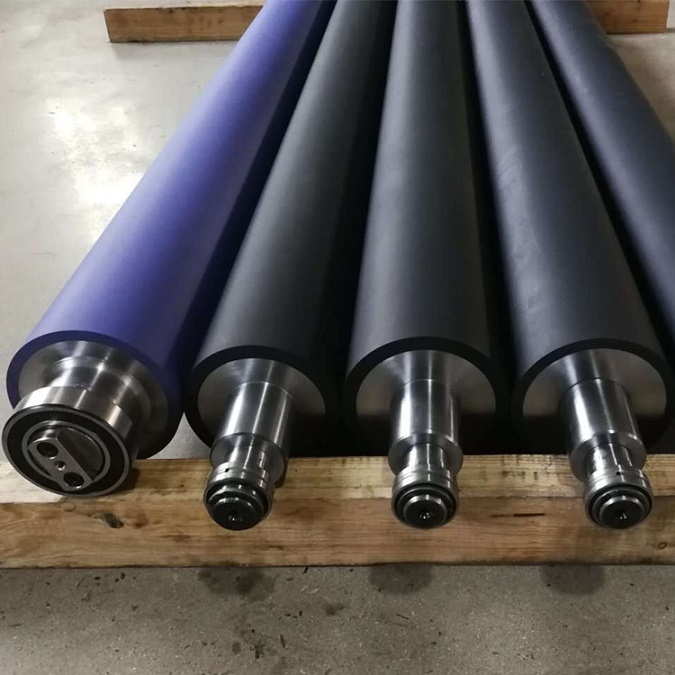

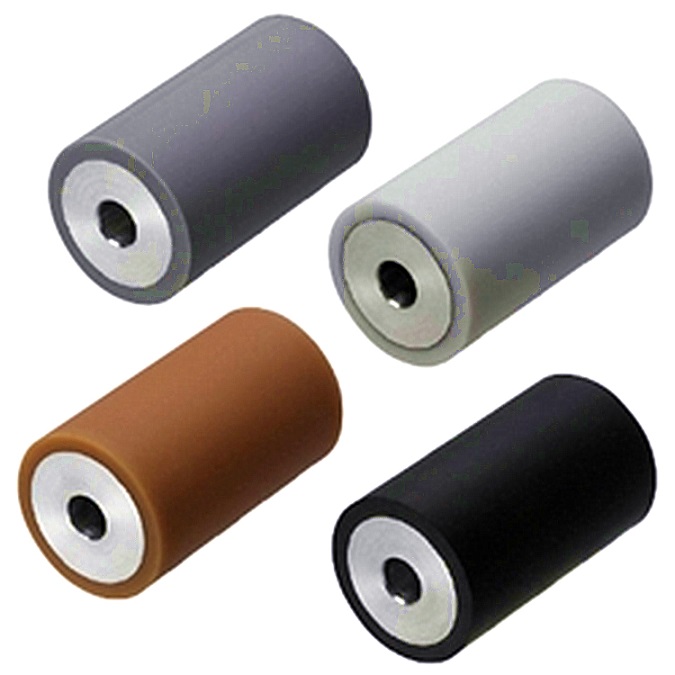

Durable rubber roller with high precision
Durable rubber roller with high precision Durable rubber roller with high precision Durable rubber roller with high precision Durable rubber roller with high precision Durable rubber roller with high precision

Durable rubber roller with high precision

Product ID : JCT-JG-001
Product Tags :
Product Attributes :

Rubber roller of Plastic Machinery:

Rubber roller for various types of machinery

Roller Cots for Casting Machines, Calenders

Blown film roller for blown film peritoneal machinery

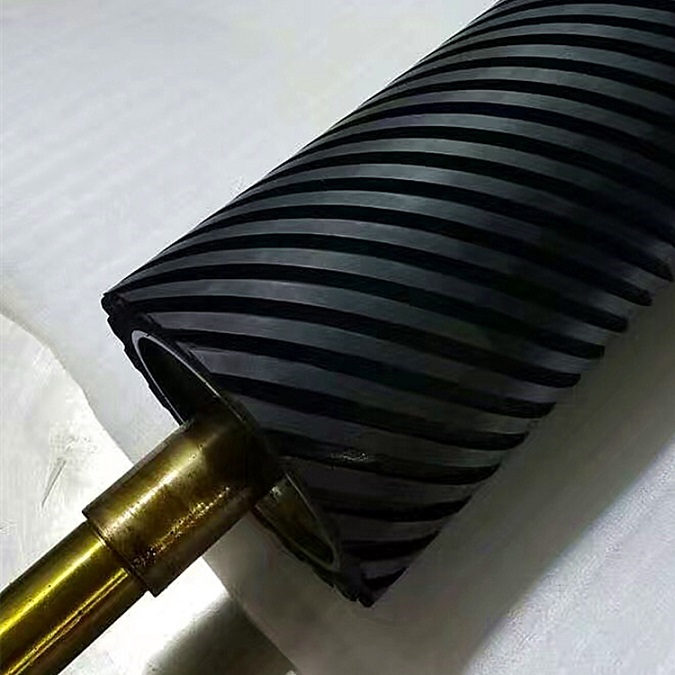

Special rubber roller for various purposes

Product Description

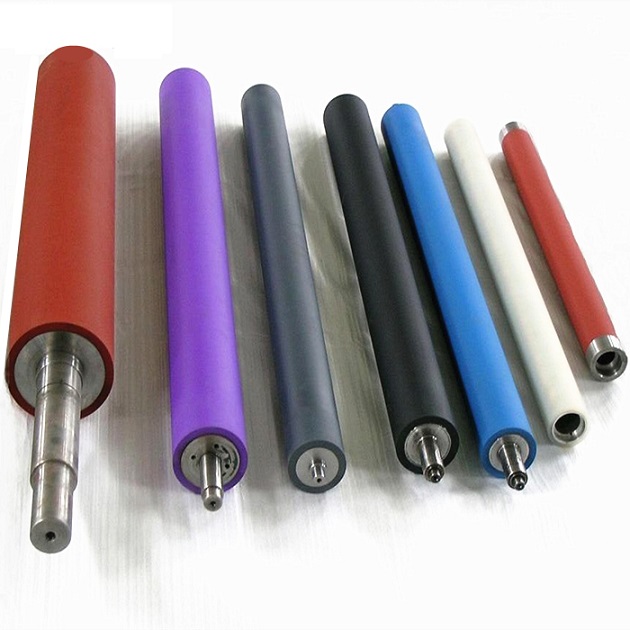

Rubber Material:

1.Polyurethane roller

2.Nitrile rubber roller

3.Neoprene rubber roller

4.EPDM roller

5.Silica gel roller

6.Nylon roller, Iron roller and Stainless steel roller

The Specification of rubber rollers:



Size

According To Customer's Drawing
(For offset printing roller,please tell us the model  and we can check if we have the drawing )

Dimension

Diameter :10MM-670MM,Length:50MM-8200MM

Material

NBR,Silicone,Rubber,Polyurethane,EPDM, hypalon ETC.

Hardness

18A-100D

Tolerance

0.05mm

Temperature

According customers's requirements

Color

Red, Black, White, Clear, etc can do the color base on your pantone NO.

Roll core

stainless steel,45#steel or 20#steel or 5# aluminum seamless pipe



Features

· Ozone and Chemical resistance

· Anti-aging, good flexibility, good elasticity

· Excellent oil resistance



· Clean and healthful for many food and medical applications



Advantages of our rubber roller:

A.Raw materials:

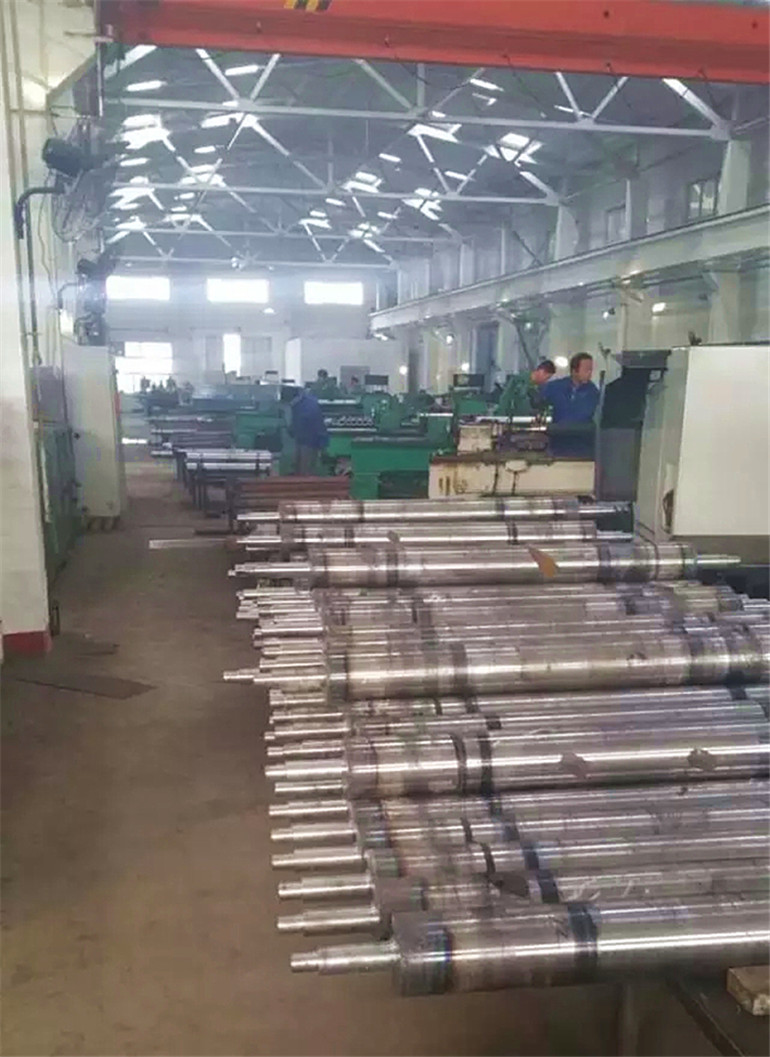

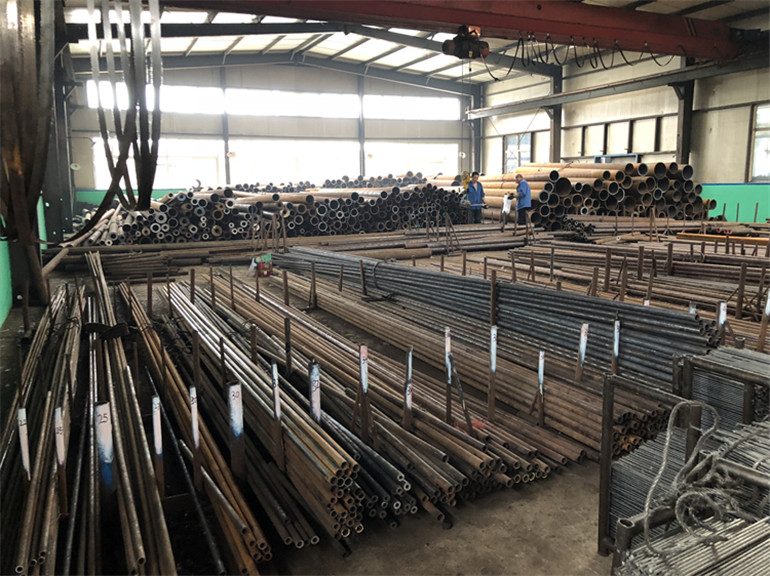

1) Base roller:



We are adopting 304 or 201stainless steel, #45steel or #5 aluminum seamless pipe as the base roller.And we are adopting a reasonable thickness base roller according to customer’s drawing. The base roller is produced by ourself , we will carry out strict dynamic balancing test and size inspection before the base roller is put into the next process. Some manufacturers will reduce the thickness of the steel pipe in order to get the price advantage.Such roller can’t meet the standards.But we won’t do that.

2) . Rubber:

Our rubber are all imported from Germany or the US and then we mix them in our factory.

And we only use 100% new material,not use recycled material.The main rubber coating technical we are using is winding technical.

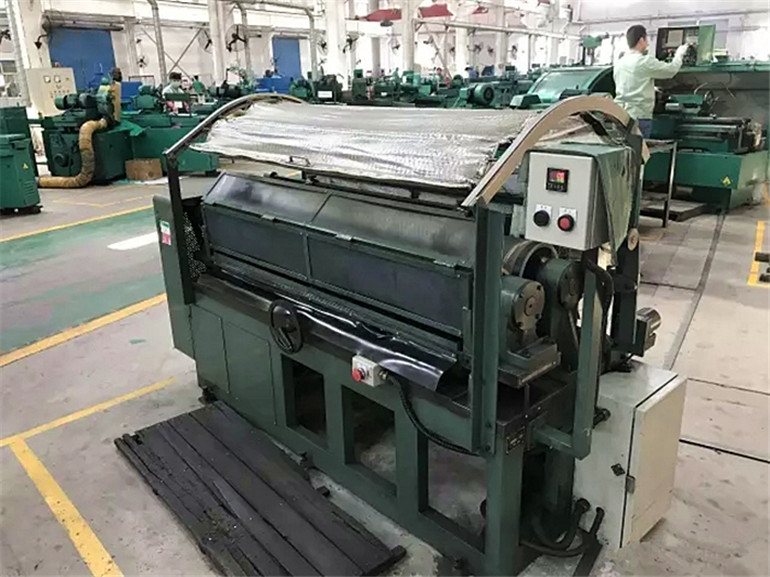

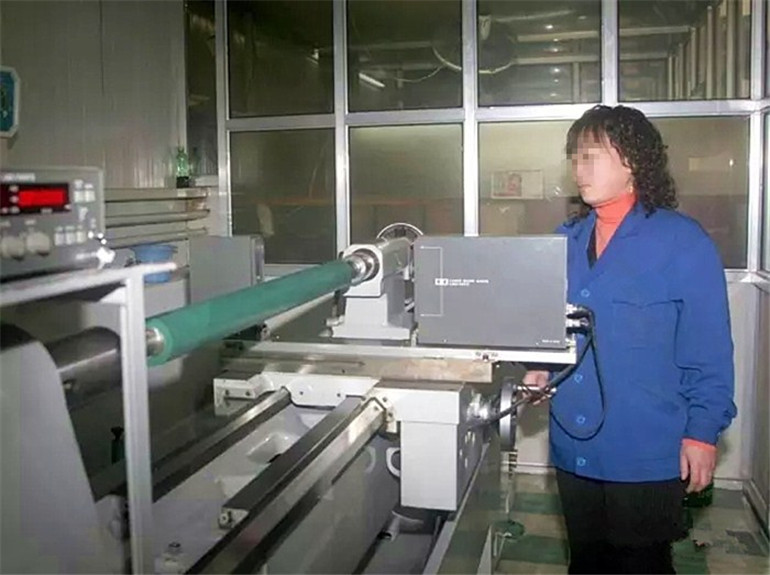

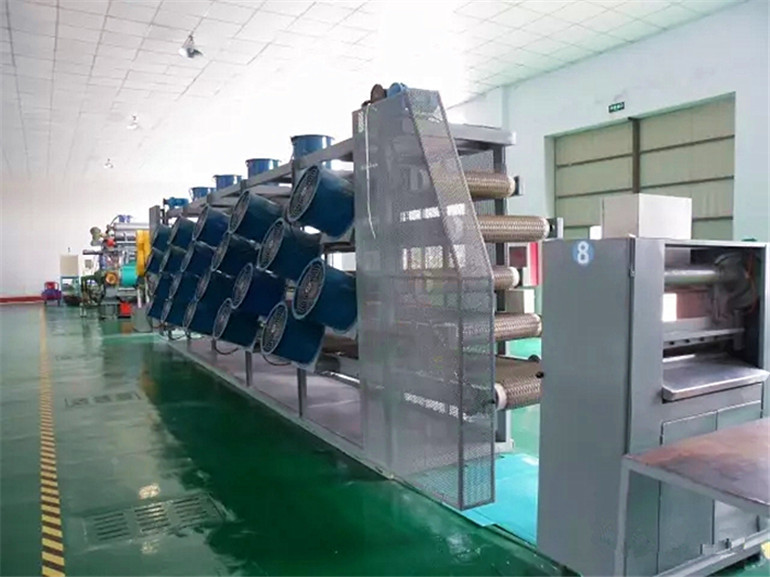

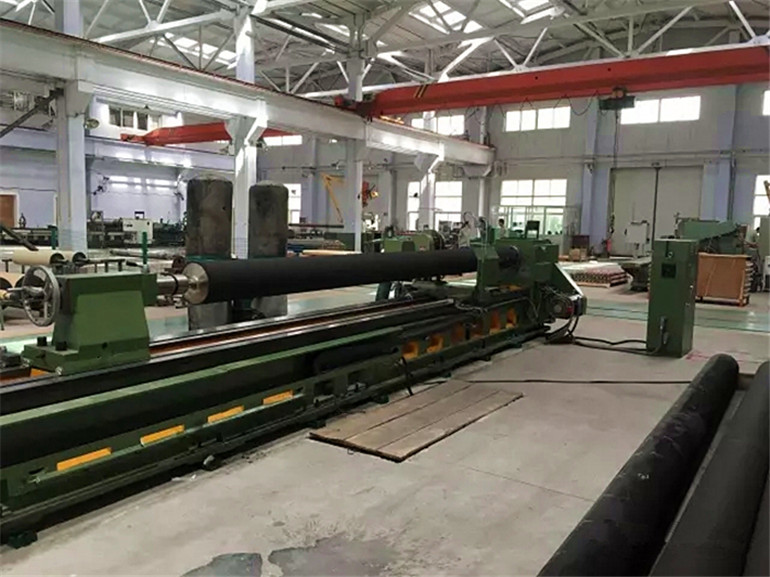

you can find the following production pictures.



While other manufacturers are using sheet coating technical,and the rubber is cold in processing and will cause adhesion problems easily.

B. Production process:

1)Dynamic balancing:

We will do 3 times of dynamic balancing test in the process of production of each rubber roller.which will ensure the using effect. In general,If it can displayed within 10g on the dynamic balancing device, it is called dynamic balancing. But we can do less than 2g.

To make it on the base roller,2 After thermal suit,3 After vulcanization and grinding on the rubber roller .



In fact,the number of dynamic balancing is related to the using effect. For example in the printing industry,the rubber roller will have the accuracy requirements.

2) Hot charging technicals:

Adopt hot charging technicals to install the shaft head, and then weld after contraction to ensure the quality of shaft installation.While other supplier are welding the shaft head directly.

3)Testing by making small sample before mass production



We will make a small sample before the official production, after vulcanization, 24 hours later we will check the hardness, color, and Impurity situation. We will control the hardness tolerance within 3 degree. If it is not qualified we will change the formulated immediately and to make the sample again till all the data reach the customer’s request.
