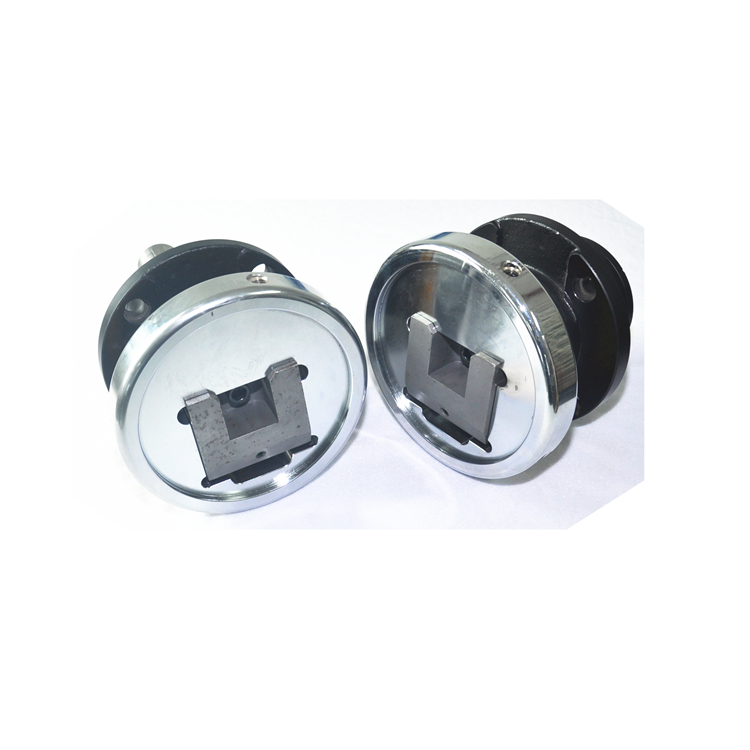

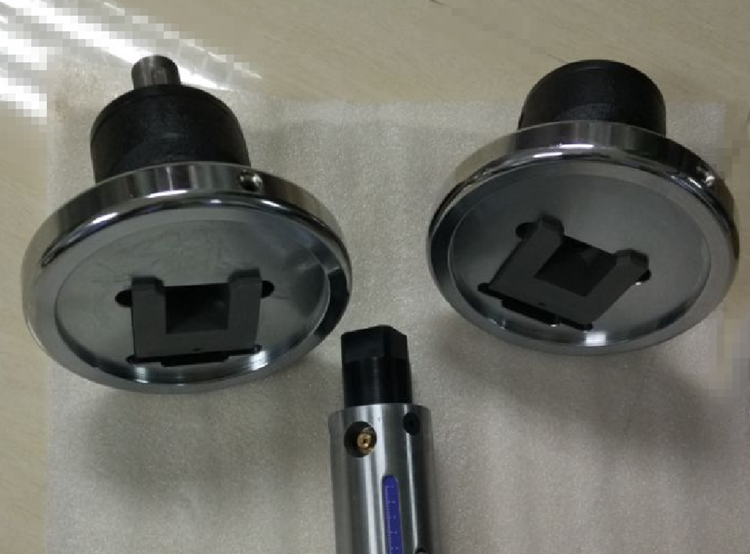

Square hole FLW FLO STO STW Safety chucks for cutting machine
The safety chuck is a quick-connecting device that is applied to the receiving and discharging reels to save the operator time for loading and unloading. There is no need to move the structure of the machine every time when changing materials. The safety chuck provides the operator with the ability to quickly change materials when receiving and discharging. The time of the upper and lower materials is reduced, and the operator's work is more efficient to achieve cost savings.
Square hole FLW FLO STO STW Safety chucks for cutting machine
Production description:
1. Introduction of the safety chuck
Safety Chuck is a connection device,used to provide a fast,accurate, simple, safe and effective connection for the continuous action of the reel (air shaft).It can help the to avoid the reel’s loosing or tightening, can improve work efficiency and guarantee the quality.
Safety chuck can be divided into two types: flange- mounted type and foot-mounted type.
2. Application

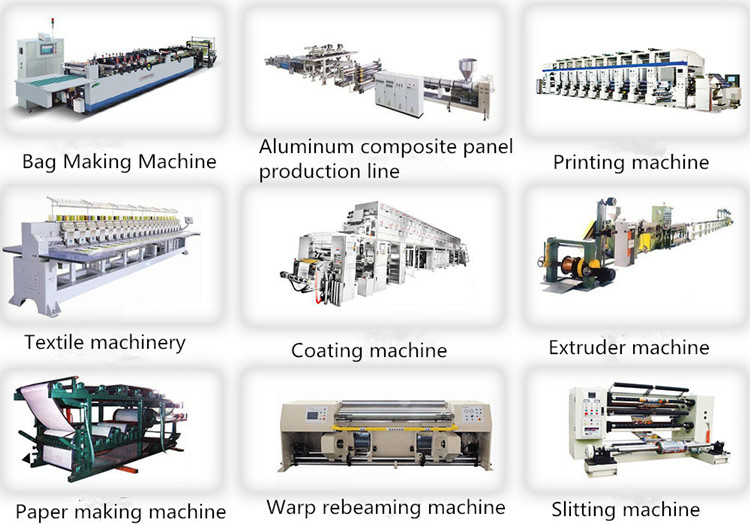

Safety chucks can be used in steel machinery, packaging machinery, printing machinery, textile machinery, wire and cable machinery, winding machines, machine tools, plastic machinery, chemical machinery, paper machinery, and other major industries, machinery and automation equipment.
3.Advantages of our safety chuck
1. The whole structure for safety chuck is outstandingly rigid, can bear high torque, no worry for loosening away in safe running.
2. Precise process accuracy can assure exact locating, reel holding mouth adopts special heat processing technology.
3. VT-type reel holding mouth can be provided, which will extend its use life greatly.
4. Special excellent alloy steel material will be adopted with great durability.
5. Nickeling and hardening treatment for mouth can bring high stiffness and robustness, which can assure favorable performance in high load and high speed.
6. Reasonable tolerance design on mouth parts can assure smoothness and continuousness in torque transmission, which can extend greatly safety performance for machinery.
4. Technical Parameters
|
Type |
Square hole size (mm) |
Max loading weight(KG) |
Max torque(N.M) |
Weight(kg) |
|
Type28 |
25,30 |
800 |
18 |
18 |
|
Type35 |
32,38,40 |
1600 |
35 |
25 |
|
Type50 |
40,45,50 |
2800 |
110 |
50 |
|
Type75 |
55,65,75 |
7000 |
235 |
85 |
