Paper corner rounder cutter for membership card
Paper corner rounder cutter for membership card Paper corner rounder cutter for membership card Paper corner rounder cutter for membership card Paper corner rounder cutter for membership card Paper corner rounder cutter for membership card

Paper corner rounder cutter for membership card

Product ID : JCT-QJJ-D002
Product Tags :
Product Attributes :

Paper corner rounder cutter for membership card

Product Description






Paper corner rounder cutter for membership card




Product Description

1. Application



Angle corner cutter is used in soft packaging bags (including: three-side sealing bags)And stand-up pouches, etc.), trademark tags, business cards, books, packaging, decoration, documents, documents, bags, cards to cut the round corners.
For example: rounded corners of bank savings passbooks, various hardcover books, rounded corners of hardcover notebooks, clothing tags, business cards, poker, etc., is a post-press device.




2. Specifications



Main Technical Parameter

Model

SDQ-100

SJQ-120

PJQ-100
(straight angel cutter)

Max.Die-cut size

R1-R16 / R18-R24 (mm)

R1-R16 / R18-R24 (mm)R1-R35 (mm)

Min.Die-cut size

C1-C42 (mm) / 60 (mm)

C1-C42 (mm) / 60 (mm)

C1-C42 (mm) / 60 (mm)

Max.Die-cut height

100 (mm)

100 (mm)

100 (mm)

Working Table Size

310x320 (mm)

310x320 (mm)

550x580 (mm)

Working speed

50Times/Min

90Times/Min

90Times/Min

Power


0.75 Kw

1.1Kw

Net weight of the machine

95kg

260KG

300kg

Dimension

720*420*720mm

1050*550*1350mm

1350*650*1350mm

automaticity

Manual

Semi-automatic

semi-automatic

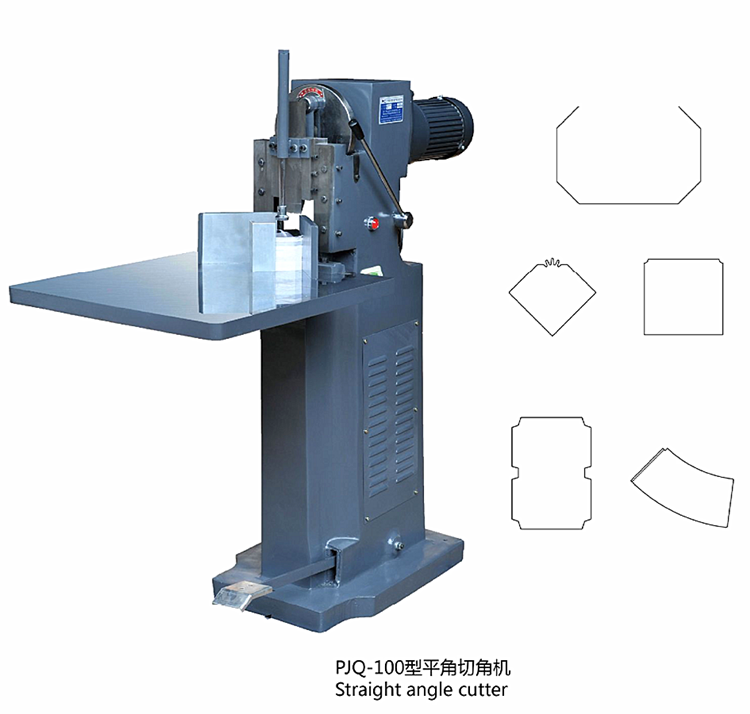

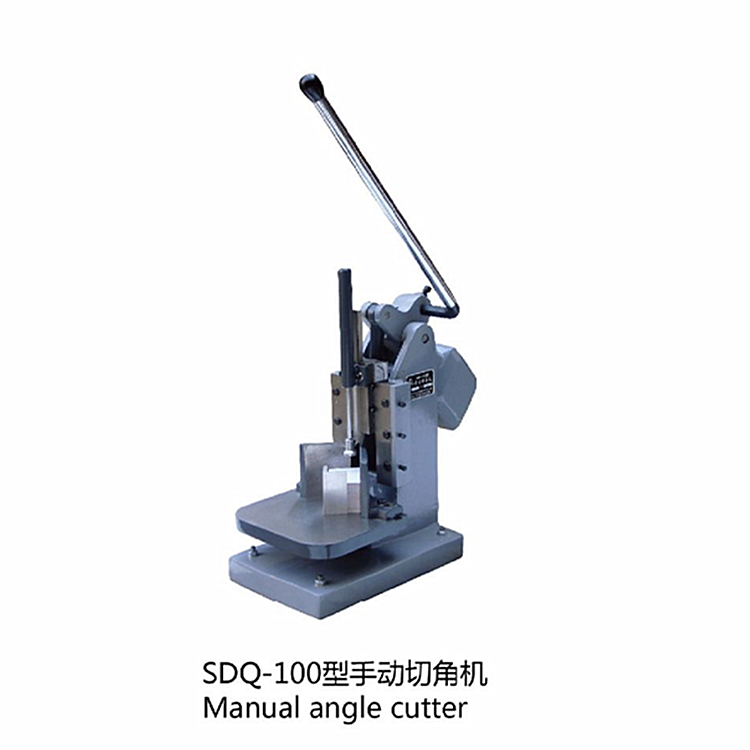

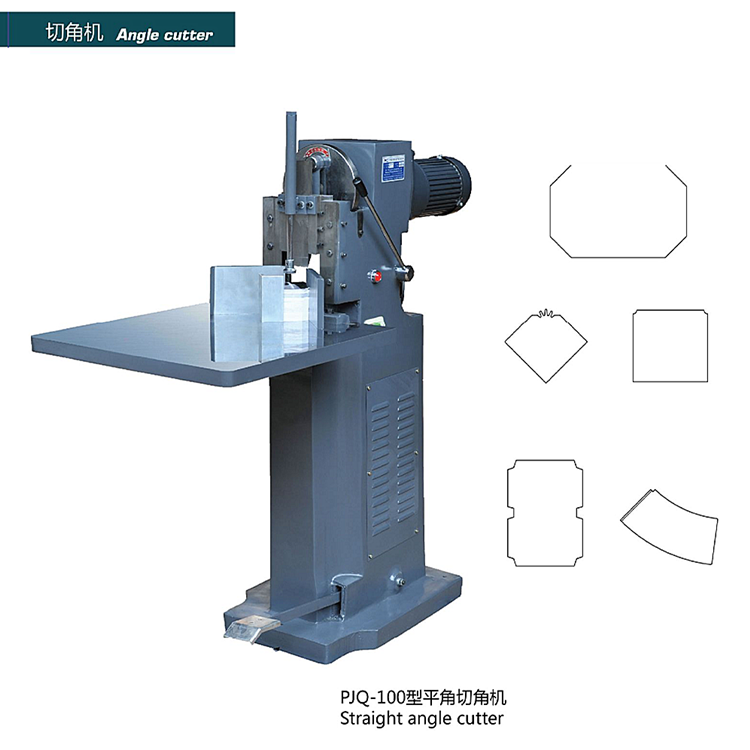

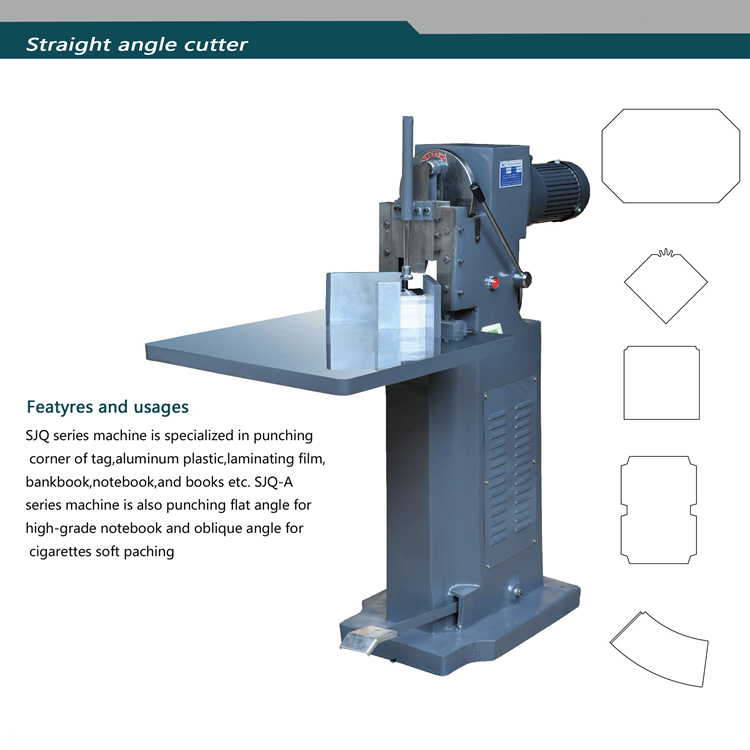

Machine Picture :

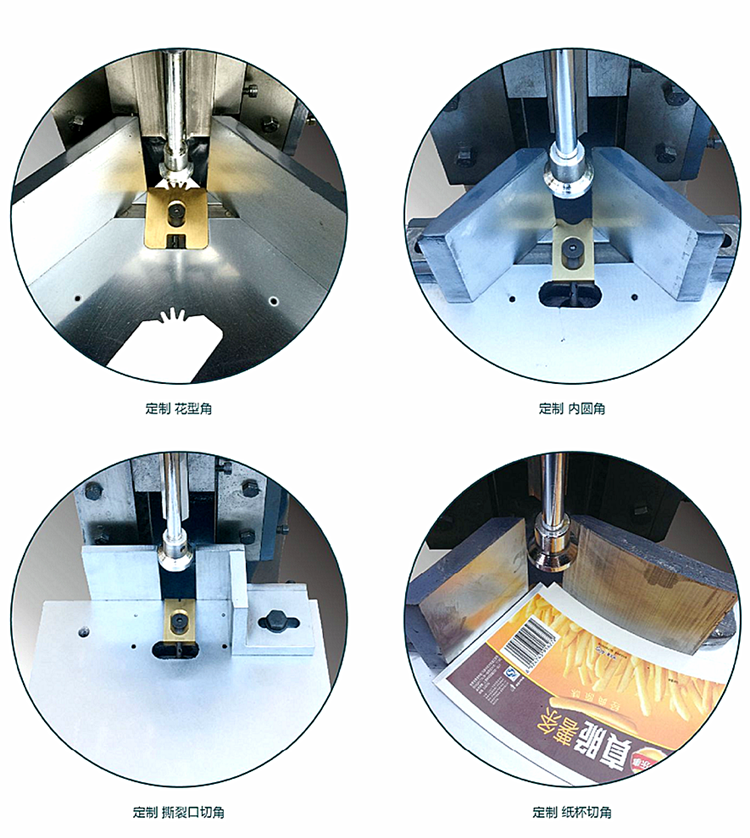

Details of Punching Corner

 .png

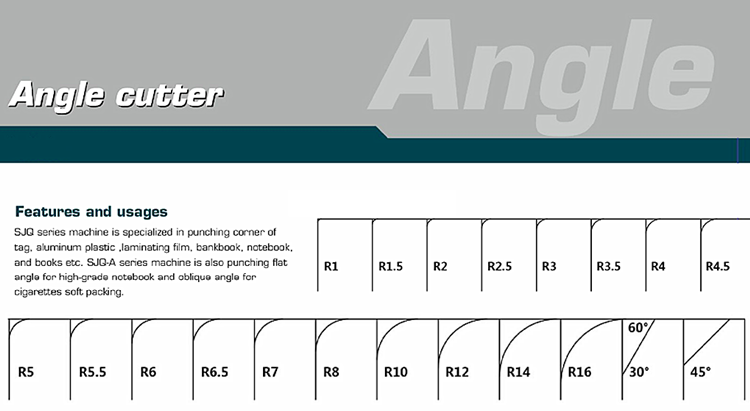

Specification of punching dies :



Optional:R1/R1.5/R2/R2.5/R3/R3.5/R4/R4.5/R5/R5.5/R6/R6.5/R7/R8/R10/R12/R14/R16/ 22mm Flat die, 60mm Flat die and straight angel die.Other sizes of dies can be customized.

The punching die is made of high-speed steel, high hardness, long service life.The die cutting product surface is smooth, and the size is unified and regular with higher efficient.



Various punching corner on the machine :









FAQ

Sample





Angle Cutter in our factory :

.jpg



Company Information

 “Competitive

“Competitive





1,Are you manufacturer or Trading company?

We are manufacturer and we have been producing angel corner cutter for playing card,cup pad,notebookds and so on for more than 18years.



2, Do you have quality certificate?

 Yes ,we have CE, SGS etc,so you can rely on the quality.



3,What's the delivery time?

Around 20~30days after pre payment received, however, based on order.



4.Can you provide foreign country machine instation services?

Yes,we have a after service team can provide instation services and engineers are available to solve prolems overseas.



5. Can you make punching dies which are used on your machine?

Yes,sure.Just tell your request, we can make it for you.
