Electric round corner cutter for hardcovers notebooks
Electric round corner cutter for hardcovers notebooks Electric round corner cutter for hardcovers notebooks Electric round corner cutter for hardcovers notebooks Electric round corner cutter for hardcovers notebooks Electric round corner cutter for hardcovers notebooks

Electric round corner cutter for hardcovers notebooks

Product ID : Z014
Product Tags :
Product Attributes :

    Electric Paper round corner cutter for hardcovers notebooks aluminum

    Angle corner cutter is used in soft packaging bags (including: three-side sealing bags)And stand-up pouches, etc.), trademark tags, business cards, books, packaging, decoration, documents, documents, bags, cards to cut the round corners.



Product Description



1.Application

    Corner cutter can be used for rounded corners of bank savings passbooks, various hardcover books, rounded corners of hardcover notebooks, clothing tags, business cards, poker, etc..It's a post-press device.



2.Technical paremeter of the Corner cutter

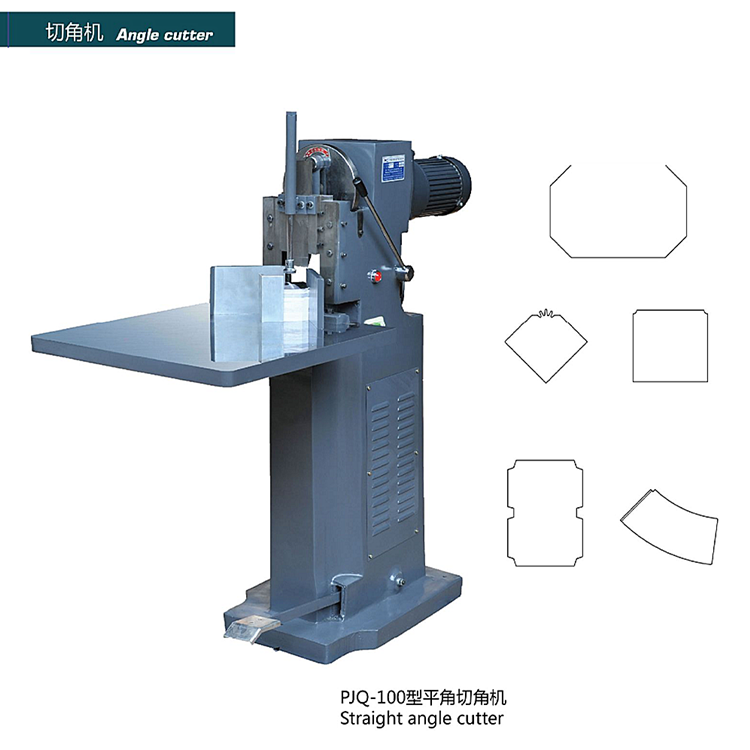

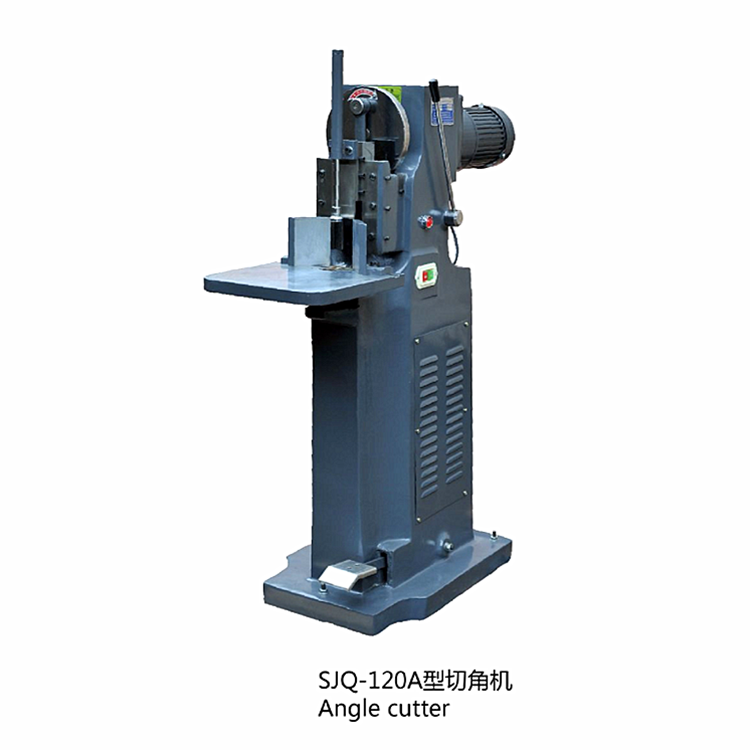

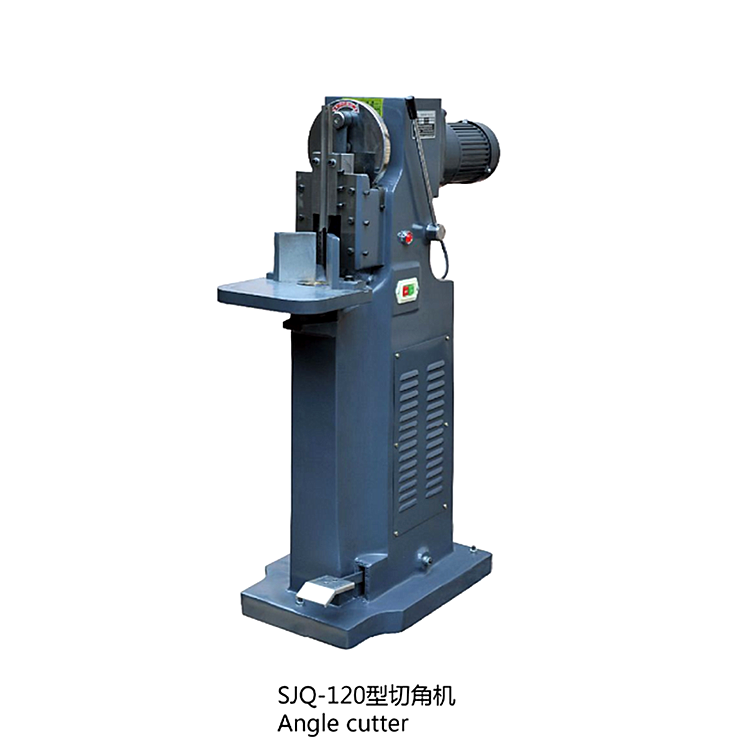

Model SJQ-120 SJQ-120A PJQ-100
(straight angel cutter)
Max cutting height 110mm 110mm 110mm
cutting speed 90Times/Min 90Times/Min 90Times/Min
Voltage 220V/380V 220V/380V 220V/380V
Power 750W 1100W 1100W
Net weight of the machine 260KG 270KG 300kg
Dimension 1050*550*1350mm 1050*550*1350mm 1350*650*1350mm
automaticity Semi-automatic Semi-automatic semi-automatic



3.Features of the Corner cutter

1.It applies to cutting various round angles and flat angles of the notebooks, logo, business cards, books and trademarks, etc.

2.Vertical design with compact structure,easy to use

3.Operated by foot switch

4.Blades can be selected from R1 to R16, Flat die and straight angel die and other sizes of dies can be customized

5.Controlled by clutch

6.Strong cutting force,labor saving,safe

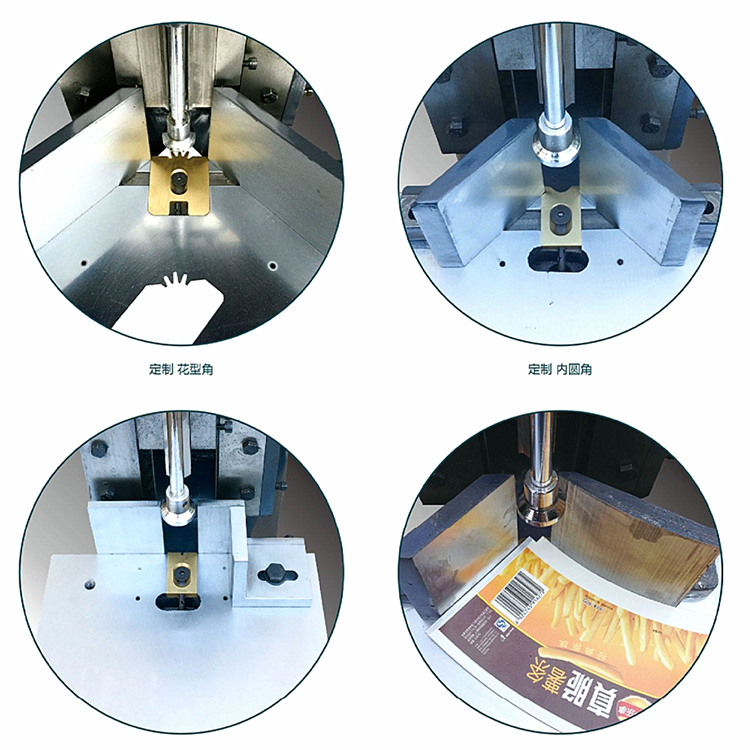

4.Specification of punching dies

    Optional:R1/R1.5/R2/R2.5/R3/R3.5/R4/R4.5/R5/R5.5/R6/R6.5/R7/R8/R10/R12/R14/R16/ 22mm Flat die, 60mm Flat die and straight angel die.Other sizes of dies can be customized

    The punching die is made of high-speed steel, high hardness, long service life.The die cutting product surface is smooth, and the size is unified and regular with higher efficient.

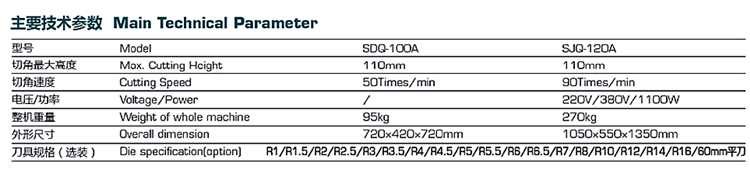

SDQ-100A,SJQ-120A 参数.png










FAQ



1,Are you manufacturer or Trading company?

We are manufacturer and we have been producing angel corner cutter for playing card,cup pad,notebookds and so on for more than 18years.



2, Do you have quality certificate?

 Yes ,we have CE, SGS etc,so you can rely on the quality.



3,What's the delivery time?

Around 20~30days after pre payment received, however, based on order.



4.Can you provide foreign country machine instation services?

Yes,we have a after service team can provide instation services and engineers are available to solve prolems overseas.



5. Can you make punching dies which are used on your machine?

Yes,sure.Just tell your request, we can make it for you.
