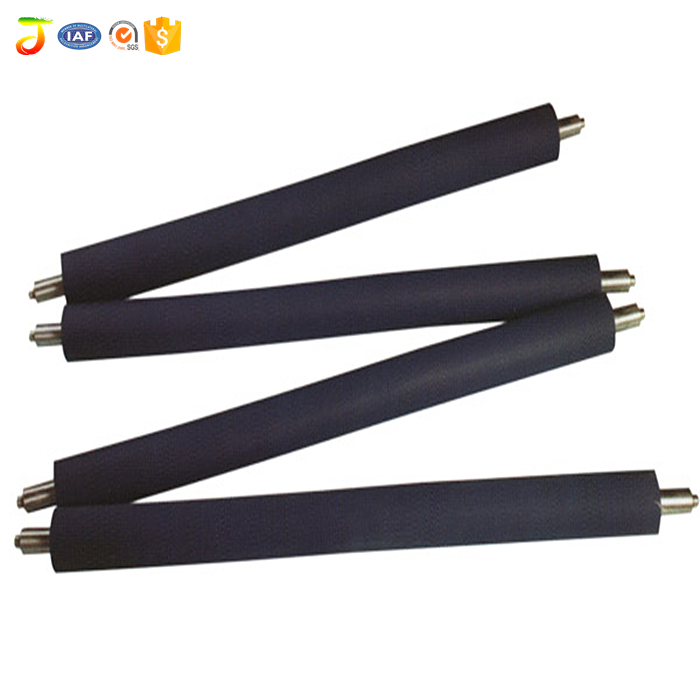

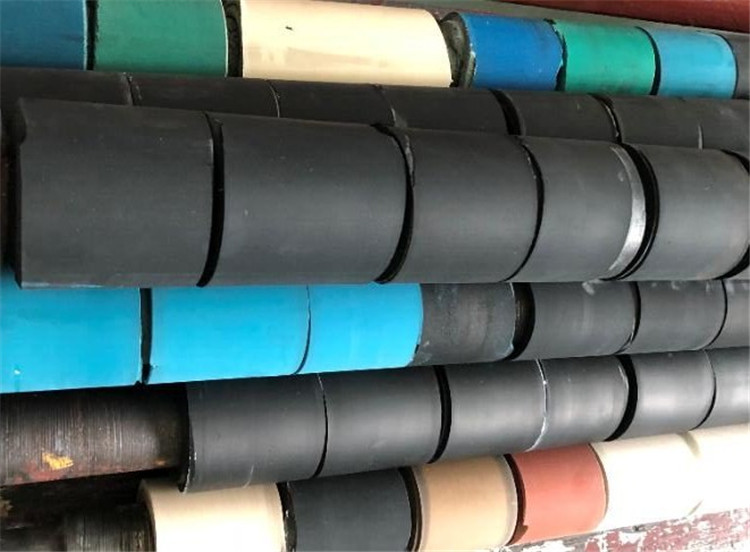

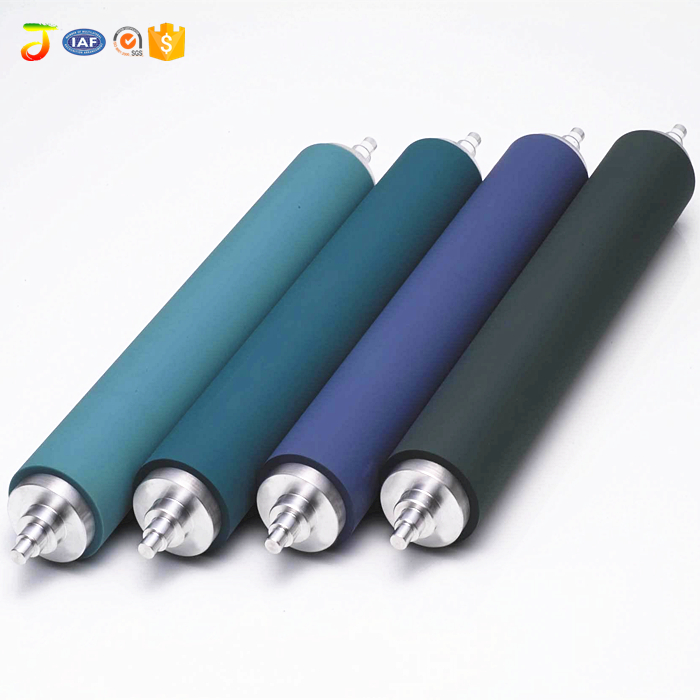

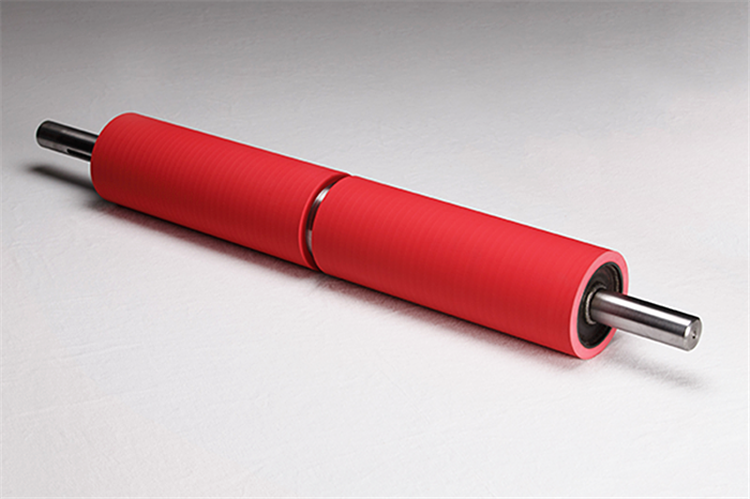

Wear-resisting custom PU rubber roller for transmission machinery
Rubber Material:NBR,Silicone,Rubber,Polyurethane,EPDM, hypalon ETC
Core roller material:45#steel,stainless steel or 5#aluminum
Characters:Good wear resistance,Aging resistance and Wide range of applications
Features of rubber roller
|size||According To Customer's Drawing|
(For offset printing roller,please tell us the model and we can check if we have the drawing )
|Material||NBR,Silicone,Rubber,Polyurethane,EPDM, hypalon ETC|
|Temperature||According customers's requirements|

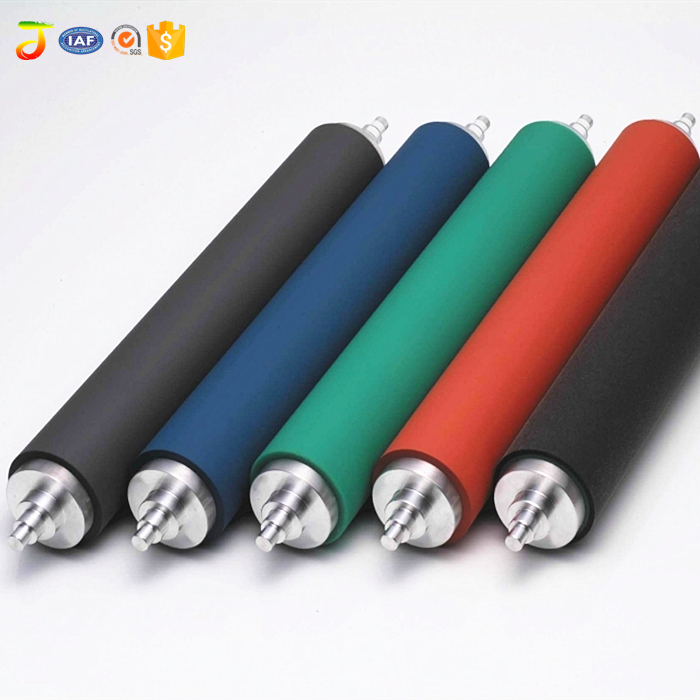

|Color||Red, Black, White, Clear, etc can do the color base on your pantone NO.|
|Roll core||stainless steel,45#steel or 20#steel or 5#aluminum seamless pipe|

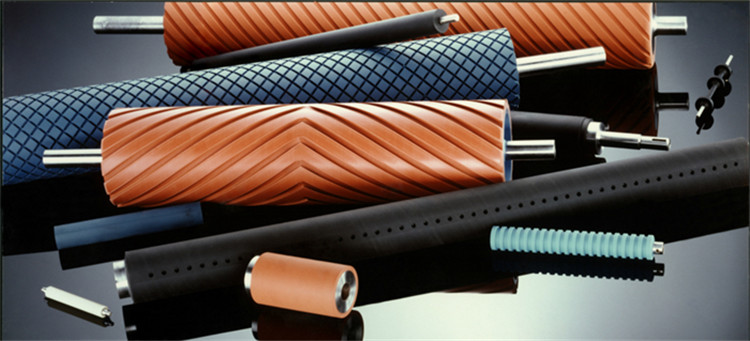

Rubber roller application in all industries
|Rubber roller for textile industry||Glue roller |
|Rubber roller for plastic industry||Winding roller|
|Rubber roller for Steel industry and metallurgy industry||Pickling roller|
|Rubber roller for Paper making industry||Stone roller|
|Rubber roller for Printing and dyeing||Ink ductor roller |
Ink form roller
Ink vibrator roller
Water ductor roller

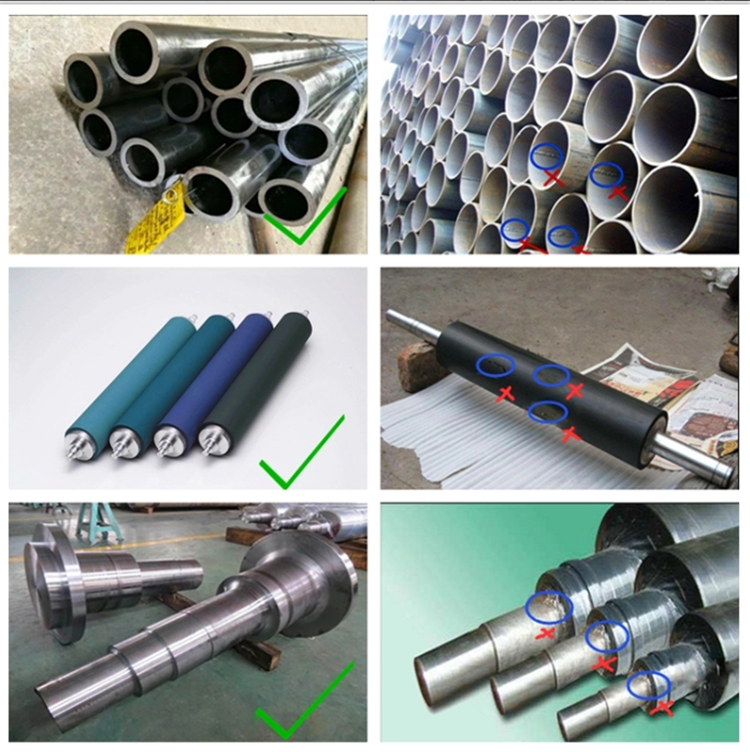

A.Raw materials :
We are using #45 steel , #201stainless steel #304stainless steel and 5# aluminum seamless pipe as the base roller.And we are adopting a reasonable thickness base roller according to customer’s drawing. Some manufacturers will reduce the thickness of the steel pipe in order to get the price advantage.Such roller can’t meet the standards.But we won’t do that.
Our rubber are all imported from Germany or the US and then we mix them in our factory.The rubber coating technical we are using is winding technical. we casting the rubber on the base roller layer by layer and then vulcanize it to make the green rubber into mature rubber.
While other manufacturers are using sheet coating technical,and the rubber is cold in processing and will cause adhesion problems easily.

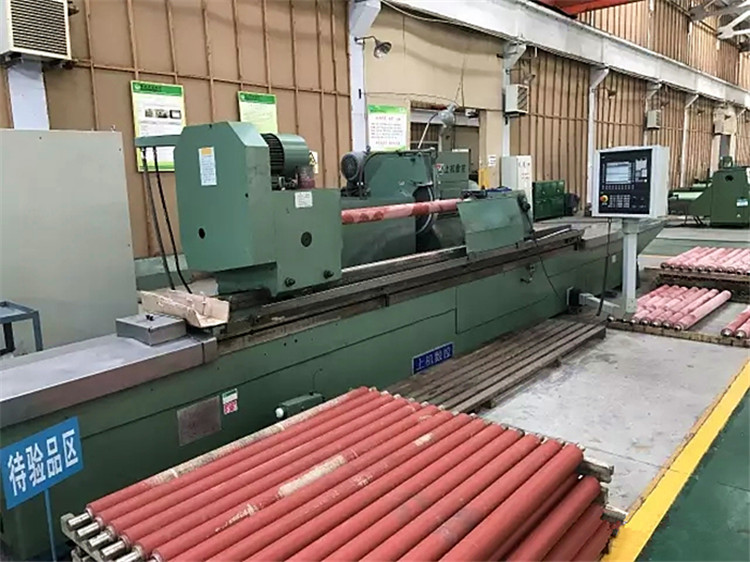

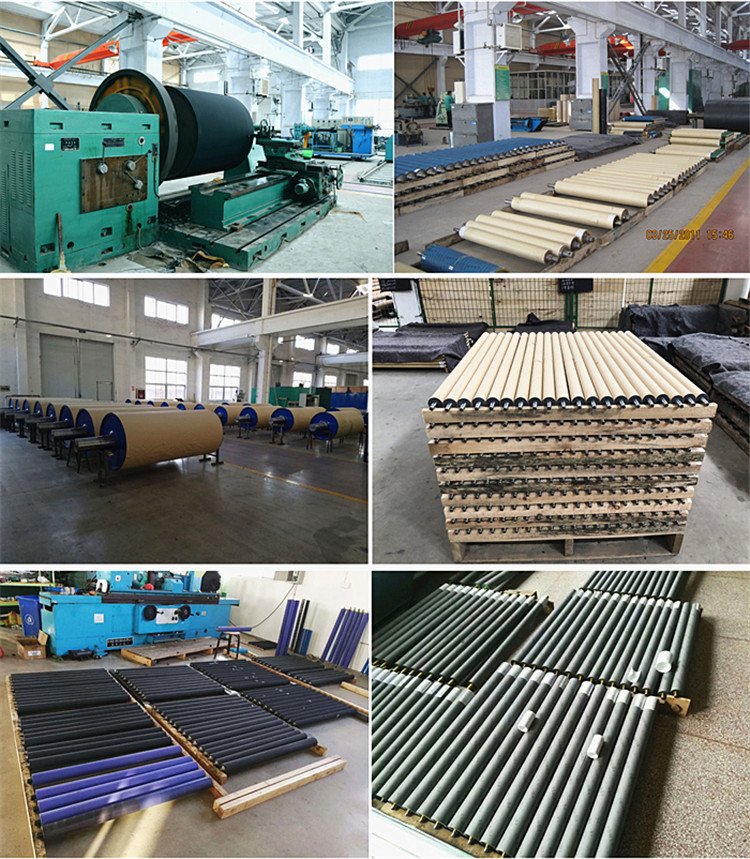

B. Production process:
1) Hot charging technicals:
Adopt hot charging technicals to install the shaft head, and then weld after contraction to ensure the quality of shaft installation.While other supplier are welding the shaft head directly.

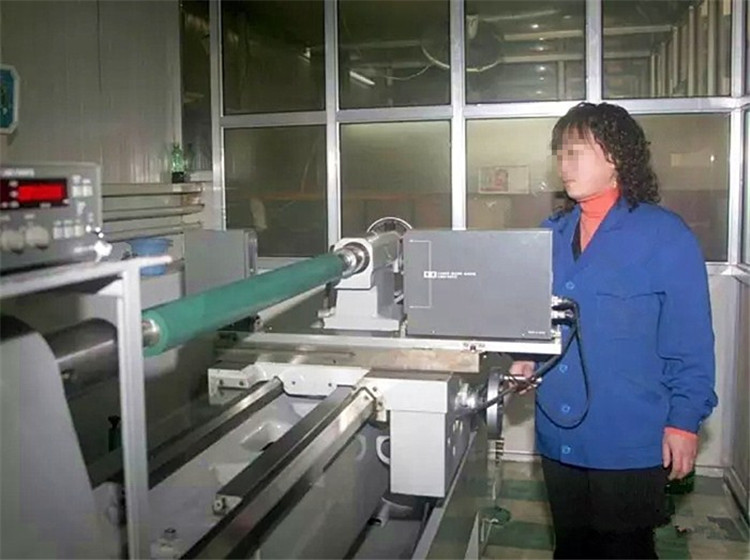

We will do 3 times of dynamic balancing test in the process of production of each rubber roller,which will ensure the using effect. In general,If it can displayed within 10g on the dynamic balancing device, it is called dynamic balancing. But we can do less than 2g.
3)Testing by making small sample before mass production
We will make a small sample before the official production, after vulcanization, 24 hours later we will check the hardness, color, and Impurity situation. We will control the hardness tolerance within 3degree. If it is not qualified we will change the formulated immediately and to make the sample again till all the data reach the customer’s request.
C. Quality control Department
