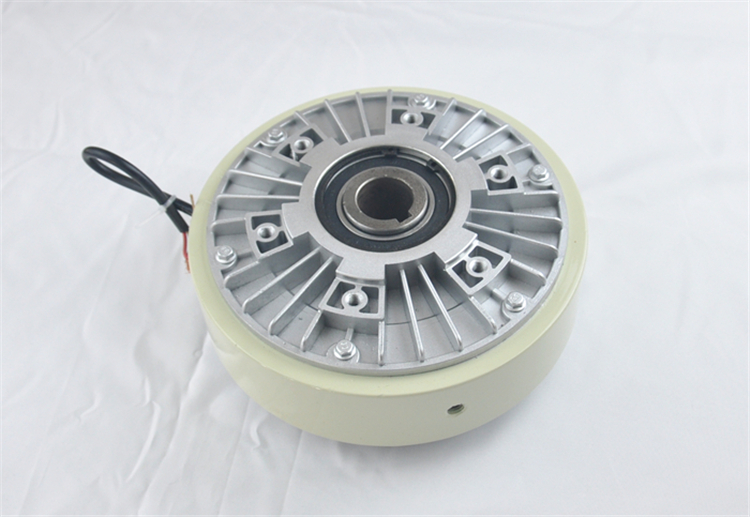

Magnetic powder clutch can transmit torque based on electromagnetic theory and the use of magnetic powder.It has the characteristics which magnetizing current and transmit torque has a linear relationship,It has advantages of fast response,simple structure,no pollution,no noise,no shock and vibration,energy-saving and so on.It is a versatile,superior performance of automatic control components.Magnetic clutch can also be used to buffer starting,overload protection,speed control and so on.
Features of magnetic powder clutch
1)The transmission torque has a linear relationship with the magnetizing current. The size of the torque can get controlled within large range. Under normal circumstance, the magnetizing current has a linear relationship with transitive torque within range of 5%-100% rated torque.
2)The friction part will generate heat inevitably or even destroyed when it keep continuous sliding. But this device has a complete cooling set, it will not generate a lot of heat after long time running and it has a long service life.
Application of magnetic powder clutch
It is widely used in printing machinery, paper industry machinery, bag-making machinery, paper-making machinery,wire and cable machinery,coil machinery,wire winding machines,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, steel extruders, CNC lathes, specialized machinery and so on.
Advantages of magnetic powder clutch
1) High-precision torque control
2) Superior durability,long life
3) The stability of a fixed superior torque characteristics
4) Continuous operation of the use of sliding
5) Ink sleek,non-shock
6) Suitable for high-frequency operation
Models and specifications of magnetic powder clutch

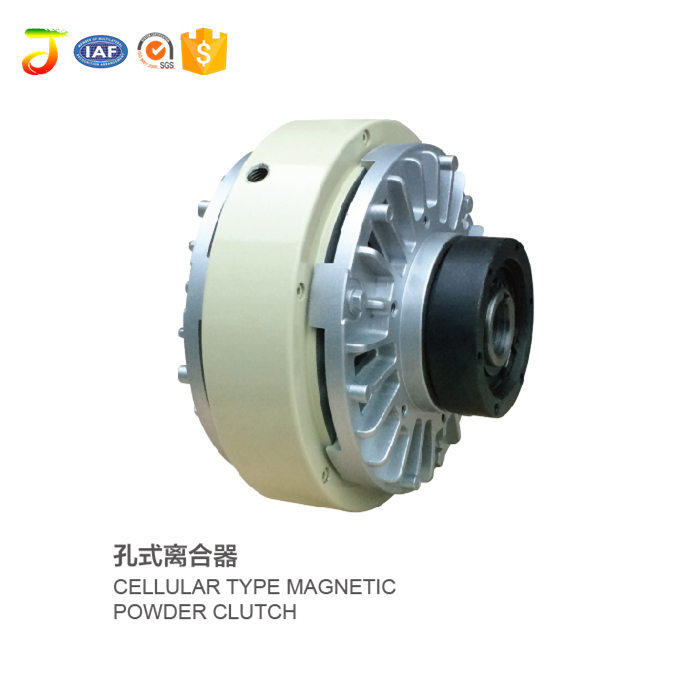

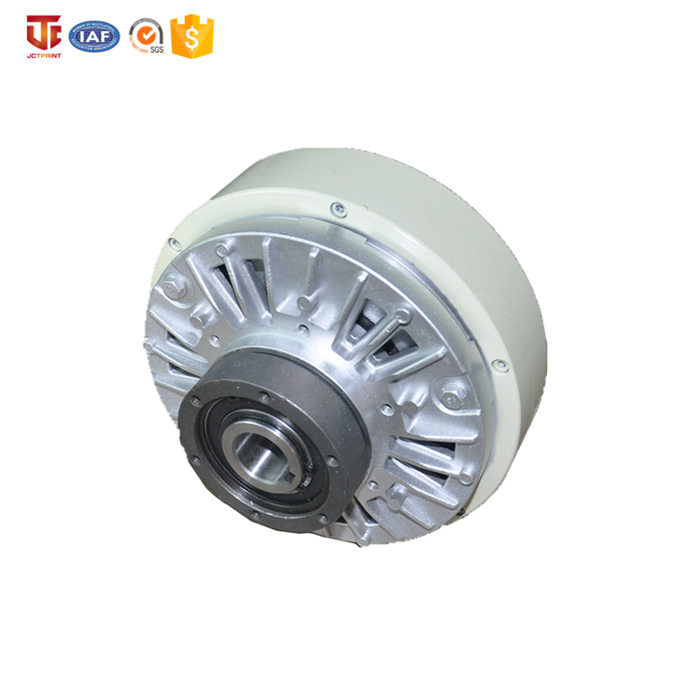

1)Cellular type magnetic powder clutch
|
Modle |
Torque(N.m) |
Current(A) |
Votage(V) |
Rotation speed(RPM) |
Weight(kg) |
|
FL 6K-1 |
6 |
0.8 |
24 |
1400 |
4 |
|
FL 12K-1 |
12 |
1 |
24 |
1400 |
6.5 |
|
FL 25K-1 |
25 |
1.5 |
24 |
1400 |
9.5 |
|
FL 50K-1 |
50 |
1.8 |
24 |
1000 |
15 |
|
FL 100K-1 |
100 |
2 |
24 |
1000 |
32 |
|
FL 200K-1 |
200 |
2.5 |
24 |
1000 |
50 |
|
FL 400K-1 |
400 |
3 |
24 |
1000 |
91 |

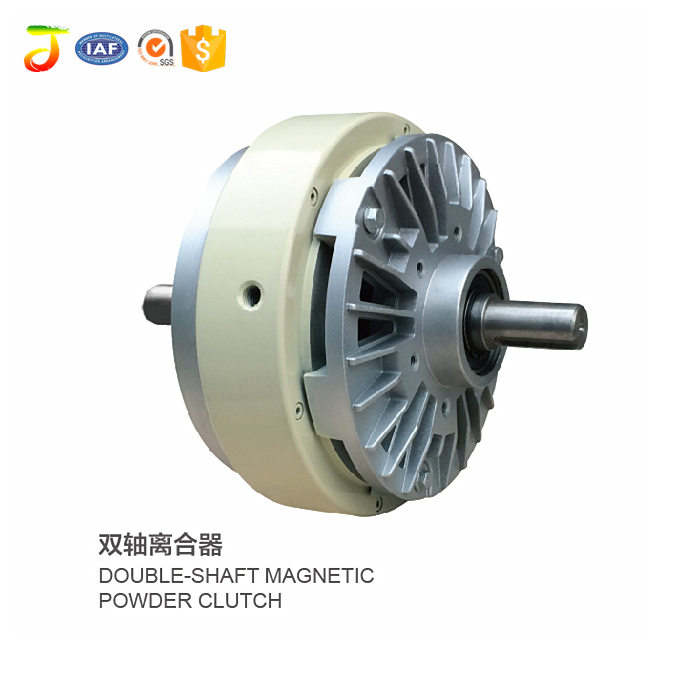

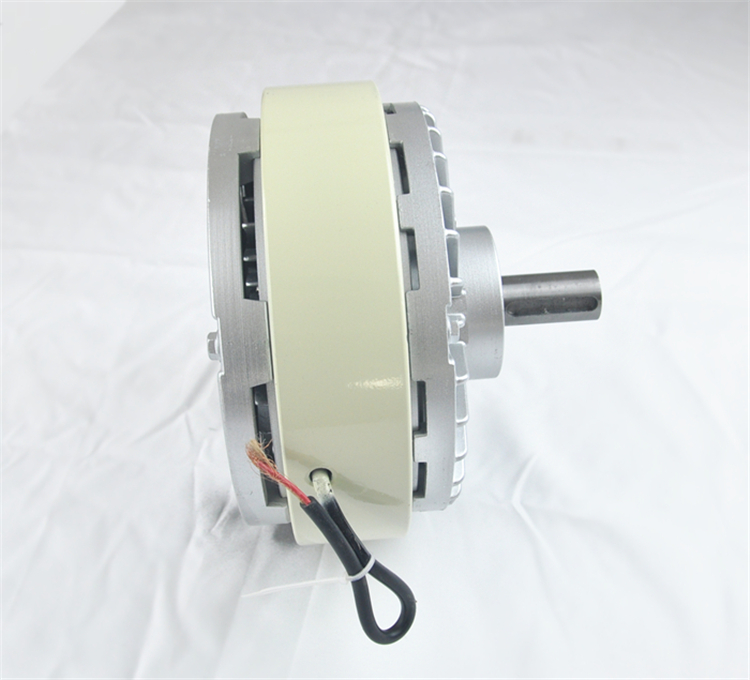

2)Shaft type magnetic powder clutch
|
Modle |
Torque(N.m) |
Current(A) |
Votage(V) |
Rotation speed |
Weight(kg) |
|
FL 6A-1 |
6 |
0.8 |
24 |
1400 |
4 |
|
FL 12A-1 |
12 |
1 |
24 |
1400 |
6.5 |
|
FL 25A-1 |
25 |
1.5 |
24 |
1400 |
9.5 |
|
FL 50A-1 |
50 |
1.8 |
24 |
1400 |
15 |
|
FL 100A-1 |
100 |
2 |
24 |
1000 |
30 |
|
FL 200A-1 |
200 |
2.5 |
24 |
1000 |
55 |
|
FL 400A-1 |
400 |
3 |
24 |
1000 |
80 |
