Aluminum alloy Diaphragm air pump
Aluminum alloy Diaphragm air pump Aluminum alloy Diaphragm air pump Aluminum alloy Diaphragm air pump Aluminum alloy Diaphragm air pump Aluminum alloy Diaphragm air pump

Aluminum alloy Diaphragm air pump

Product ID : JCTPRINT-GMB-P013
Product Tags :
Product Attributes :

BML series diaphragm pump is a new type of conveying machinery, using compressed air as the power source, can not only exhauste the flow liquid, but also can convey some uneasy flowed medium.It also can be used for corrosive liquids,  liquid particles, high viscosity, volatile, flammable, highly toxic liquid.It has the advantages of submersible pumps, self-priming pumps, impurity pumps, shielding pumps and mud pumps.

Product Description



                                                                                                             Aluminum alloy Diaphragm air pump



Product Description

1. Introduction of diaphragm pump

BML series diaphragm pump is a new type of conveying machinery, using compressed air as the power source, can not only exhauste the flow liquid, but also can convey some uneasy flowed medium.It also can be used for corrosive liquids,  liquid particles, high viscosity, volatile, flammable, highly toxic liquid.It has the advantages of submersible pumps, self-priming pumps, impurity pumps, shielding pumps and mud pumps.

There are 3kinds of diaphragm pump we can supply,PP plastic pneumatic diaphragm pump, stainless steel pneumatic diaphragm pump and BML pneumatic diaphragm pump.

2. Specification of BML series diaphragm pump



Type BML-5 BML--10 BML--15 BML-20 BML-25 BML--40 BML--50
Diaphragm type Single Double Double Double Double Double Double
Max Flow Rate 10L/min 15L/min 35L/min 54L/min 160L/min 379L/min 568L/min
Connection to Liquid 1/4″ 3/8″ 1/2″ 3/4″ 1″ 1-1/2″ 2″
Limit of Slurry 2mm 2mm 2mm 3mm 3mm 4.8mm 6.3mm
Suction heigh 2m 5m 7m 8m 9m 10m 11m
Lift 4m 60m 70m 70m 70m 70m 70m
Max.Discharge Pressure 0.5Mpa 0.7Mpa 0.7Mpa 0.7Mpa 0.7Mpa 0.8Mpa 0.8Mpa
Air Supply Pressure Range
(Mpa)
0.2-0.5 0.2-0.7 0.2-0.7 0.2-0.7 0.2-0.7 0.2-0.8 0.2-0.8
Material  of Diaphragm PTFE PTFE PTFE PTFE PTFE CR PTFE CR PTFE
Body Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Net Weight 1.8kg 3.5kg 4.5kg 6kg 14kg 16kg 28kg
Ctn Dimension
(mm)
180*180*210 270*270*280 180*220*280 200*230*320 240*300*450 275*400*540 340*460*640

3. Advantages

  • Adopting Japanese technology, with the character of high efficiency,steady and durable.

  • Corrosive,particles containing and high viscosity liquid can be transported.

  • Without dead point or freezing point to ensure running steadily

  • Strong power to make the long-distance liquid transportation easily

  • Easy operation,the liquid transportation can be stepless regulated

  • Using the compressure air as power, anti- explosion and safety



Product Pictures

.png

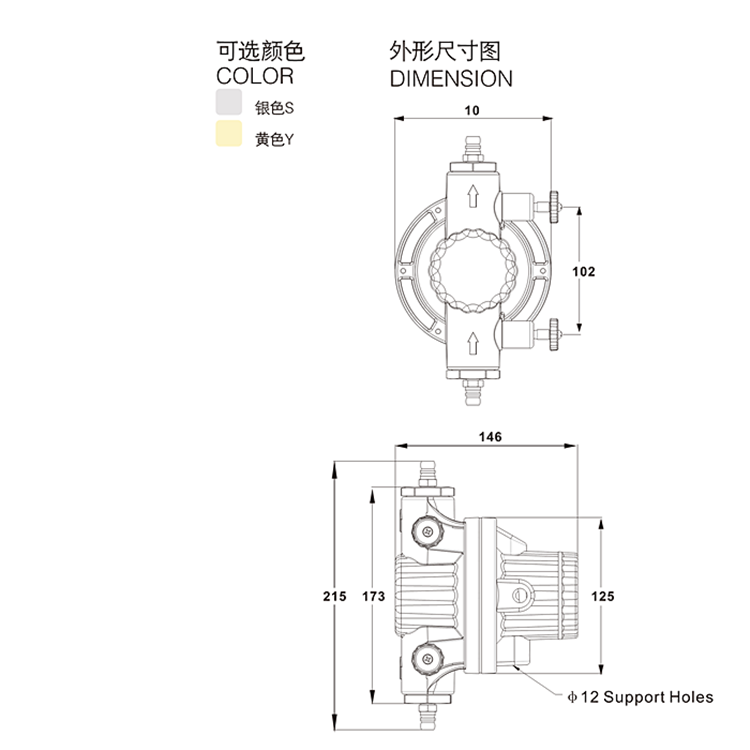

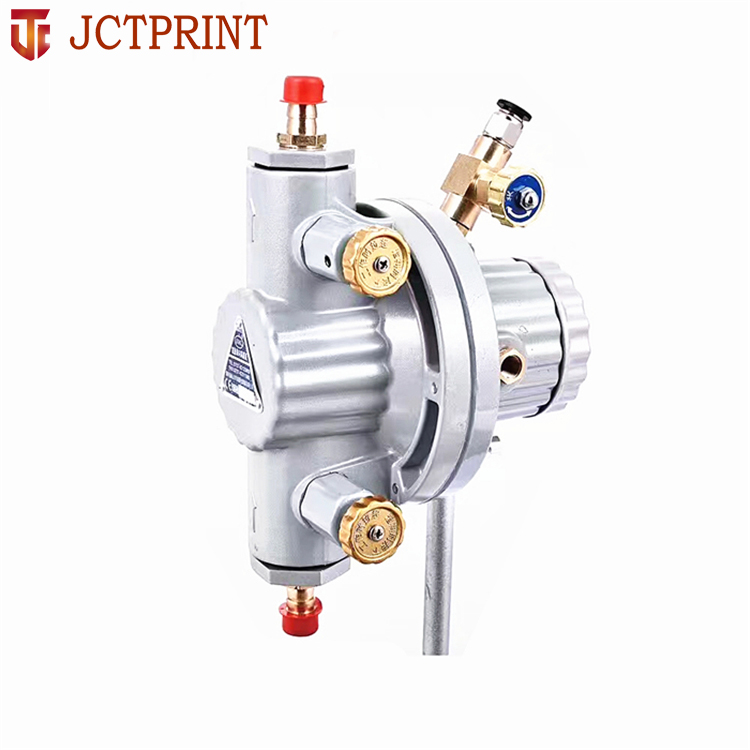

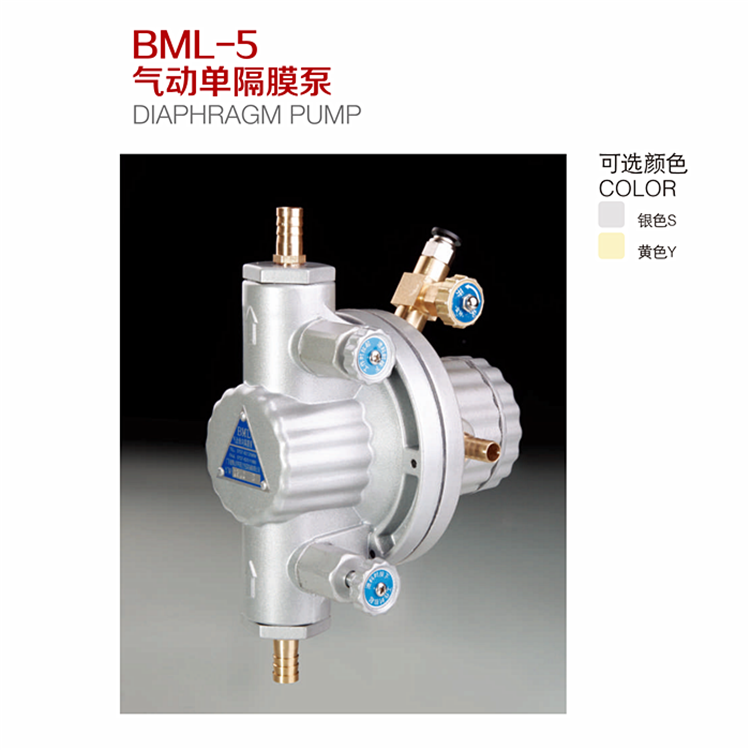

 Pictures of BML-5

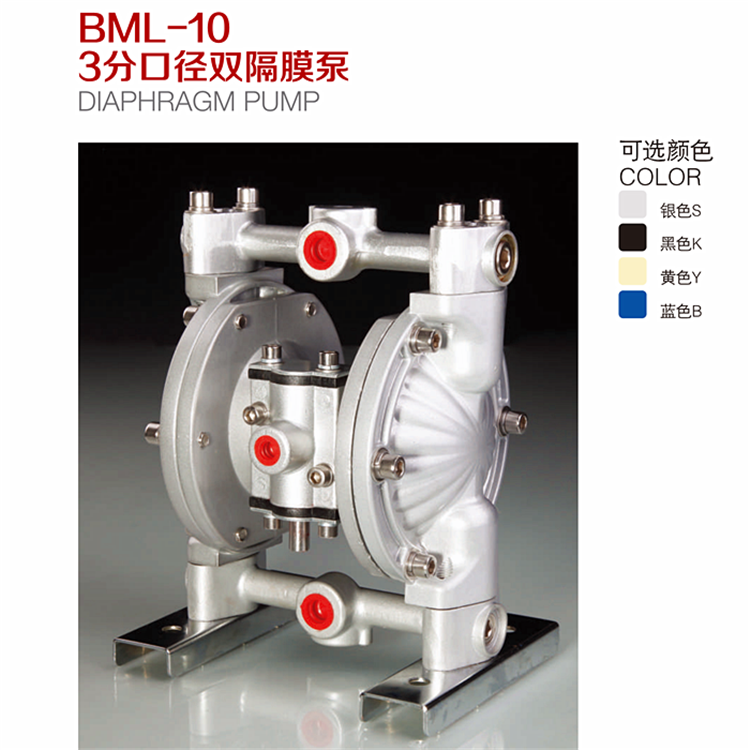

Pictures of BML-10


Pictures of BML-15

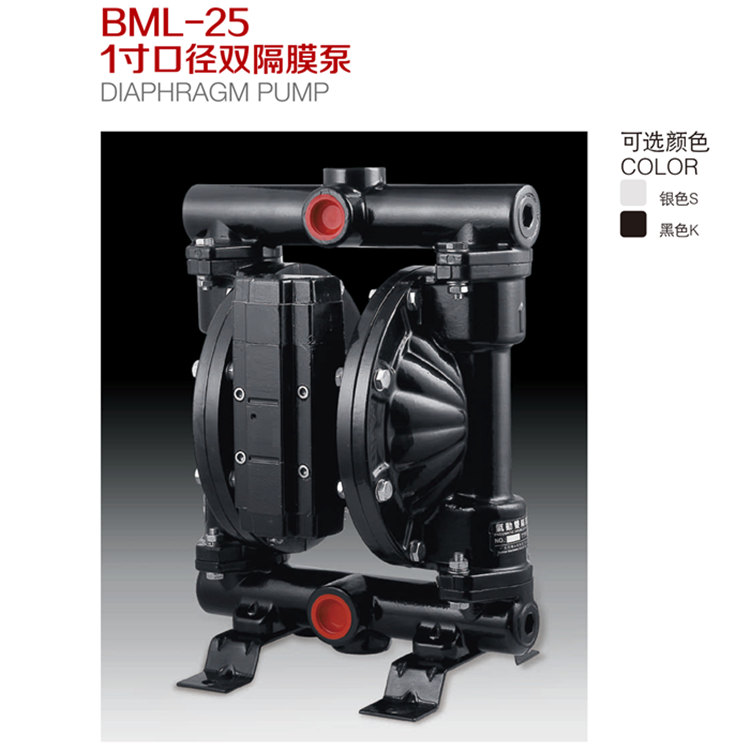

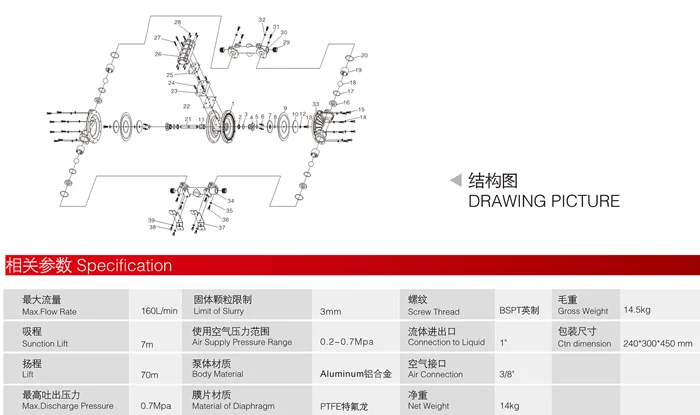

 Pictures of BML-25



.jpg

Company Information







 FAQ



1. Are you manufacturer or Trading company?

We are manufacturer and we have been producing anilox cleaner for many years and our machine are sold to more than 20countries in the world and have good reputation.



2. Do you have quality certificate?

Yes ,we have CE, SGS etc,so you can rely on the quality.



3. What's the delivery time?

Around 10-20 days after pre payment received, however, based on order.



4. Can you provide foreign country machine instation services?

Yes,we have a after service team can provide instation services and engineers are available to solve prolems overseas.
