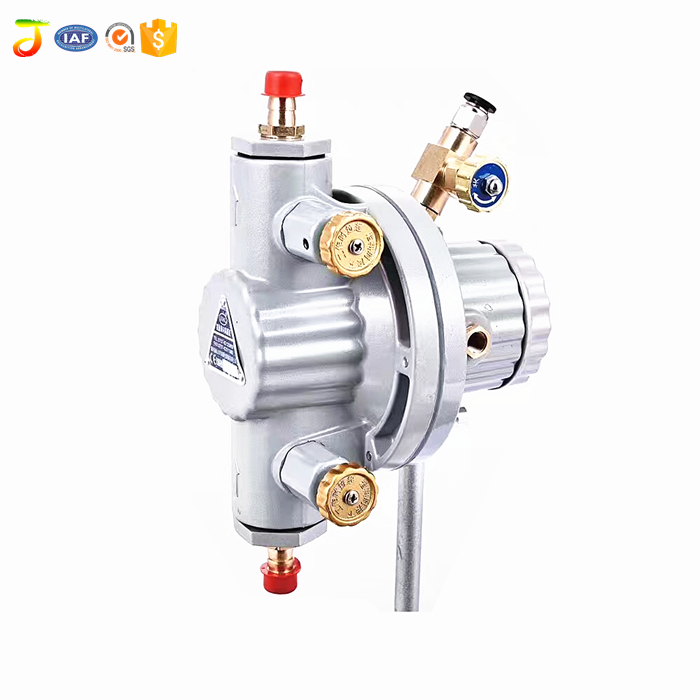

Pneumatic Single Diaphragm Pump
Pneumatic Single Diaphragm Pump Pneumatic Single Diaphragm Pump Pneumatic Single Diaphragm Pump Pneumatic Single Diaphragm Pump Pneumatic Single Diaphragm Pump

Pneumatic Single Diaphragm Pump

Product ID : P008
Product Tags :
Product Attributes :

Place of Origin:Shandong, China (Mainland)

Model Number:JCT-10-4

Theory:Vacuum Pump

Structure:Diaphragm Pump

Usage:Air Pump

Power:Pneumatic

Fuel:Air

Pressure:Low Pressure

Max.Flow Rate:15L/min

Body Material:Aluminum

Gross weight:5kg

Ctn dimension:270*270*280mm

Series:pneumatic diaphragm pump

Max. Flow Rate:10L/min-568L/min

Color:black /silver/yellow/white

MOQ:1 Piece










Product Description

Pneumatic diaphragm pump JCT-10





Product Description



Applicable industries:

General industry:

Lubricating oil, heavy oil,cutting liquid,electrical discharge machining fluid and powder transportation,Mold release agent circulating and spray,etc.



Plastic Packing Industry:

To be used for ink circulating of Rotogravure printing and flexo printing, glue circulating of laminating and coating.



Chemistry:

Chemical,emulsion,adhesive glue,stone halide materials and cosmetic transportation,etc.



Paint decoration:

Paint,cleaning fluid and solvent transportation,Color mixing device and drainage device of the painting room.



Ceramic:

Mud transportation and circulation,glaze spay and circulation



Others:

The semiconductor industry ,printing industry,rubber industry,paper industry,textile and furniture industry.



Specification:



Max.Flow Rate

15L/min

Sunction Lift

5m

Lift

60m

Max.Discharge Pressure

0.7Mpa

Limit of Slurry

2mm

Air Supply Pressure Range

0.2-075Mpa

Body Material

Aluminum

Material Diaphram

PTFE

Screw Thread

BSPT

Connection to Liquid

3/8”

Air Connection

1/4”

Net weight

3.5kg

Gross weight

5kg

Carton dimension

270*270*280mm



Advantage:

1. Adopting Japanese technology, with the character of high efficiency,steady and durable

2.Caustic,particles containing and high viscosity liquid can be transported

3.Without dead point or freezing point to ensure running steadily

4.Strong power to make the long-distance transportation easily

5.Easy operation,the liquid transportation can be stepless regulated

6.Using the compressure air as power to make anti- explosion and safety

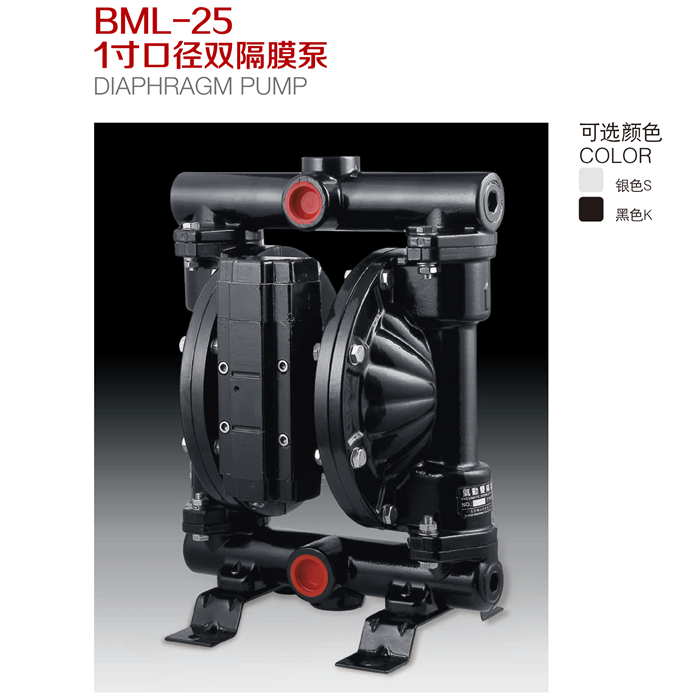

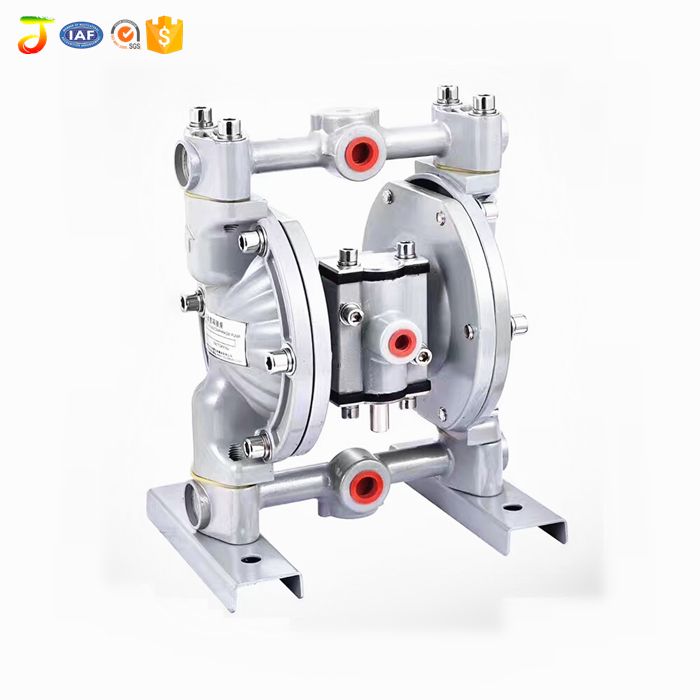

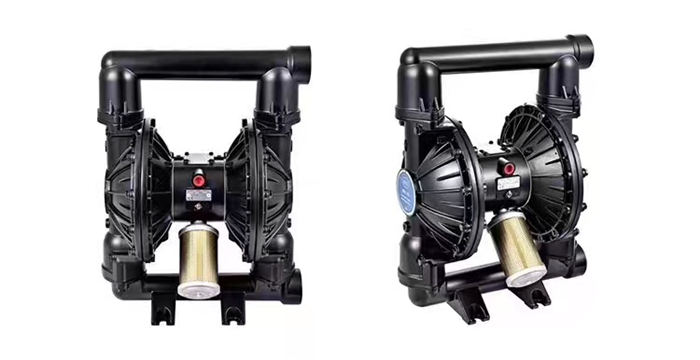

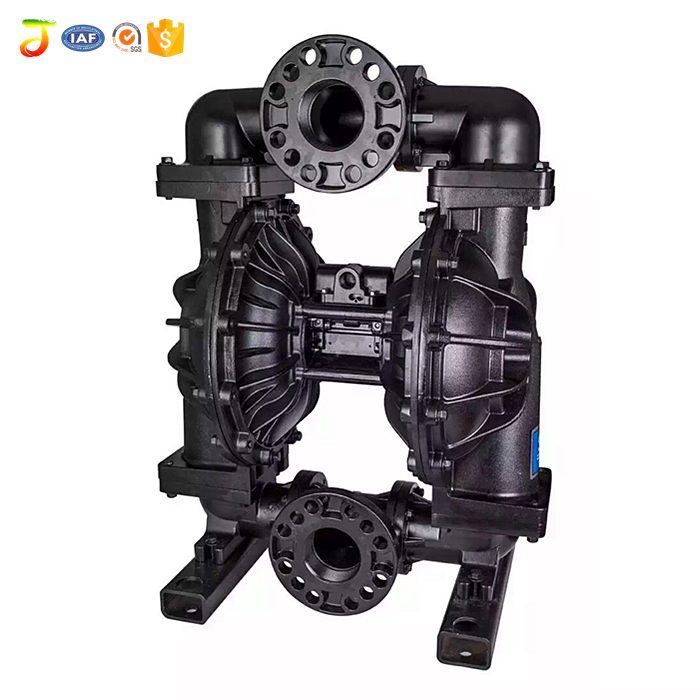

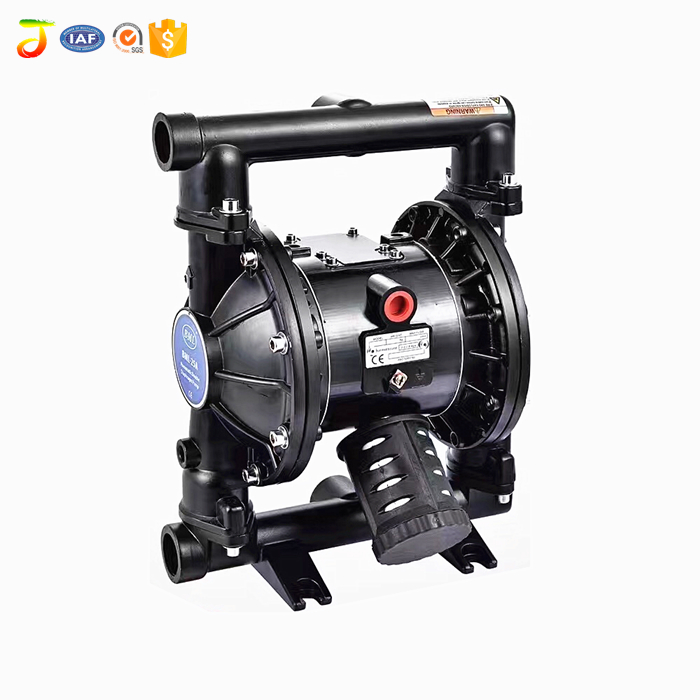

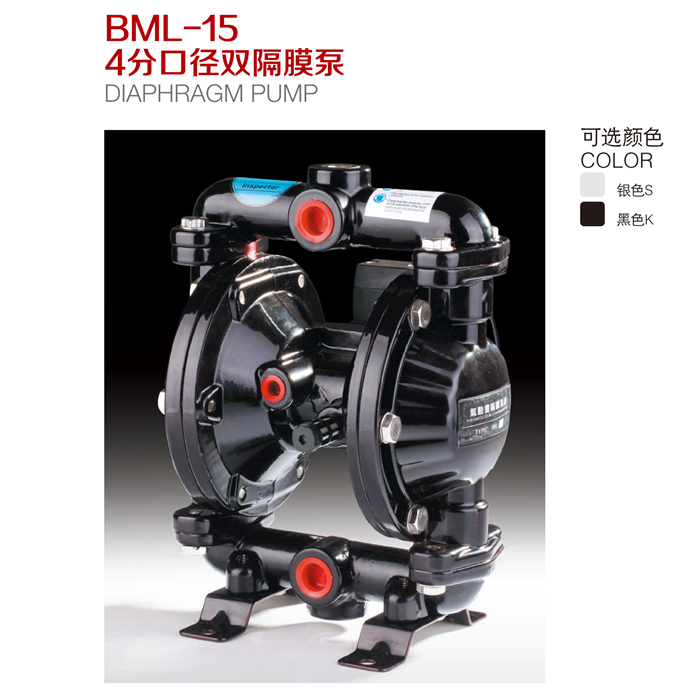

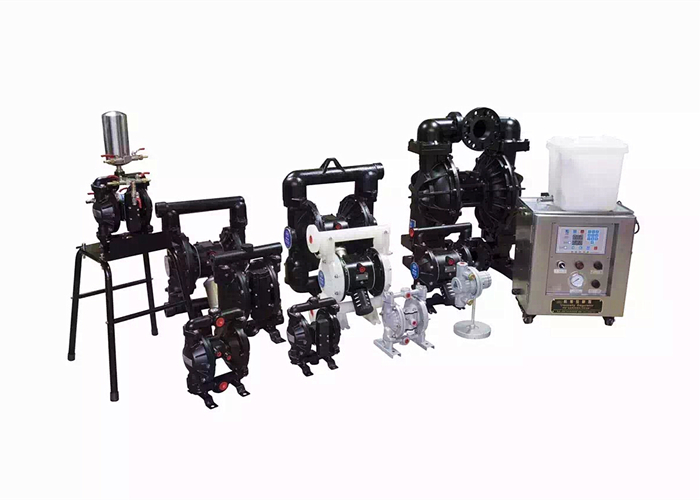

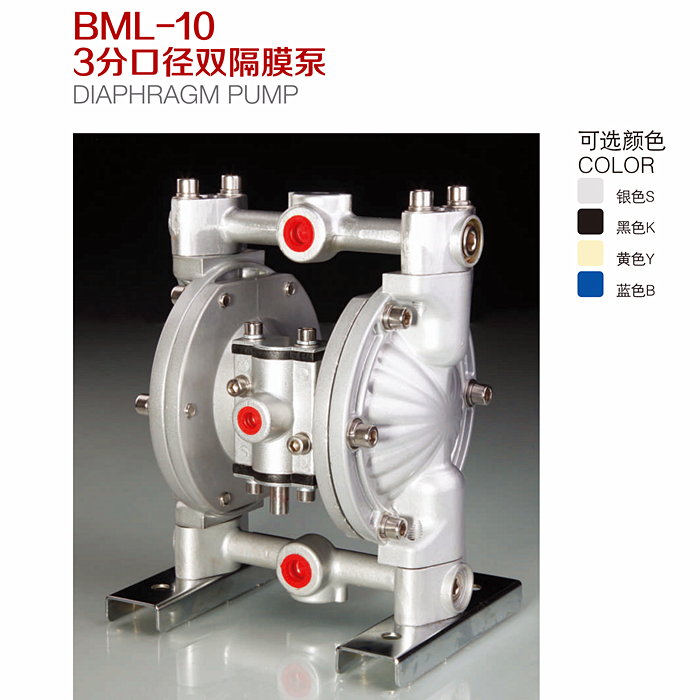

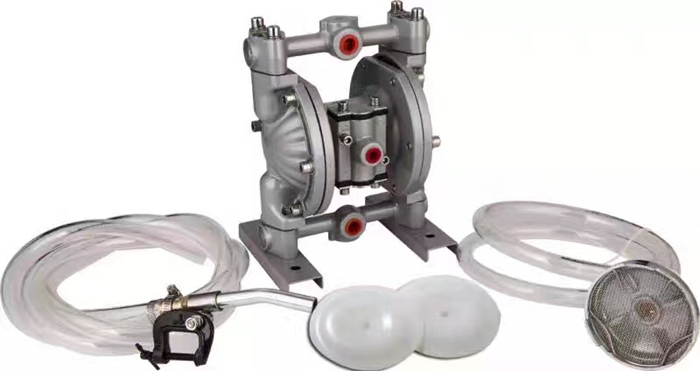

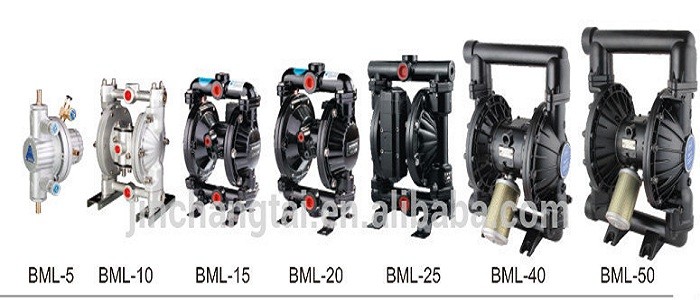

Product picture

 Pneumatic Single Diaphragm PumpPneumatic Single Diaphragm PumpPneumatic Single Diaphragm PumpPneumatic Single Diaphragm PumpPneumatic Single Diaphragm PumpPneumatic Single Diaphragm PumpPneumatic Single Diaphragm PumpPneumatic Single Diaphragm PumpPneumatic Single Diaphragm PumpPneumatic Single Diaphragm Pump
