Gravure printing doctor blade
Gravure printing doctor blade Gravure printing doctor blade Gravure printing doctor blade Gravure printing doctor blade Gravure printing doctor blade

Gravure printing doctor blade

Product ID : P001
Product Tags :
Product Attributes :

Product name:Gravure printing doctor blade

Series:gravure printing doctor blade



Printing speed:0-180/min

Material:T10, SK4, C100, 20C

Thickness:0.07-0.1mm

Height:10-60mm

Length:100m

Hardness:1960N/mm(580HV+/-15)

Size:customized

MOQ:5 Boxes



Product Description

Gravure printing doctor blade



Product Description



Our company is a professional saler of all kinds of soft packaging and printing ink doctor blade, printing equipment, supplies of spare parts, printing raw materials and related technical services to Integrated Company. We own professional technical staff, can provide a full range of solutions in packaging and printing industry related technology equipment for customers. Our company will stick on good faith principle, pragmatic attitude, to provide high-quality products and service for the domestic printing industry.

Our doctor blade is made of high quality steel, the technology process is unique and high precision manufacturing, blade is thin and elastic strength and high toughness, smoothness, good special and unique, self sharpening opening to application research, or before the work without turning and grinding, which can ensure the good contact with the surface of the plate, so as to achieve the best scraping effect. Due to the high precision blade manufacturing, durable degree is high, so it can greatly reduce the production cost and save the replacement or turning grinding blade time. This coating doctor blade is mainly used in gravure, flexo printing, also suitable for coating, color printing, embossing, metal printing, scraping, pulp industry. We can supply all the dimension according to your requirement.

Gravure printing doctor Blade Technical data sheet

Level

low speed blade

middle speed blade

above the average

high speed blade

speed

0-80/min

0-120/min

0-150/min

0-180/min

material

T10

SK4

C100

20C



Doctor Blade specification

Specification

Detail

Hardness

1960N/mm(580HV+/-15)

Edge thickness

0.07mm-0.10mm

Edge height

1.3mm

Blade thickness

0.15mm-1.5mm

Blade height

10-60mm

Length of each box

100m



Gravure printing Doctor Blade dimension

regular size

30(40,50,60)×0.15

25(30,35,40,50,60)×0.2

10×0.1

17(30,40,50,60)×0.3

60×0.4

50×0.5

Customized



Gravure printing doctor Blade FEATURES:

Feature

Detail

1

Good scraping effect &high printing quality

2

Good elasticity & strong layering feeling

3

Durable &Long life

Application :

Doctor blade is widely used in gravure packing printing, publication gravure printing, flexography printing, coating printing, offset coating etc.



Delivery

Delivery in 20 days after payment received

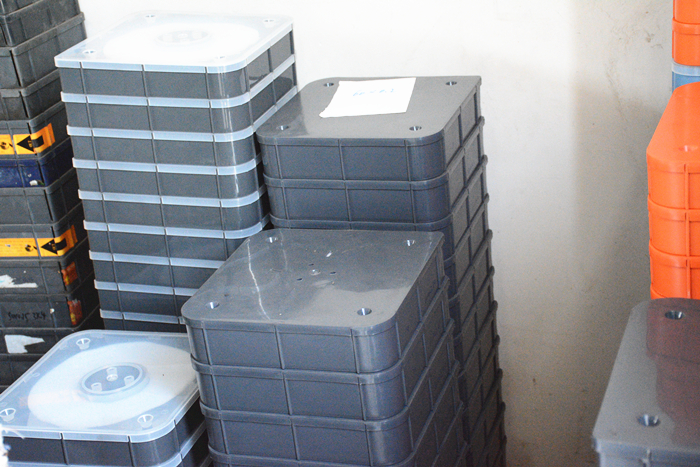

Packaging

Standard export carton, also can be packaged as customer's requirement.

Detail:according to customer’s requirement

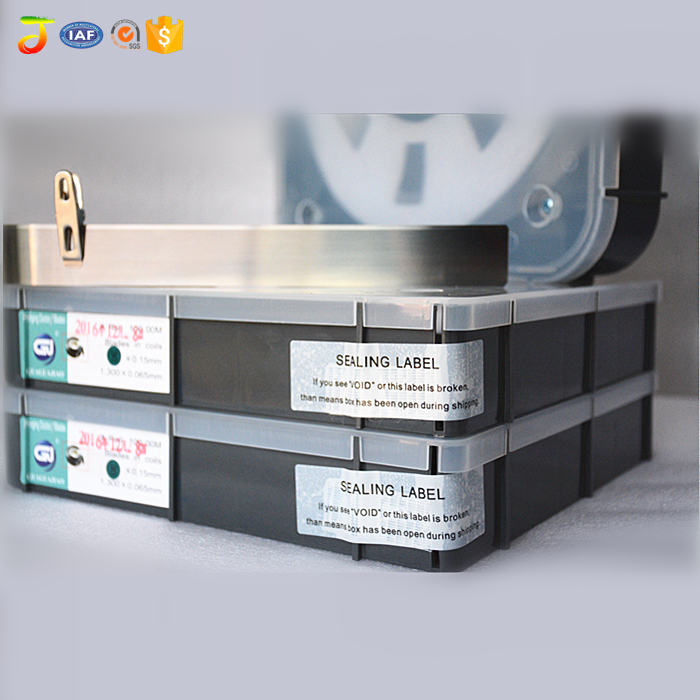

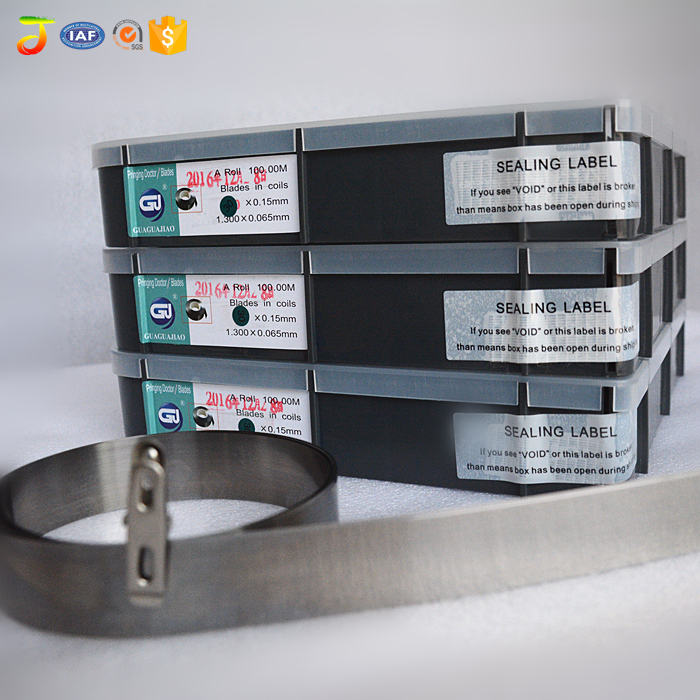

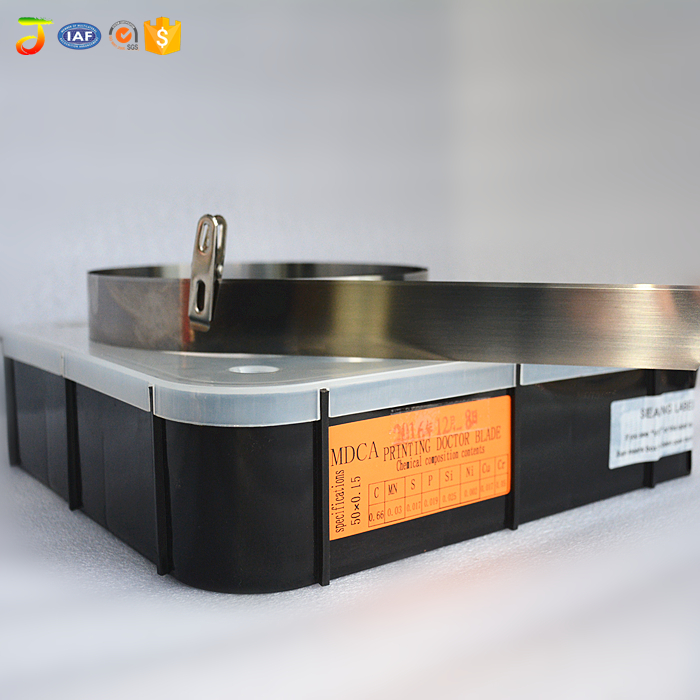

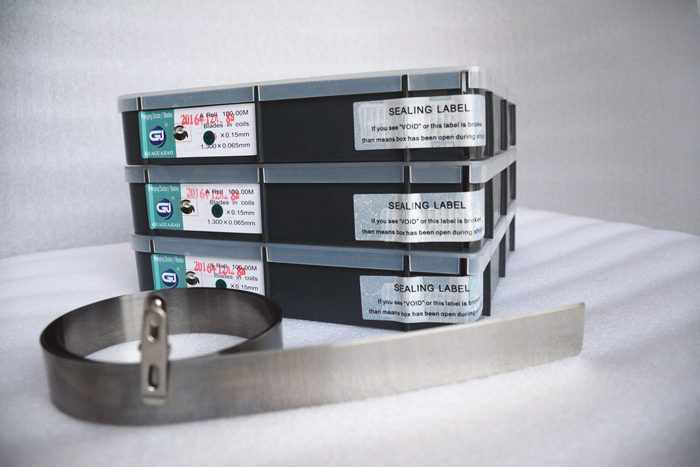

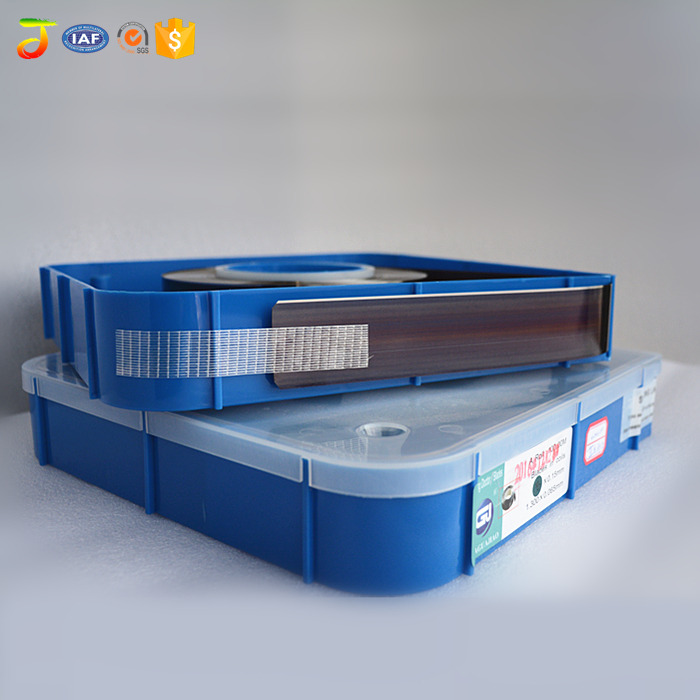

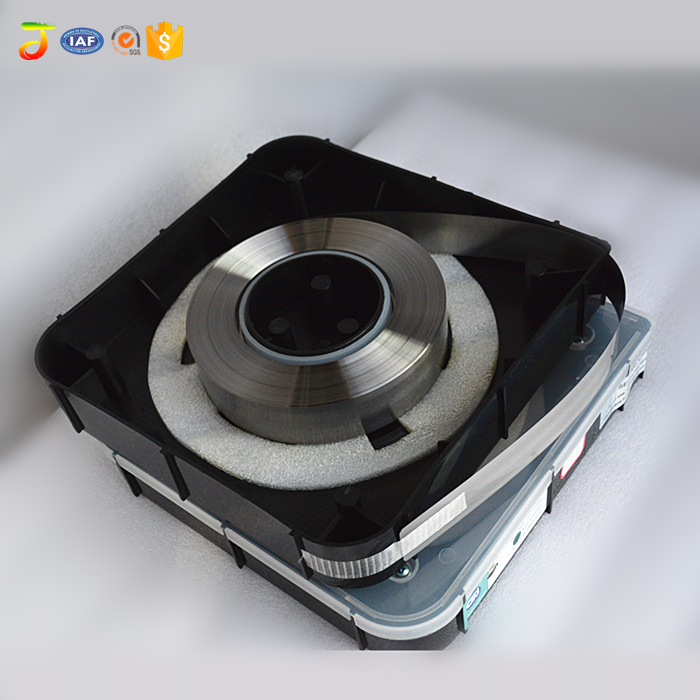

Product picture
