Key Ball Type Differential Friction slip Air Shaft for sale
Key Ball Type Differential Friction slip Air Shaft for sale Key Ball Type Differential Friction slip Air Shaft for sale Key Ball Type Differential Friction slip Air Shaft for sale Key Ball Type Differential Friction slip Air Shaft for sale Key Ball Type Differential Friction slip Air Shaft for sale

Key Ball Type Differential Friction slip Air Shaft for sale

Product ID : JCT-HCZ-001
Product Tags :
Product Attributes :

Slip type inflatable shaft is mainly used for slitting equipment with higher quality requirements for slitting products and relatively fast speed. The special section of slip shaft, independent slip and torque setting structure, will be able to solve the slitting of each roll of material The unwinding phenomenon caused by uneven thickness and tension can effectively improve product quality and work efficiency.

Product Description

Key Ball Type Differential Friction slip Air Shaft for sale


The introduction of differential slip shaft:

A special winding, unwinding, that is, the surface can be inflated through a high pressure shaft protruding surface part deflate quickly after retraction axis is called air shaft air Shafts are used in the manufacturing processes for fitting into a core onto which materials such as paper, card and plastic film are wound.

201511616555_1


Usage of differential slip shaft:

 Slitting/Rewinding where multiple roll widths are running on one air shaft.
The Differential Air Shaft is suitable for the full range of converting and web production operations. Its rugged construction and shaft design is available in 3", 6", and 10" diameters and up to 150" wide. Air shaft weights for your specific application are available upon request.



The introduction of differential slip shaft:

A special winding, unwinding, that is, the surface can be inflated through a high pressure shaft protruding surface part deflate quickly after retraction axis is called air shaft air Shafts are used in the manufacturing processes for fitting into a core onto which materials such as paper, card and plastic film are wound.



Application of JCT differential slip shaft:

The Differential Air Shaft Clutched Rollers that auto-lock to equalize tension on multiple width cores that can be placed anywhere on the shaft. It features a bi-directional, internal clutching
mechanism which actuates based on the location of each core on the shaft. When the shaft begins to rotate, the rollers under each core lock independently and apply tension to each individual core.

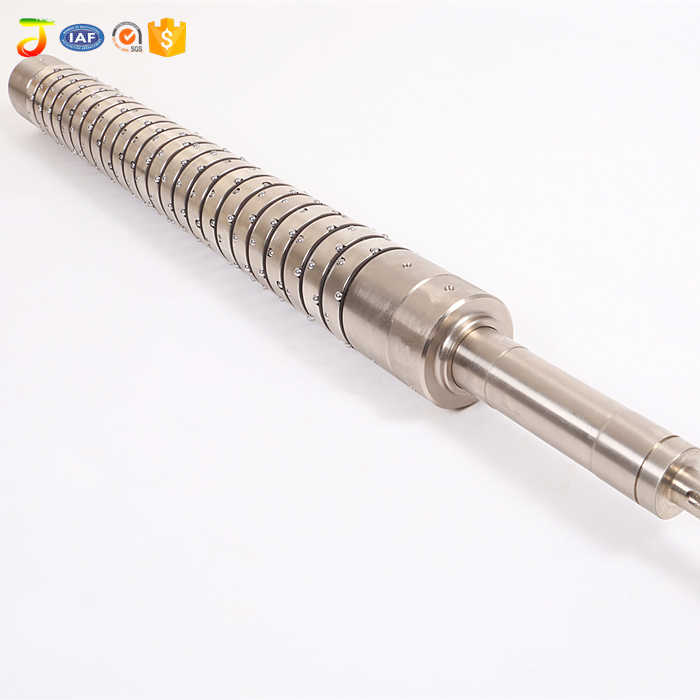

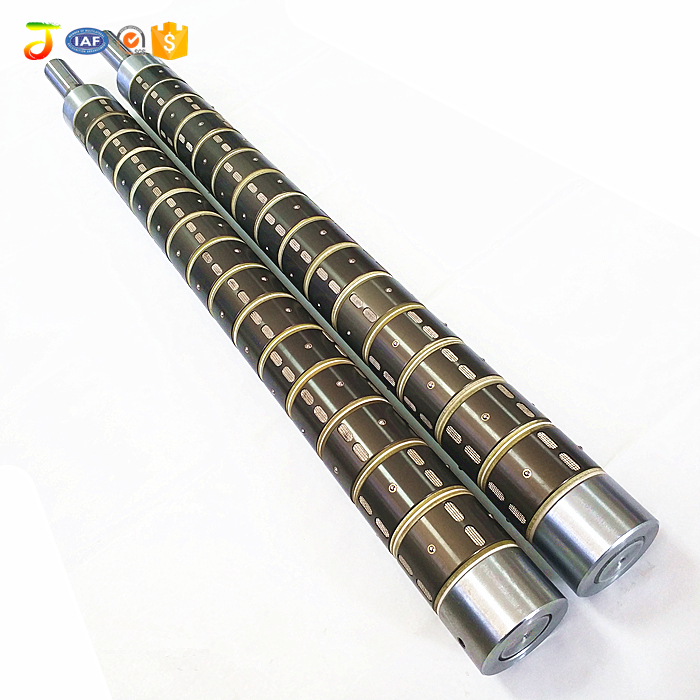

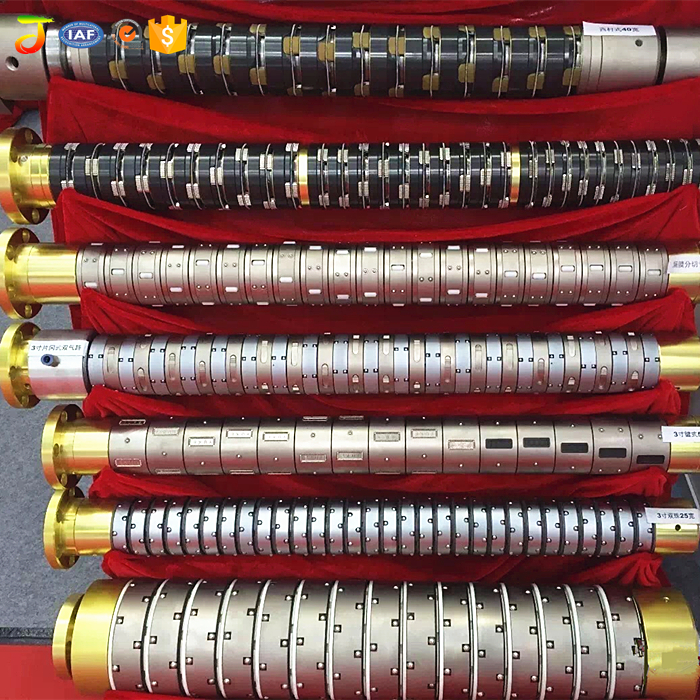

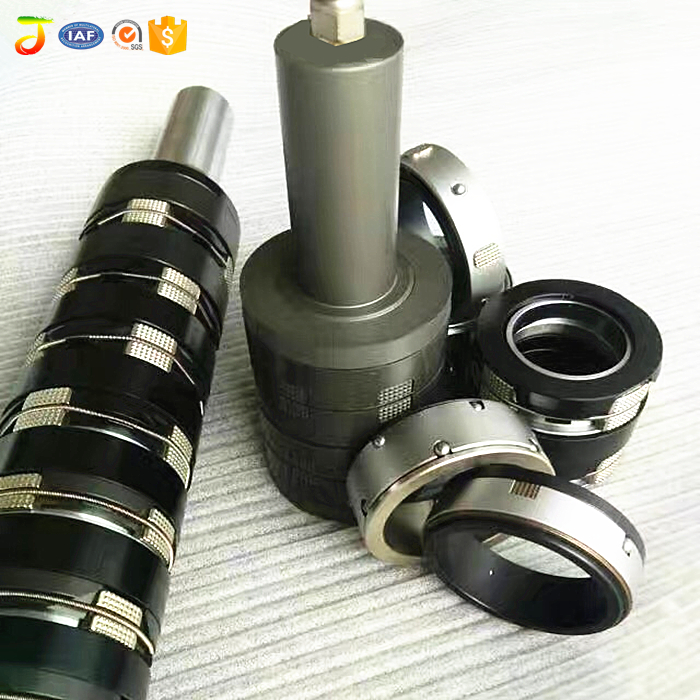

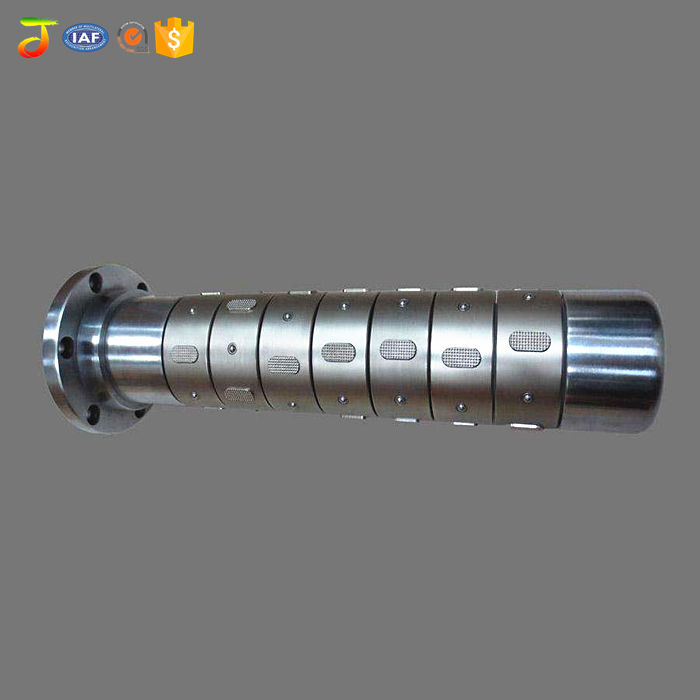

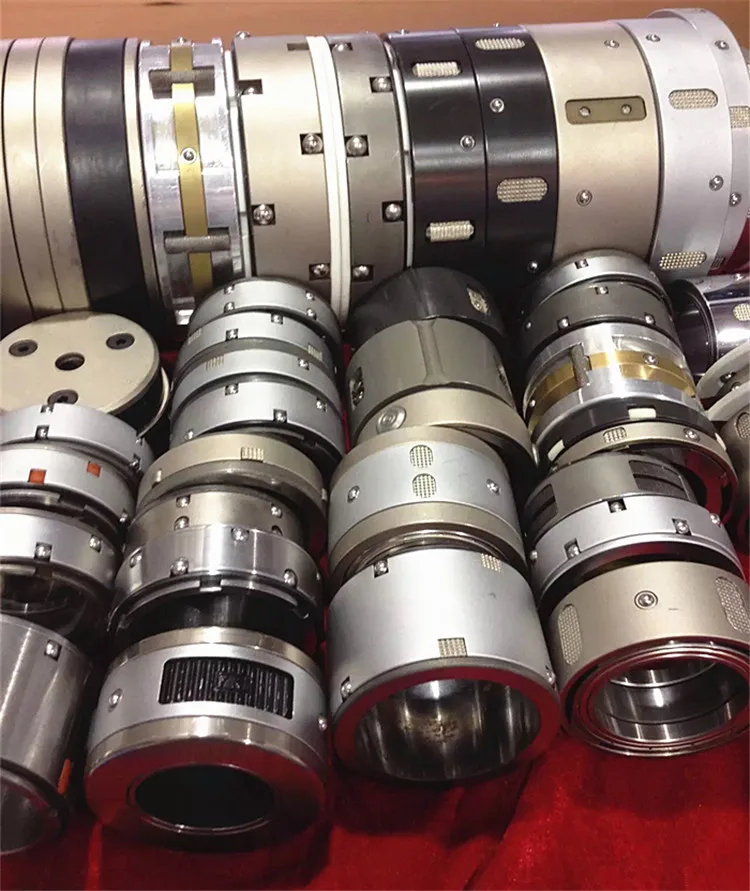

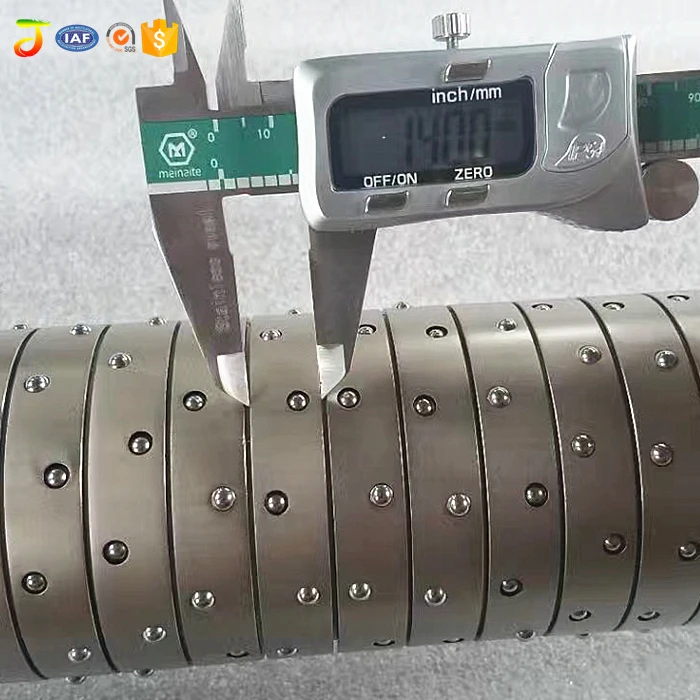

The photo in detailed of differential slip shaft:

IMG_4335_

IMG_4511_

IMG_4513_

The relationship between air pressure and torque (single slip differential unit)

Air pressure

Torque

0.1MPa

0.81N.m

 0.2MPa

1.35N.m

0.3MPa

 1.58N.m

 0.4MPa

1.92N.m

0.5MPa

2.25N.m

0.6MPa

2.42N.m

 0.7MPa

2.62N.m

0.8MPa

2.93N.m



Technical Parameters

Grade of dynamic balance accuracy rating: 6.3

 Pressure sensitivity: 0.01MPa

The difference in torque of the slip differential unit under same air pressure: <5%
