Custom 6 inch stainless steel air shaft for slitting machine
Custom 6 inch stainless steel air shaft for slitting machine Custom 6 inch stainless steel air shaft for slitting machine

Custom 6 inch stainless steel air shaft for slitting machine

Product ID : JCT-AS-L013
Product Tags :
Product Attributes :

The air expansion shaft is suitable for retracting and reeling of related machinery such as coating, printing, slitting, compounding, paper making, bag making, plastics, etc., which can effectively improve work efficiency.

Product Description

Custom 6 inch stainless steel air shaft for slitting machine

1.Application:

The air expansion shaft is suitable for retracting and reeling of related machinery such as coating, printing, slitting, compounding, paper making, bag making, plastics, etc., which can effectively improve work efficiency.

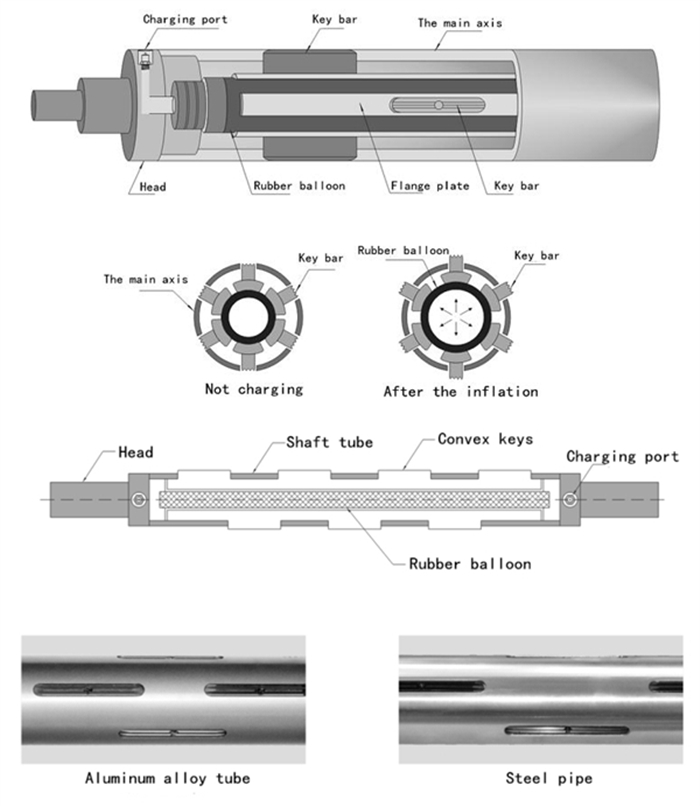

2.Product Schematic:

3.Introduction:

The air expansion shaft is  a kind of special-made shaft  for winding or unwinding , when it inflated by  high-pressure, the surface of it can be raised up and after deflating the air,the surface will quickly retract .It is widely  used in the manufacturing process and light metal industry.The advantage of using an air shaft  is that it can greatly improve the working effeciency.

4.Specification:



Type Unaerated diameter (ømm) Inflated diameter(ømm) Applicable volume tube inner diameter(ømm)
1″ 24.8 24.8-28 25-26
1.5″ 37 40-42 38-38.5
2″ 49 52-54 50-51
3″ 74-75 80-82 75.5-78
4″ 99-100 104-106 101-102
5″ 125 130-133 126-128
6″ 150 154-156 151-153
8″ 200 206-264 202-204
10″ 250 260-264 252-256
12″ 300 308-310 302-305

5.Packaging:

Fumigation wooden case, sea worthy packaging

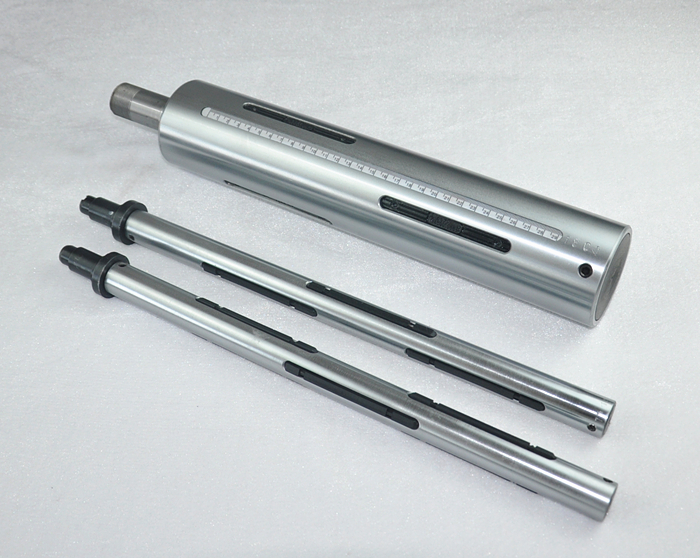

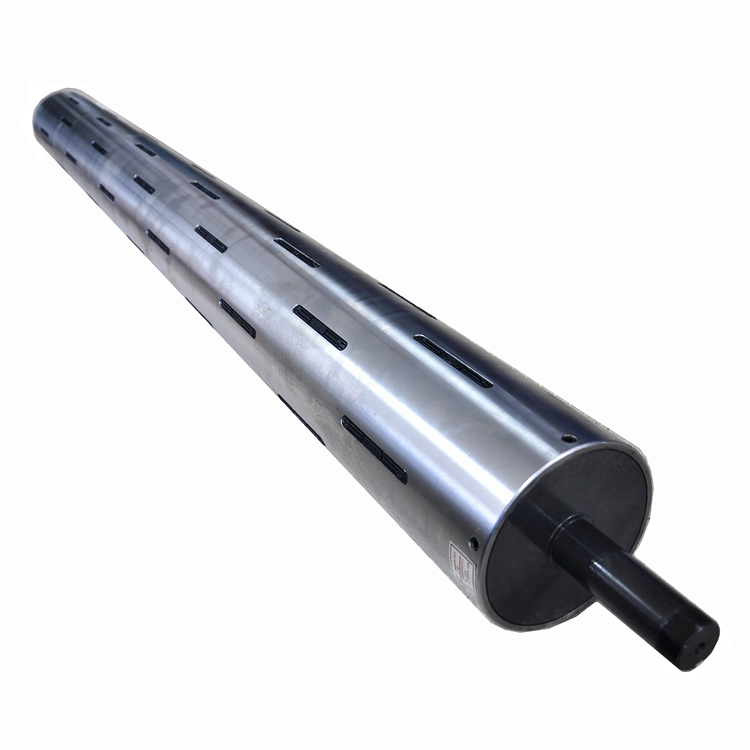

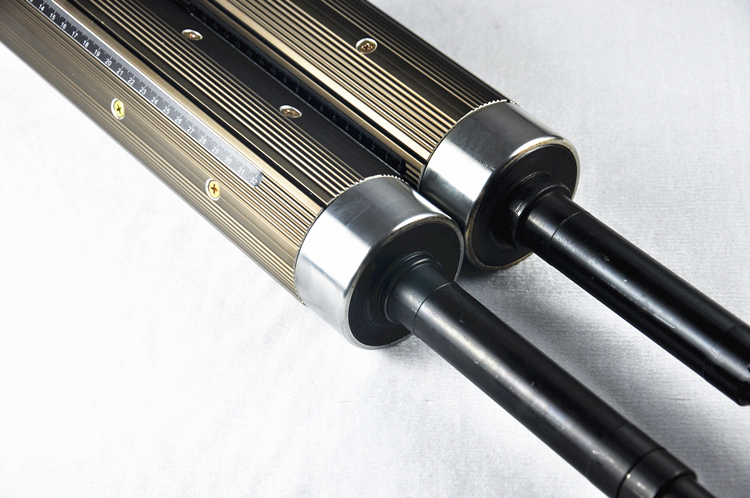

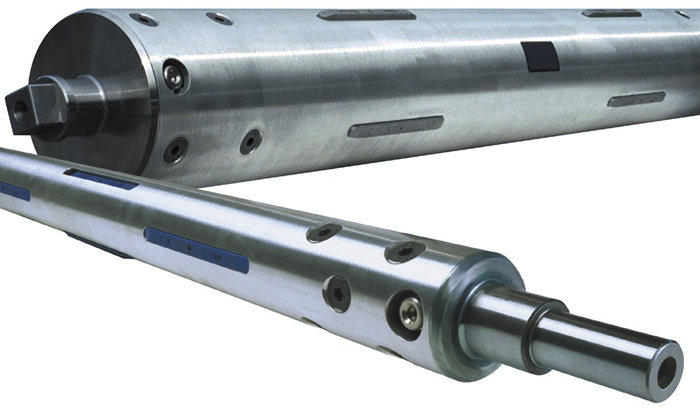

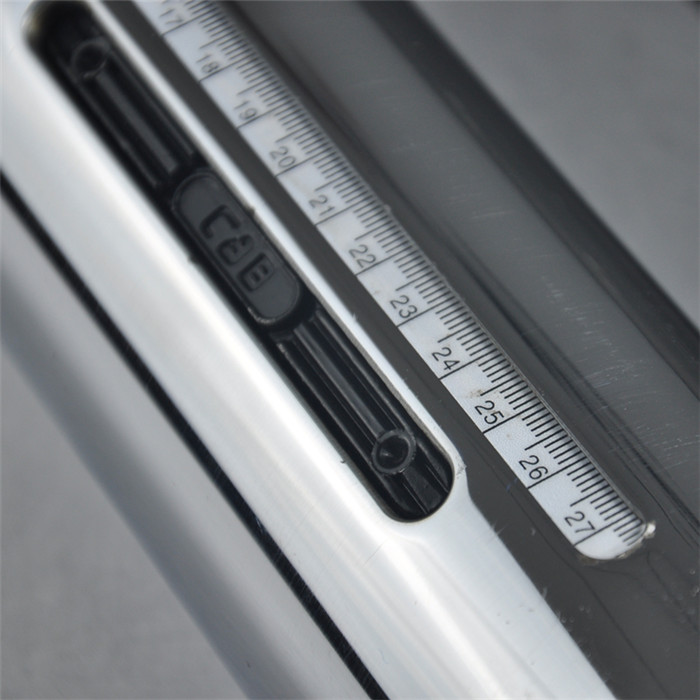

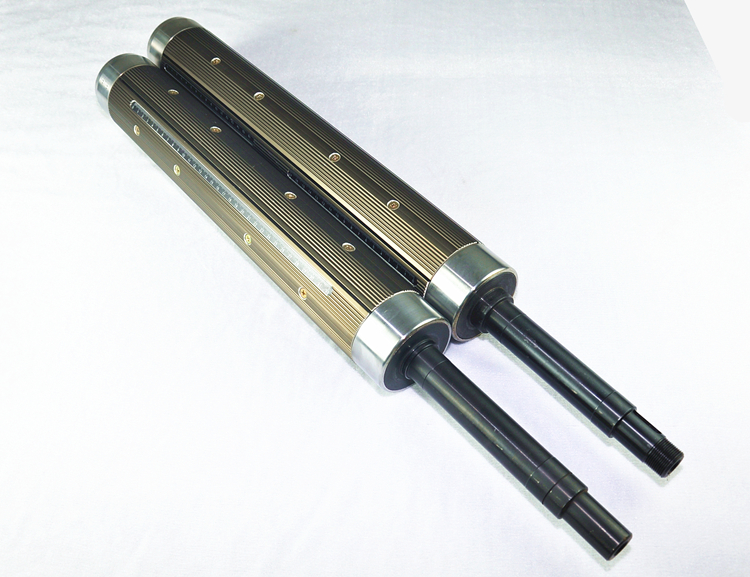

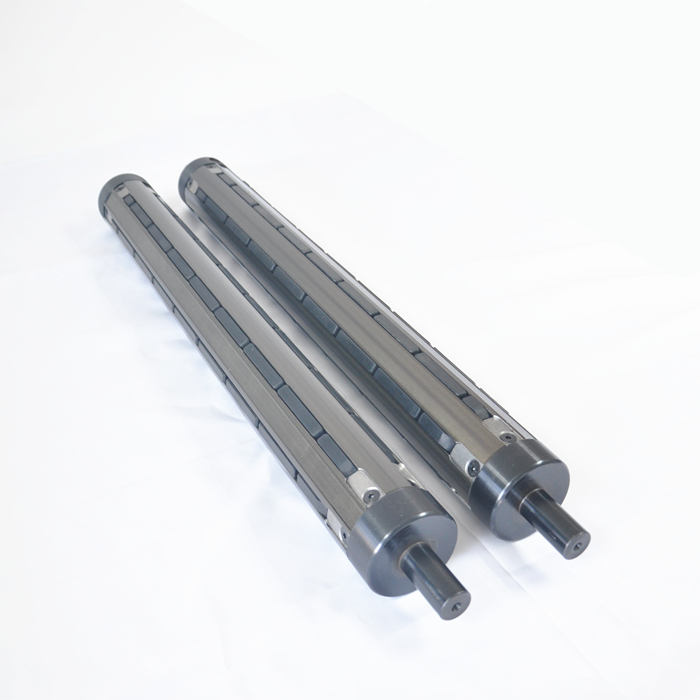

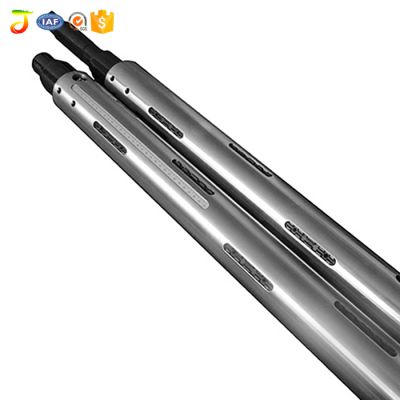

6.Product pictures:
