Hollow Magnetic Powder Clutch for air shaft of printing machine spare parts
Hollow Magnetic Powder Clutch for air shaft of printing machine spare parts Hollow Magnetic Powder Clutch for air shaft of printing machine spare parts Hollow Magnetic Powder Clutch for air shaft of printing machine spare parts Hollow Magnetic Powder Clutch for air shaft of printing machine spare parts Hollow Magnetic Powder Clutch for air shaft of printing machine spare parts

Hollow Magnetic Powder Clutch for air shaft of printing machine spare parts

Product ID : JCT-MPB-L003
Product Tags :
Product Attributes :

Our product advantage:



1) High-precision torque control



2) Superior durability,long life



3) The stability of a fixed superior torque characteristics



4) Continuous operation of the use of sliding



5) Ink sleek,non-shock





6) Suitable for high-frequency operation

Product Description

Hollow Magnetic Powder Clutch for air shaft of printing machine spare parts

Advantage:



1) High-precision torque control



2) Superior durability,long life



3) The stability of a fixed superior torque characteristics



4) Continuous operation of the use of sliding



5) Ink sleek,non-shock





6) Suitable for high-frequency operation



Introduction:

Magnetic powder brake can transmit torque based on electromagnetic theory and the use of magnetic powder.It has the characteristics which magnetizing current and transmit torque has a linear relationship,It has advantages of fast response,simple structure,no pollution,no noise,no shock and vibration,energy-saving and so on.It is a versatile,superior performance of automatic control components.Magnetic brake an also be used to buffer starting,overload protection,speed control and so on.



Features:

1)The transmission torque has a linear relationship with the magnetizing current. The size of the torque can get controlled within large range. Under normal circumstance, the magnetizing current has a linear relationship with transitive torque within range of 5%-100% rated torque.





2)The friction part will generate heat inevitably or even destroyed when it keep continuous sliding. But this device has a complete cooling set, it will not generate a lot of heat after long time running and it has a long service life.


Application:





It is widely used in printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire winding machines,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, steel extruders, CNC lathes, specialized machinery and so on.



Models and specifications:

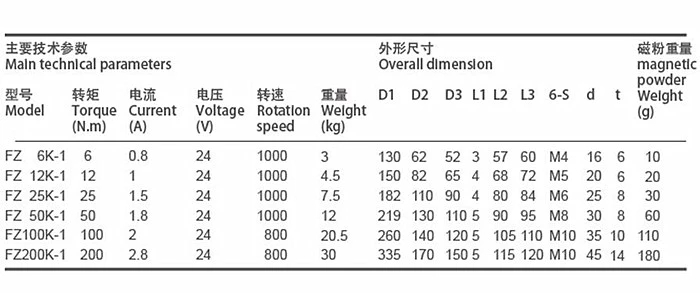

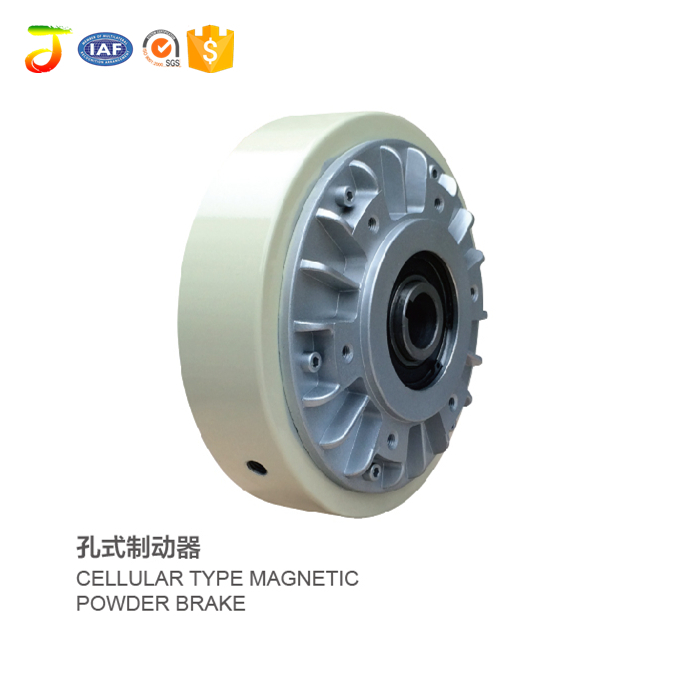

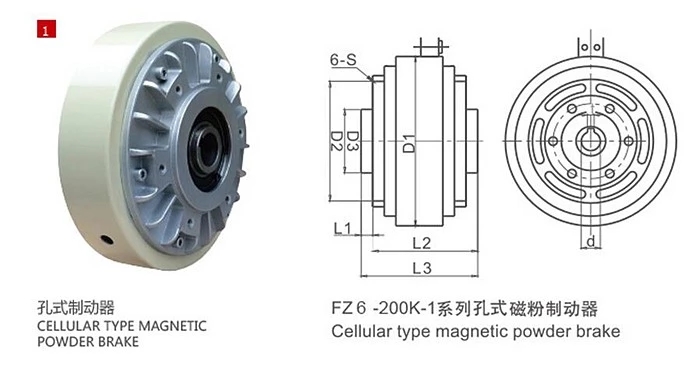

1)cellular type magnetic powder brake



Modle

Torque(N.m)

Current(A)

 Votage(V)

Rotation speed
(RPM)

Weight(kg)

FZ 6K-1

6

0.8

24

1000

3

FZ 12K-1

12

1

24

1000

4.5

FZ 25K-1

25

1.5

24

1000

7.5

FZ 50K-1

50

1.8

24

1000

12

FZ 100K-1

100

2

24

800

20.5

FZ 200K-1

200

2.8

24

800

30

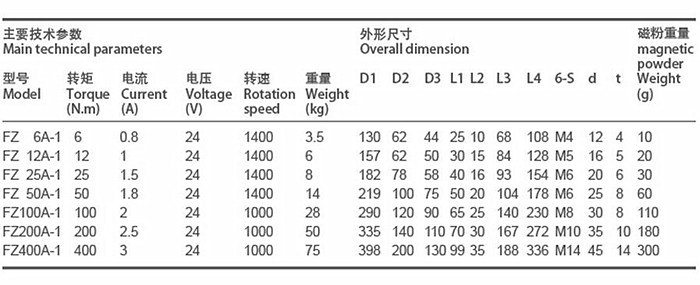

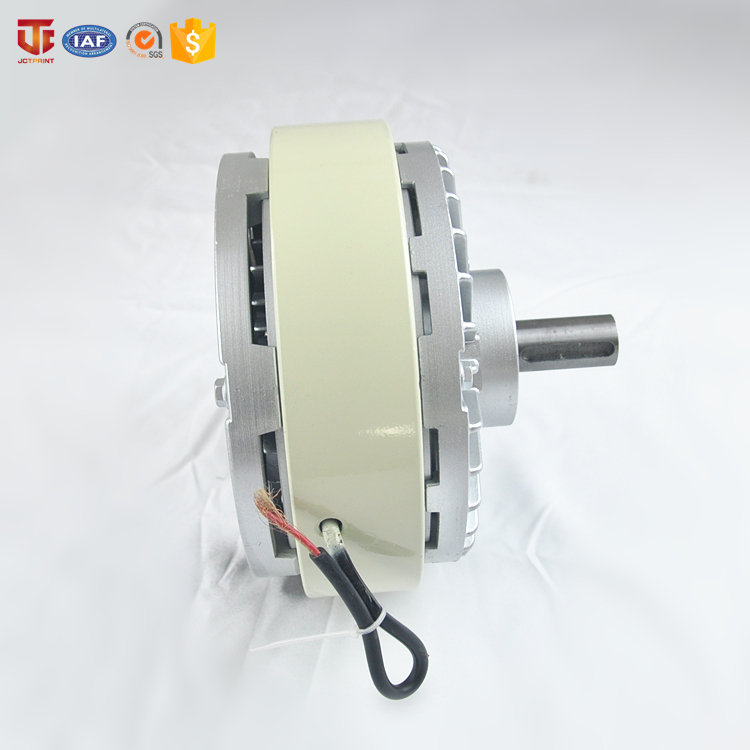

2)Singel shaft type magnetic powder brake

Modle

Torque(N.m)

Current(A)

 Votage(V)

Rotation speed
(RPM)

Weight(kg)

FZ 6A-1

6

0.8

24

1400

3.5

FZ 12A-1

12

1

24

1400

6

FZ 25A-1

25

1.5

24

1400

8

FZ 50A-1

50

1.8

24

1400

14

FZ 100A-1

100

2

24

1000

28

FZ 200A-1

200

2.5

24

1000

50

FZ 400A-1

400

3

24

1000

75

FAQ:

1. How can I get the quotation?

 Please tell us the model you want,then we can quote you accordingly.

 2. What’s your MOQ basis?

 1 set.

 3. What about the lead time for production?

 It depends on the order quantity and the type of products. It is about 8 days.

 4. What is the term of delivery?

 We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
