This coating doctor blade is mainly used in gravure, flexo printing, also suitable for coating, color printing, embossing, metal printing, scraping, pulp industry. We can supply all the dimension according to your requirement.
Product description of doctor blade
Our doctor blade is made of high quality steel, the technology process is unique and high precision manufacturing, blade is thin and elastic strength and high toughness, smoothness, good special and unique, self sharpening opening to application research, or before the work without turning and grinding, which can ensure the good contact with the surface of the plate, so as to achieve the best scraping effect.
This coating doctor blade is mainly used in gravure, flexo printing, also suitable for coating, color printing, embossing, metal printing, scraping, pulp industry. We can supply all the dimension according to your requirement.
| Material | Carbon steel, stainless steel.T10,SK4,C100,20C |
| Printing machine speed | high speed/medium speed/low speed. |
| Doctor blade width | 10-60mm. |
| Doctor blade width tolerance | ±0.100mm |
| Lamella edge width | 1.3mm |
| Lamella edge width tolerance | ±0.025mm |
| Doctor blade thickness | 0.15mm-1.5mm |
| Doctor blade thickness tolerance | ±0.005mm |
| Lamella edge thickness | 0.07mm-0.10mm |
| Lamella edge thickness tolerance | ±0.003mm |
| Doctor blade hardness | 1960N/mm(580HV+/-15) |
| Doctor blade tensile strength | 1950-2150Pa |
| Doctor blade surface | bright polished |
| Straightness maximum deviation | 0.5mm/3.0m |
| Contact edge roughness | Rao.10 ±0.05um. |

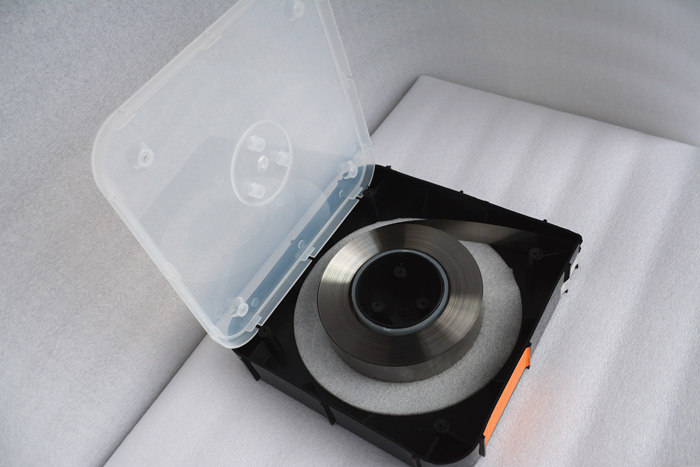

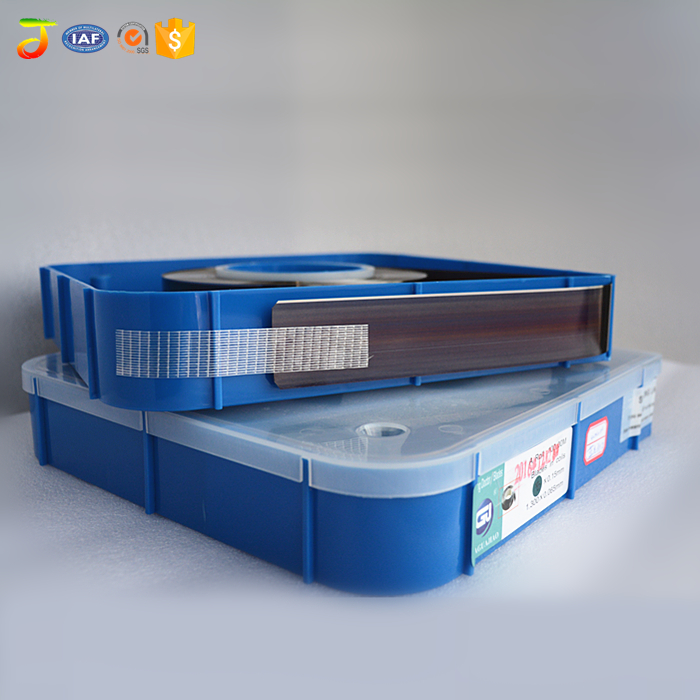

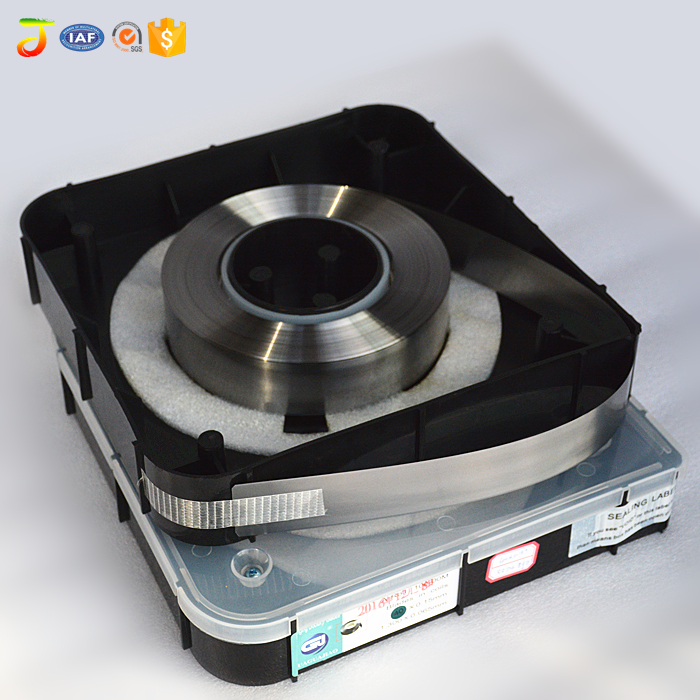

| Packaging | 100m/box |
1.Good scraping effect &high printing quality
2.Good elasticity & strong layering feeling
3.Durable &Long life
1. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2. How should I place the order?
Please show us your detailed information,like your machine speed,width and thickness of blade and other requirements if you have.
3. What’s your MOQ basis?
1 piece or 1 set,it depends on your actual requirement.
4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products.
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
