Pneumatic diaphragm pump for printing machine spare parts
Pneumatic diaphragm pump for printing machine spare parts Pneumatic diaphragm pump for printing machine spare parts Pneumatic diaphragm pump for printing machine spare parts Pneumatic diaphragm pump for printing machine spare parts Pneumatic diaphragm pump for printing machine spare parts

Pneumatic diaphragm pump for printing machine spare parts

Product ID : JCT-DP-L002
Product Tags :
Product Attributes :

The pneumatic diaphragm pump is used in the water-based ink printing machine of the packaging printing industry, the gravure printing machine, the ink lifting circulation system of the flexographic printing surface, and is an indispensable accessory in the ink circulation equipment.

Product Description

Pneumatic diaphragm pump for printing machine spare parts

1.Advantage of BML pneumatic diaphragm pump

1.Adopting Japanese technology, with the character of high efficiency,steady and durable.

2. Corrosive,particles containing and high viscosity liquid can be transported.

3. Without dead point or freezing point to ensure running steadily

4. Strong power to make the long-distance liquid transportation easily

5. Easy operation,the liquid transportation can be stepless regulated

6. Using the compressure air as power, anti- explosion and safety

2.Application of diaphragm

The pneumatic diaphragm pump is used in the water-based ink printing machine of the packaging printing industry, the gravure printing machine, the ink lifting circulation system of the flexographic printing surface, and is an indispensable accessory in the ink circulation equipment.

3.Introduction of diaphragm

BML series diaphragm pump is a new type of conveying machinery, using compressed air as the power source, can not only exhauste the flow liquid, but also can convey some uneasy flowed medium.It also can be used for corrosive liquids,  liquid particles, high viscosity, volatile, flammable, highly toxic liquid.It has the advantages of submersible pumps, self-priming pumps, impurity pumps, shielding pumps and mud pumps.

There are 3kinds of diaphragm pump we can supply,PP plastic pneumatic diaphragm pump, stainless steel pneumatic diaphragm pump and BML pneumatic diaphragm pump.

4.Specification of BML series diaphragm pump

Type

BML-5

BML--10

BML--15

BML-20

BML-25

BML--40

BML--50

Diaphragm type

Single

Double

Double

Double

Double

Double

Double

Max Flow Rate

10L/min

15L/min

35L/min

54L/min

160L/min

379L/min

568L/min

Connection to Liquid

1/4

3/8

1/2

3/4

1

1-1/2

2

Limit of Slurry

2mm

2mm

2mm

3mm

3mm

4.8mm

6.3mm

Suction heigh

2m

5m

7m

8m

9m

10m

11m

Lift

4m

60m

70m

70m

70m

70m

70m

Max.Discharge Pressure

0.5Mpa

0.7Mpa

0.7Mpa

0.7Mpa

0.7Mpa

0.8Mpa

0.8Mpa

Air Supply Pressure Range
(Mpa)

0.2-0.5

0.2-0.7

0.2-0.7

0.2-0.7

0.2-0.7

0.2-0.8

0.2-0.8

Material  of Diaphragm

PTFE

PTFE

PTFE

PTFE

PTFE

CR PTFE

CR PTFE

Body Material

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Net Weight

1.8kg

3.5kg

4.5kg

6kg

14kg

16kg

28kg

Ctn Dimension
(mm)

180*180*210

270*270*280

180*220*280

200*230*320

240*300*450

275*400*540

340*460*640

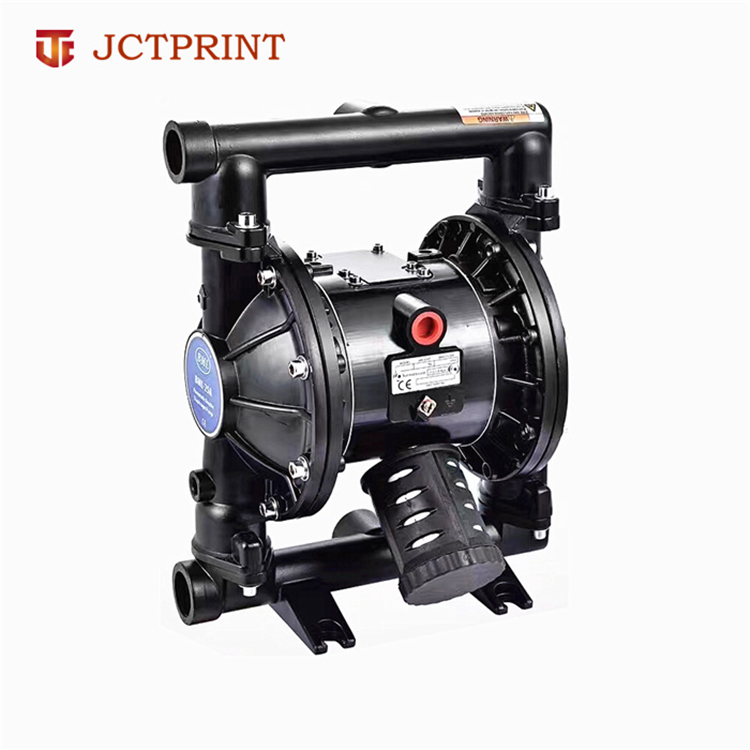

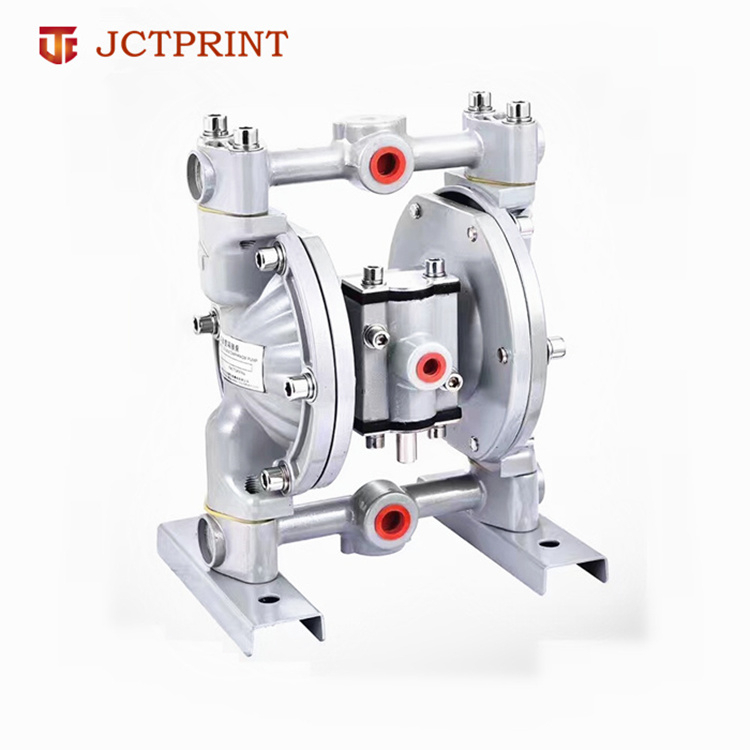

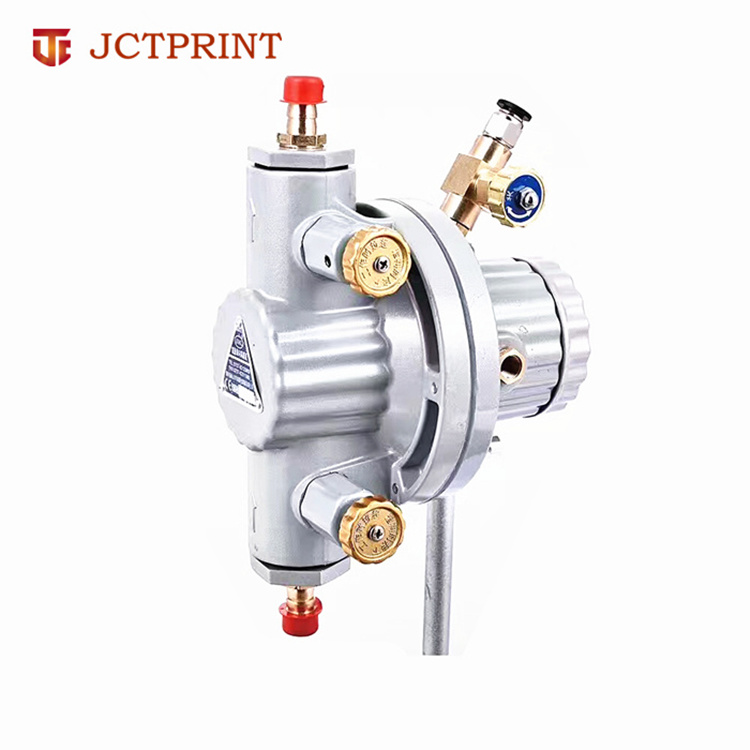

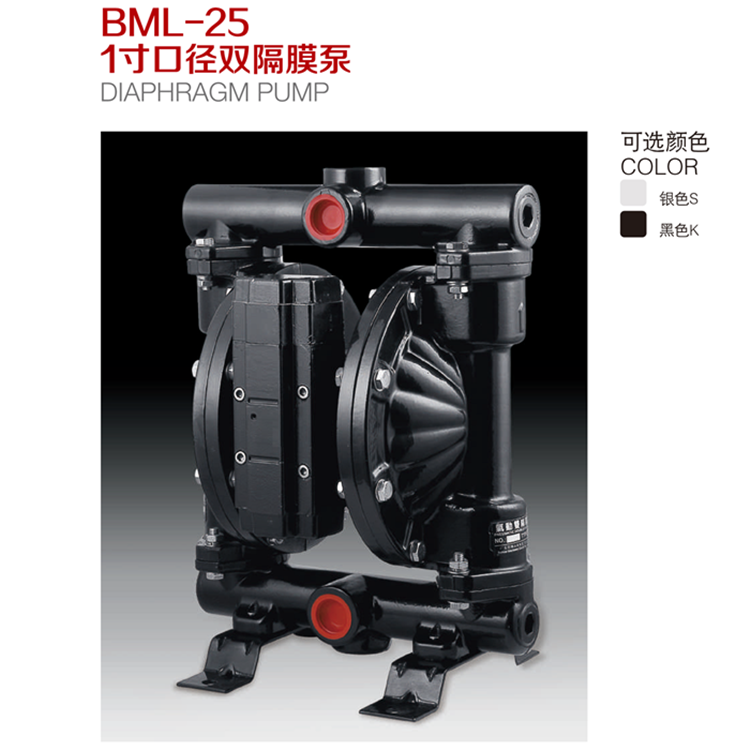

5.Product pictures:

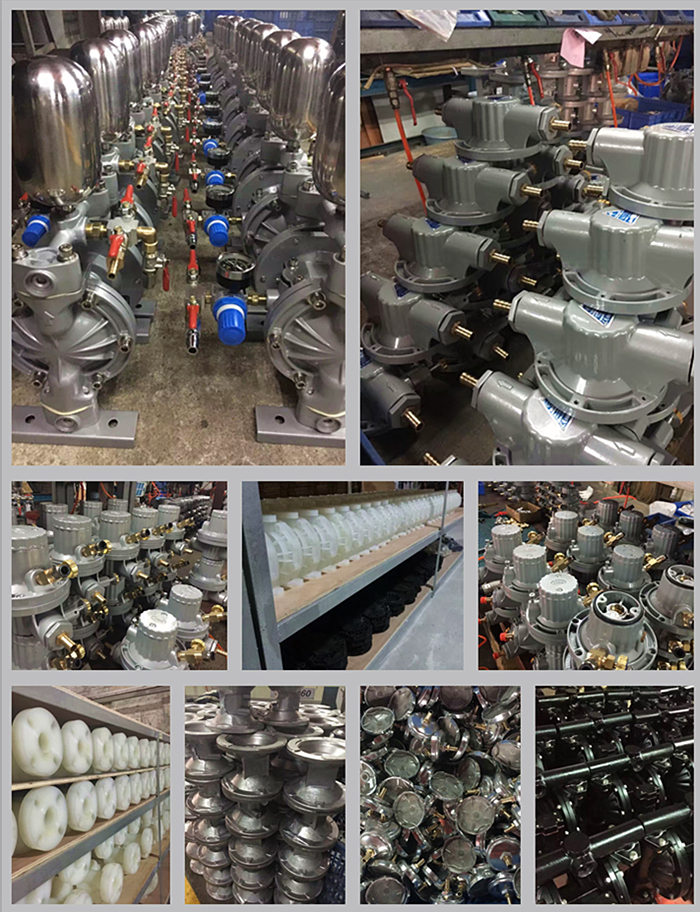

6.Company information:
