Aluminum roller HV700 for packaging industry Precision machinery industry
Aluminum roller HV700 for packaging industry Precision machinery industry Aluminum roller HV700 for packaging industry Precision machinery industry Aluminum roller HV700 for packaging industry Precision machinery industry Aluminum roller HV700 for packaging industry Precision machinery industry

Aluminum roller HV700 for packaging industry Precision machinery industry

Product ID : JCT-AGR-S002
Product Tags :
Product Attributes :

Aluminum roller HV700 for packaging industry Precision machinery industry

We use precise equipment and special tools for surface finishing, making the surface smooth, coaxiality up to 0.02mm, full-axis computerized balance correction within 2g, special process at the shaft end and matching imported bearings, all at high speed Easy to operate. According to the different needs of the industry, the surface can also be specially treated: sandblasting, reticulated, Teflon and special hardening HV700, which has good scratch and wear resistance.

Product Description

Aluminum roller HV700 for packaging industry Precision machinery industry

Product description

Aluminum guide roller (also known as" aluminum alloy guide roll")is made of high quality aluminum alloy materials, and it has all kinds of modules and sizes with ribs structure and the outside diameter is from 25mm to 320mm.

Under the treatment by computer balancing correction process, the dynamic balance of the aluminum roller will be smaller than 2g. With using of sophisticated equipment and special tools, the roll surface gloss can be 0.8, concentricity can reach to 0.02mm.

Special Treated in the shaft axle of the roller, with imported bearings, the aluminum guide roller works well even at high speed.

According to different industries, the surface of the roller can also do special treatment:

Anodized HV300 treatment, Hard anodized ,HV700 treatment,Teflon treatment, to make the roller scratch abrasion resistant and anti-sticking.

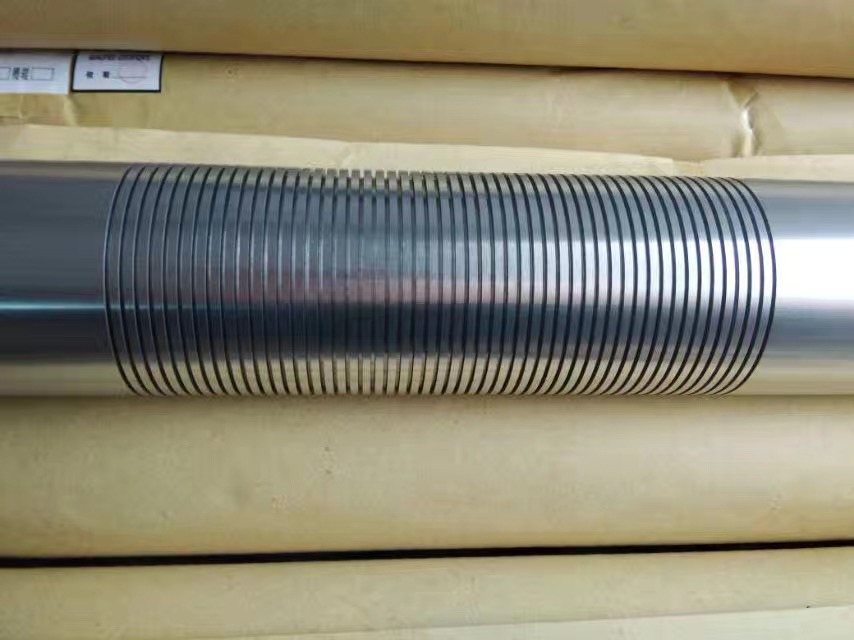

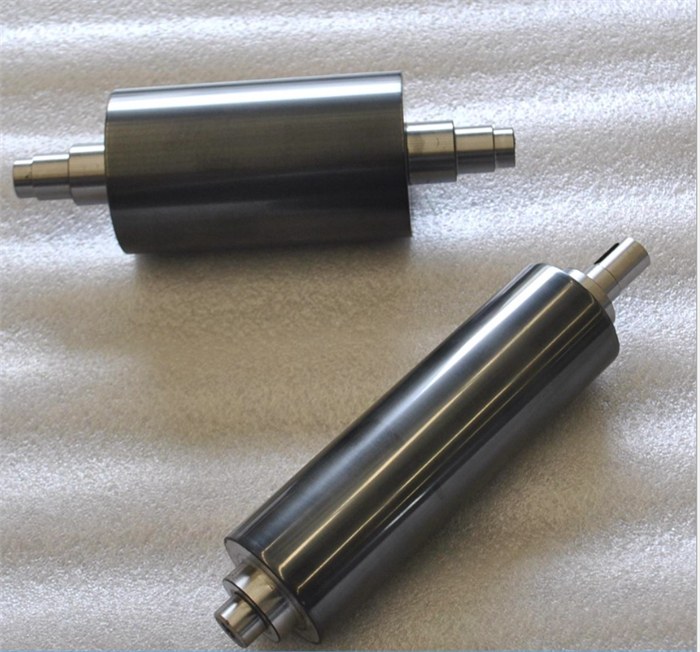

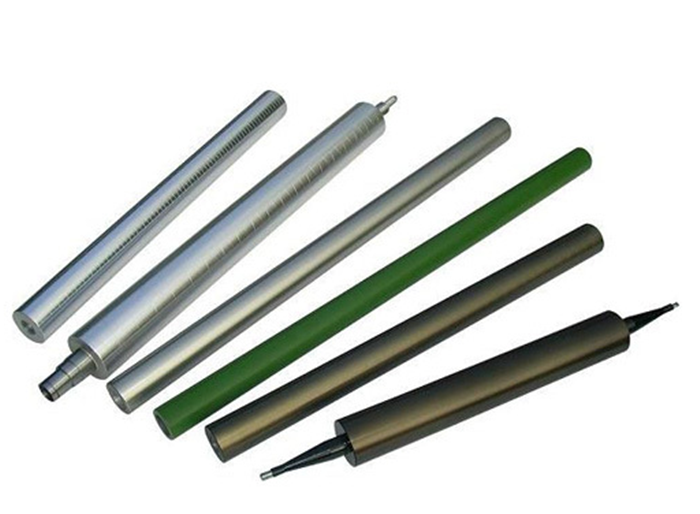

Aluminum guide roller has normally 3 standard types: Without-shaft type, Shaft type and Through-shaft type. The surface can treated by normally 3 standard line types: Center line type, Cross line type and Grooved type

Our company aluminum guide roller is high strength, low resistance, light weight, flexible rotation, no-rusty, wearable and corrosion resistance, especially suitable for printing, packaging plastics, paper, glass, pharmaceutical, electronics batteries, textile machinery and industries.


Body material

Aluminum

Diameter

22-320mm

Length

100-6000mm

Weight

1-100kg

Anodize

HV300/HV700

Thickness of anodize

20-80μm

Type

Without shaft/ With shaft/ Through shaft

Surface

Smooth/ Cross line/ Center line/ Groove line

Smoothness

Ra6.3-0.4

Balancing

G6.3/G2.5



Advantages of the aluminum roller

Aluminum guide roller has high strength, low resistance, light weight, flexible rotation, no rust, wear and corrosion resistance, especially suitable for precision machinery industry and various coil processing industries,such as printing, packaging, plastic, electronic battery, etc.
