Aluminum idler roller hard anodized aluminum conveyor roller for printing industry
Aluminum idler roller hard anodized aluminum conveyor roller for printing industry Aluminum idler roller hard anodized aluminum conveyor roller for printing industry Aluminum idler roller hard anodized aluminum conveyor roller for printing industry Aluminum idler roller hard anodized aluminum conveyor roller for printing industry Aluminum idler roller hard anodized aluminum conveyor roller for printing industry

Aluminum idler roller hard anodized aluminum conveyor roller for printing industry

Product ID : JCTPRINT-AGR-L001
Product Tags :
Product Attributes :

Aluminum guide roller(also as known aluminum alloy guide roll) is made of high quality aluminum alloy materials,and it has all kinds of

Modules and sizes with ribs structure and the outside diameter is 25mm to 320mm

Product Description

Aluminum idler roller hard anodized aluminum conveyor roller for printing industry

1. Application:

Printing,packaging,plastics,paper,glass,pharmaceutical,electronics batteries,textile machinery and industries.

2. Introduction:

a.Aluminum guide roller(also as known aluminum alloy guide roll) is made of high quality aluminum alloy materials,and it has all kinds of

Modules and sizes with ribs structure and the outside diameter is 25mm to 320mm,under the treatment by computer balancing correction process,the dynamic balance of the aluminum roller will be small than 2g.With using of sophisticated equipment and special tolls,the roll surface gloss can be 0.8 concentricity can reach to 0.02mm.Special treatment in the shaft axle of the roller,with imported bearings,the aluminum guide roller works well even at high speed.

b.According to different industries,the surface of the roller can also do special treatment:Anodized HV300 treatment,Hard anodized HV700 treatment,Teflon treatment,to make the roller scratch,abrasion and anti- sticking.

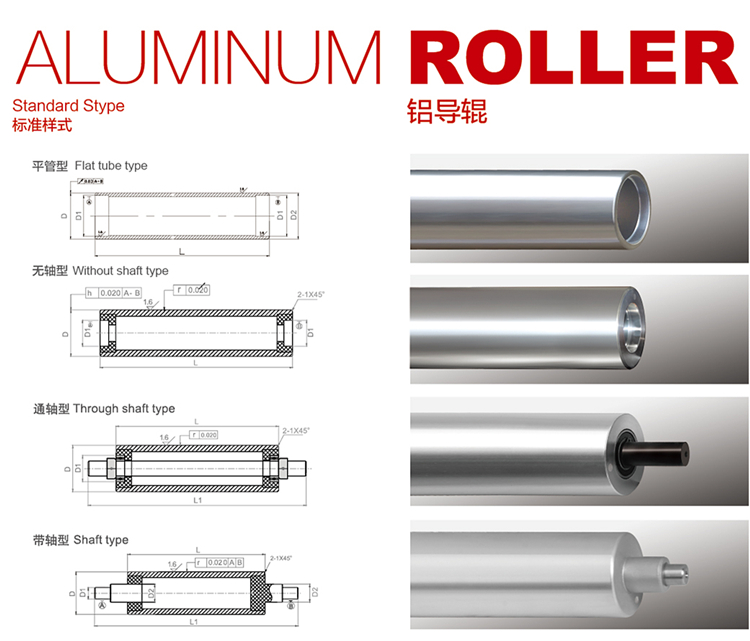

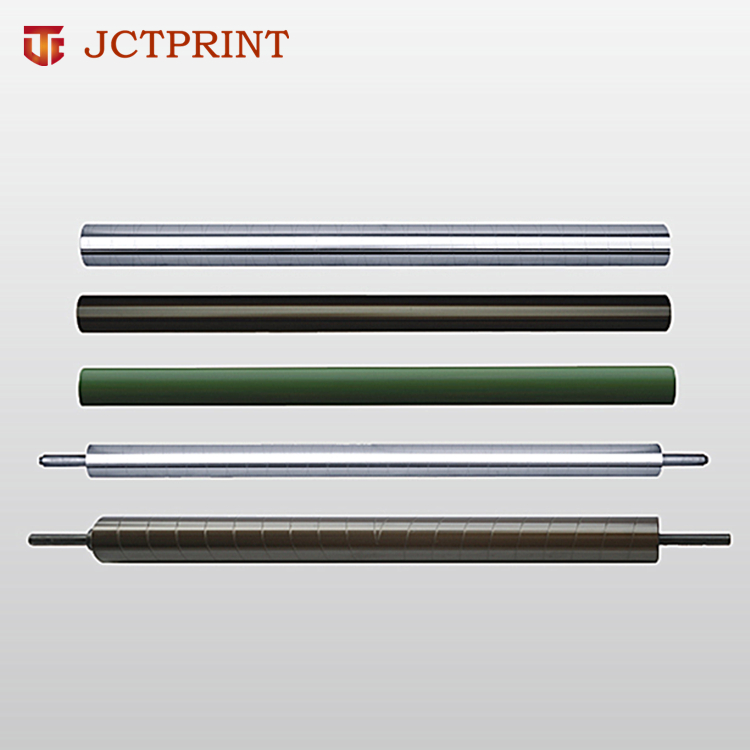

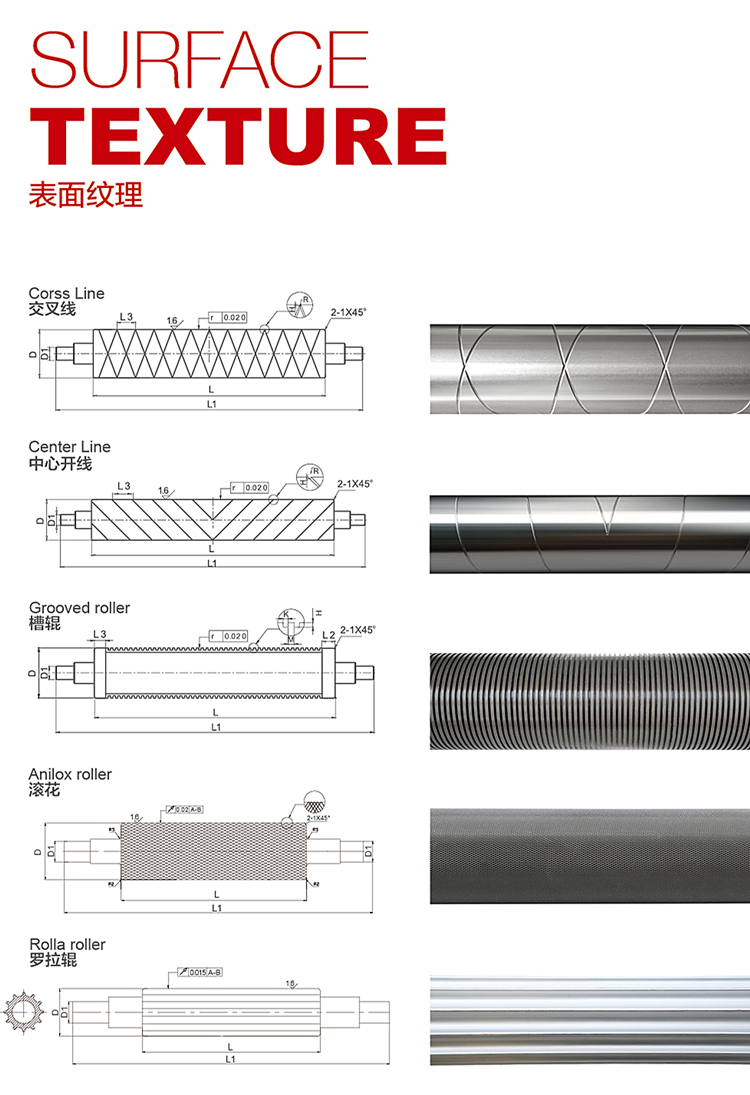

c.Aluminum guide roller has normally 3 standard types:Without-shaft type,Shaft type and Through-shaft type.The surface can treated by normally 3 standard line types:Center line type,Cross line type and Grooved type.

3. Features and aluminum tube specifications

JCTPRINT brand aluminum guide roller is high strength,low resistance,light weight,flexible rotation,no-rusty,wearable and corrosion resistance.

Diameter

22-320mm

Length

100-6000mm

Weight

1-100kg

Anodize

HV300/HV700

Thickness of anodize

20-80μm

Type

Without shaft/ With shaft/ Through shaft

Surface

Smooth/ Cross line/ Center line/ Groove line</span >

Smoothness

Ra6.3-0.4

Balancing

G6.3/G2.5

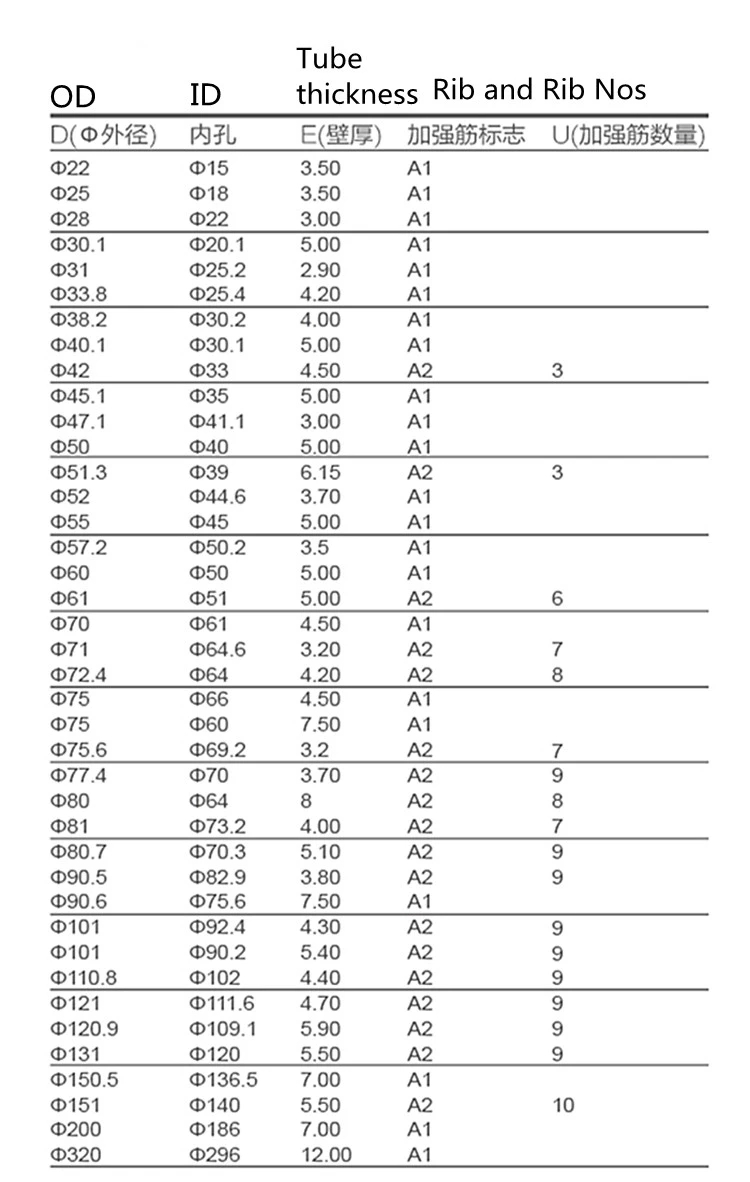

Aluminum tube specifications

4. Advantage of aluminum guide roller:

a.There is a rib structure in the aluminum guide roller, which makes it very strong.

b.We use precision equipment and special tools to finish the surface to make the surface smooth and the concentricity reaches 0.02mm.

c.Dynamic balance accuracy within 2g

In the production process, through the hot set matching process and the appearance of the CNC lathe, the aluminum guide roller can obtain high bonding strength and precision, good linearity and concentricity, and a high-speed dynamic balancing system can ensure static balance With high- speed dynamic balancing performance, it can ensure that aluminum guide rollers run on the machine at high speed without vibration.

d.Low resistance, light weight, flexible rotation, no rust, wear resistance and corrosion resistance.

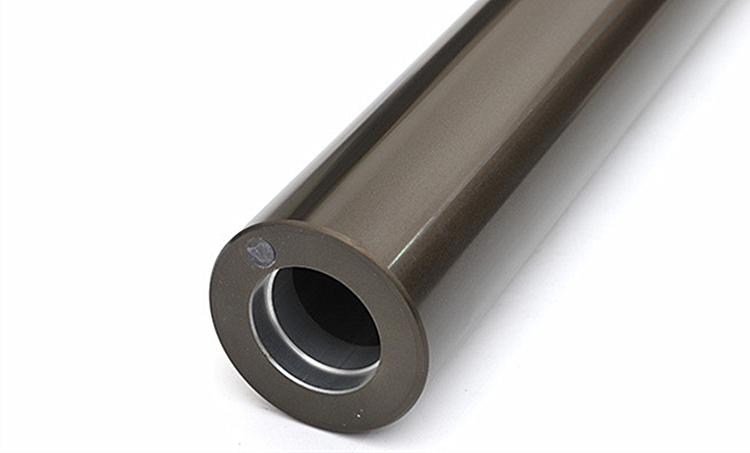

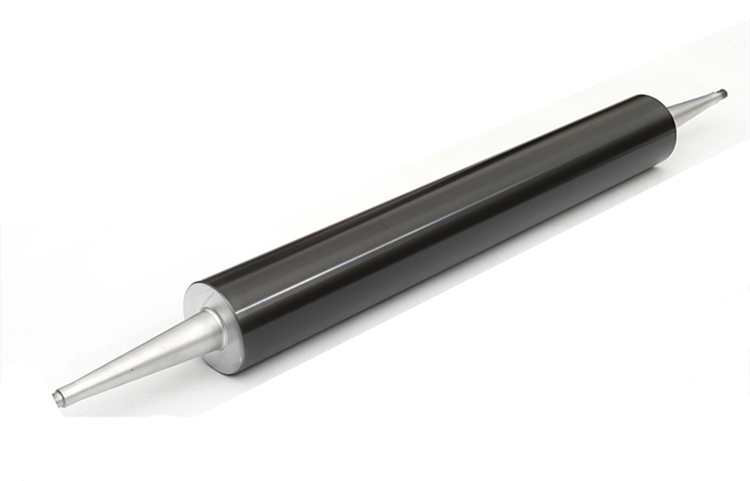

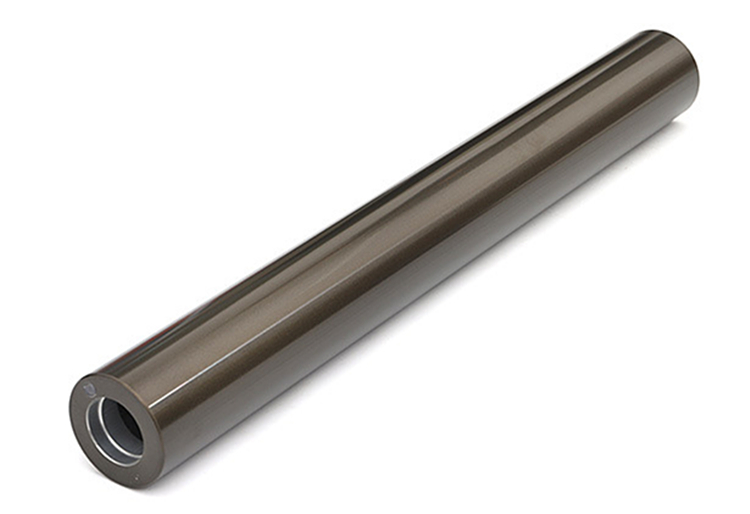

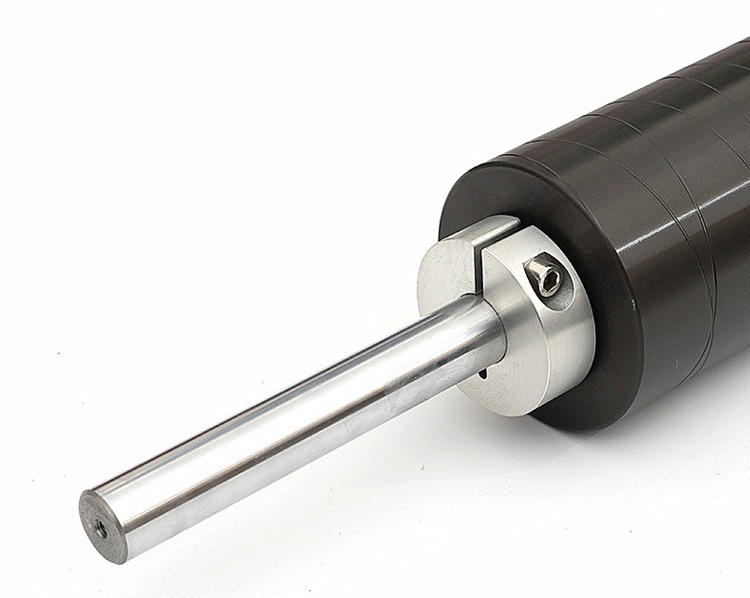

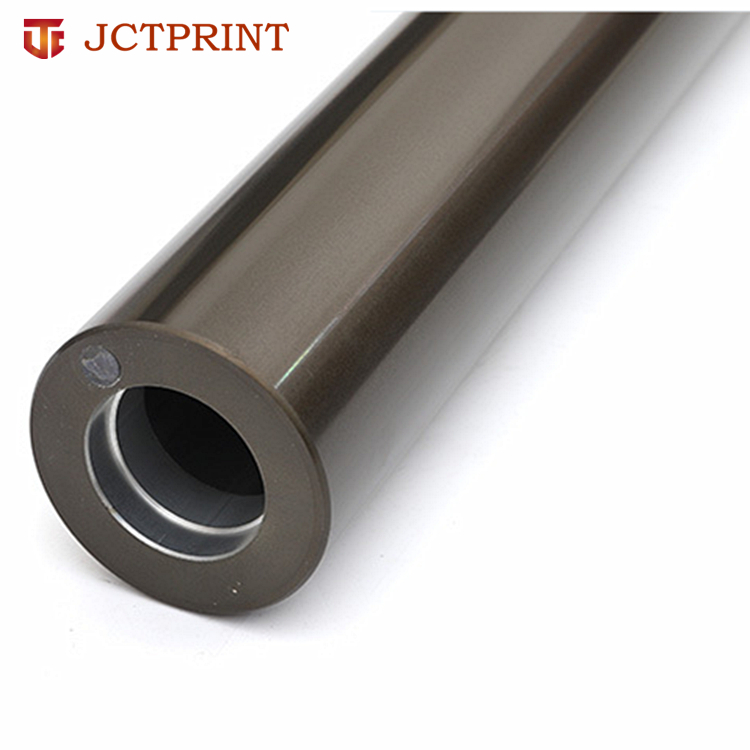

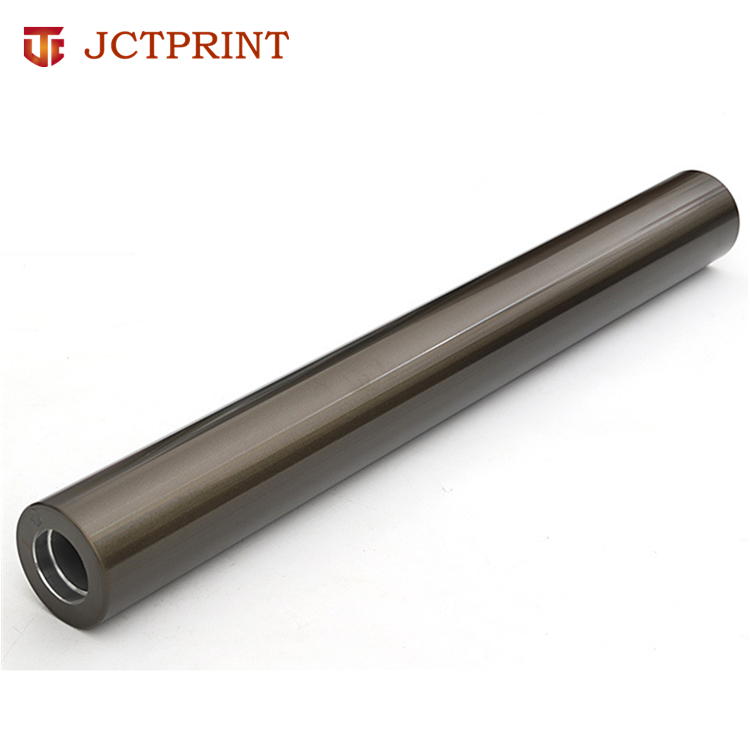

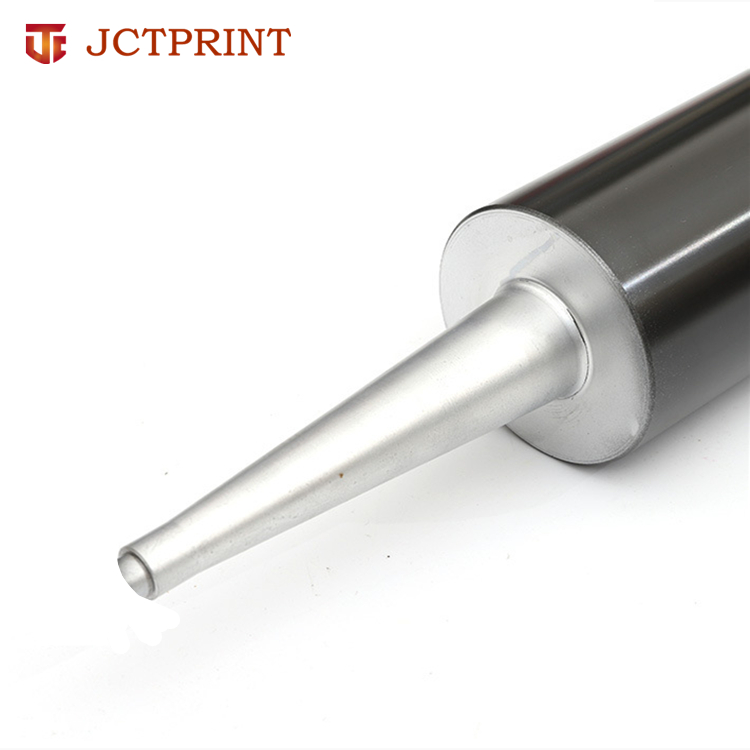

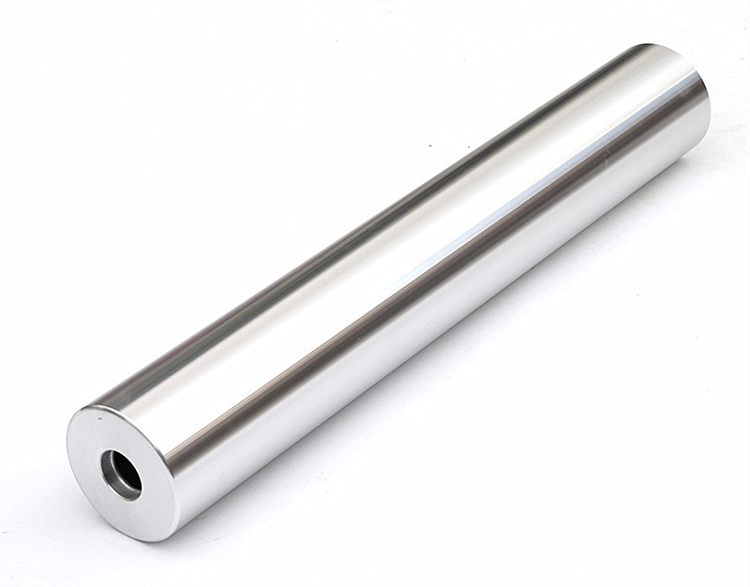

5.Product pictures:
