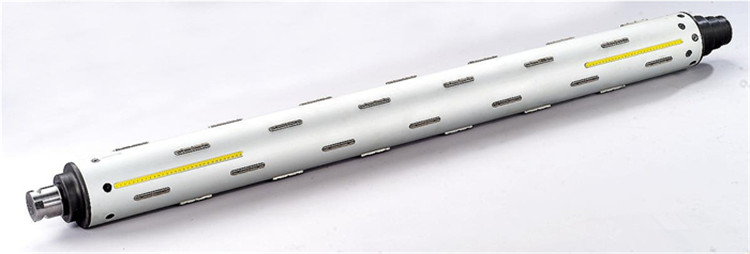

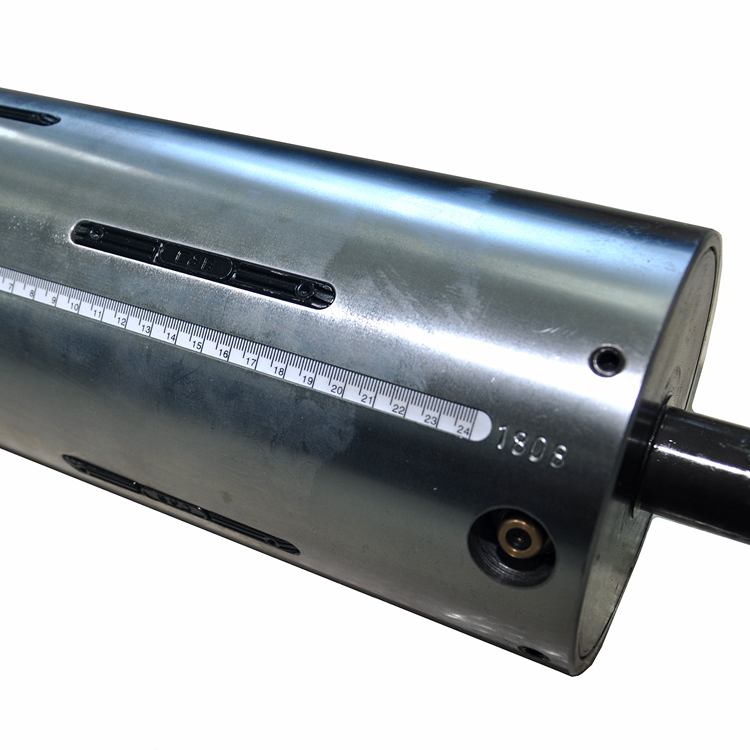

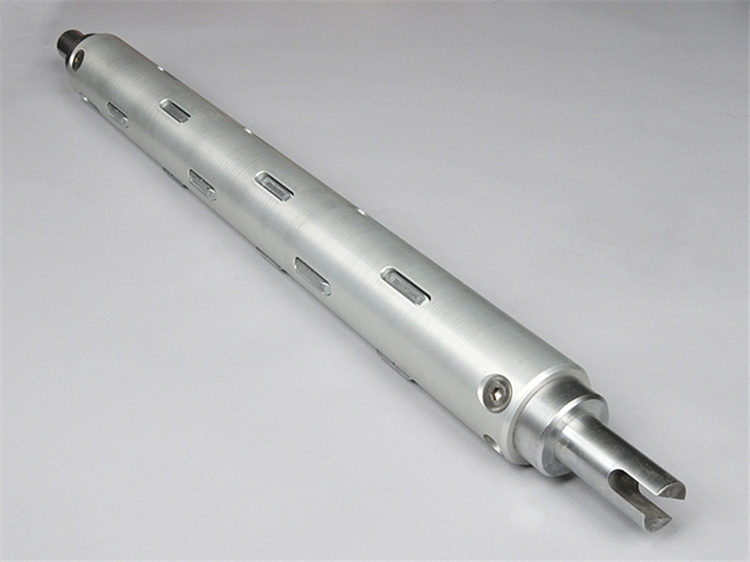

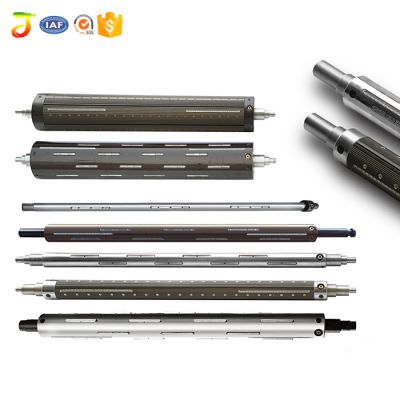

3 inch steel air shaft for slitting machine
3 inch steel air shaft for slitting machine 3 inch steel air shaft for slitting machine 3 inch steel air shaft for slitting machine 3 inch steel air shaft for slitting machine 3 inch steel air shaft for slitting machine

3 inch steel air shaft for slitting machine

Product ID : JCTPRINT-AS-P011
Product Tags :
Product Attributes :

How does the air shaft work? When the air shaft inflated by  high-pressure, the surface of it can be raised up and after deflating the air,the surface will quickly retract . The advantage of using an air shaft  is that it can greatly improve the working effeciency .

Product Description

3 inch steel air shaft for slitting machine

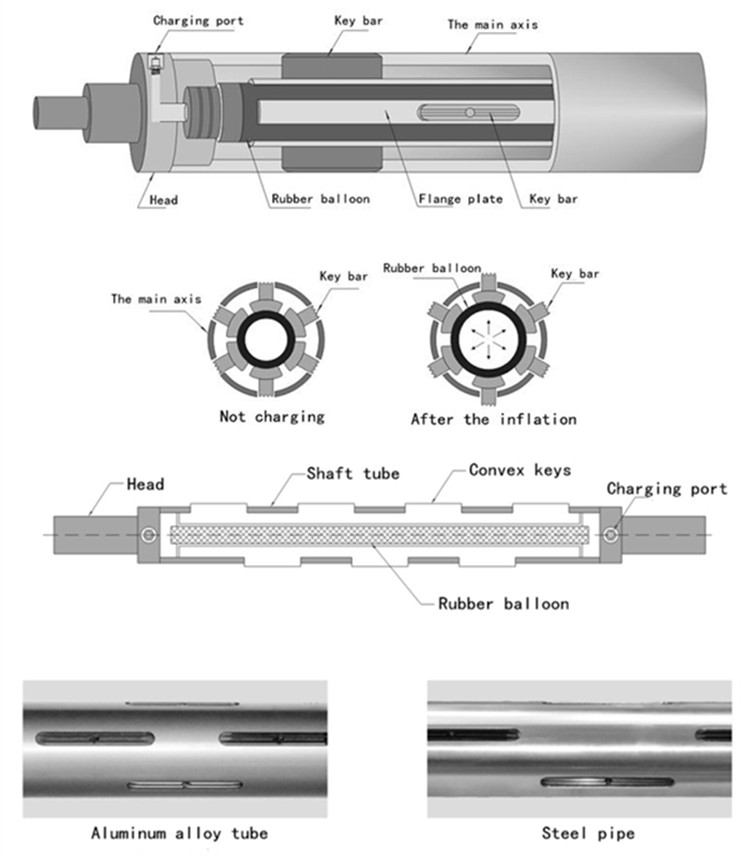

1.How does the air shaft work?

When the air shaft inflated by  high-pressure, the surface of it can be raised up and after deflating the air,the surface will quickly retract . The advantage of using an air shaft  is that it can greatly improve the working effeciency .

 2.Advantage of key strip type air shaft

1)Material advantage

A.Base roller

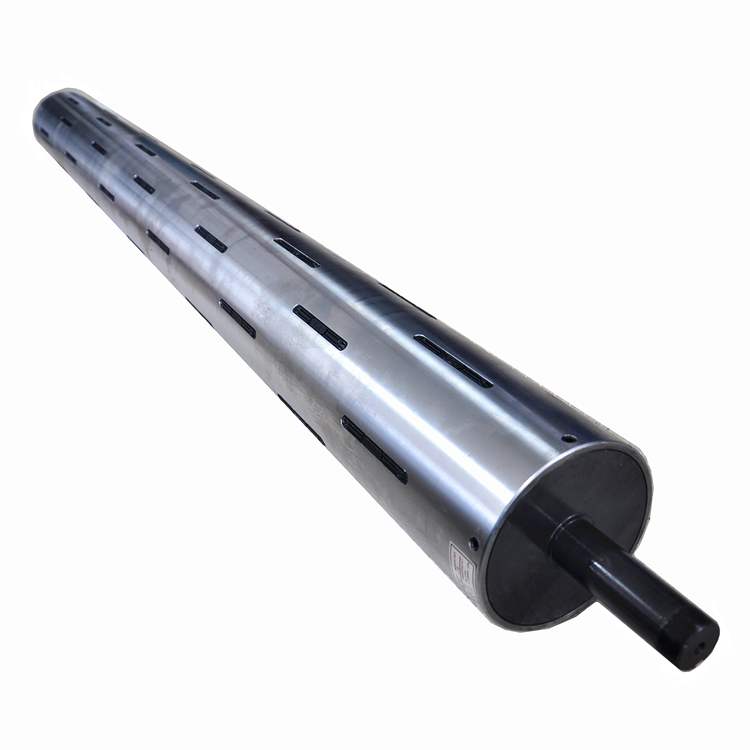

We adopt  hi-precision cold-drawn steel tube as the shaft body.The thickness of this kind of tube is uniform so when the rubber balloon inside is inflated ,all key strips will stick out at same height and good material can help keep a better dynamic balance .

内页-qqs (3).jpg



B.Key strip and springs

For the key strip,we adopt a whole piece of aluminum plate to make it.And it can form a good protective ring around the air  bladder. We adopt the pagoda springs to support the air  bladder which can bear 300000 compressions.

内页-qqs (36).jpg

2)Processing advantage

A.The connection of spindle head and steel tube is interference fit

We are using a high power press machine which can produce 80T thrust to realize all the combination of spindle head and steel tube. While other suppliers knock the spind head into the steel tube with a big hammer,no quality and accuracy.

内页-qqs (23).jpg

B.The connection between our air bladder and shaft head have good sealing performance and very stable.

We use special equipment to connect the air bladder and the shaft head and then lock the outside by iron ring,,which will realize tight seal.

While,many other suppliers fasten both ends by iron wire,this operation is easy to leak ,has badly sealing performance.

内页-qqs (5).jpg

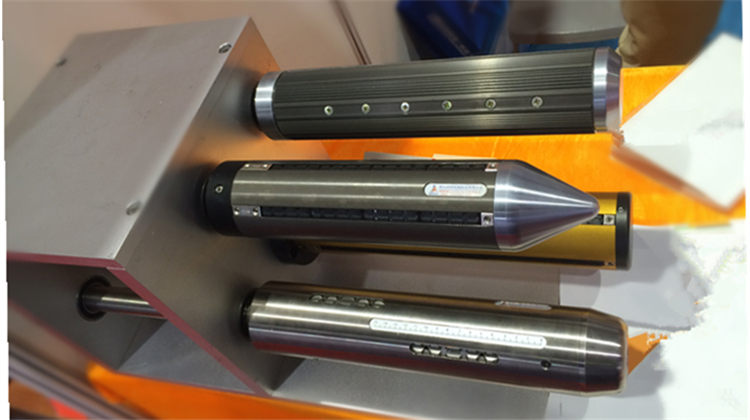

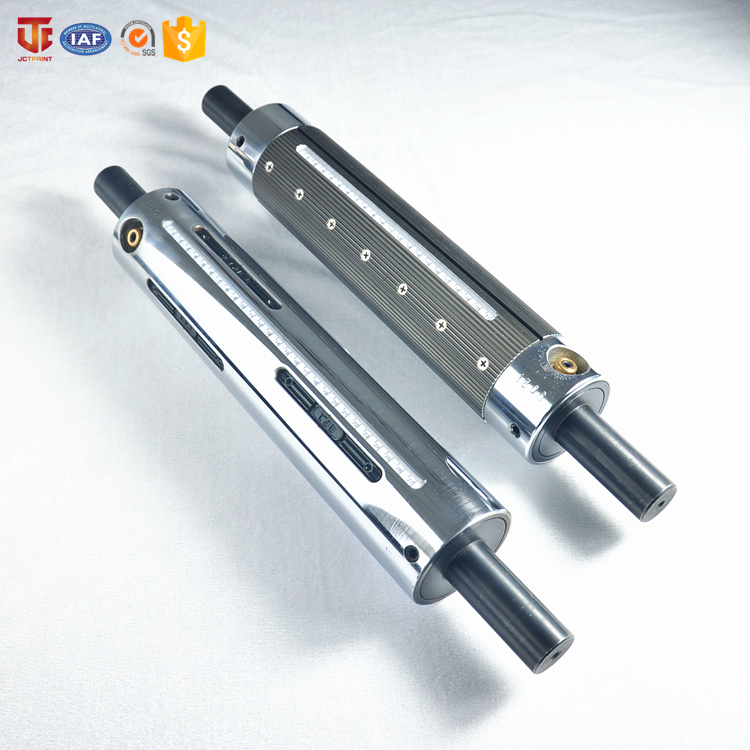

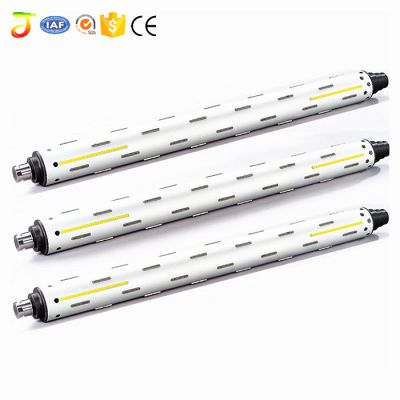

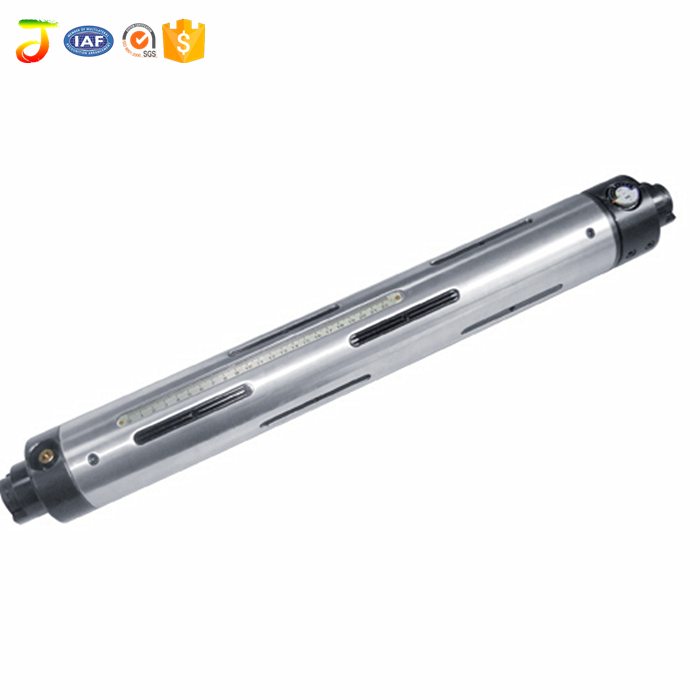

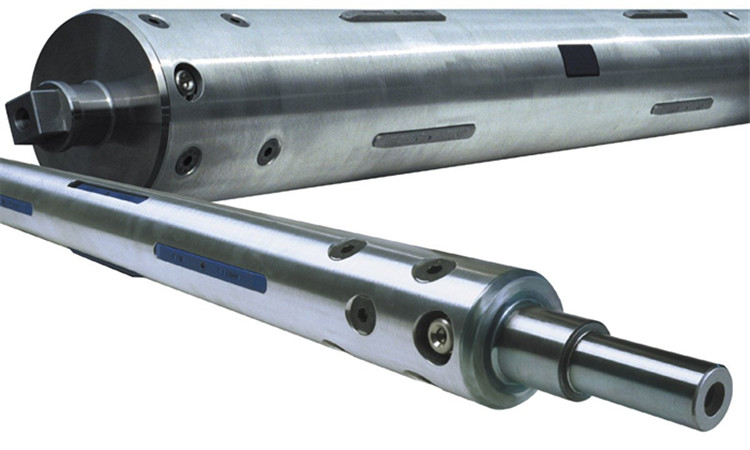

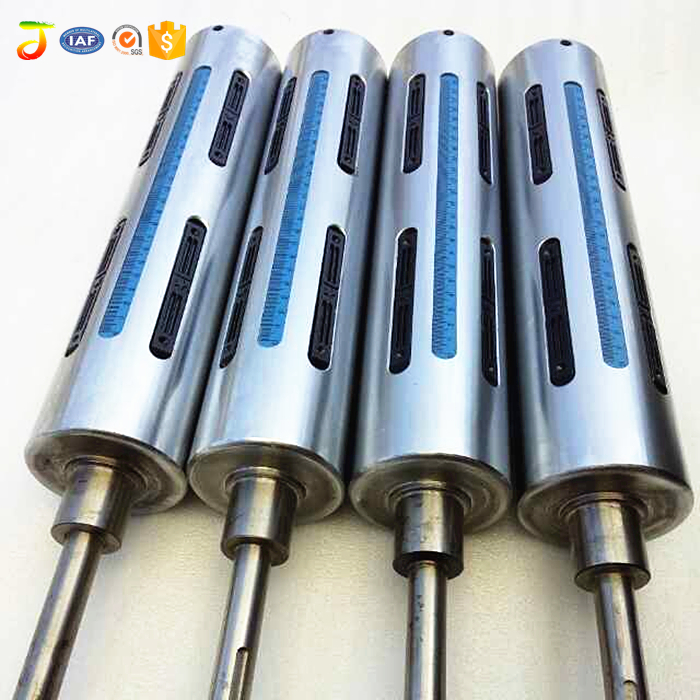

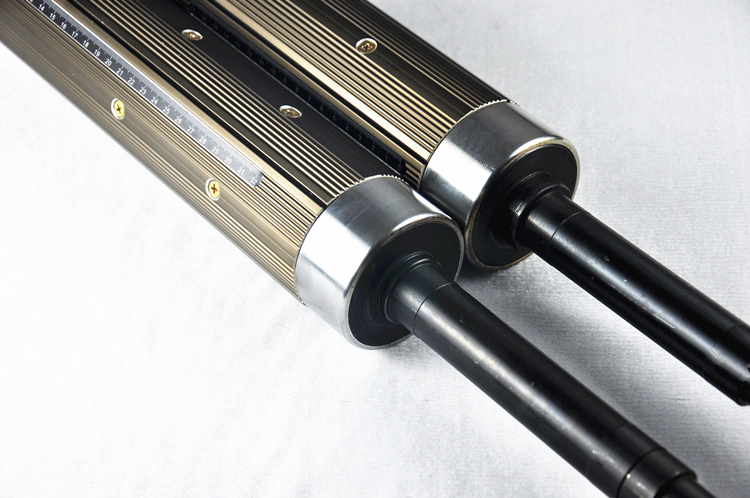

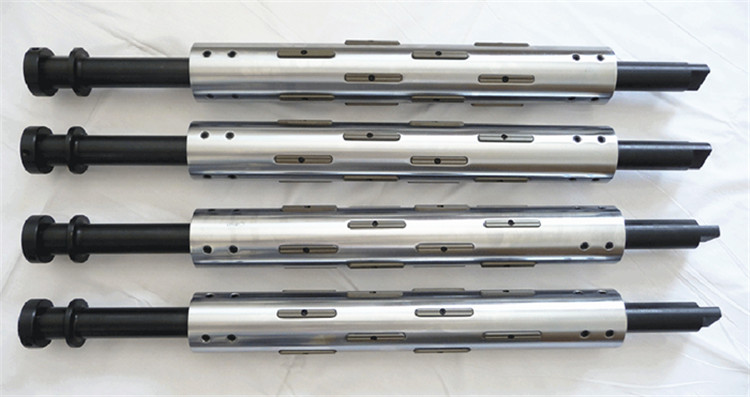

 3.Product Pictures

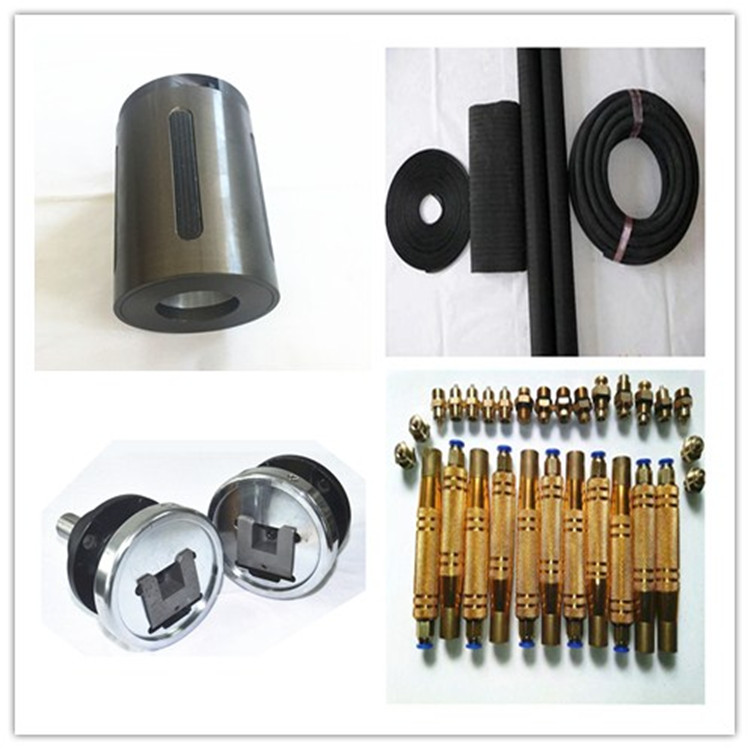

3.Air shaft related spare parts:

Air cover,safety chucks,air bladder,air gun and air valves





Company Information







Betty Peng

Jinan Jinchangtai Industry And Trade Co., Ltd

Add:Lushangshengjing Plaza Building B-1406, No.6 Qingfeng Road,

Jinan, Shandong, 250014, China

Tel:0086-0531-61300169

Fax:0086-0531-61300169

Mobile/wechat/Whasapp/skype:0086-13065090971

Email:[email protected]

http://www.jctprinting.com/



 FAQ



1. How should I place the order?

 For air shaft , please send us your drawing, or let us know your request.



2.What is your MOQ?

1 Piece.



3.What’s your packaging of air shaft?

We have two types of packaging wooden box and strong carton.



4.What's the delivery time?

Around 20days after pre payment received,and it also depends on the quantity you want.



5.What’ s the terms of payment?

Usually T/T 100% in advance payment.We can also accept Western Union,paypal and credit card.
