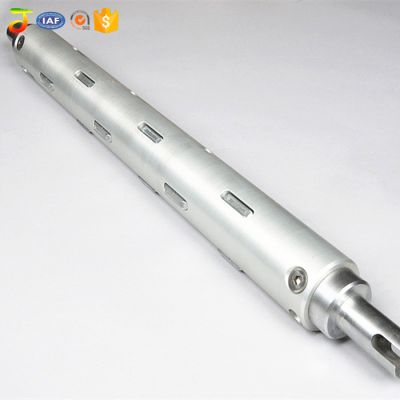

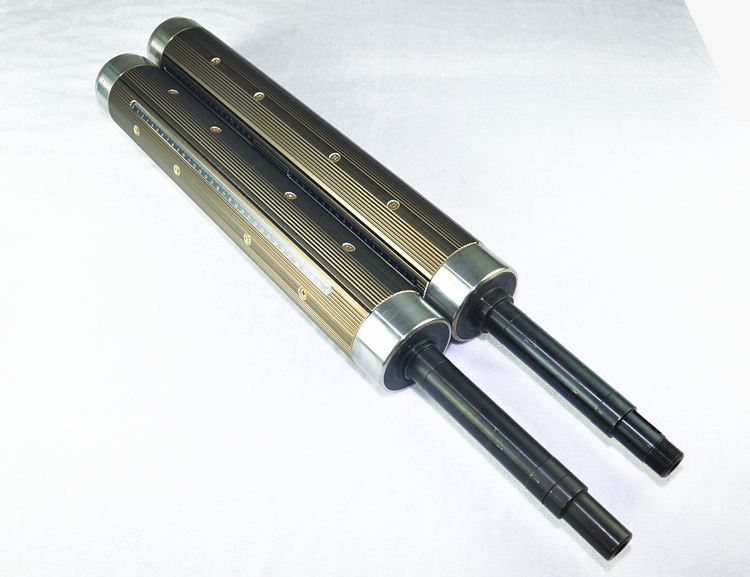

3 inch or 6 inch air shaft for film blowing machine
3 inch or 6 inch air shaft for film blowing machine 3 inch or 6 inch air shaft for film blowing machine 3 inch or 6 inch air shaft for film blowing machine 3 inch or 6 inch air shaft for film blowing machine 3 inch or 6 inch air shaft for film blowing machine

3 inch or 6 inch air shaft for film blowing machine

Product ID : JCT-AS-L011
Product Tags :
Product Attributes :

The air expansion shaft is  a kind of special-made shaft  for winding or unwinding , when it inflated by high-pressure, the surface of it can be raised up and after deflating the air,the surface will quickly retract .It is widely  used in the manufacturing process and light metal industry.The advantage of using an air shaft  is that it can greatly improve the working effeciency.

Product Description

3 inch or 6 inch air shaft for film blowing machine

Product Introduction:

The air expansion shaft is  a kind of special-made shaft  for winding or unwinding , when it inflated by high-pressure, the surface of it can be raised up and after deflating the air,the surface will quickly retract .It is widely  used in the manufacturing process and light metal industry.The advantage of using an air shaft  is that it can greatly improve the working effeciency.

Product Specification:

Type

Unaerated diameter(ømm)

Inflated diameter(ømm)

Applicable volume tube inner diameter(ømm)

1″

24.8

24.8-28

25-26

1.5″

37

40-42

38-38.5

2″

49

52-54

50-51

3″

74-75

80-82

75.5-78

4″

99-100

104-106

101-102

5″

125

130-133

126-128

6″

150

154-156

151-153

8″

200

206-264

202-204

10″

250

260-264

252-256

12″

300

308-310

302-305

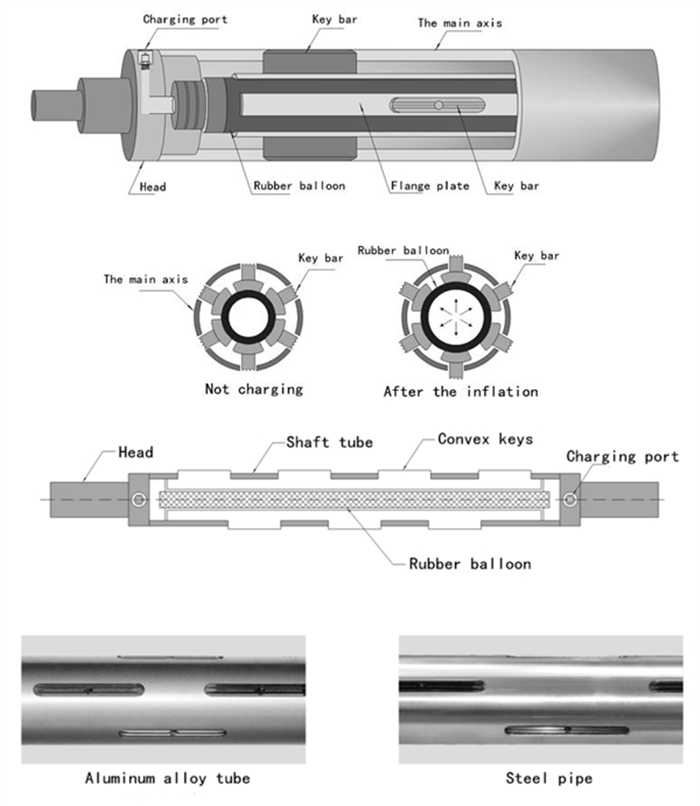

Product Schematic:

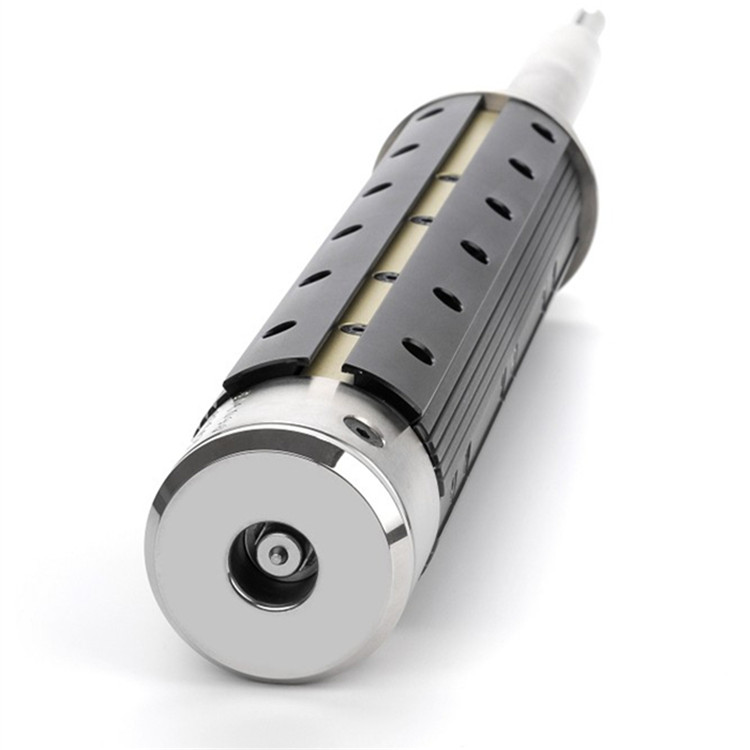

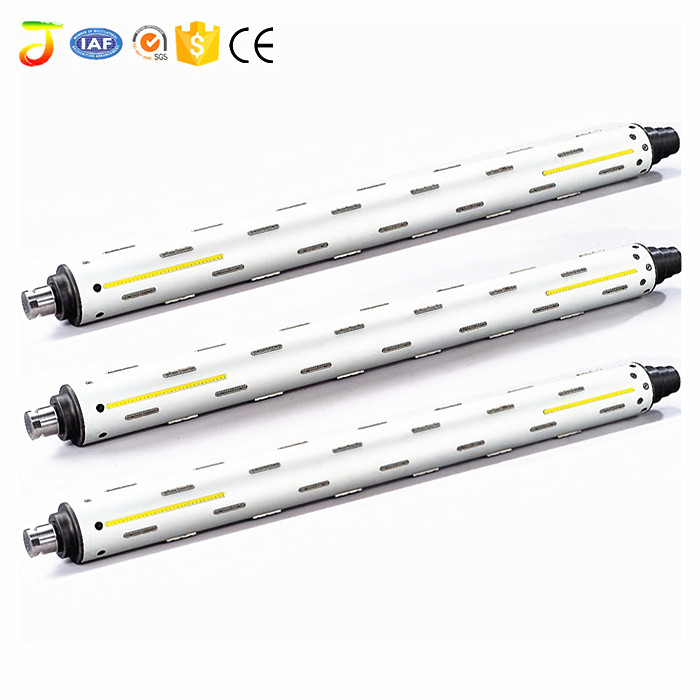

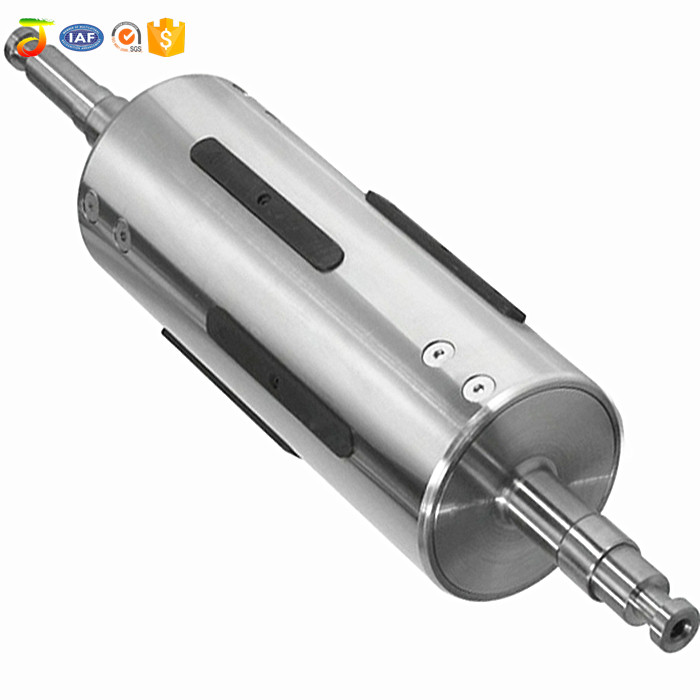

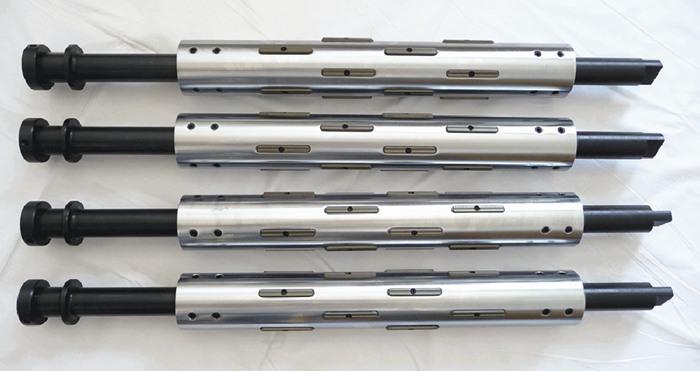

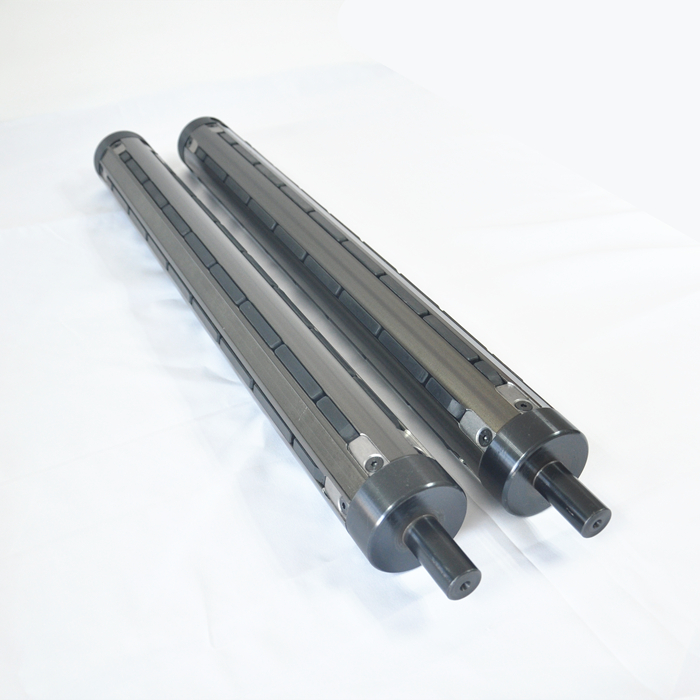

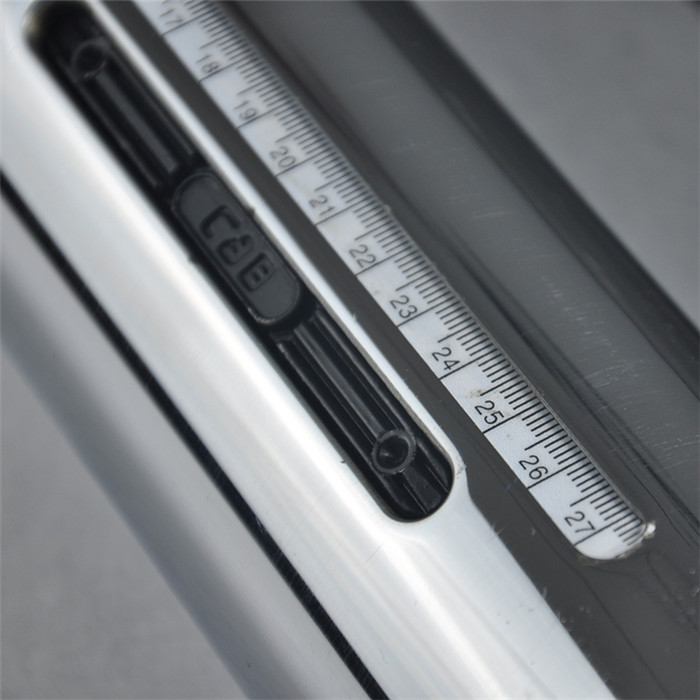

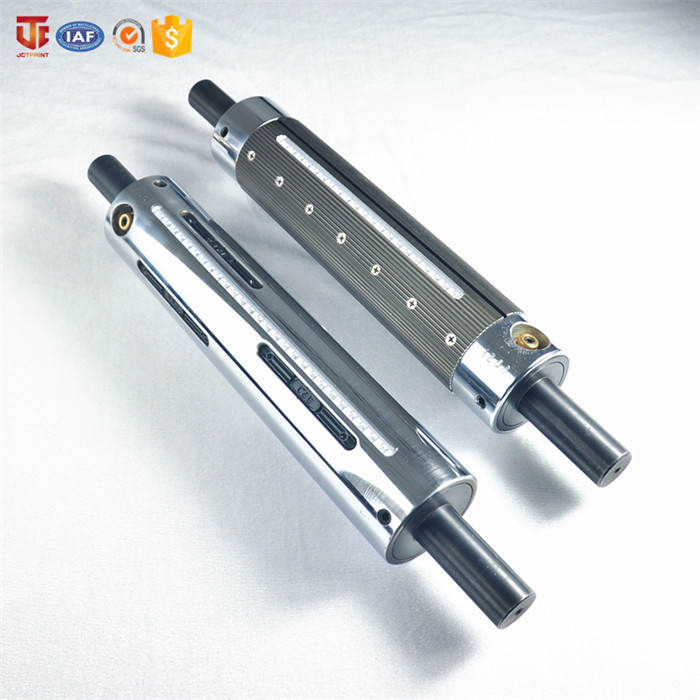

Product Pictures:

Product Packaging:

Company Information:
