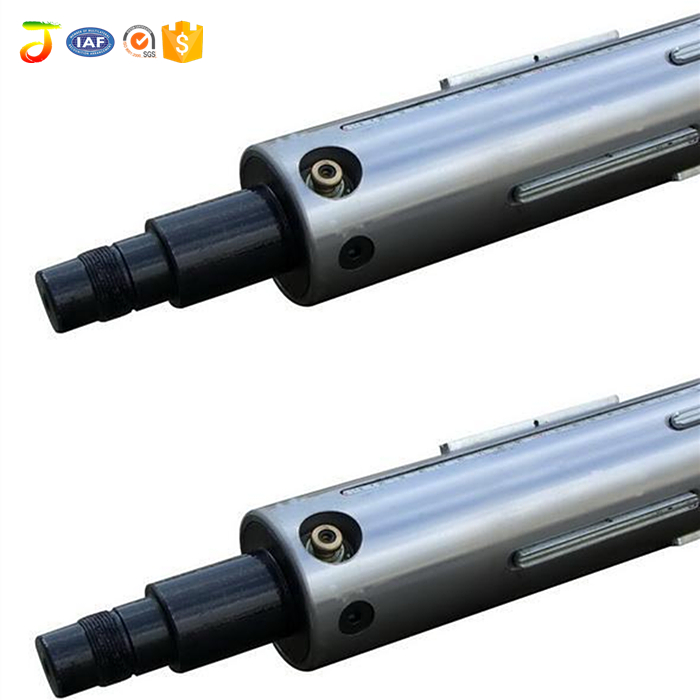

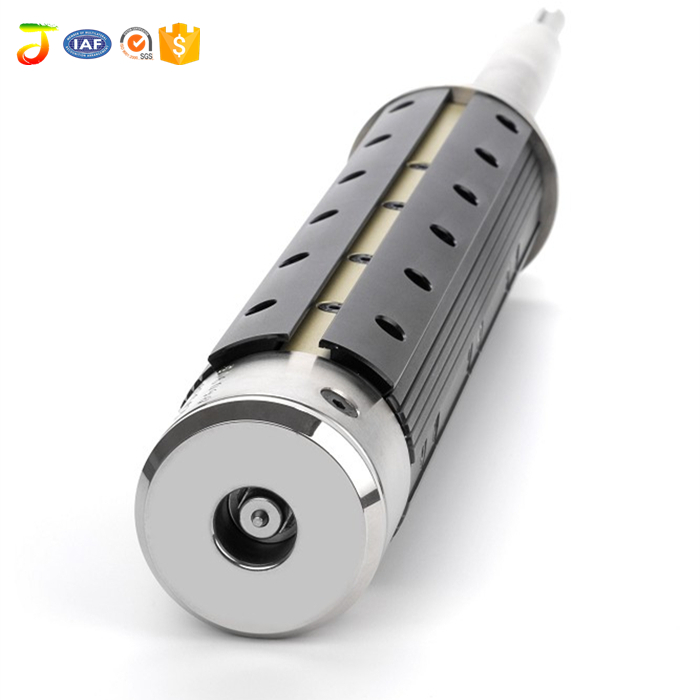

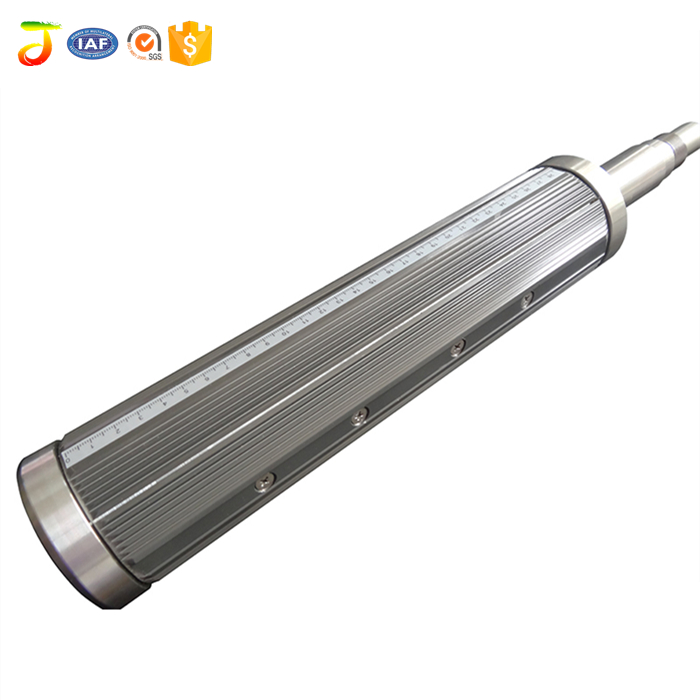

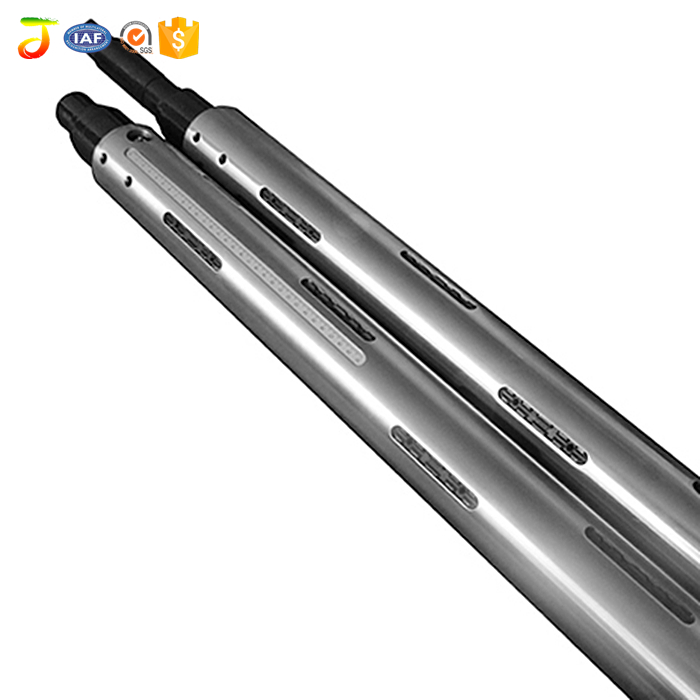

1.Winding and unwinding air shaft for:
Printing machine;
Cutting machine;
Slitting machine;
Coating machine;
Laminating machine;
Bag making machine;
And so on
2.Specification of air expanding shaft:
|
Type |
Unaerated diameter (ømm) |
Inflated diameter(ømm) |
Applicable volume tube inner diameter(ømm) |
|
1″ |
24.8 |
24.8-28 |
25-26 |
|
1.5″ |
37 |
40-42 |
38-38.5 |
|
2″ |
49 |
52-54 |
50-51 |
|
3″ |
74-75 |
80-82 |
75.5-78 |
|
4″ |
99-100 |
104-106 |
101-102 |
|
5″ |
125 |
130-133 |
126-128 |
|
6″ |
150 |
154-156 |
151-153 |
|
8″ |
200 |
206-264 |
202-204 |
|
10″ |
250 |
260-264 |
252-256 |
|
12″ |
300 |
