Steel coating machine air shaft Inflatable roller supplier

Product ID : JCT-QZZ-W001
Product Tags :
Product Attributes :

Air Inflatable shafts have a wide range of uses. Any machine that has rewinding, unwinding and slitting can be used for inflatable shafts, even the light metal industry.

Product Description

steel coating machine air shaft Inflatable roller supplier



Product Description
1. Features of air shaft
1) Inflatable operation time is short
2) Paper tube placed simple
3)Heavy loading
4) High economic efficiency
2.Specifications
1)Type:

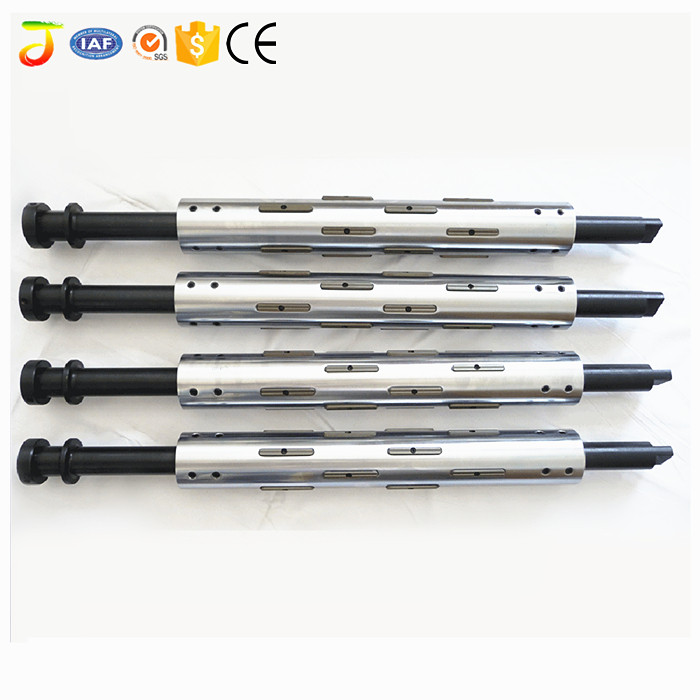

Key type air shaft

 (18)

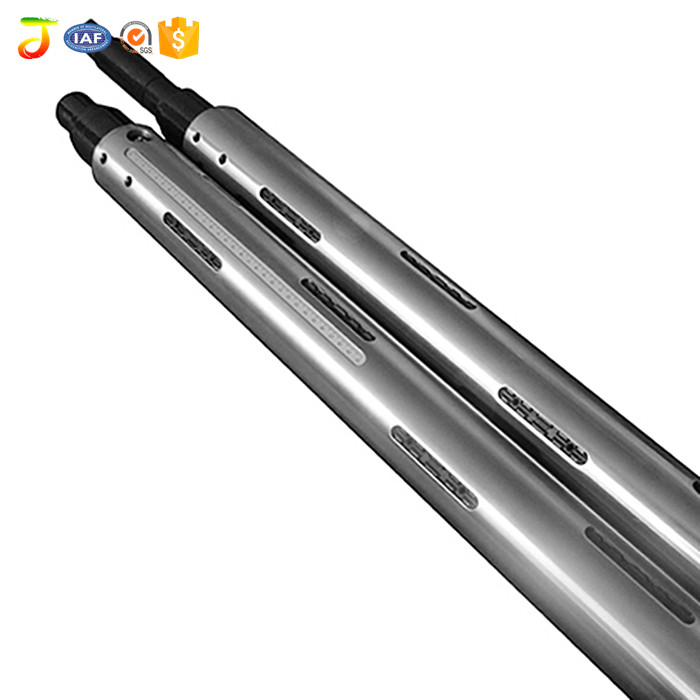

Lath type air shaft

 (33)

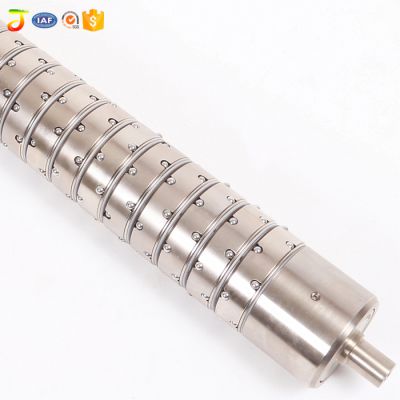

Differential air shaft

17

2)Material: Steel, aluminum

3)Dimension:We have the following normal type but other dimensions can be customized.

Type

Inflated diameter(ømm)

Applicable volume tube inner diameter(ømm)

1″

24.8-28

25-26

1.5″

40-42

38-38.5

2″

52-54

50-51

3″

80-82

75.5-78

4″

104-106

101-102

5″

130-133

126-128

6″

154-156

151-153

8″

206-264

202-204

10″

260-264

252-256

12″

308-310

302-305



Application

Air shaft is widely used in printing, packaging, plastic, paper making, spinning industries for all the machines with the winding, rewinding unit and slitting unit for the operation of material in roll.

Advantage

1.The connection of spindle head and steel tube is interference fit

We are using a high power press machine which can produce 80T thrust to realize all the combination of spindle head and steel tube. While other suppliers knock the spind head into the steel tube with a big hammer,no quality and accuracy.

50

2. Adopting  hi-precision cold-drawn steel tube as the shaft body

We adopt  hi-precision cold-drawn steel tube as the shaft body.The thickness of this kind of tube is uniform so when the rubber balloon inside is inflated ,all key strips will stick out at same height and good material can help keep a better dynamic balance .

 (15)

3. Adopting whole long key bar and pagoda springs for key type air shafts

For the key strip,we adopt a whole piece of aluminum plate to make it.And it can form a good protective ring around the air  bladder. We adopt the pagoda springs to support the air  bladder which can bear 300000 times

48



4.The connection between our air bladder and shaft head have good sealing performance and very stable.

We use special equipment to connect the air bladder and the shaft head and then lock the outside by iron ring,which will realize tight seal.While,many other suppliers fasten both ends by iron wire,this operation is easy to leak ,has badly sealing performance.

5. Quality control

We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each shaft is qualified.

4

6.Packaging

Our air shafts are usually packaged by standard wooden box,plywood wooden box and carton,also can be packaged as customer's requirement.

Company Information



.jpg

FAQ



1. How should I place the order?

For air shaft , please send us your drawing, or let us know your request.



2. What is your MOQ?

1 Piece.



3. What material of your shaft is made of?

45# steel ,aluminum.



4. Can you produce relative product,like adapter,hand shank?

Yes,Sure.
