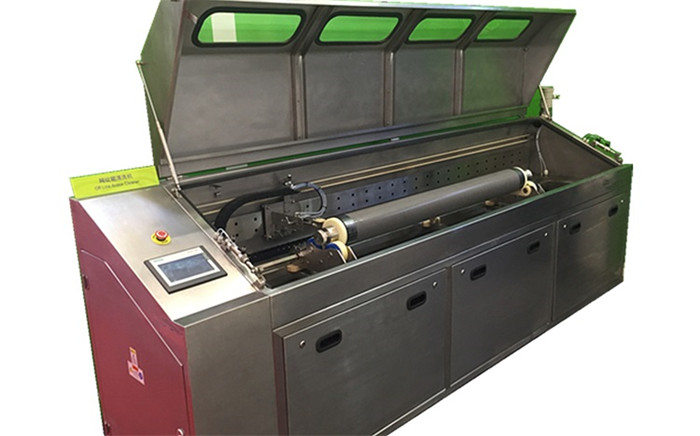

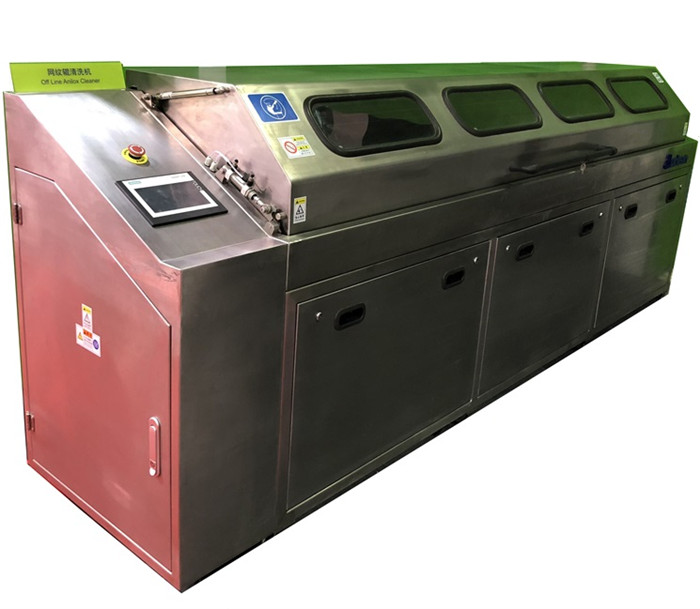

Anilox Roll Cleaner is designed for all types of aniloxes and gravure cylinders. It is cleaning system based on liquid and high pressure water .The cleaning theory is simple, liquid soften residual ink anilox cells, and high pressure water deeply wash residuals in cells to restore anilox rolls completely.
1. Introduction
Anilox Roll Cleaner is designed for all types of aniloxes and gravure cylinders. It is cleaning system based on liquid and high pressure water .The cleaning theory is simple, liquid soften residual ink anilox cells, and high pressure water deeply wash residuals in cells to restore anilox rolls completely.
2. Cleaning procedure
1. Choose anilox sizes on MENU(Initial settings, Memory function),
2. Place anilox into machine chamber, close the lid and press start,
3. Anilox rotates while liquid is sprayed on it automatically
4. Liquid is recycled to tank for re-use at the end of the wash cycle
5. High pressure water clean residuals of ink and cleaning liquid on anilox
6. Compressed air blows off water residual on anilox surface;
3. Specifications
| Anilox Water Wash Machine | AC2100WW | AC2600WW |
| Max Length of the machine | 2100mm/83 inch | 2600mm/102 inch |
| Max Cleaning Length | 1700mm/86 inch | 2200mm/86 inch |
| Max Roll Diameter | 300mm/11.8 inch | 300mm/11.8 inch |
| Number of Rolls | 1(2.3.4,) | 1(2) |
| Control System | PLC | PLC |
| Max Roll Weight | 250kg | 400kg |
| Power Supply | 11kw /AC380-420V50/6Ohz | 11kw/AC380-420V/506Ohz |
| Compressed Air | 7 bar/0. 6mpa, 350 L/min | 7 bar/0. 6mpa, 350u/min |
| Water Supply | Running water/1/2-3/4 inch | Running water/1/2-3/6 inch |
| Machine Dimensions | 2810mm X 880mmx 1250mm | 3310mm X 880mm X 1250mm |
| Machine Weight(Approx) | 480kg | 530kg |
4. Application
Anilox Roll Cleaner is especially efficient to aniloxes in high screen lines or hard to clean. The cleaning process is gentle and quick without any harm to aniloxes. Aniloxes can be used immediately after cleaning. Meanwhile guarantee a longer life of aniloxes
Anilox Roll Cleaner is capable to keep your aniloxes totally clean, provide ink transfer or coating volume, and guarantee fine printing or coating.
1). The ink cell of ceramic anilox roller is easier to be blocking by printing ink, plate, double sides adhesive tape or others after a long time printing, then it will affect the printing quality and the anilox roller normal use.
2). Anilox Roll Cleaner is especially efficient to aniloxes in high screen lines or hard to clean. The cleaning process is gentle and quick without any harm to aniloxes. Aniloxes can be used immediately after cleaning. Meanwhile guarantee a longer life of aniloxes
3). Anilox Roll Cleaner is capable to keep your aniloxes totally clean, provide ink transfer or coating volume, and guarantee fine printing or coating.
4). Anilox Roll Cleaner is humanized design, safe and reliable, easy operation. Autorun after program setting, One-touch operation. The machine can be operated by all types of staff, no need professional staff to operate.
5. Why choose us
Design for anilox with shaft, anilox sleeve and gravure cylinders ;
Applicable for all types of ink, coating medium ;
Restore Anilox cells totally ;
Short cleaning time ;
Harmless to aniloxes;
Liquid recycling use;
PLC controlled touchscreen interface;
Memory function for multi roll specifications;
Total stainless steel construction.
1. Are you manufacturer or Trading company?
We are manufacturer and we have been producing anilox cleaner for many years and our machine are sold to more than 20countries in the world and have good reputation.
2. Do you have quality certificate?
Yes ,we have CE, SGS etc,so you can rely on the quality.
3. What's the delivery time?
Around 20~30days after pre payment received, however, based on order.
4. Can you provide foreign country machine instation services?
Yes,we have a after service team can provide instation services and engineers are available to solve prolems overseas.
