Product Characteristics:

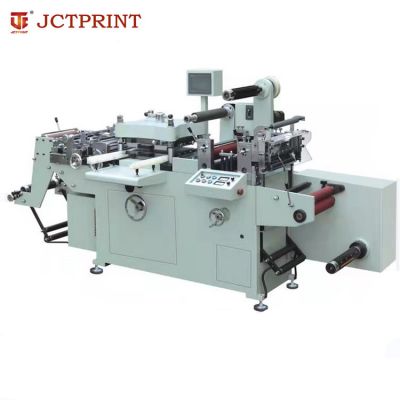

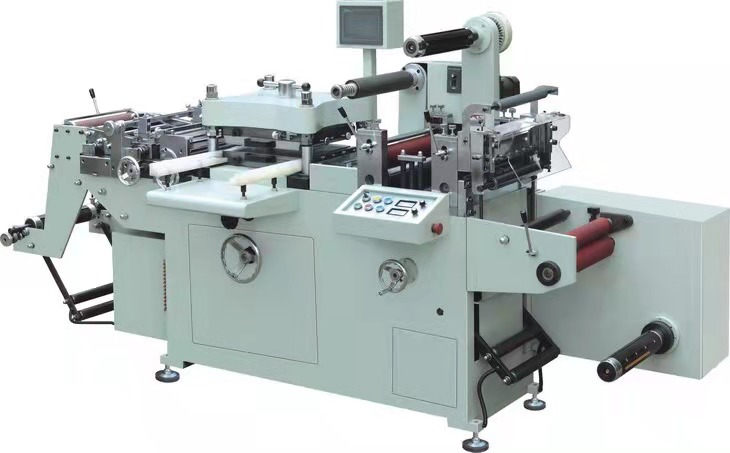

MQ-320 flat bed die cutting machine is a high-precision die-cutting machine with flat bed. The material dragging positioning is controlled by a servo system. Photoelectric eye control.
MQ-320 flat bed die cutting machine can be used for laminating, die cutting, waste discharge, cutting or rewinding at one time. It is very suitable for die cutting of various self-adhesive labels and laser labels.
At present, the MQ-320 flat bed die cutting machine has 200 times/minute and 300 times/minute for customers to choose. The converted meter is 30 meters/45 meters for customers to choose. In the future, the speed will be unchanged without changing the machine structure. Will mention 60 meters per minute.
Currently the equipment has 320/420/520 width, if you need flat bed die cutting machine, please contact us
Technical parameter:
|
Model |
MQ-350 |
MQ-450 |
|
Cutting Speed |
20-200/300 cycle/min |
20-200/300 cycle/min |
|
Max. Unwind Diameter |
500mm |
500mm |
|
Max. Web Width |
350mm |
450mm |
|
Max. Die Cutting Width |
350mm |
450mm |
|
Max. Die Cutting Length |
350mm |
450mm |
|
Positioning Accuracy |
+0.1mm |
+0.1mm |
|
Total Capacity |
2.7kw |
2.7kw |
|
Power |
220v/380v+5% |
220v/380v+5% |
|
Overall Dimensions(LxWxH) |
2800x1100x1600mm |
3160*1570*1900mm |
|
Machine Weight |
about 1500kg |
About 2300 kg |
