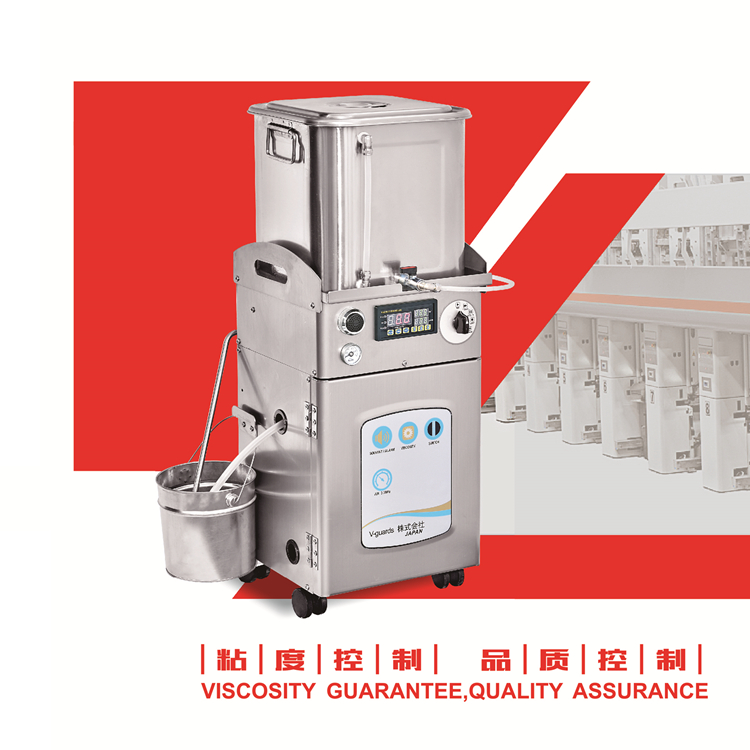

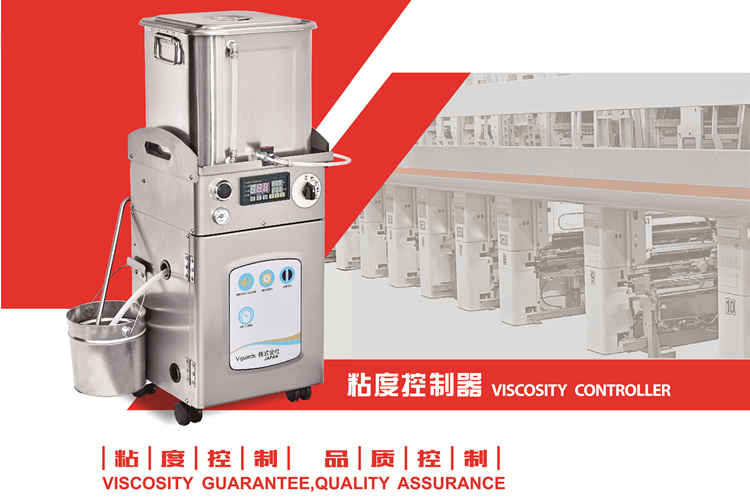

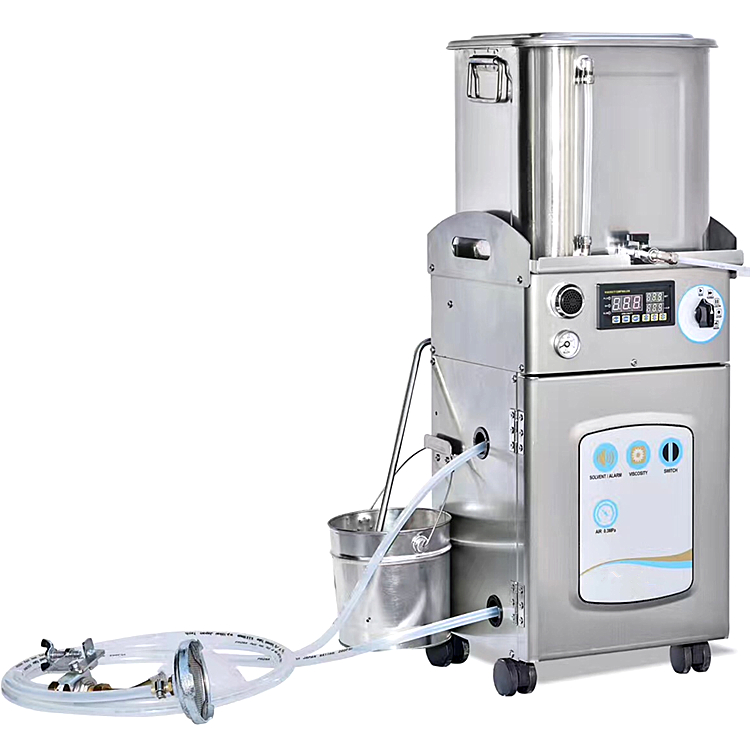

V10 Ink Viscosity Controller for Gravure Printing machine
V10 Ink Viscosity Controller for Gravure Printing machine V10 Ink Viscosity Controller for Gravure Printing machine

V10 Ink Viscosity Controller for Gravure Printing machine

Product ID : JCT-NDKY-S004
Product Tags :
Product Attributes :

V10 Ink Viscosity Controller for Gravure Printing machine

The viscosity controller is suitable for printing industry to automatically dilute the viscosity of the ink, and glue.

Product Description

V10 Ink Viscosity Controller for Gravure Printing machine

1.Product Introduction


The viscosity controller is suitable for printing industry to automatically dilute the viscosity of the ink, and glue.

Our machine is easy to use , don't need to adjust the ink manually.The only thing you need to do is setting the viscosity value according to the product requirement and then the pulse detectorwill test the viscosity and the pneumatic diaphragm pump circulate ink and glue.

It's safe and reliable to operate, and the viscosity detection is accurate.The viscosity controller automatically tracks and monitors to make the viscosity consistent when printing, lamination and coating.



2.Specifications

Model V-10 V-15 V-20
Appearance 304 stainless steel,detachable box 304 stainless steel,detachable box 304 stainless steel,detachable box
Dimension 300*320*750mm 300*320*750mm 300*320*750mm
Net weight 17.5kg 20kg 23kg
Viscosity control range 3#Zahn Cup 13-30sec/30-100cP 3#Zahn Cup 13-30sec/30-100cP 4#Zahn Cup 10-60sec/100-1000cP
Solvent tank 304 stainless steel tank, capacity:12L 304 stainless steel tank, capacity:12L 304 stainless steel tank, capacity:12L
Inlet tube 6.5mm*10mm*2.5m 11mm*16mm*2.5m 15mm*21mm*2.5m
Outlet tube 8mm*12mm*2.5m 11mm*16mm*2.5m 15mm*21mm*2.5m
Ink circulating Rate 1.5-4.5L/min 3.5-9L/min 7.5-19L/min
Air consumption 40L/min 90L/min 160L/min
Working pressure 0.3Mpa 0.3Mpa 0.3Mpa
Voltage/power 220V/40W 220V/40W 220V/40W
Application range Gravure printing,Flexo printing
(Sub tank under 20L)
Gravure printing,Flexo printing,compound,coating
(Sub tank under 40L)
Gravure printing,Flexo printing,compound,coating
(Sub tank over 40L)


3.Advantages
