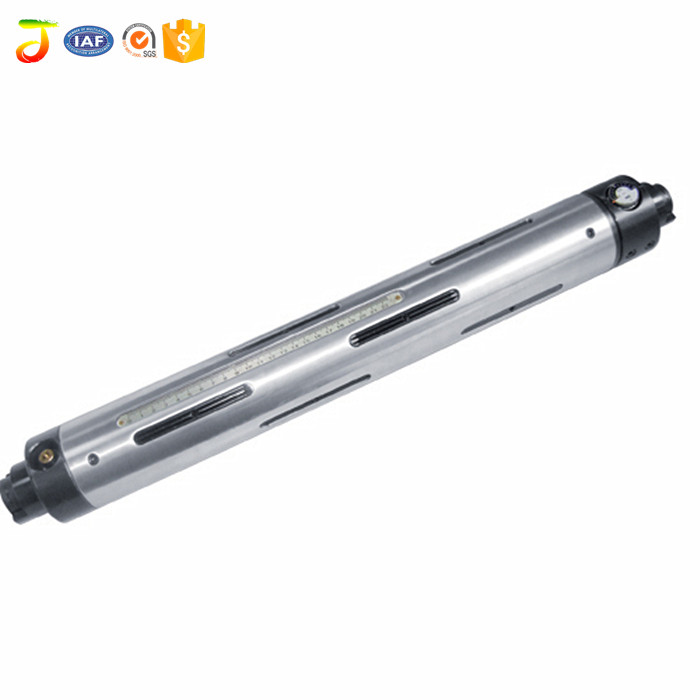

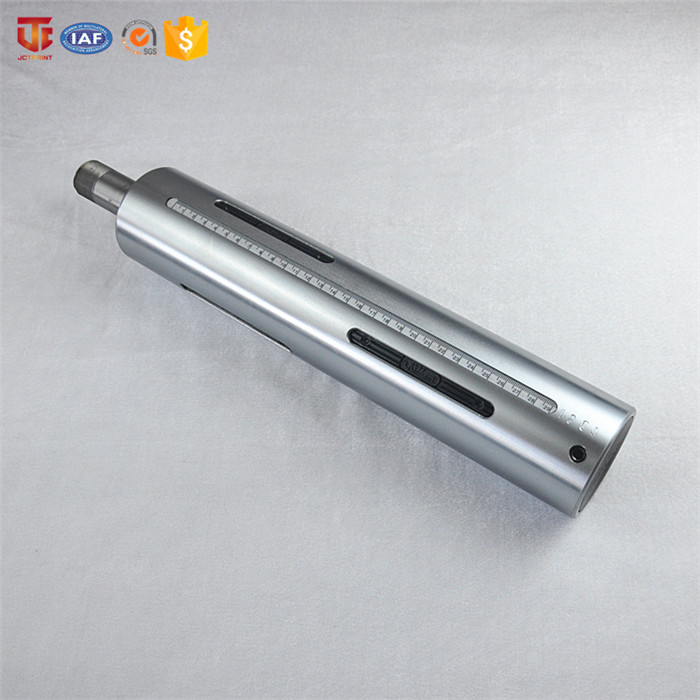

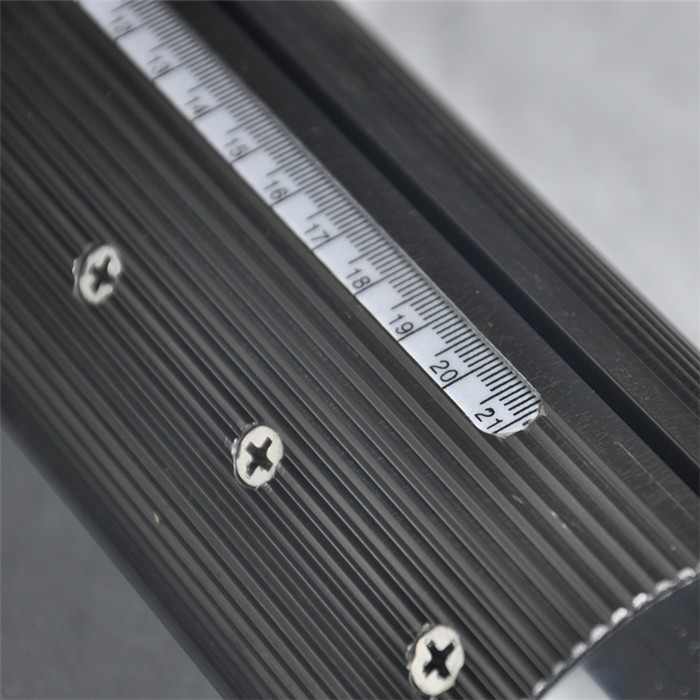

Stainless steel key strip air expanding shaft for printing machine
Stainless steel key strip air expanding shaft for printing machine Stainless steel key strip air expanding shaft for printing machine Stainless steel key strip air expanding shaft for printing machine Stainless steel key strip air expanding shaft for printing machine Stainless steel key strip air expanding shaft for printing machine

Stainless steel key strip air expanding shaft for printing machine

Product ID : JCT-AS-L001
Product Tags :
Product Attributes :

We are using a high power press machine which can produce 80T thrust to realize all the combination of spindle head and steel tube for the air shafts. Light type air shaft is with 0.03mm interference fit.Heavy type air shaft is with 0.06mm interference fit.While many factories knock it in with a big hammer,no quality and accuracy.

Product Description

Stainless steel key strip air expanding shaft for printing machine

Product description:

1.What is Air Shaft?

It is a kind of special-made shaft  for winding or unwinding , when it inflated by  high-pressure, the surface of it can be raised up and after deflating the air,the surface will quickly retract .It is widely  used in the manufacturing process and light metal industry.The advantage of using an air shaft  is that it can greatly improve the workingeffeciency .



2.What can an air shaft be used for

Printing machine

Cutting machine

Slitting machine

Coating machine

Laminating machine

Bag making machine

And so on



3. Specifications of air shaft

Type:Key type air shaft(steel-made or aluminum made) ,Lath type air shaft,Differential air shaft

Material: No.45 steel/ Aluminum

Length:0.2m-3.8m

Diameter

Unaerated diameter (?mm)

Inflated diameter(?mm)

Applicable volume tube inner diameter(?mm)

1″

24.8

24.8-28

25-26

1.5″

37

40-42

38-38.5

2″

49

52-54

50-51

3″

74-75

80-82

75.5-78

4″

99-100

104-106

101-102

5″

125

130-133

126-128

6″

150

154-156

151-153

8″

200

206-264

202-204

10″

250

260-264

252-256

12″

300

308-310

302-305

4.Why choose us?

(1)Adoping high power press machine to realize interference fit

We are using a high power press machine which can produce 80T thrust to realize all the combination of spindle head and steel tube for the air shafts. Light type air shaft is with 0.03mm interference fit.Heavy type air shaft is with 0.06mm interference fit.While many factories knock it in with a big hammer,no quality and accuracy.

(2)Adopting  hi-precision cold-drawn steel tube as the shaft body

We adopt  hi-precision cold-drawn steel tube as the shaft body.The thickness of this kind of tube is uniform so when the rubber balloon inside is inflated ,all key strips will stick out at same height .And it will  greatly weaken centrifugal force of the whole air shaft when it is rotating and will keep a dynamic balance.过盈配合.jpg

(3) Adopting whole long key bar and pagoda springs for key type air shafts

We use the whole long key bar to form a good protective ring around the air shaft air chamber ,and we adopt the pagoda springs which can bear 300000 compression.The key bar is made of aluminum alloy.

4)Adopting special equipment to connect air chamber and shaft head
The connection mode between the air chamber and the shaft head is very important process,our company are using special equipment to realize it.Outside is buckled by siderosphere directly which can ensure good sealing performance and stability. Many air shafts produced by other suppliers , both ends are fastened by iron wire,this is easy to leak and is with unstable sealing performance.

Stucture of air shaft we can produce:

内页-qqs (2).jpg

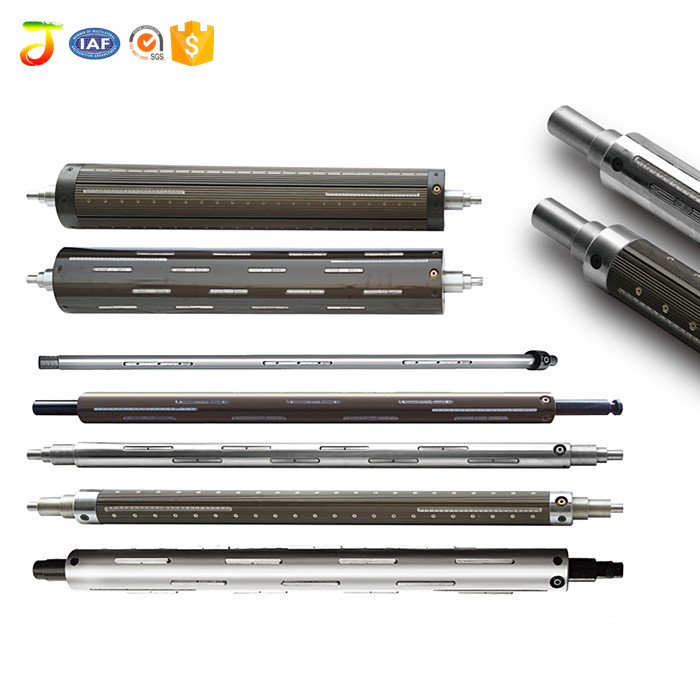

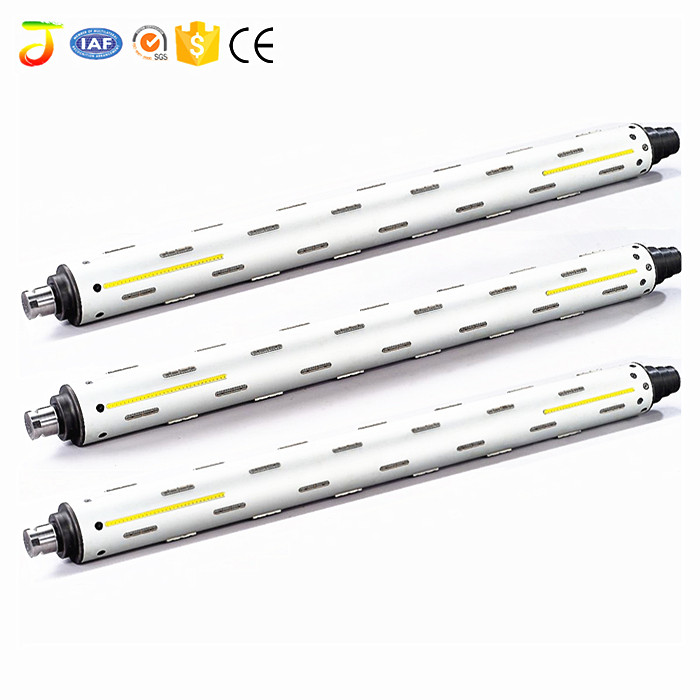

Pictures for air shaft:

内页-qqs (1).jpg
