JCTPRINT Automatic Slitting Machine
Recommend models and provide more equipment pictures for you
FQ-330/450 slitting and rewinding machine
Function
Slitting paper in multi-line production
Widely used
Tapes, thermal paper rolls, self-adhesive label, kraft Paper
Slitter Specifications
Model | FQ-320/450 |
Max. web width | 320mm/450mm |
Max. rewinding diameter | 500mm |
Min. slitting width | 16mm |
Slitting accuracy | ±0.15mm |
Slitting speed | 85m/min |
Overall dimensions(LxWxH) | 1500x1000x1200mm |
Machine weight | 430kg |
Rewinding shaft diameter | 3 inch/ 1.5 inch/ 1inch |
Details of FQ-330/450 Automatic Slitter Rewinder
Taiwan brand Electrical eyes sensor control material | Slitting device with counting rule |
France brand Sick sensor for counting pcs and meter | Control panel |
Professional customer service quick reply

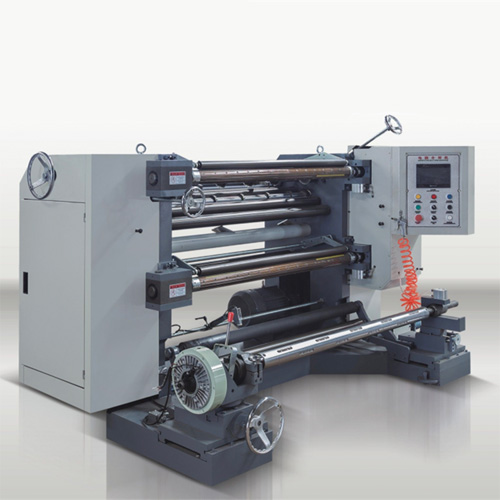

FQ-1300 vertical slitting machine
Function
Cut large rolls of raw materials into small rolls of wide-width materials.
Widely used
Paper,bopp, stretch film film, plastic roll, plastic wrap, tin foil, medical tape, bandage
Slitter Specifications
Model | FQ-1300 |
Max. web width | 1350mm |
Max. rewinding diameter | 400mm |
Max. parent roll diameter | 600mm |
Slitting accuracy | ±0.05mm |
Max. unwinding speed | 150m/min |
Overall dimensions(LxWxH) | 2050x1600x1500mm |
Machine weight | 1000kg |
Rewinding shaft diameter | 3inch |
Details of FQ-1300 Automatic Slitter Rewinder
Round knife and Share knife together attach in the machine | Unwinding with 1okg magnetic brake control, lifted by hydraulic unwinder |
PLC& touch screen to remote machine running | Support more rolls rewind |
Professional customer service quick reply
For more model data, contact us for free
JCTPRINT Sitter Advantage
PLC control, touch screen display
No middlemen, low prices
Meet personalized cutting and save material costs.
Related Products - JCTPRINT slitter accessories are sold separately, customer service will recommend the model for you.
