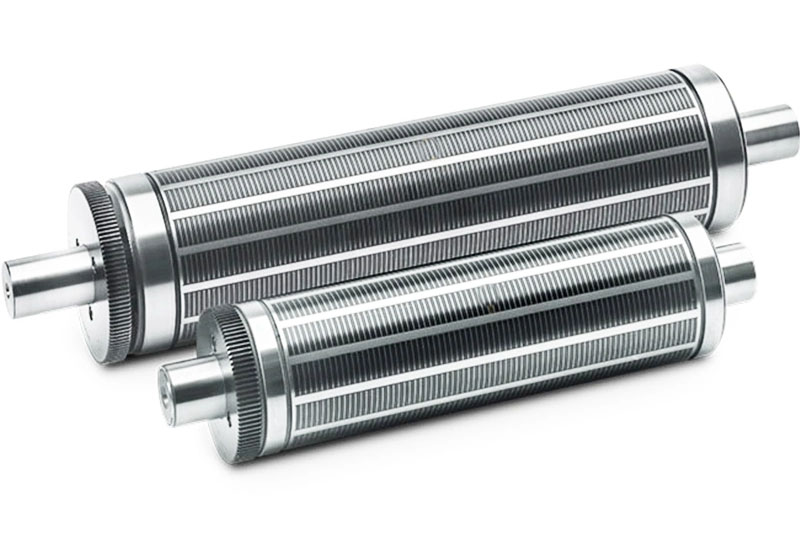

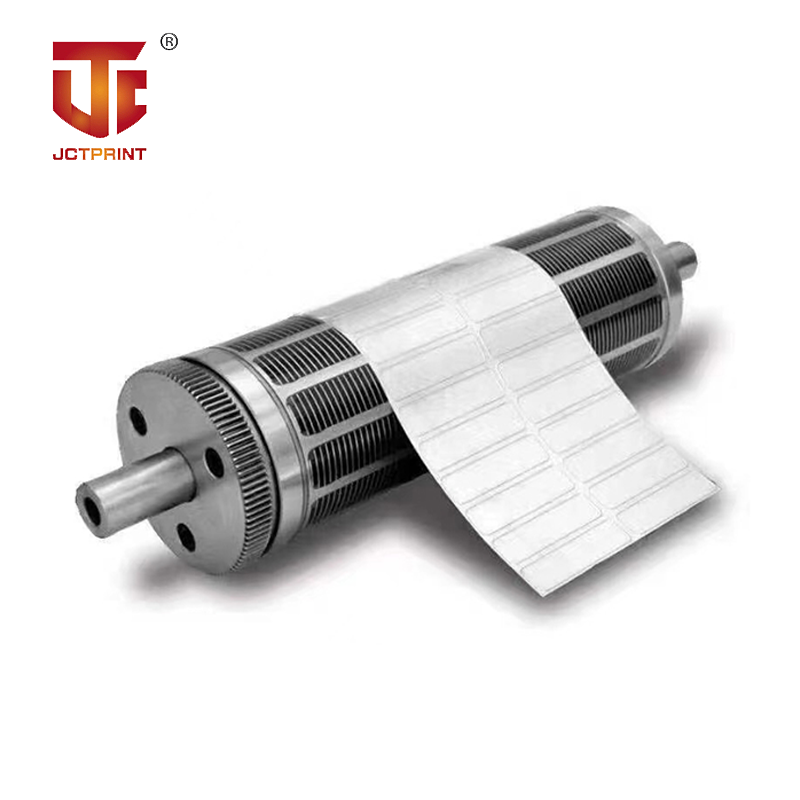

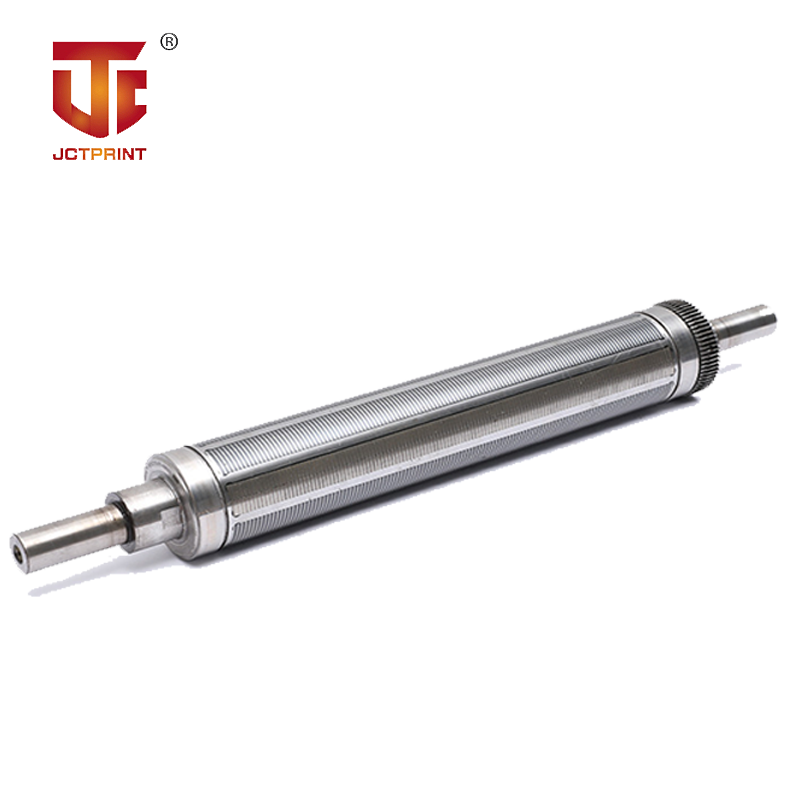

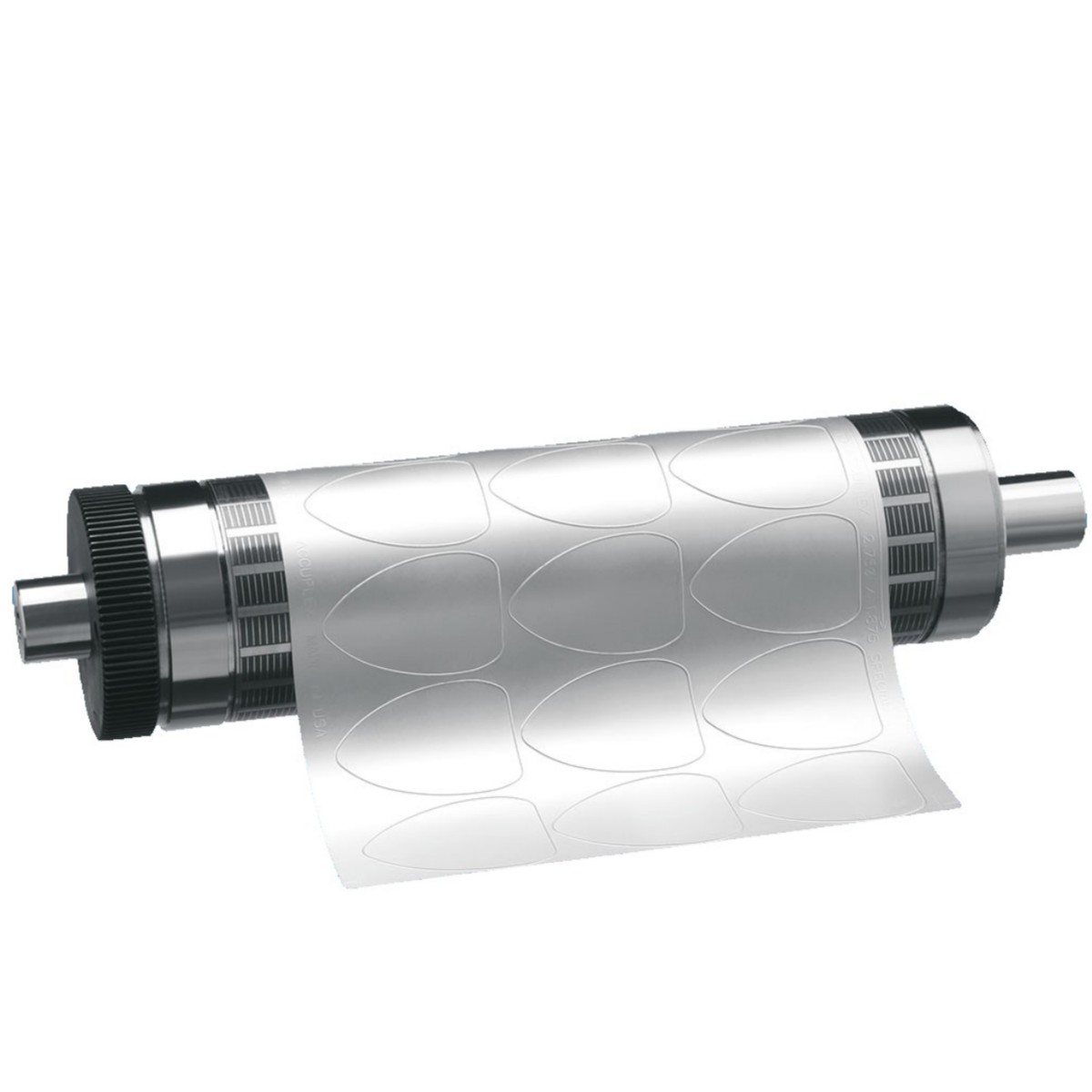

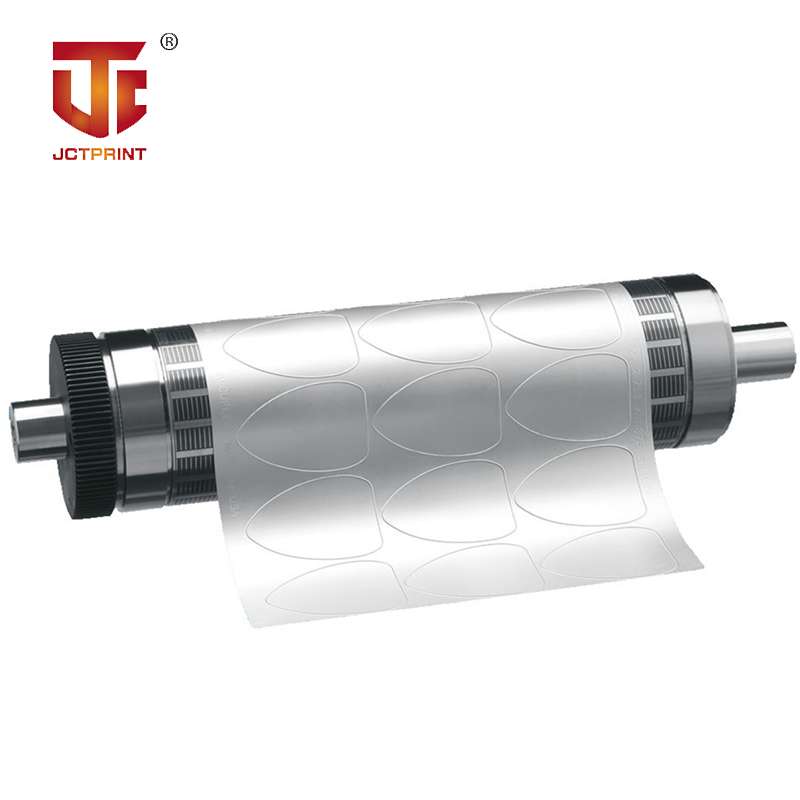

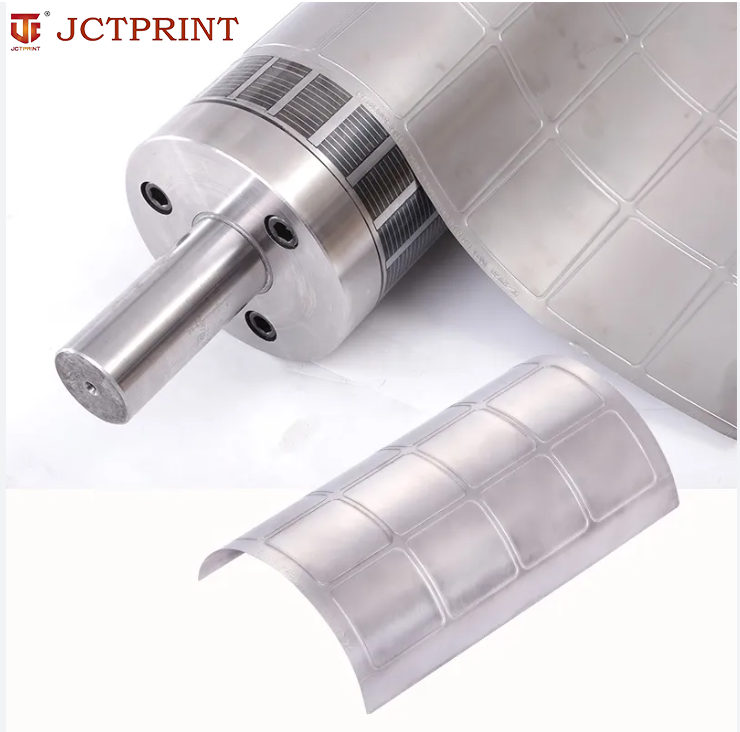

Magnetic Cylinders for Label Die Cutting

 Applications

Support customization — Perfectly fit flexible molds to achieve precise die-cutting effects.



Contact Our Engineer

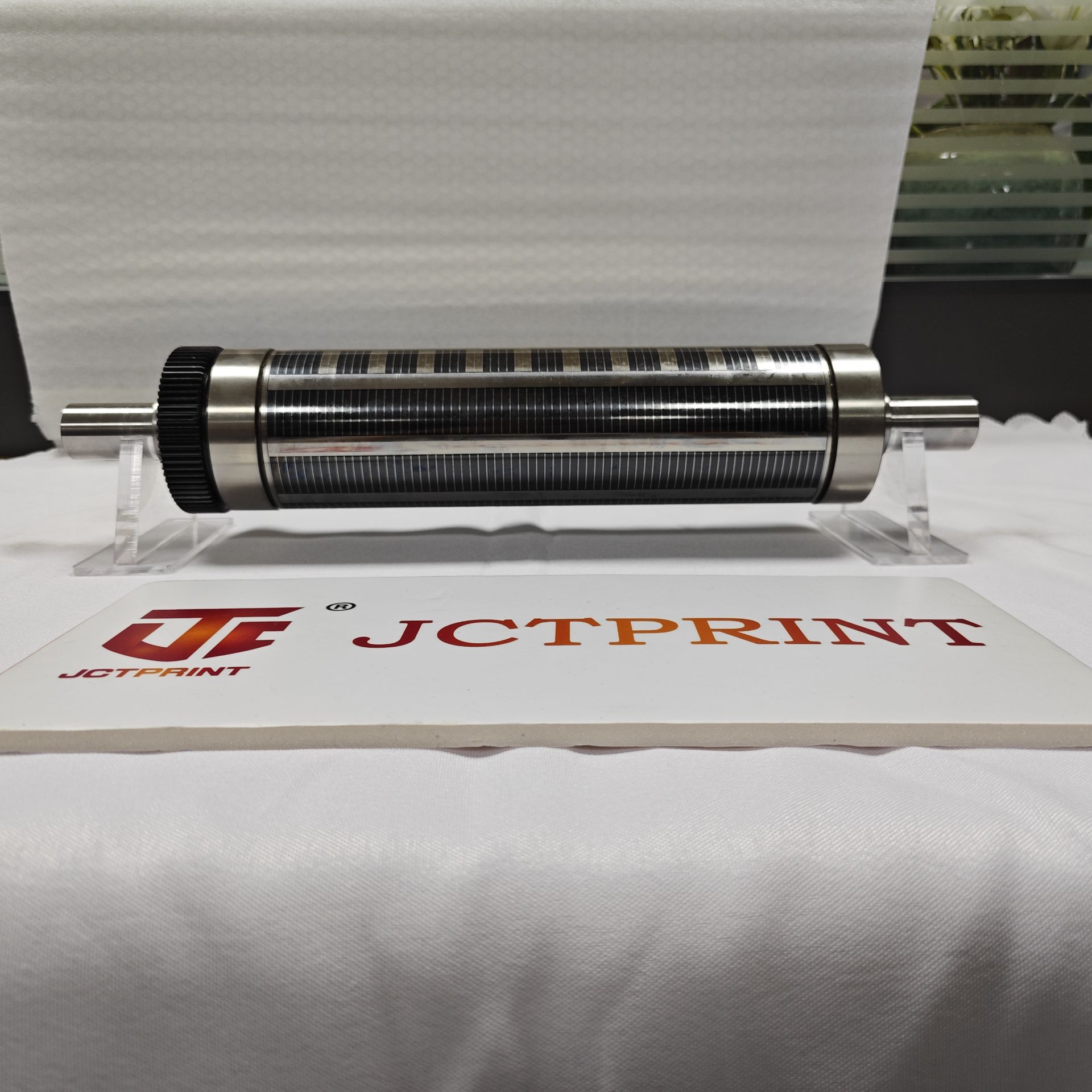

Magnetic Cylinders for Label Die Cutting

20+ Years Manufacturing Experience | Export to 40+ Countries

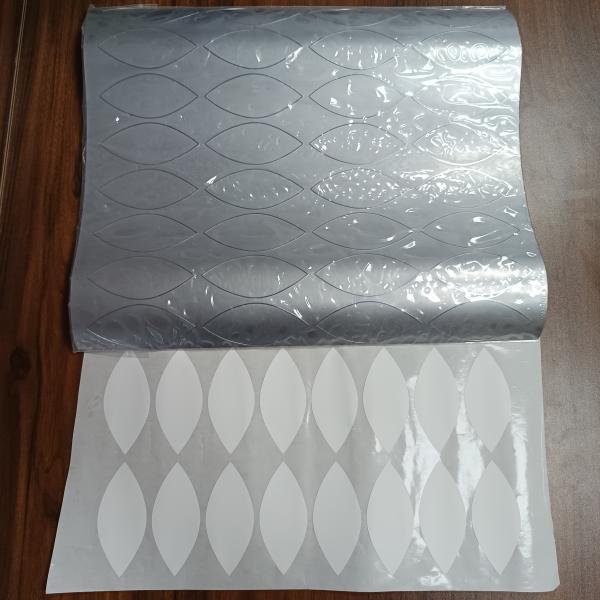

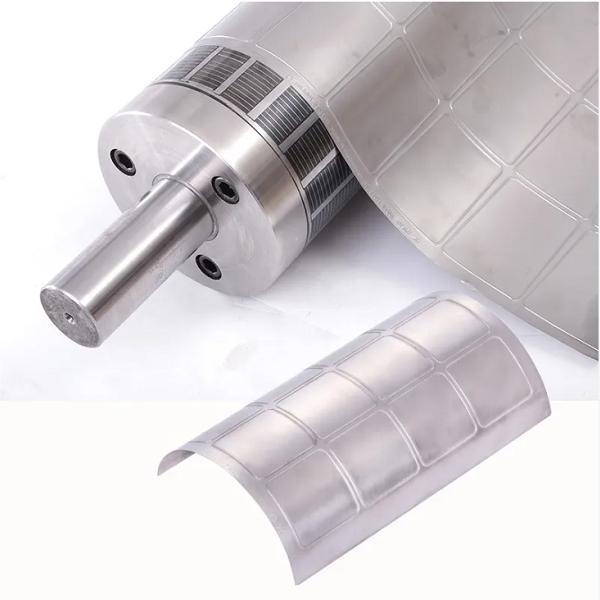

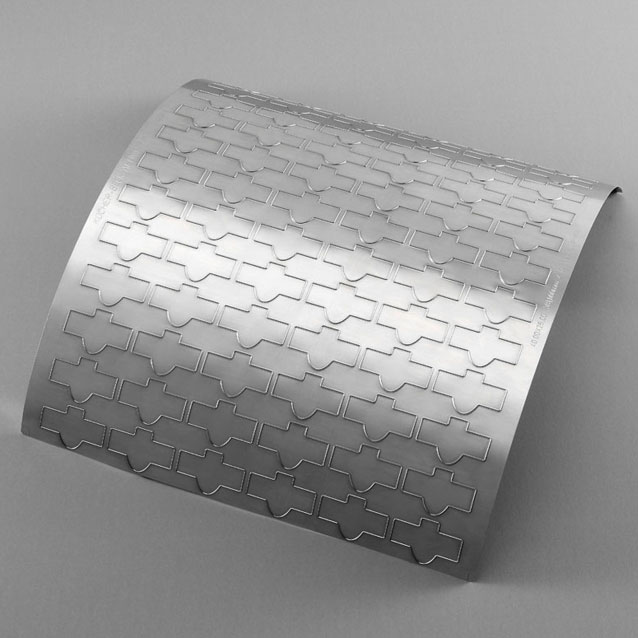

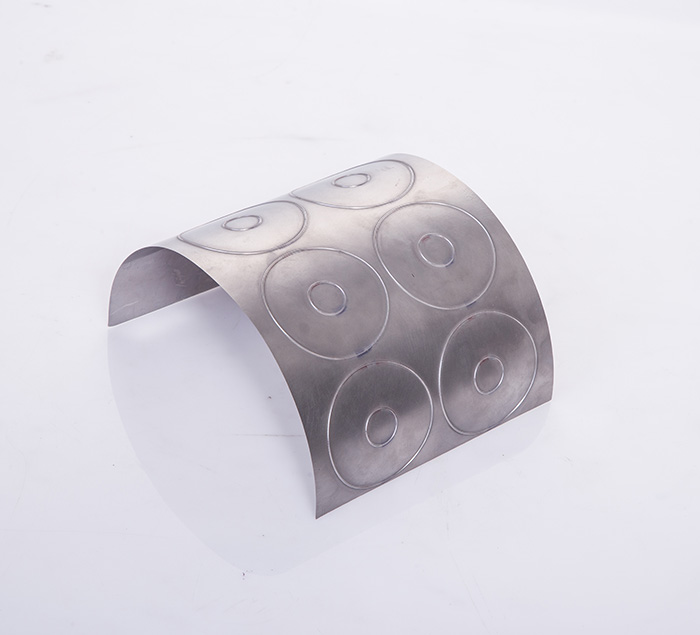

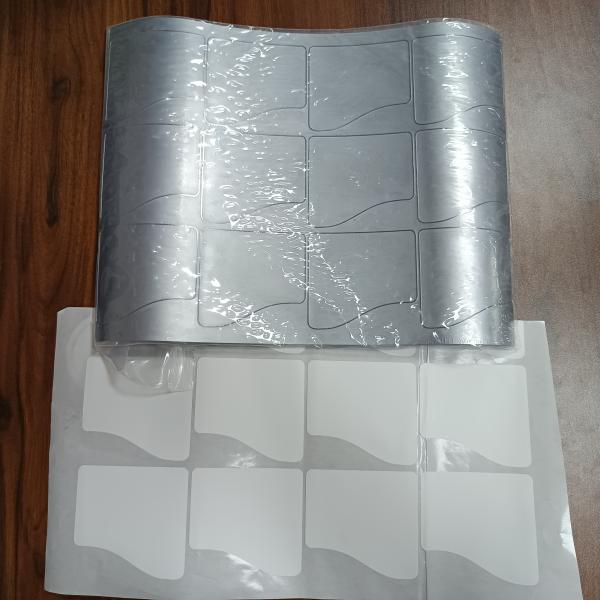

Flexible Cutting Dies

JCTPRINT has the ability to make most of the shapes on the market

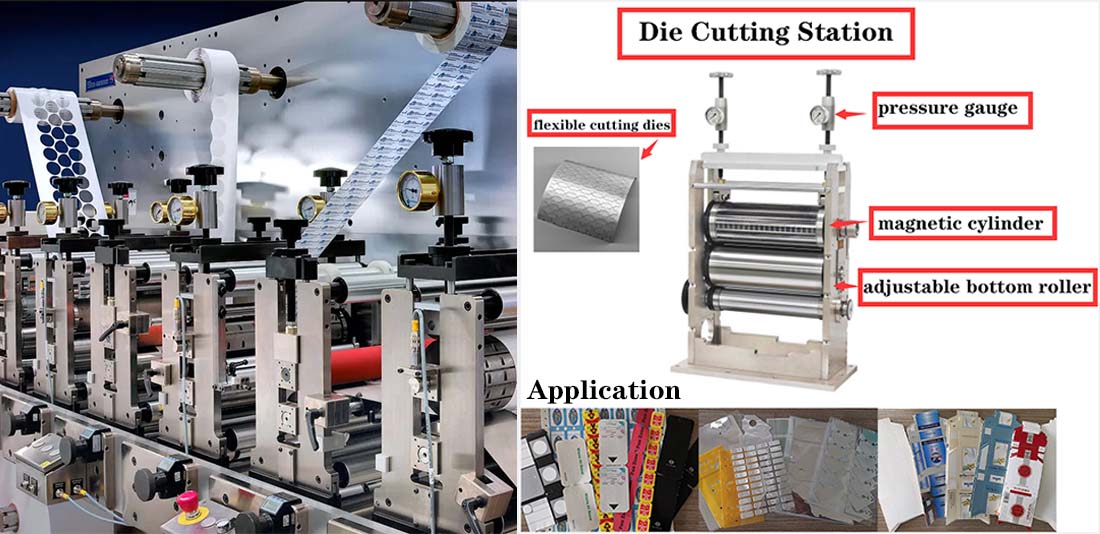

Rotary Die Cutting Station

    Add die-cutting capabilities to your printing machines. Save money on purchasing die-cutting machines.

Get Quote

Answers to all your die-cutting questions

---



Solving Common Die-Cutting Issues — JCTPRINT

Poor cutting accuracy——JCTPRINT high precision machining (0–5 microns)

Die shifting during production——Strong magnetic force for stable dies

Machine mismatch——JCTPRINT supports custom sizes to fit your machine.

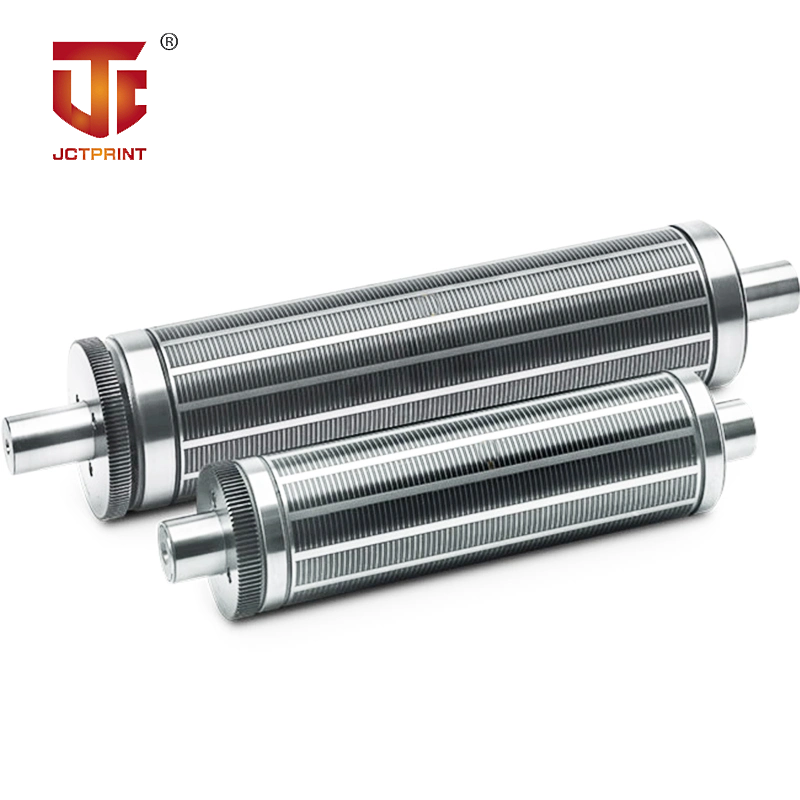

JCTPRINT magnetic cylinder parameters

Pillow shoulder	Vacuum heat treatment, hardness 60-62 HRC
Magnetic block	High quality strong neodymium magnets
Gear	Fine grinding and anti-rust treatment
Outer circle accuracy	within 0~5 microns
Distance between pillow shoulder and cylinder	1 micron

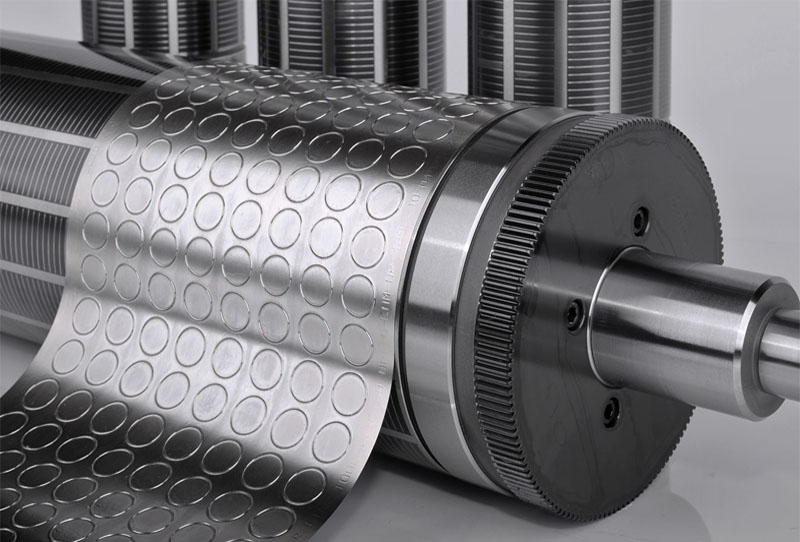

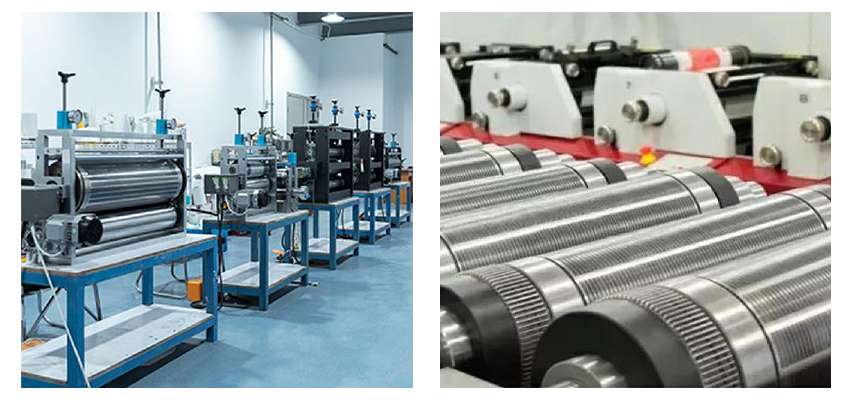

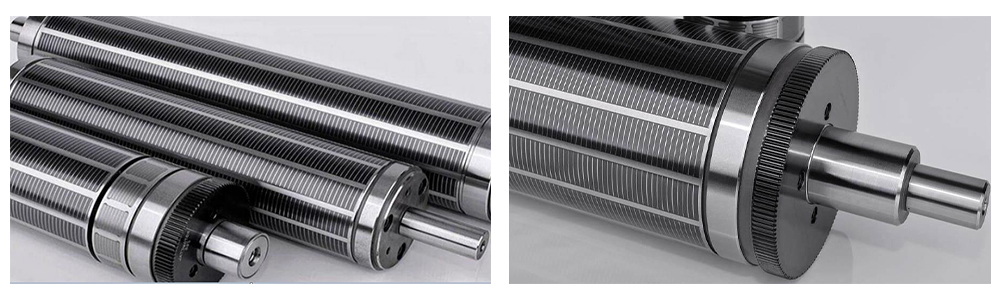

Magnetic cylinder manufacturing details

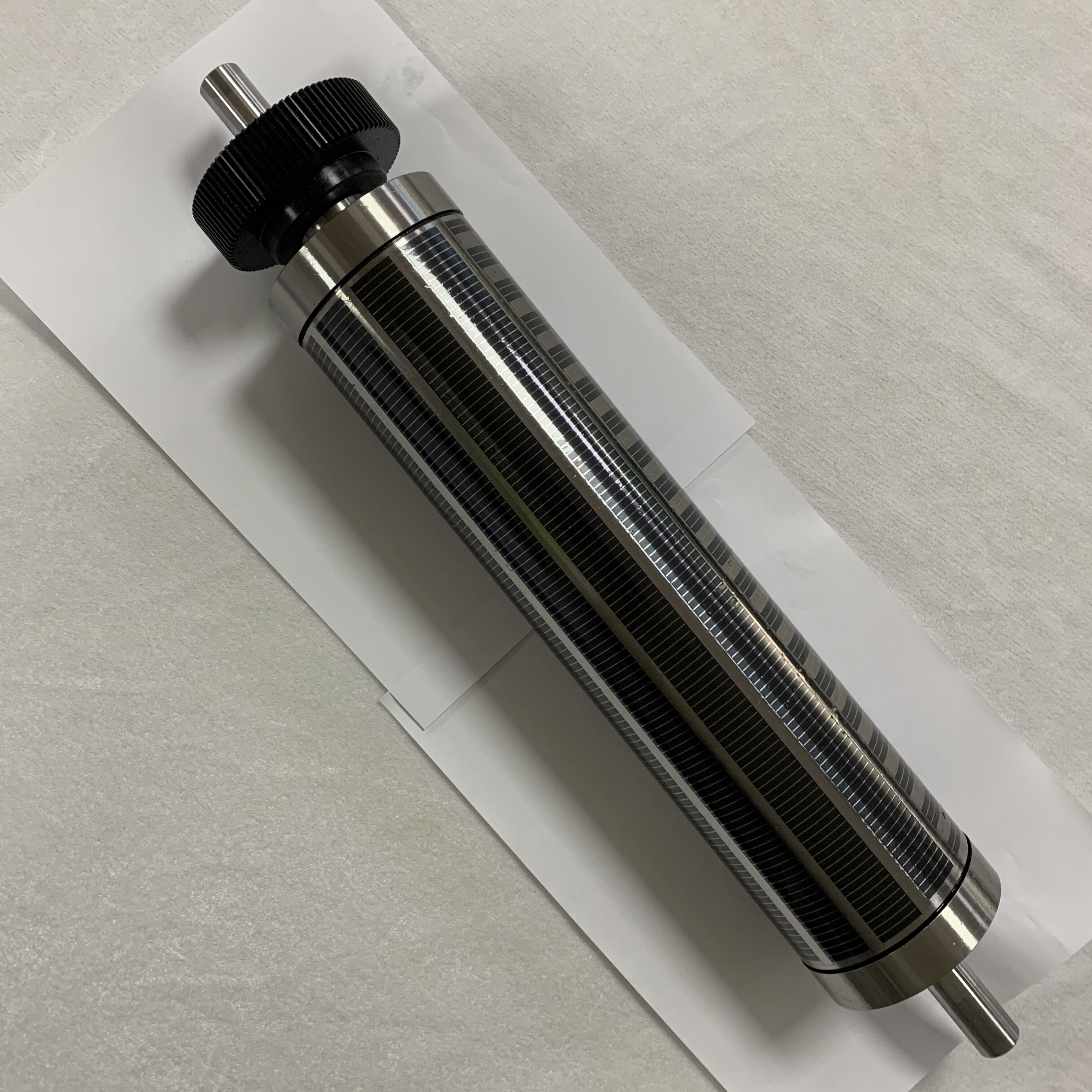

normal temperature magnetic cylinder

high temperature magnetic cylinder



---







---

What does JCTPRINT bring to you？

·High beating precision

Under the same specifications, the beating accuracy of JCTPRINT magnetic roller is 30% higher than that of other brands.

·Dynamic or static

Fine balancing Stable production process.

·Perfect concentricity

Keep the dies at a constant shape height.

·High adhesion

The flexible mold is not easy to fall off, which improves the production capacity.

·Strong match

One roll can be used in multiple locations, maximizing utilization.



Get Quote

Guaranteed high quality die cutting results

---

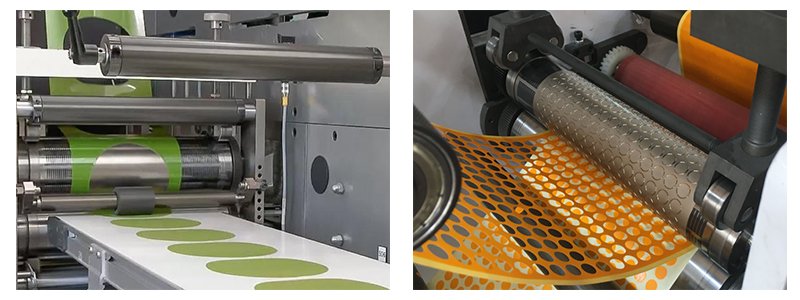

Application Of Magnetic Cylinder

Paper, including Thermal Transfers

Laminated Paper

Film

Paperboard
