High quality all kinds of cards die cutting machine for industrial
High quality all kinds of cards die cutting machine for industrial High quality all kinds of cards die cutting machine for industrial High quality all kinds of cards die cutting machine for industrial High quality all kinds of cards die cutting machine for industrial High quality all kinds of cards die cutting machine for industrial

High quality all kinds of cards die cutting machine for industrial

Product ID : JCT-DCM-004
Product Tags :
Product Attributes :

Based on the production of all kinds of labels cutting machine for many years, the machine is controlled by PLC system with sample operation, It mainly used for the die cutting process of any labels, the machine is characterized by high manufacturing accuracy, compact structure and reasonable operation.

Product Description

High quality all kinds of cards die cutting machine for industrial

1.Advantage of LPM die cutting machine:

Based on the production of all kinds of labels cutting machine for many years, the machine is controlled by PLC system with sample operation, It mainly used for the die cutting process of any labels, the machine is characterized by high manufacturing accuracy, compact structure and reasonable operation.  After using by professional beer and label manufacturers, it was proved that the machine has the advantages of high working efficiency and precise die cutting precision.

2.Specification of LPM die cutting machine:

LPM die cutting machine parameter



Type Number LPM-500 LPM-400 LPM-280 LPM-220 LPM-150
Power(W) 4KW 4kw 3kw 2.2kw 1.5KW
Max. Die-cut size 340*340mm 270*270mm 200*200mm 160*160mm 110*110mm
Min. Die-cut size 150*150mm 120*120mm 55*60mm 10*20mm 10*20mm
Cutting Stroke 200mm 200mm 200mm 200mm 200mm
Working speed 12000 Sheet/min 12000 Sheet/min 12000 Sheet/min 12000 Sheet/min 12000 Sheet/min
Dimension 2700*1140*1860 2500*1040*1660 2300*850*1600 1450*850*1500 1200*850*1400
(L*W*H)
Gross Weight 1140kg 900 560kg 360kg 300kg

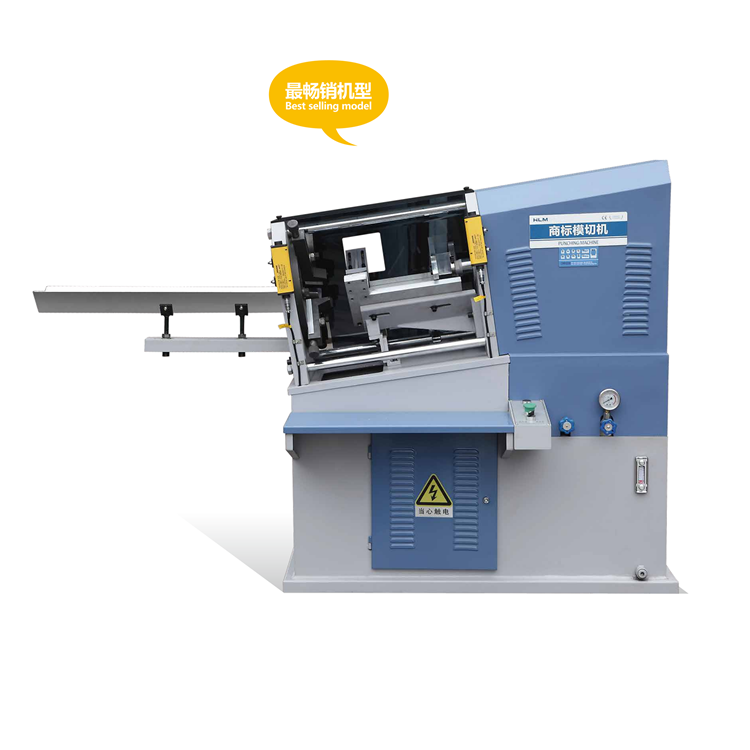

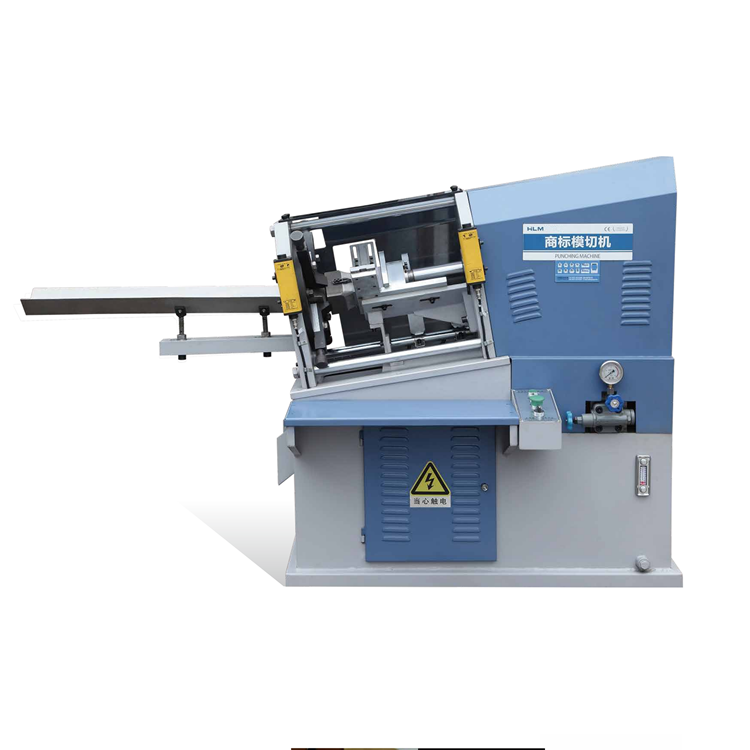

3.Product picture:



4.Packaging & shipping
