Flexo engraving anilox roller coated ceramic
Flexo engraving anilox roller coated ceramic Flexo engraving anilox roller coated ceramic Flexo engraving anilox roller coated ceramic Flexo engraving anilox roller coated ceramic Flexo engraving anilox roller coated ceramic

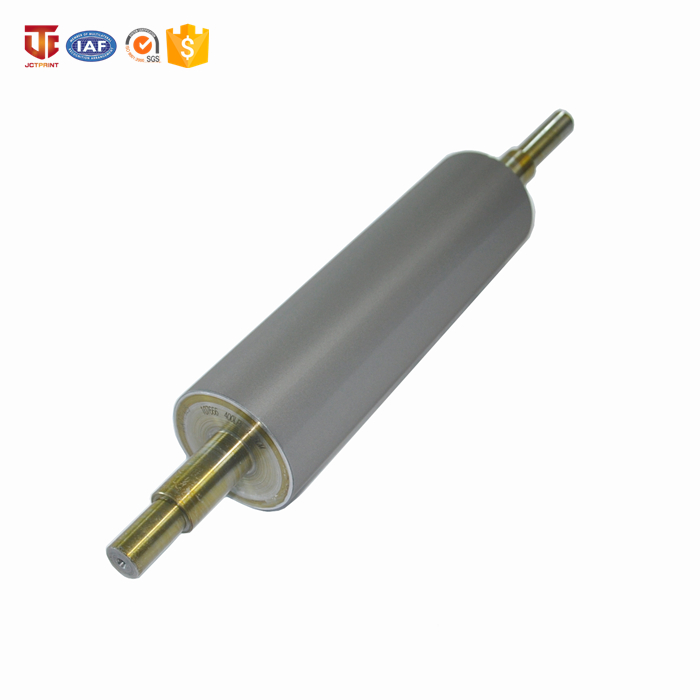

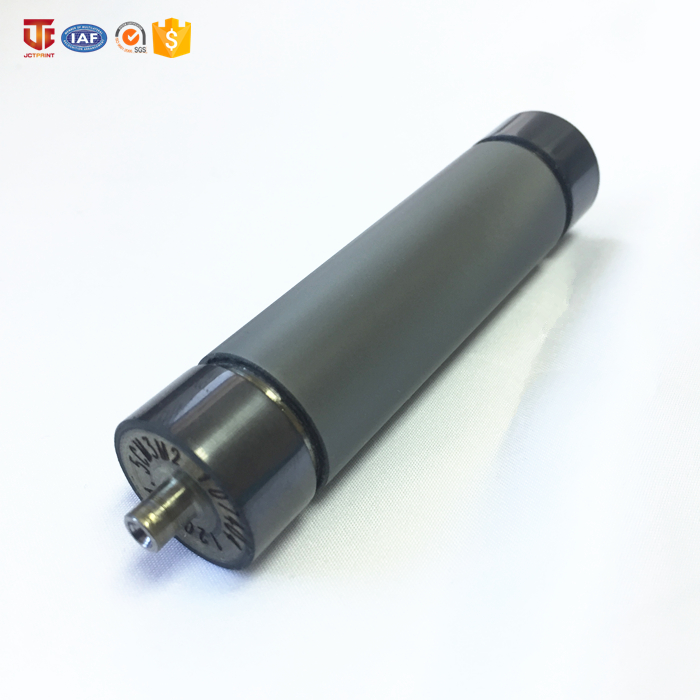

Flexo engraving anilox roller coated ceramic

Product ID : K058
Product Tags :
Product Attributes :

Flexo engraving anilox roller coated ceramic

material:#45 seamless steel tube or No.5 series aluminum

Cell shape:according to customers' requirement

Ceramic type:chrome oxide ceramics

Product Description



750

Flexo engraving anilox roller coated ceramic

Application



 A.  Flexo printing machine(unit type ,central cylinder type,cascade type)

 B.  Offset printing machine

 C. Corrugated water-based ink printing slotting machine

 D. Coating and lamination machine

 E. Glazing machine ect.

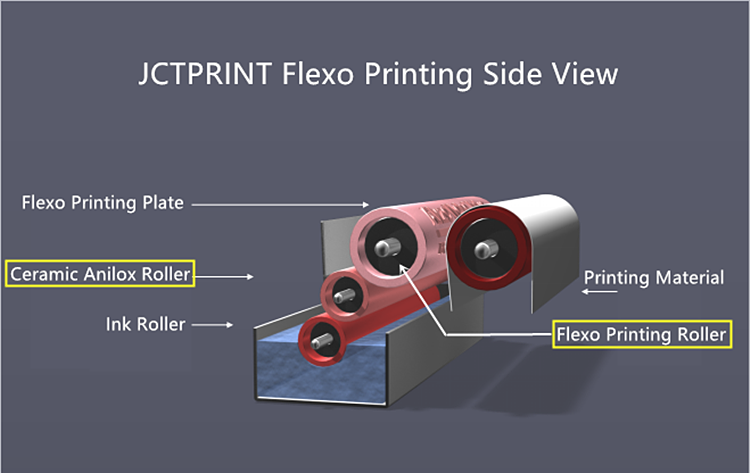

flexo printing side view.png





Specifications



   Specifications of Ceramic anilox roller


Screen count range



80-2000 LPI



surface material

 chrome oxide ceramic

Maximum width

5500mm ( with axis)

surface hardness

1250HV-1350HV

Diameter range

25-600 mm

Maximum effective length

3800mm-4250mm

 Screen angle

1-89 degree

Material of base roller

45#steel

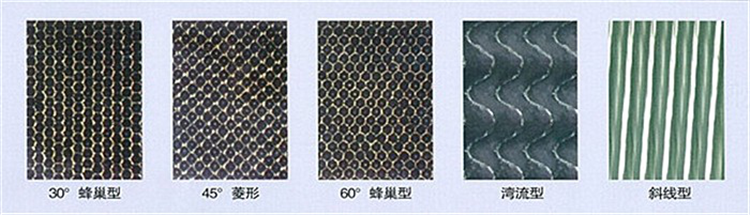

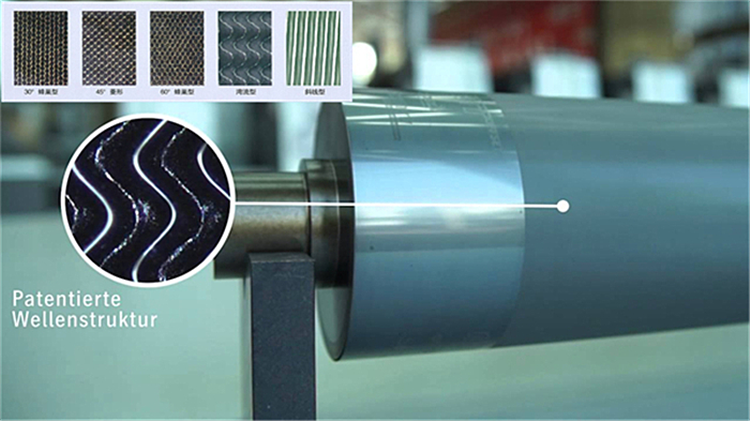

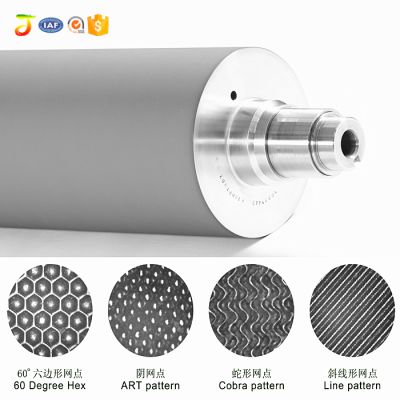

Cell shape : hexagon , quadrangle and line , etc or according to your actual requirement

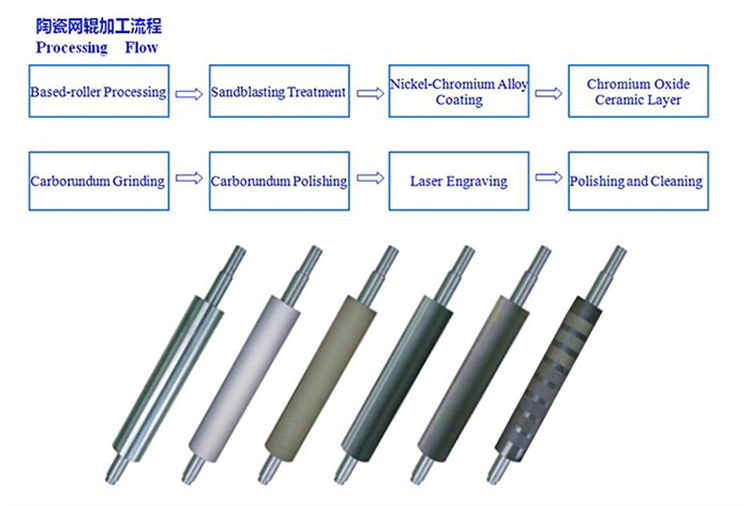

 Processing Flow of ceramic anilox roller

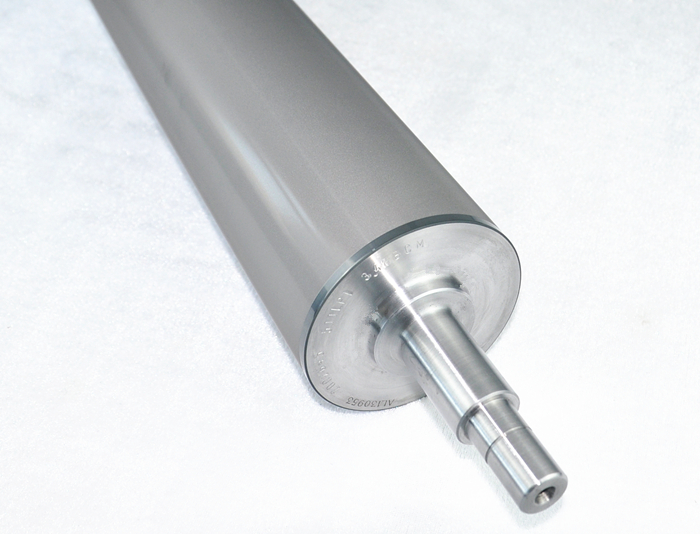

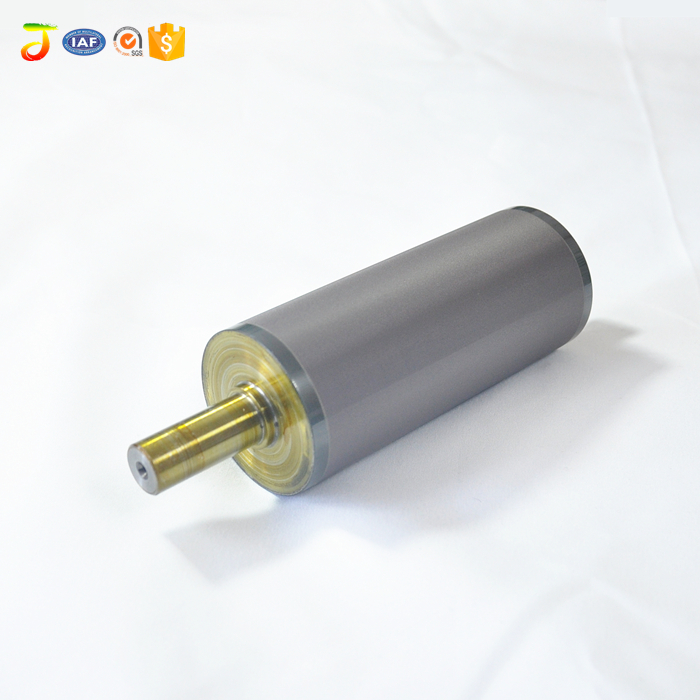

Detailed pictures



Advantages

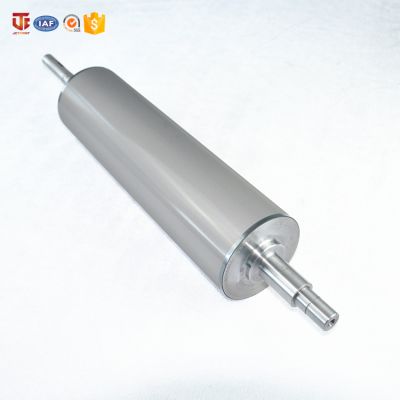

1. Base roller

A. Material: 45# steel tube or No.5 series aluminum

    General performance requirement:45# steel tube

    Lighter weight requirement : No5 series aluminum

B.Thickness : 15mm-25mm

 We can also make the special thickness according to customers  requirement.

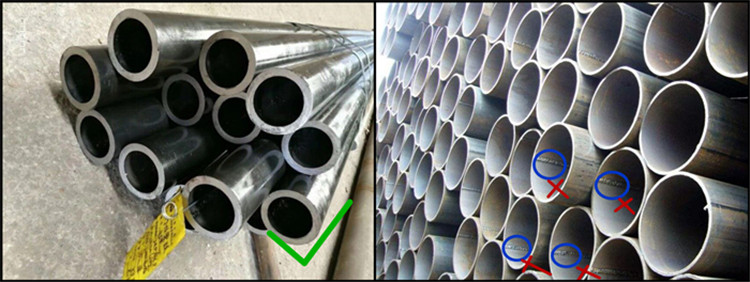

C. A strict inspection procedure of base roller:

Incoming inspection  including surface roughness,straightness, dynamic balance,cylindricity and so on.

.jpg

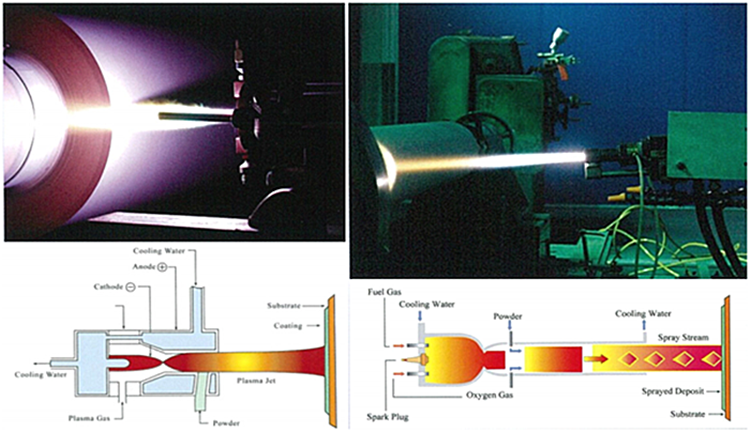

2. Chrome oxide ceramic layer

A.   Using  the famous plasma spraying machine from Switzerland supplier.

B.   The evenness of 80% ceramic powder can be controlled between 15u-35u

C.   The hardness of  chrome oxide ceramics can reach 1200HV.




3. Antiseptic treatment

we use the nanoscopic sealant  to coat on the surface of the ceramic which can reach the tiny cell to protect the base roller from solvent corrosion.



4. Precise delivery on the inks

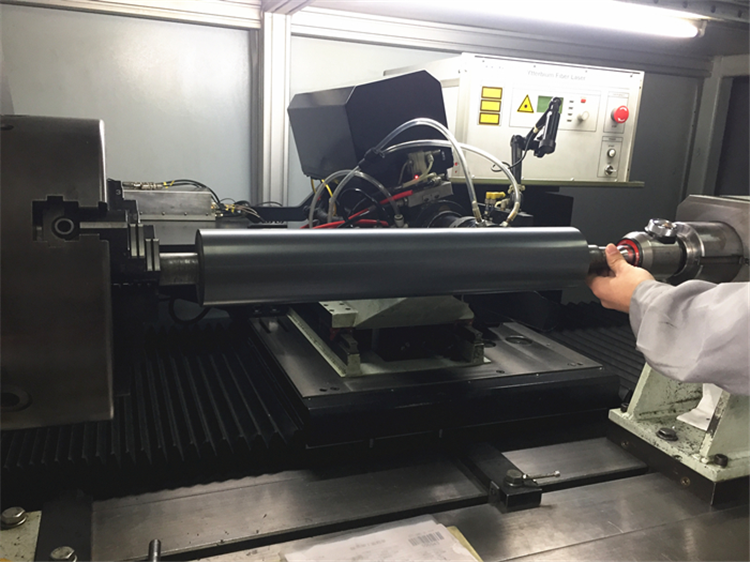

First,we make  trial engraving before the real engraving.

Second,we use  the scanner to scan each layer to test the volume of the cell

Third,according to the relationship between the LPI and BCM , we can make sure whether  the LPI  is workable.


5. Quality Control

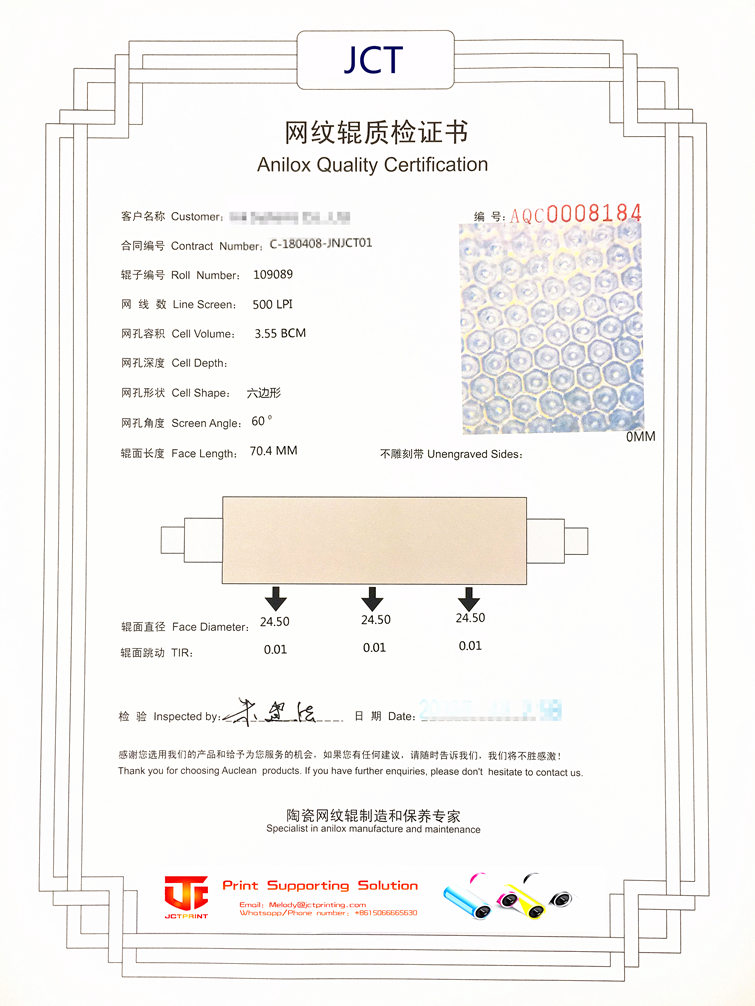

 We have the quality control system during the whole production from the very beginning to the end  to make sure each roller is qualified. And we will issue the certification for our customers after the products are finished.



 6. Service life

Under  nomal operation and maintenance,our ceramic anilox rollers can work  8-10years or even longer.

certificate (3)_.jpg



Packaging & Shipping


Company Information






FAQ



1. How many years have you been producing ceramic anilox rollers?

As the leading manufacturer of ceramic anilox roller,we have been in this field for more than 25 years,and we have plenty experience in making rollers such as ceramic anilox rollers,rubber rollers and so on.



2. Why should we choose you?

We can provide you not only the competitive price product but also most satisfactory supporting service.



3. How can we get the price?

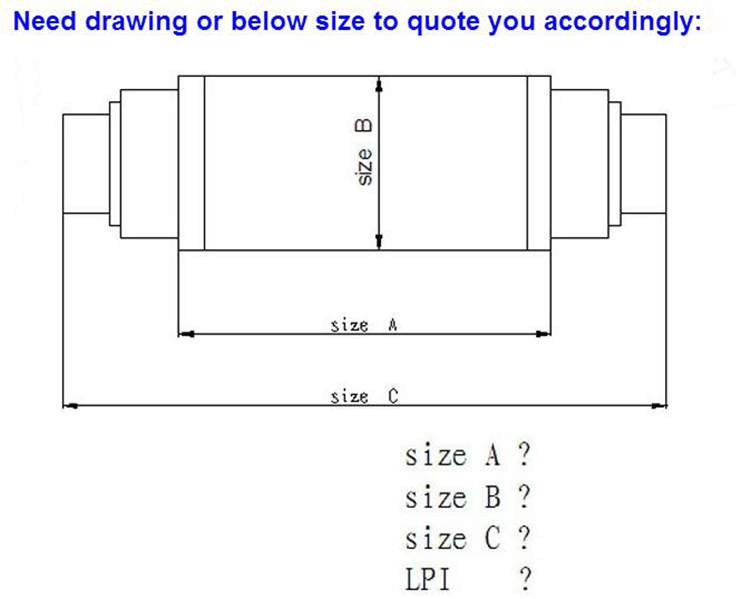

A.The drawing of the ceramic anilox roller if possible(or you can get a estimate price by telling us the total length,effective face length,diameter as the following picture.

B.LPI an BCM

C.Where do you use the ceramic anilox roller?flexo printing machine,coating machine or offset UV unit?






4. How long is the lead time?

Usually it will take 30 days to produce the roller,but it also depends on the quantity and customer’s requirement.
