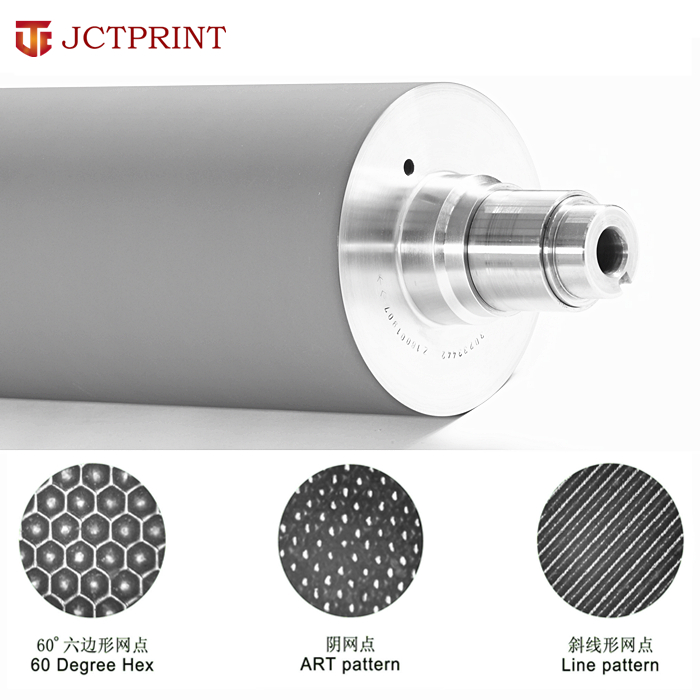

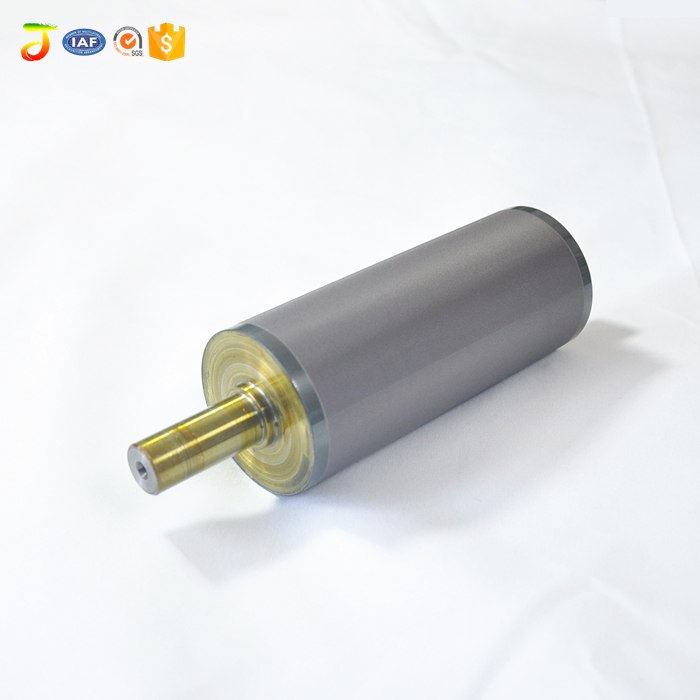

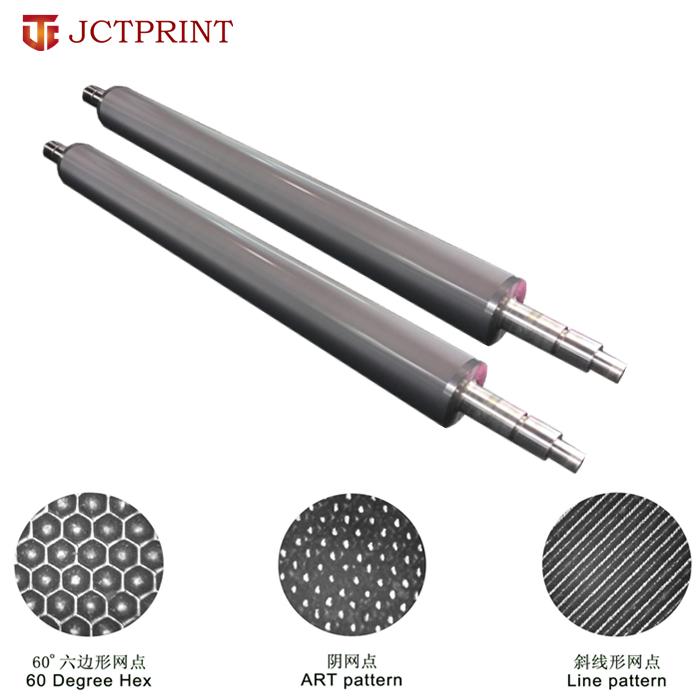

Flexo Printing Ceramic Anilox Roller

 Specifications of Ceramic anilox roller

Processing Flow

Application

 A.  Flexo printing machine(unit type ,central cylinder type,cascade type)

 B.  Gravure printing machine

 C. Corrugated water-based ink printing slotting machine

 D. Coating and lamination machin

 E.  Glazing machine ect.

Advantage

 1.    Base roller

A.    material: 45# steel tube or No5 series aluminum

     General performance requiremen:   45# steel tube

     lighter  weight  requirement :       No5 series aluminum

B.   thickness : 15mm-25mm

 We can also make the special thickness according to customers  requirement.

C.  a strict  inspection  procedure of base roller:

Incoming inspection  including surface roughness,straightness, dynamic balance,cylindricity and so on

2.    Chrome oxide ceramic layer

A.   Using  the famous plasma spraying machine from Switzerland supplier.

B.   The evenness of 80% ceramic powder can be controlled between 15u-35u

C.   The hardness of  chrome oxide ceramics can reach 1200HV.

3.   Antiseptic treatment

we use the nanoscopic sealant  to coat on the surface of the ceramic which can reach the tiny cell to protect the base roller from solvent corrosion.

 4.    Precise delivery on the inks

First,  We make  trial engraving before the real engraving.

Second,  we use  the scanner to scan each layer to test the volume of the cell

Third,  according to the realationship between the LPI and BCM , we can make sure whether  the LPI  is ok.

5.    Quality Control

 We have the quality control system during the whole production from the very beginning to the end  to make sure each roller is qualified. And we will issue the certification for our customers after the products finished .

 6.   Service life

Under  nomal operation and maintenance,our ceramic anilox rollers can work  8-10years or even longer.

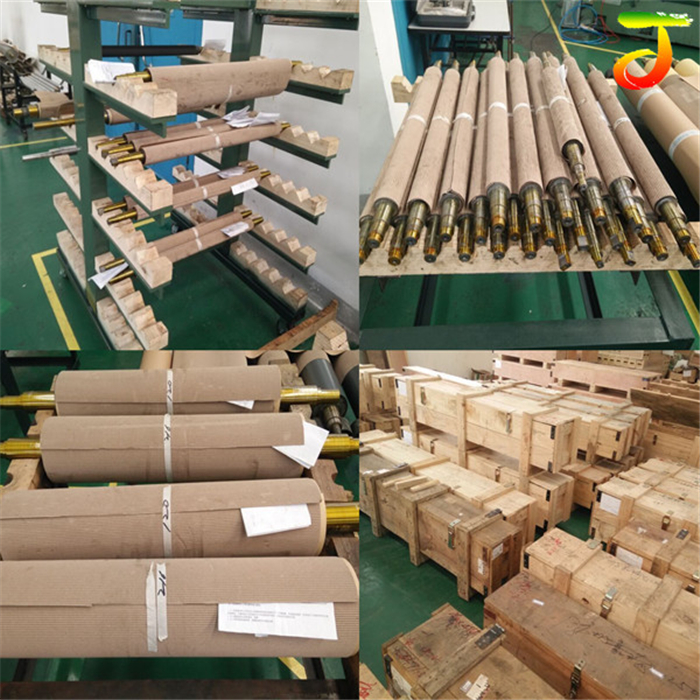

 Packaging & Shipping

1. How many years have you been producing ceramic anilox rollers?

As the leading manufacturer of ceramic anilox roller,we have been in this field for more than 20 years,and we have plenty experience in making rollers such as ceramic anilox rollers,rubber rollers and so on.

2. Why should we choose you?

We can provide you not only the competitive price product but also most satisfactory supporting service.

3. How can we get the price?

A.The drawing of the ceramic anilox roller if possible(or you can get a estimate price by telling us the total length,effective face length,diameter)

B.LPI an BCM

C.Where do you use the ceramic anilox roller?flexo printing machine,coating machine or offset UV unit?

4. How long is the lead time?

Usually it will take 30 days to produce the roller,but it also depends on the quantity and customer’s requirement.
