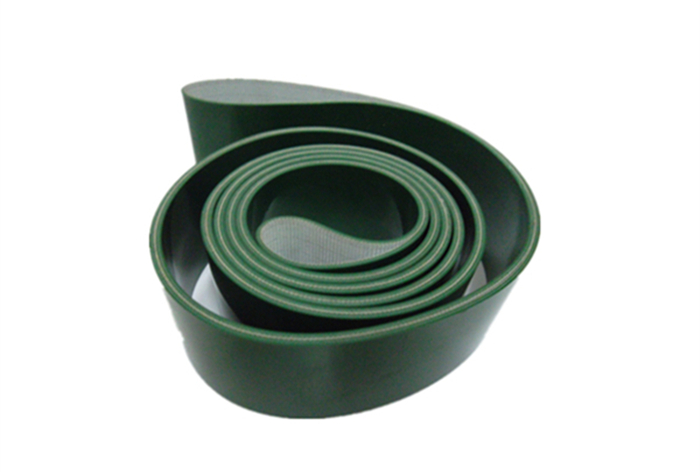

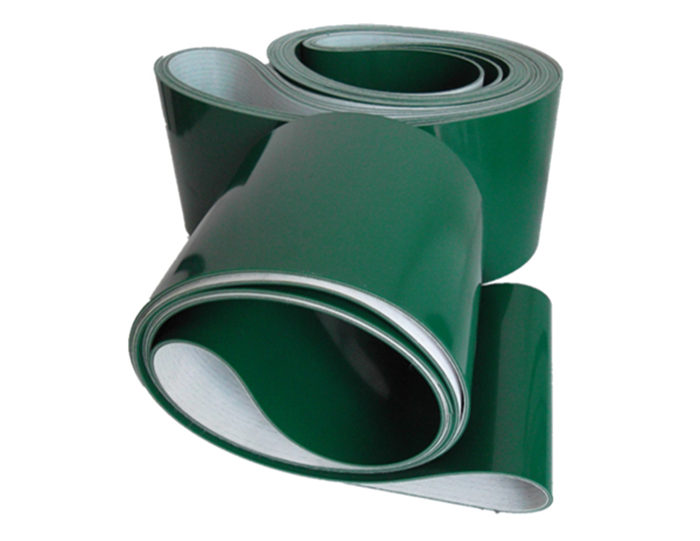

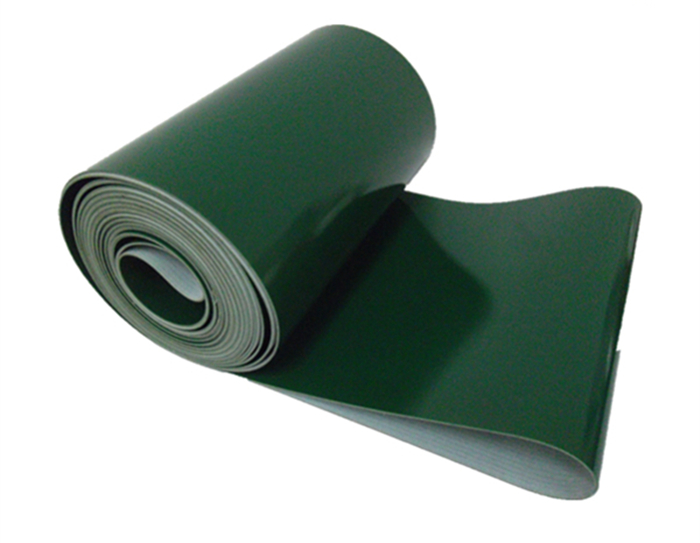

Flat belt
Flat belt Flat belt Flat belt Flat belt Flat belt

Flat belt

Product ID : A-110
Product Tags :
Product Attributes :

Flat belt

Product Description

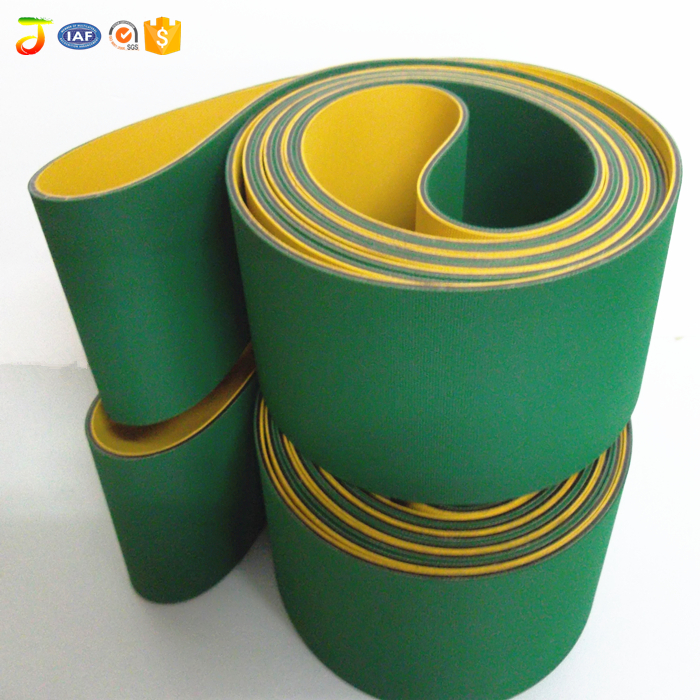

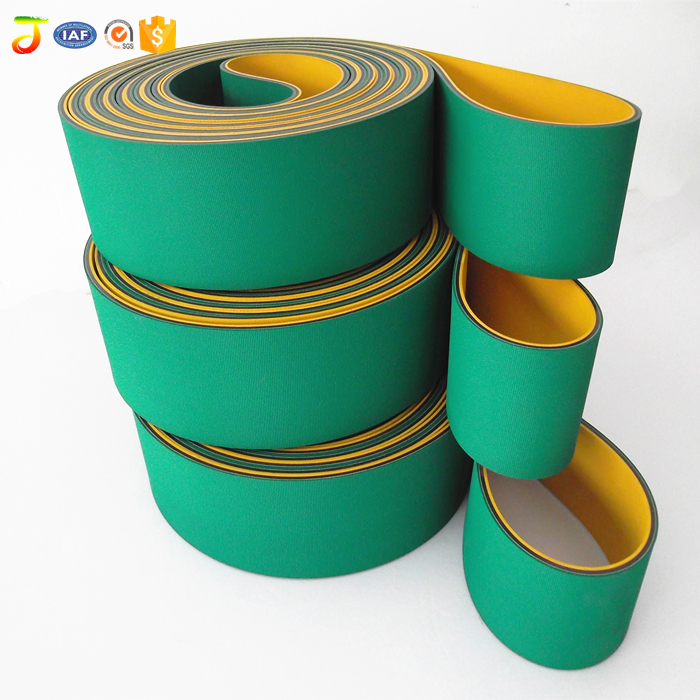

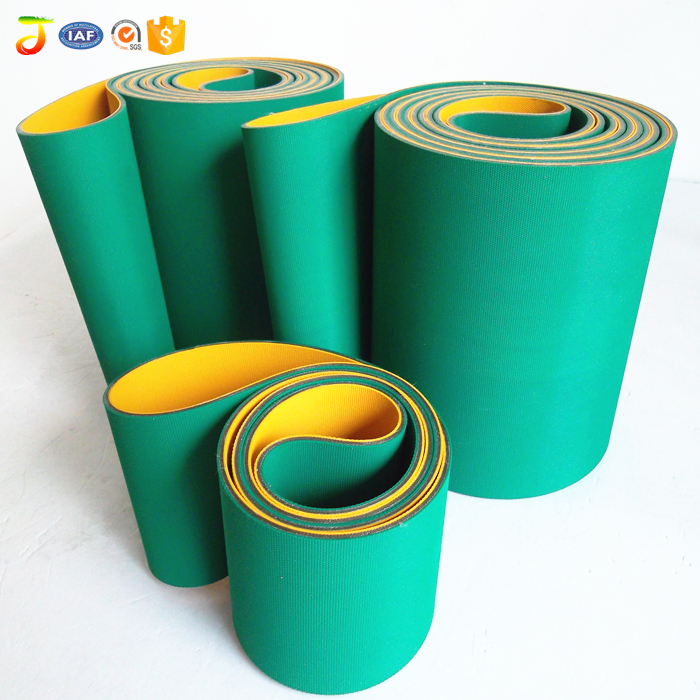

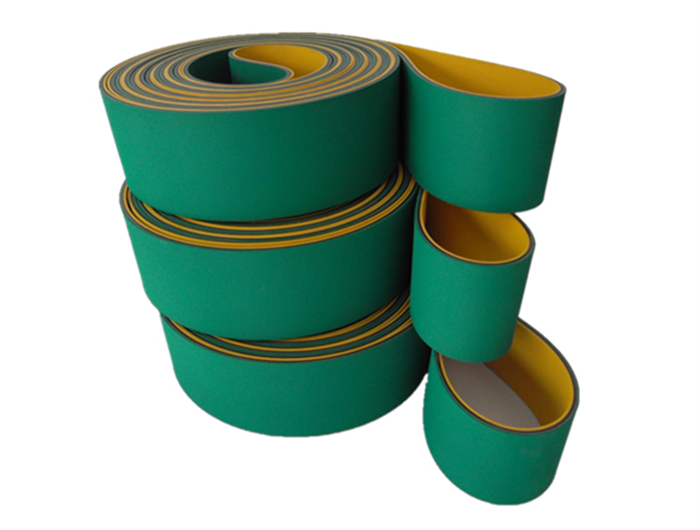

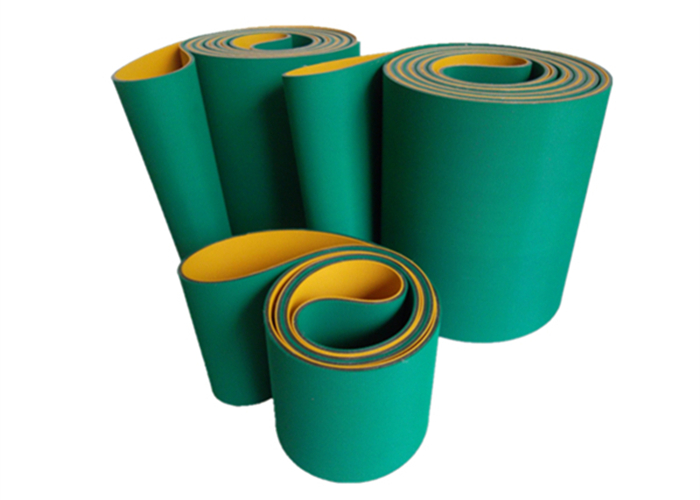

China manufacturer nylon transmission flat belt



Product Overviews






Application



The belts are widely used in Machinery, textile, printing and dyeing, woodworking machinery, packaging, printing, post and telecommunications, food, stone, metal processing, logistics, tobacco industry.



 Specifications of China manufacturer nylon transmission flat belt



Type

Thickness(mm)

Color

Description

temperature resistance  (°C)


Min. Wheel diameter

(mm)

Pulling force to extend 1%(N/mm)

friction factor with the steel wheel surface

Weight(kg/m²)

CTC-10GY03

1.0

Green/Yellow

Double sides coarse texture

-20/100

15

3.00

0.7

1.3

CTC-15GY05

1.5

Green/Yellow

-20/100

30

5.00

0.7

1.6

CTC-20GY08

2.0

Green/Yellow

-20/100

35

8.50

0.7

2.2

CTC-30GY10

3.0

Green/Yellow

-20/100

50

12.00

0.7

3.1

CTC-40GY15

4.0

Green/Yellow

-20/100

60

14.50

0.7

4.2

CTC-50GY12

5.0

Green/Yellow

-20/100

75

16.00

0.7

6.0

CTC-15PGY05

1.5

Light Green/Yellow

-20/100

30

5.00

0.7

1.7

CTC-15PGG05

1.5

Green / Light Green

-20/100

30

6.00

0.7

1.8

CTC-23PGG06

2.3

Green / Light Green

-20/100

40

10.00

0.7

2.6

CTC-E18LB08

1.8

Blue/Black

One side microgroove another side coarse texture

-20/100

35

6.00

0.7

2.1

CTC-E25LB09

2.5

Blue/Black

-20/100

45

11.00

0.7

2.8

CTC-S25LR12

2.5

Blue/Grey

-20/100

45

13.00

0.35

1.0

CTC-X10GB03

1.0

Green/Black

Double sides coarse texture

-20/100

15

5.00

0.4

1.1

CTS-N40

4.0

Grey /Green

One side cowhide another side green glue

-20/100

60

13.00

0.7

3.9

CTS-NN40

4.0

Grey /Grey

Double sides cowhide

-20/100

60

13.00

0.6

3.9

CTS-10LL06

4.0

Blue/Blue

Double sides coarse texture

-20/100

60

13.00

0.7

4.5

CTS-60LL10

6.0

Blue/Blue

-20/100

70

15.00

0.7

6.5
