Factory die cutting machine punching machine for beer label
Factory die cutting machine punching machine for beer label Factory die cutting machine punching machine for beer label Factory die cutting machine punching machine for beer label Factory die cutting machine punching machine for beer label Factory die cutting machine punching machine for beer label

Factory die cutting machine punching machine for beer label

Product ID : JCT-MQJ-001
Product Tags :
Product Attributes :

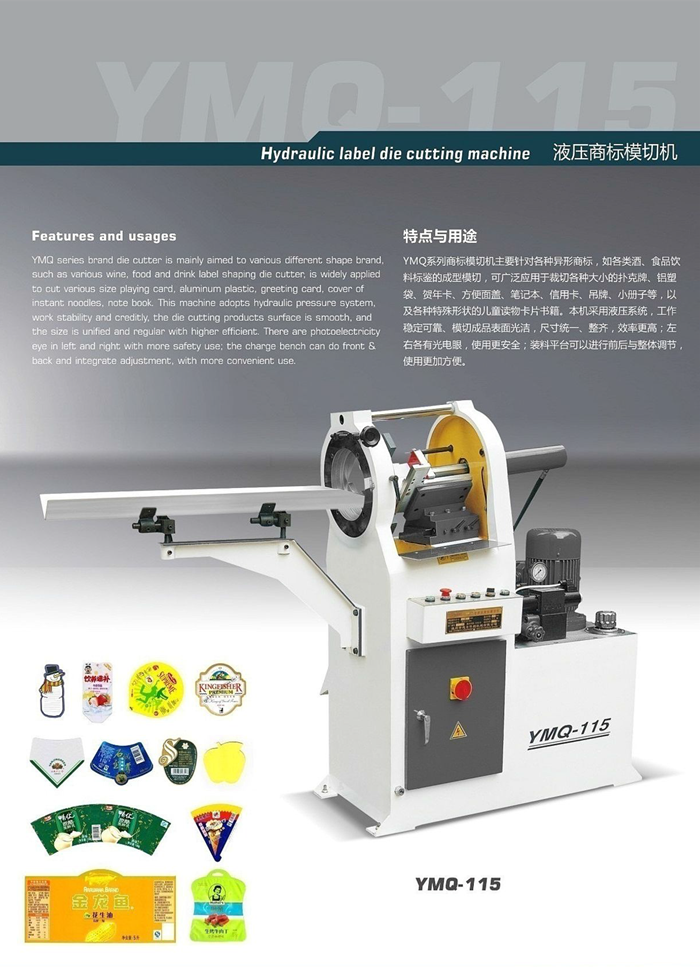

YMQ series brand die cutting machine is mainly aimed to various different various wine, food and drink label shaping die cutter, is widely applied to cut various size of beer label, playing card, aluminum plastic, New year card, instant noodles, note book ,credit card, drop and handbook etc…and various special shape children reading book.

Product Description



Features of Factory die cutting machine punching machine for beer label

1. What is main application of this die cutting machine?

It is suitable for the production of labels, playing cards, aluminum plastic, New year card, notebook, envelopes of any design or size.

2.How is its work efficiency ?

It is with an average production of about 900.000 production of high precision hourly.

3. This machine adopts hydraulic pressure system.

4. With a push-cube self-adjusting to every position of the "V" hold where the pack is positioned
5. the working table has a photoelectric cell which gives maximum safety to the operator and allows
6. The working process stability, products surface is smooth, and the size is unified and regular with high precision.

Specification of Factory die cutting machine punching machine for beer label

Model

YMQ-350

 YMQ-260

YMQ-200

 YMQ-115

 Max.Die-cut size

 380*300mm

  300*240mm

 220*220mm

 140*140mm

 Min.Die-cut size

 90*90mm

 65*65mm

 50*50mm

 20*20mm

 Max.Die-cut height

 310mm

 260mm

 220mm

 200mm

 Die-cut pressure

 11T

 8 T

 5 T

 3 T

 Working speed

 7 Times/min

 8 Times/min

 10 Times/min

 12 Times/min

 Motor voltage power

 7.5HP 5.6KW

 7.5HP 5.6KW

 5HP 3.75KW

 3HP 2.25KW

 Overall dimension(mm)

 2600*1250*1900

 2450*1000*1800

 2200*850*1650

 1350*750*1500



Weight of whole machine



 1900kg

 1600kg

 1200kg

 700kg

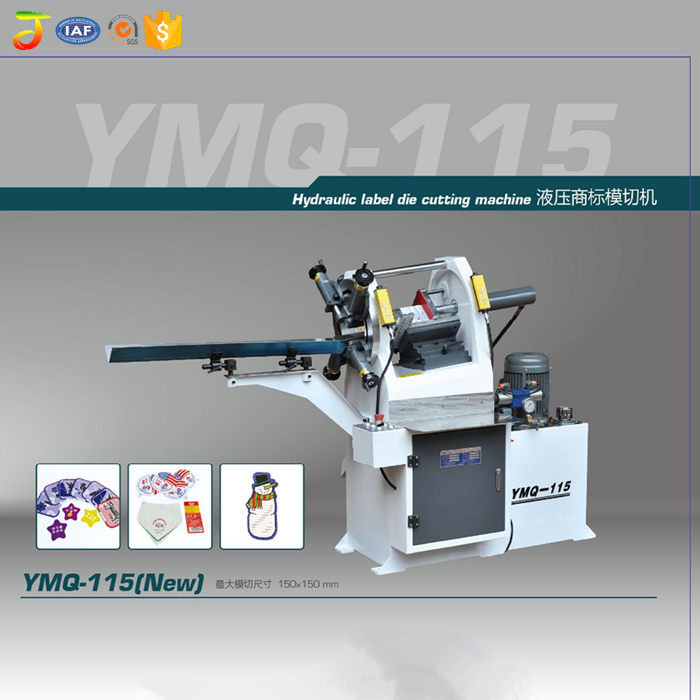

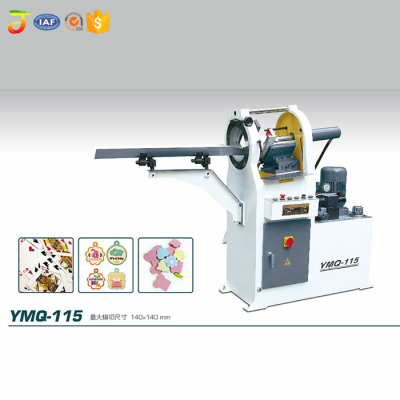

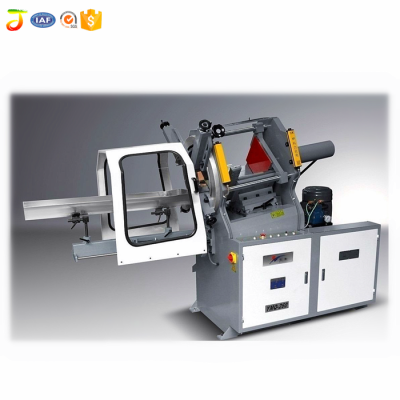

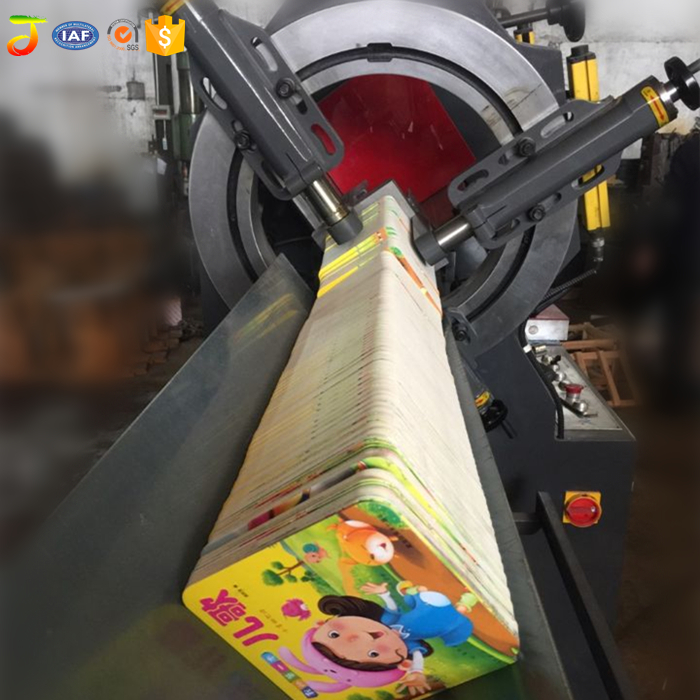

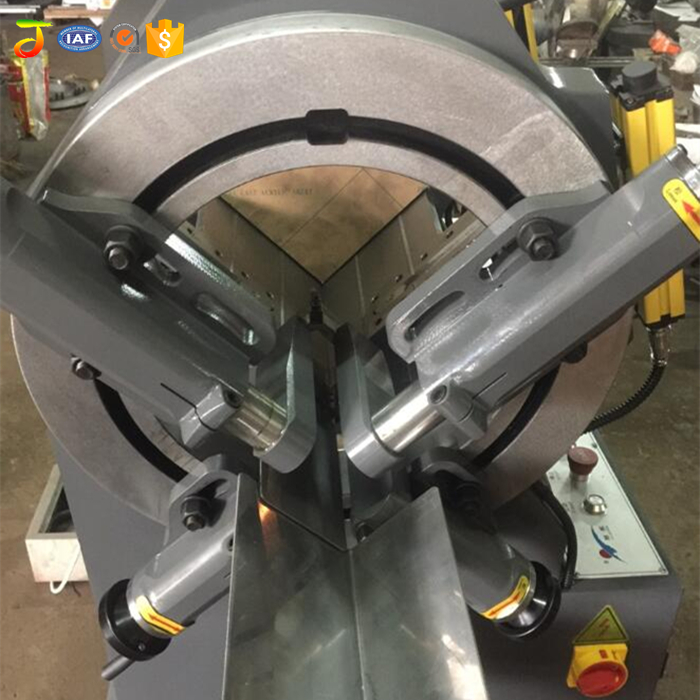

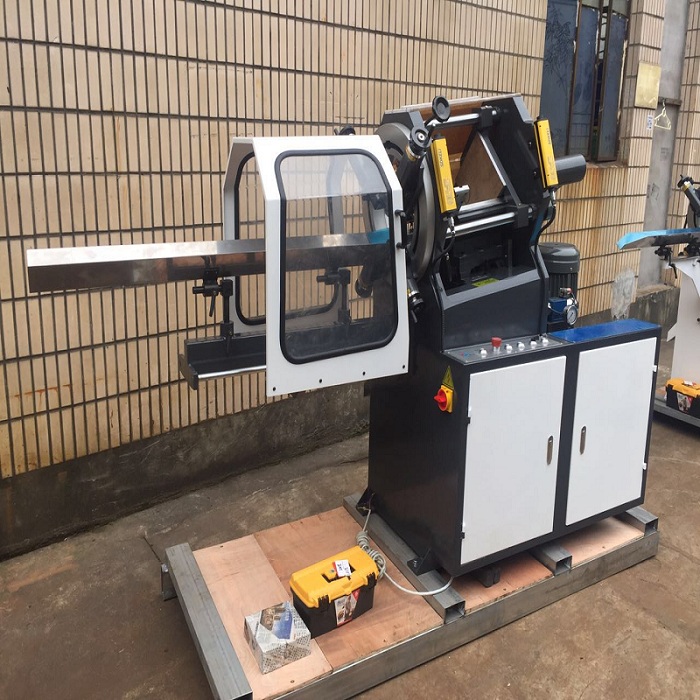

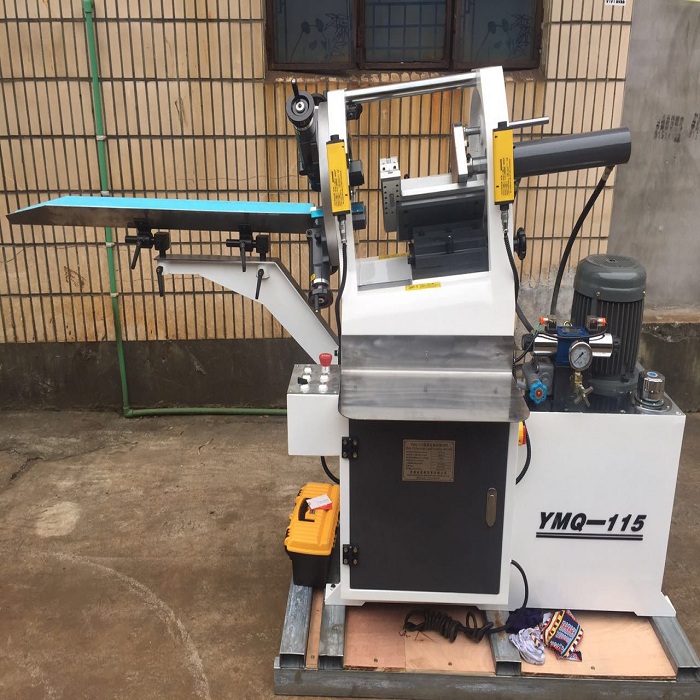

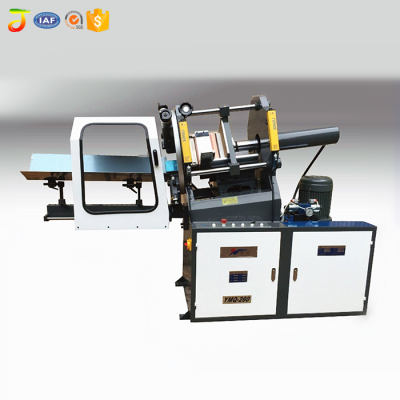

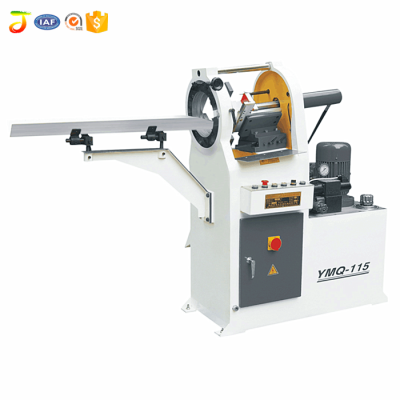

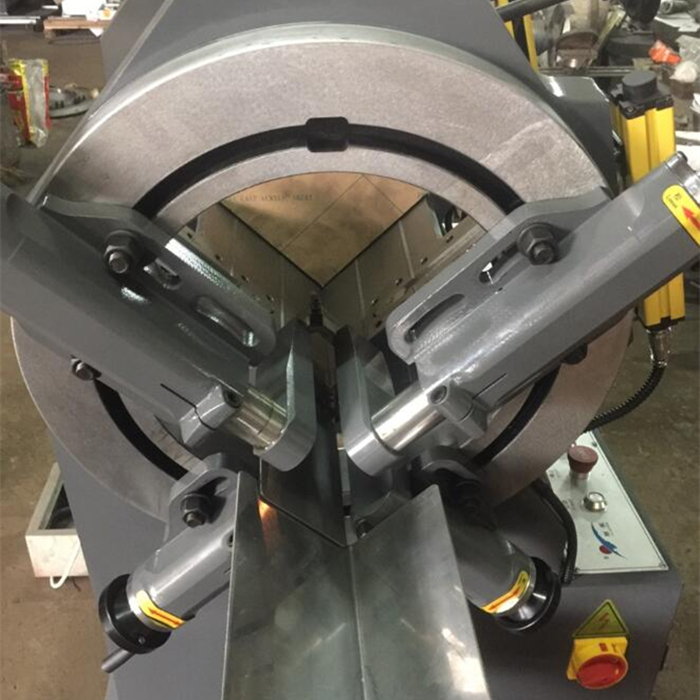

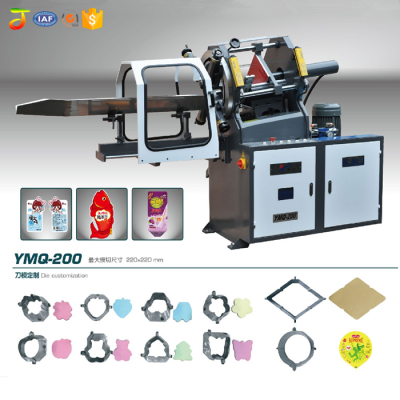

Product pictures of die cutting machine:

The finished products:

Our die cutting machine advantages:

1.Photoelectric protection,

2.Easy to operate,

3.High quality,

4.Well-known accessories

FAQ:

1, Are you trading company or manufacturer?


We are manufacturer, and also provide the business solution to all the friends.



2, Do you have quality certificate?



Yes we have ISO etc.



3,What's the delivery time?

Around 20~30days after pre payment received, however, based on order.



4, Can you help us to buy other goods?

Sure of that, it is our honor to work for you, and control the goods quality
