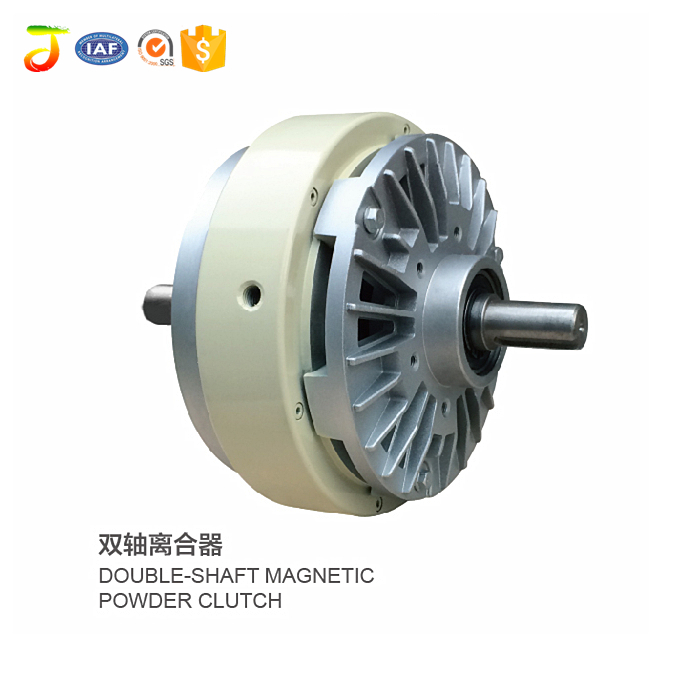

High Quality Low Price Double shaft Magnetic Powder Clutch for packing machine #powderclutch
High Quality Low Price Double shaft Magnetic Powder Clutch for packing machine #powderclutch High Quality Low Price Double shaft Magnetic Powder Clutch for packing machine #powderclutch High Quality Low Price Double shaft Magnetic Powder Clutch for packing machine #powderclutch High Quality Low Price Double shaft Magnetic Powder Clutch for packing machine #powderclutch High Quality Low Price Double shaft Magnetic Powder Clutch for packing machine #powderclutch

High Quality Low Price Double shaft Magnetic Powder Clutch for packing machine #powderclutch

Product ID : JCT-CFD001
Product Tags :
Product Attributes :

Magnetic powder brake can transmit torque based on electromagnetic theory and the use of magnetic powder. It has the characteristics which magnetizing current and transmit torque has a linear relationship, It has advantages of fast response, simple structure, no pollution, no noise, no shock and vibration, energy-saving and so on. It is a versatile, superior performance of automatic control components. Magnetic brake an also be used to buffer starting, overload protection, speed control and so on.

Product Description

High Quality Low Price Double shaft Magnetic Powder Clutch for packing machine #powder clutch


Product Description

Introduction

Magnetic powder brake can transmit torque based on electromagnetic theory and the use of magnetic powder. It has the characteristics which magnetizing current and transmit torque has a linear relationship, It has advantages of fast response, simple structure, no pollution, no noise, no shock and vibration, energy-saving and so on. It is a versatile, superior performance of automatic control components. Magnetic brake an also be used to buffer starting, overload protection, speed control and so on.



.jpg





Models and specifications

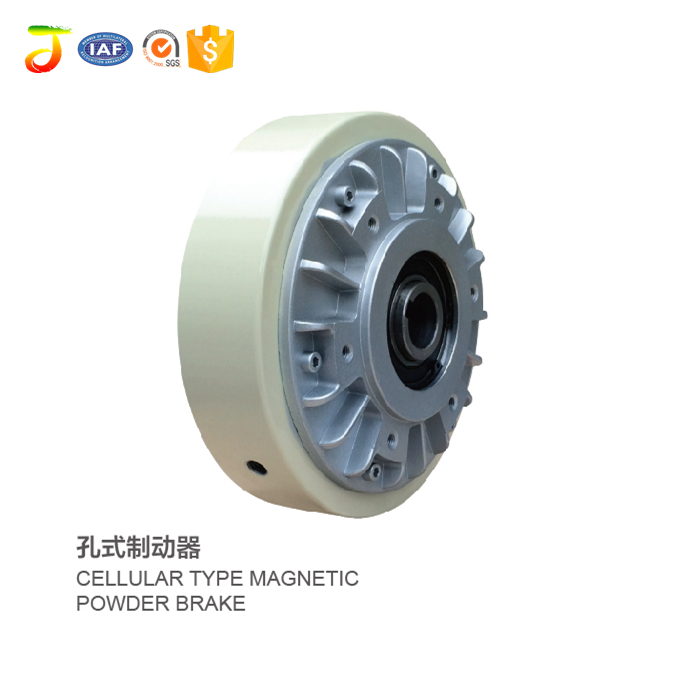

1)    Cellular type magnetic powder brake

Modle

Torque(N.m)

Current(A)

 Votage(V)

Rotation speed
(RPM)

Weight(kg)

FZ 6K-1

6

0.8

24

1000

3

FZ 12K-1

12

1

24

1000

4.5

FZ 25K-1

25

1.5

24

1000

7.5

FZ 50K-1

50

1.8

24

1000

12

FZ 100K-1

100

2

24

800

20.5

FZ 200K-1

200

2.8

24

800

30

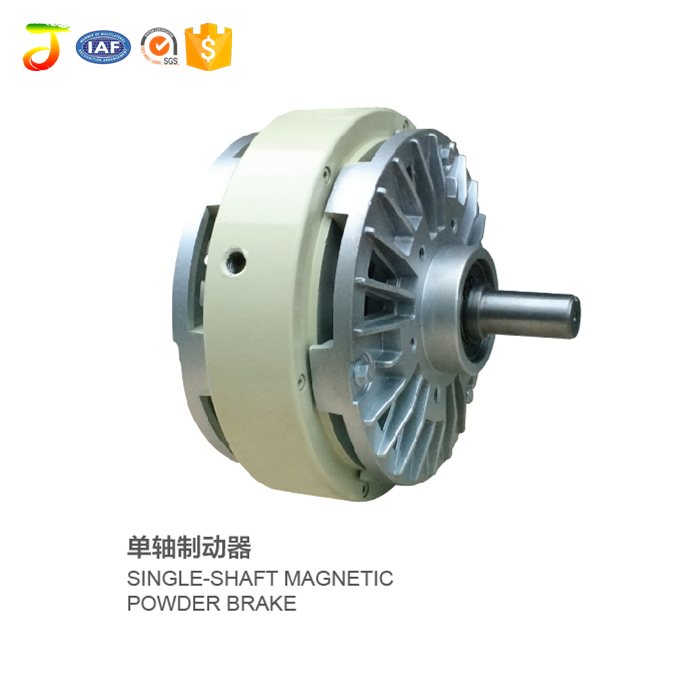

2)    Single shaft type magnetic powder brake

Model

Torque(N.m)

Current(A)

 Voltage(V)

Rotation speed
(RPM)

Weight(kg)

FZ 6A-1

6

0.8

24

1400

3.5

FZ 12A-1

12

1

24

1400

6

FZ 25A-1

25

1.5

24

1400

8

FZ 50A-1

50

1.8

24

1400

14

FZ 100A-1

100

2

24

1000

28

FZ 200A-1

200

2.5

24

1000

50

FZ 400A-1

400

3

24

1000

75





Advantages

Features

1)The transmission torque has a linear relationship with the magnetizing current. The size of the torque can get controlled within large range. Under normal circumstance, the magnetizing current has a linear relationship with transitive torque within range of 5%-100% rated torque.

2)The friction part will generate heat inevitably or even destroyed when it keep continuous sliding. But this device has a complete cooling set, it will not generate a lot of heat after long time running and it has a long service life.

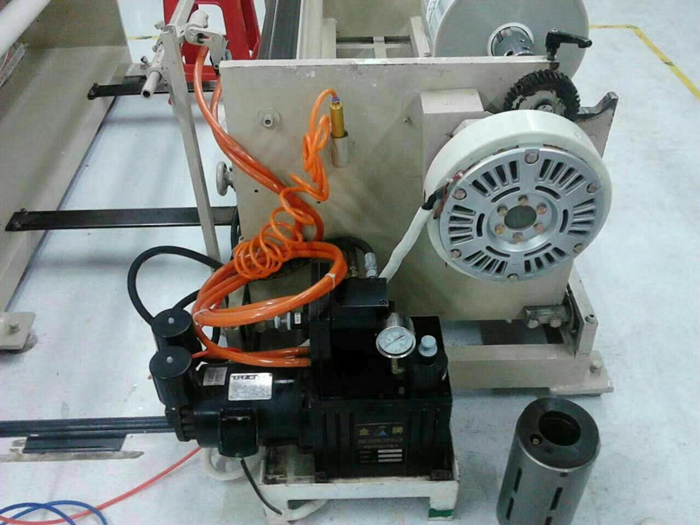

Application

It is widely used in printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery, coil machinery, wire winding machines, strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, steel extruders, CNC lathes, specialized machinery and so on.



Advantages

1) High-precision torque control

2) Superior durability, long life

3) The stability of fixed superior torque characteristics

4) Continuous operation of the use of sliding

5) Ink sleek, non-shock

6) Suitable for high-frequency operation

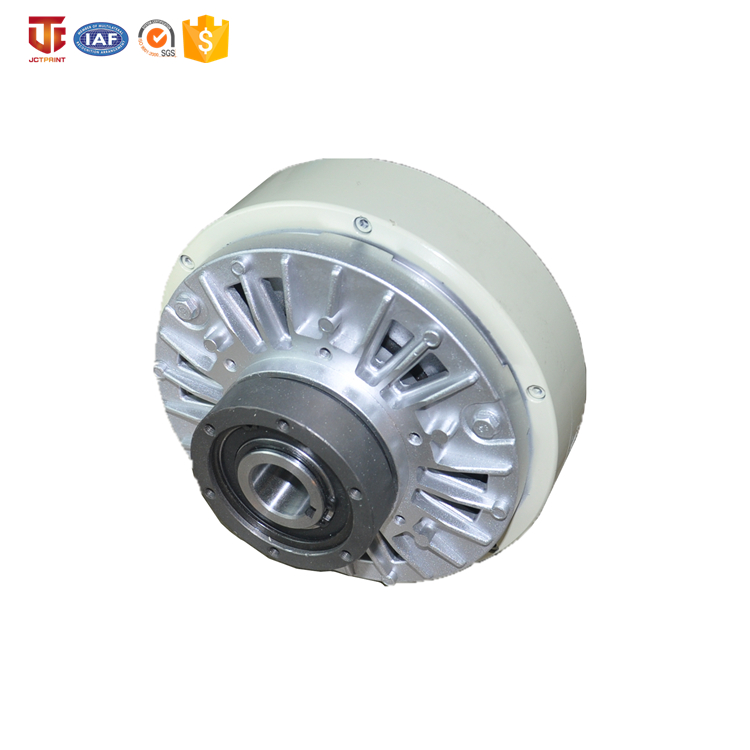

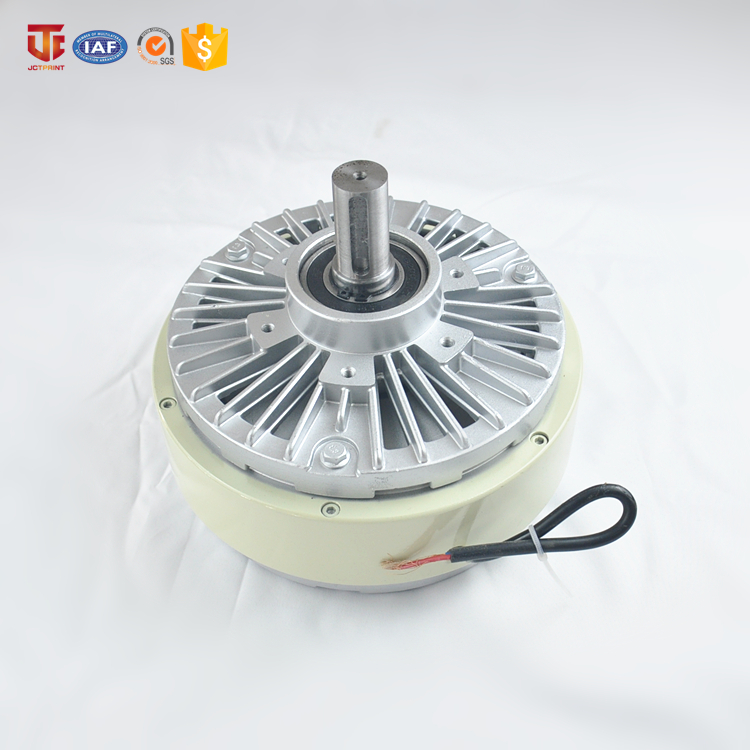

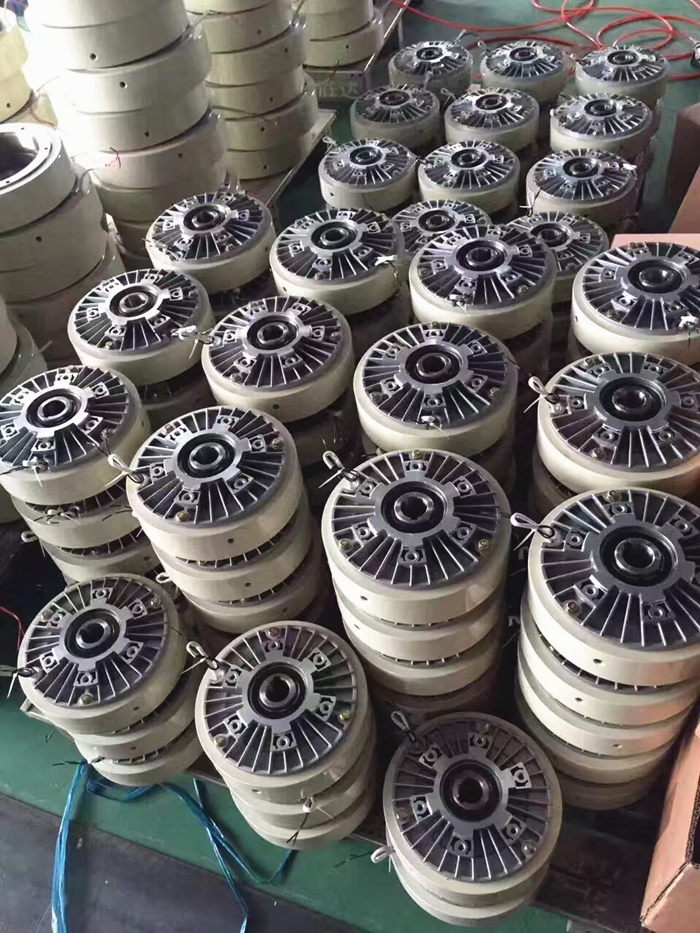

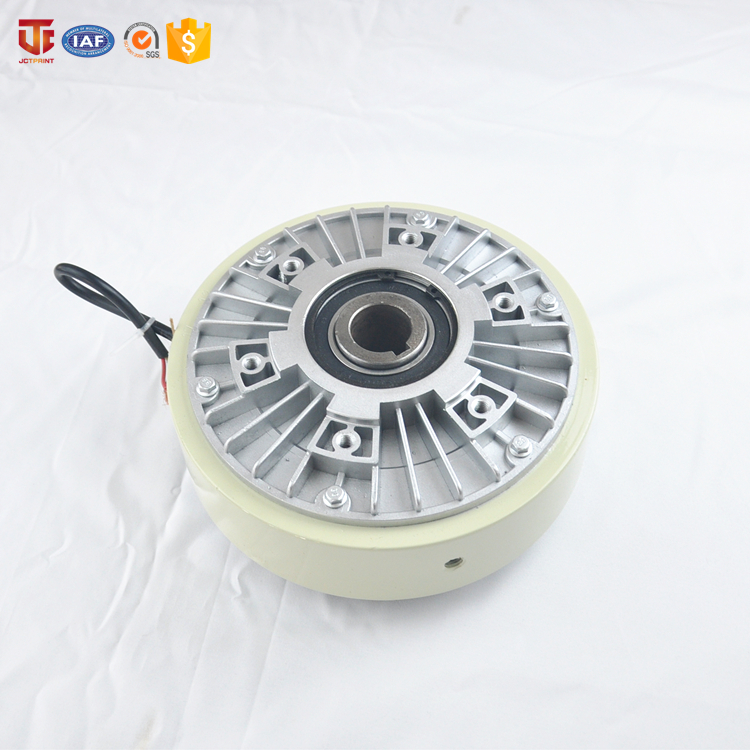

Product Pictures
