Die cutting machine for playing card small industry
Die cutting machine for playing card small industry Die cutting machine for playing card small industry Die cutting machine for playing card small industry Die cutting machine for playing card small industry Die cutting machine for playing card small industry

Die cutting machine for playing card small industry

Product ID : JCT-DCM-007
Product Tags :
Product Attributes :

For all kinds of special-shaped die cutting,such as various types of beer labels,food and beverage labels,cards etc;Various sizes of cards,tags,envelopes,visiting cards,PVC cards,instant noodles cover,notebook,credit cards etcs

Product Description

Die cutting machine for playing card small industry

1.Introduction:

Based on the production of all kinds of labels cutting machine for many years, the machine is controlled by PLC system with sample operation, It mainly used for the die cutting process of any labels, the machine is characterized by high manufacturing accuracy, compact structure and reasonable operation.  After using by professional beer and label manufacturers, it was proved that the machine has the advantages of high working efficiency and precise die cutting precision.

2.Application:

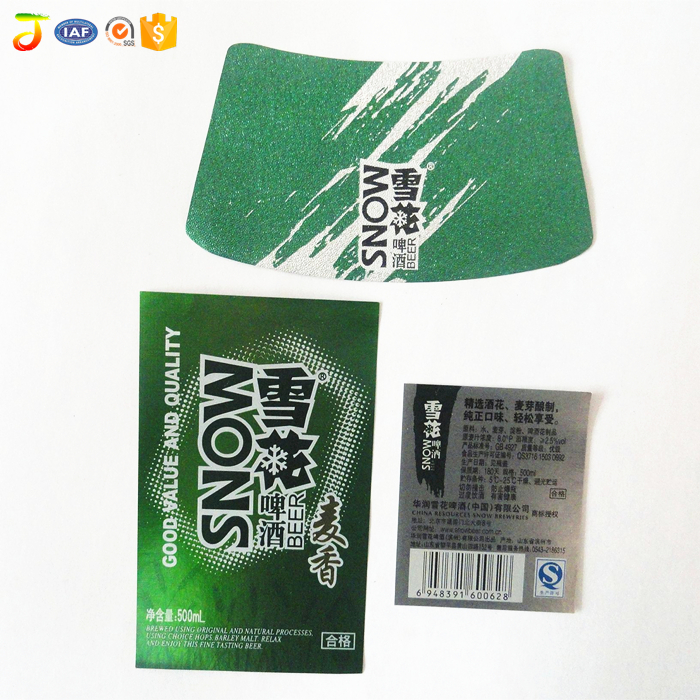

For all kinds of special-shaped die cutting,such as various types of beer labels,food and beverage labels,cards etc;Various sizes of cards,tags,envelopes,visiting cards,PVC cards,instant noodles cover,notebook,credit cards etcs.

3.Specification:

Type Number
YMQ-350
YMQ-260
YMQ-200
YMQ-115
    YMQ-115New
Voltage
7.5HP
7.5HP
5HP
3HP
3HP
Power(W)
5.6KW
5.6KW
3.75KW
2.25KW
2.25KW
Max. Die-cut size
380*300mm
300*240mm
220*220mm
140*140mm
140*140mm
Min. Die-cut size
90*90mm
65*65mm
50*50mm
20*20mm
20*20mm
Max. Die-cut height
310mm
260mm
220mm
200mm
200mm
Working speed
7Time/min
Times/min
8 Time/min
Times/min
10Time/min
 Times/min
 12 Time/min
 12Time/min
Time/min
Die-cut pressure
12 T
8 T
5 T
3 T
3 T
Dimension(L*W*H)
2600*1250*1900
2450*1000*1800
2200*850*1650
1350*750*1500
1350*850*1500
Gross Weight
1900kg
1600kg
1000kg
660kg
700kg

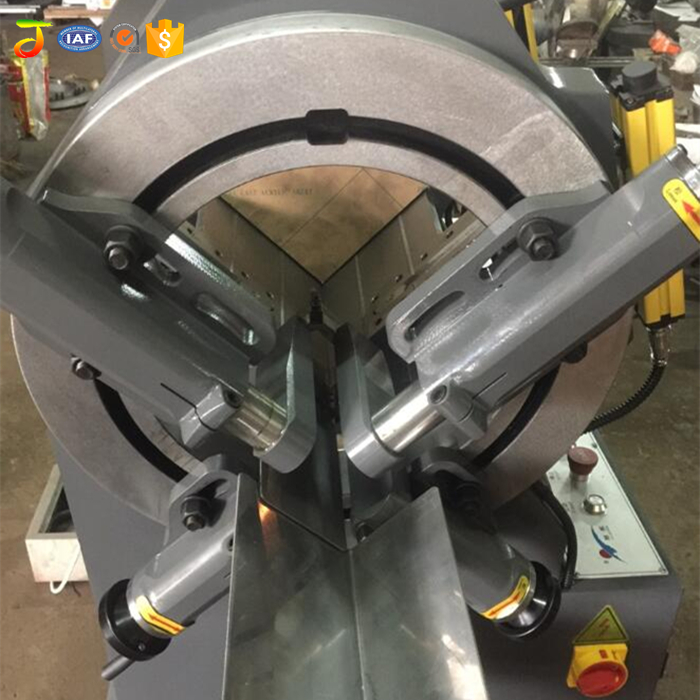

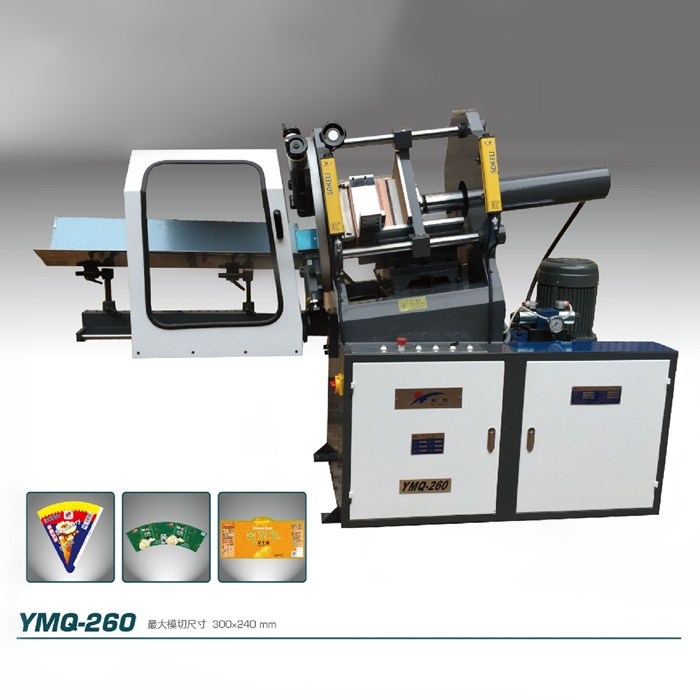

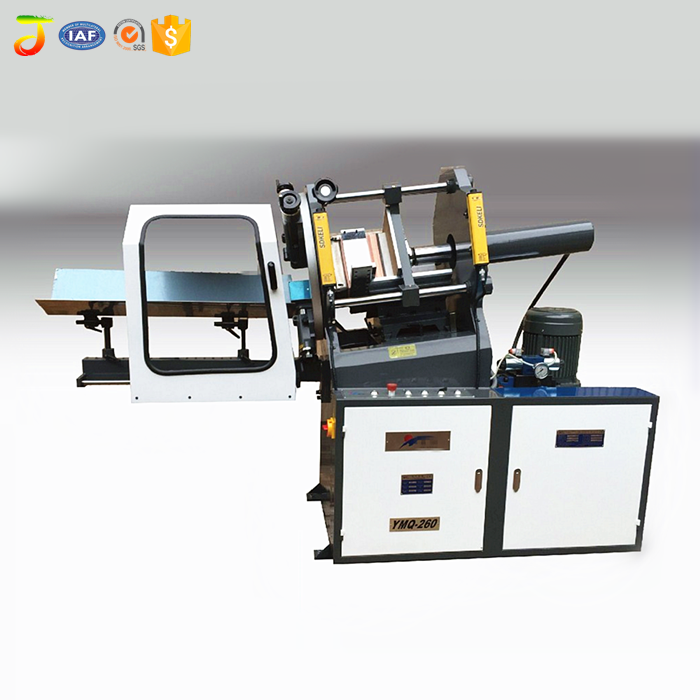

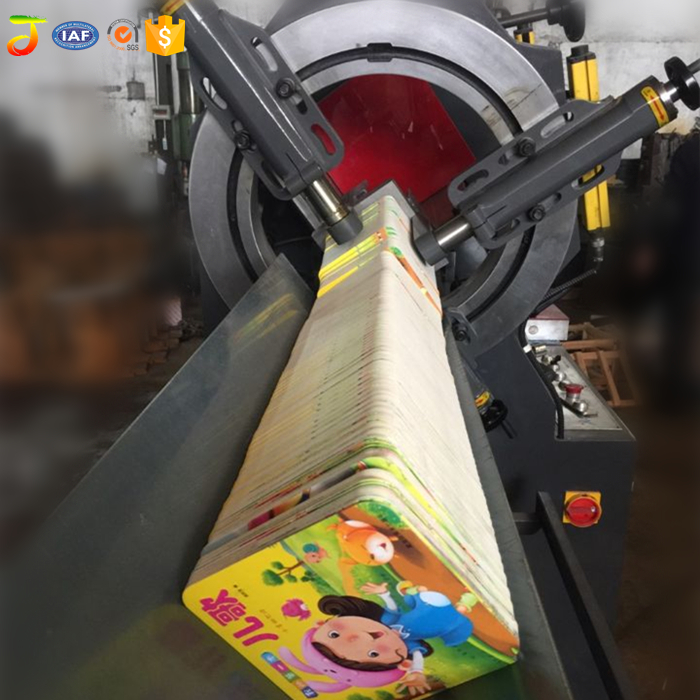

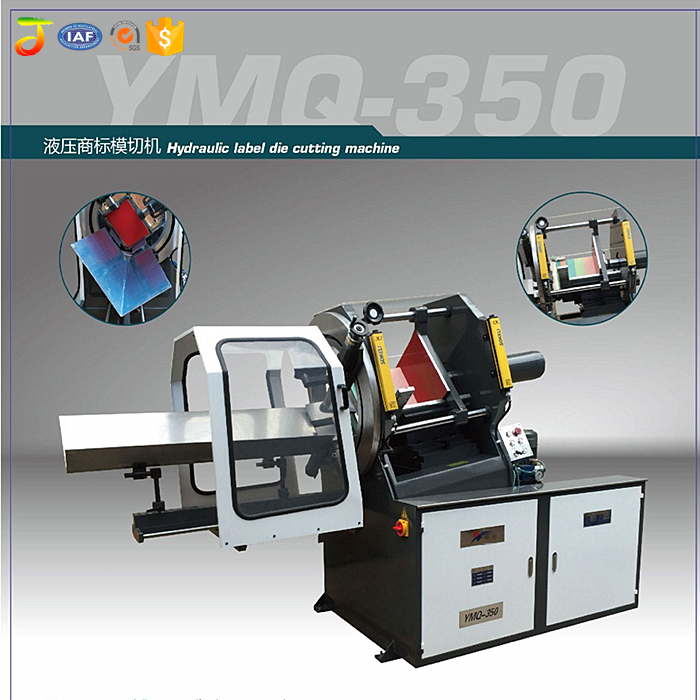

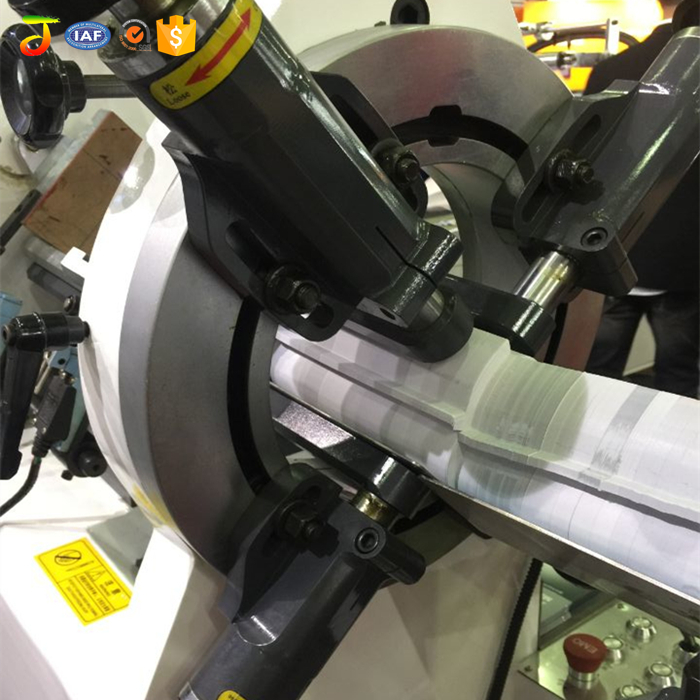

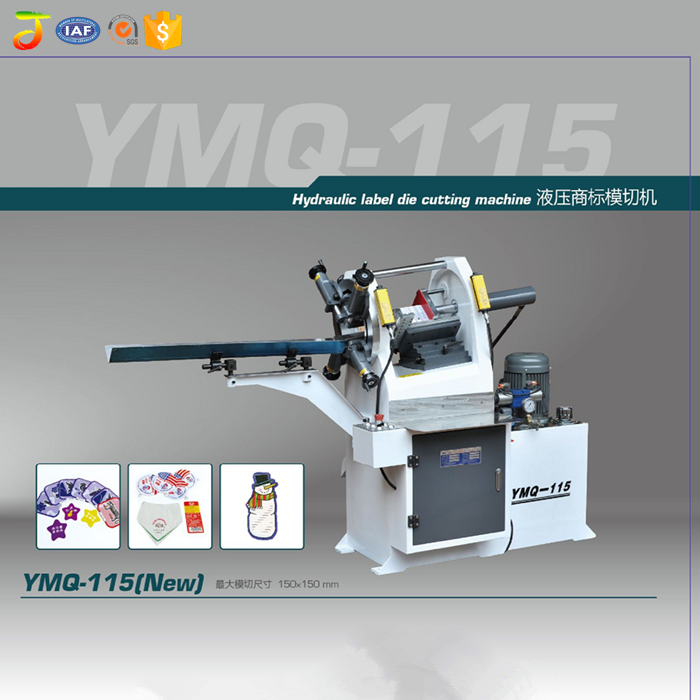

 4.Product pictures:



5.Packaging:



6.Company information:
