Air Shaft is a kind of special-made shaft for winding or unwinding , when it inflated by high-pressure, the surface of it can be raised up and after deflating the air,the surface will quickly retract .It is widely used in the manufacturing process and light metal industry.The advantage of using an air shaft is that it can greatly improve the working effeciency .

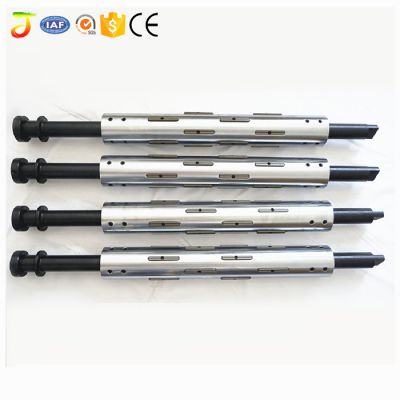

Customized key strip type air shaft for non woven machine
1.what can an air shaft be used for
Printing machine;
Cutting machine;
Slitting machine;
Coating machine;
Laminating machine;
Bag making machine;
And so on
2.Specifications of air shaft
①Type:Key type air shaft ,Lath type air shaft,Differential air shaft
②Specification: 1.5" 2" 3" 4" 4.5" 6" 8"
③Material: No.45 steel/ Aluminum
|
Type |
Unaerated diameter(ømm) |
Inflated diameter(ømm) |
Applicable volume tube inner diameter(ømm) |
|
1″ |
24.8 |
24.8-28 |
25-26 |
|
1.5″ |
37 |
40-42 |
38-38.5 |
|
2″ |
49 |
52-54 |
50-51 |
|
3″ |
74-75 |
80-82 |
75.5-78 |
|
4″ |
99-100 |
104-106 |
101-102 |
|
5″ |
125 |
130-133 |
126-128 |
|
6″ |
150 |
154-156 |
151-153 |
|
8″ |
200 |
206-264 |
202-204 |
|
10″ |
250 |
260-264 |
252-256 |
|
12″ |
300 |
308-310 |
302-305 |

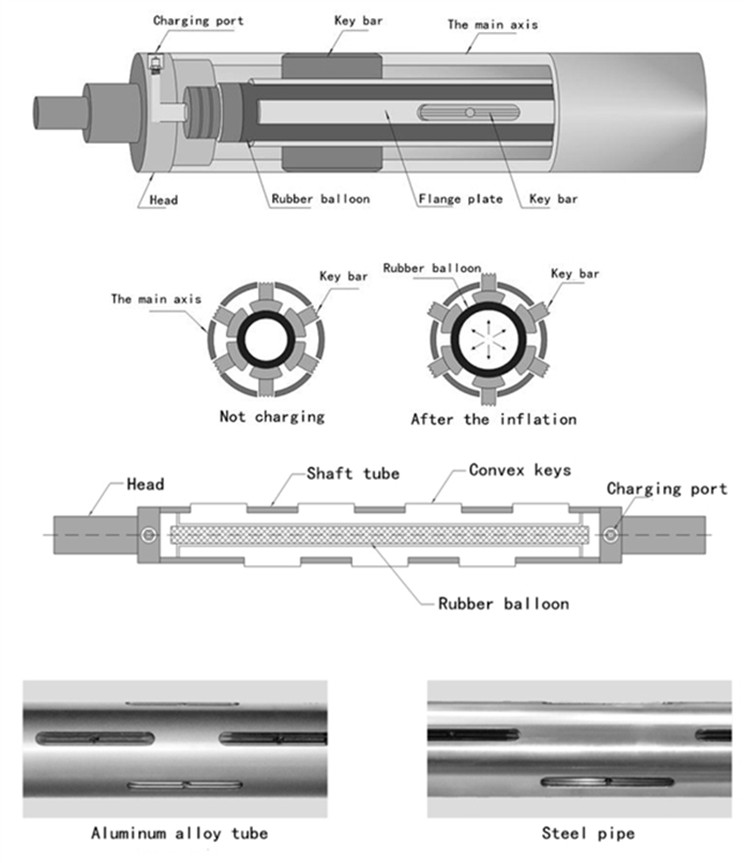

3.Structure of air shaft
4.Product Overviews

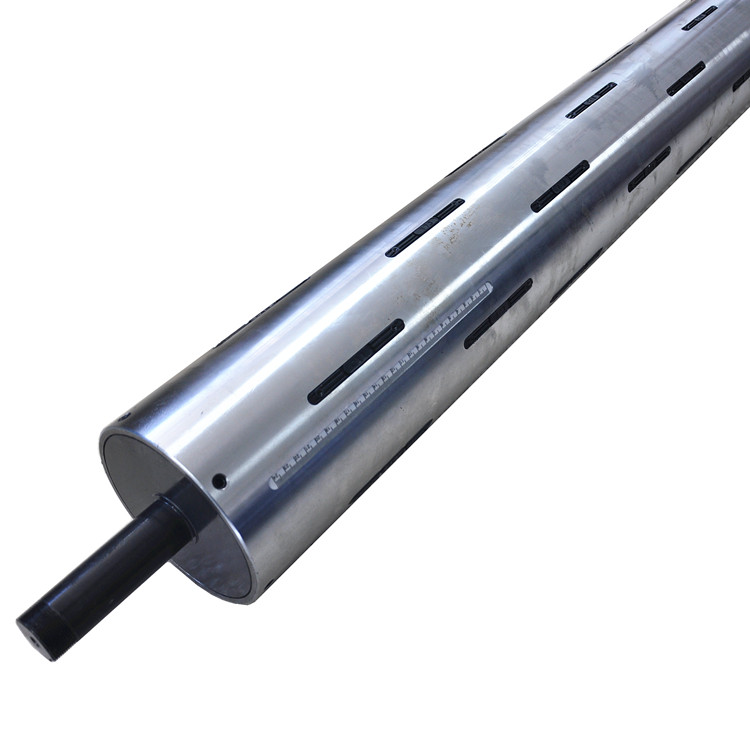

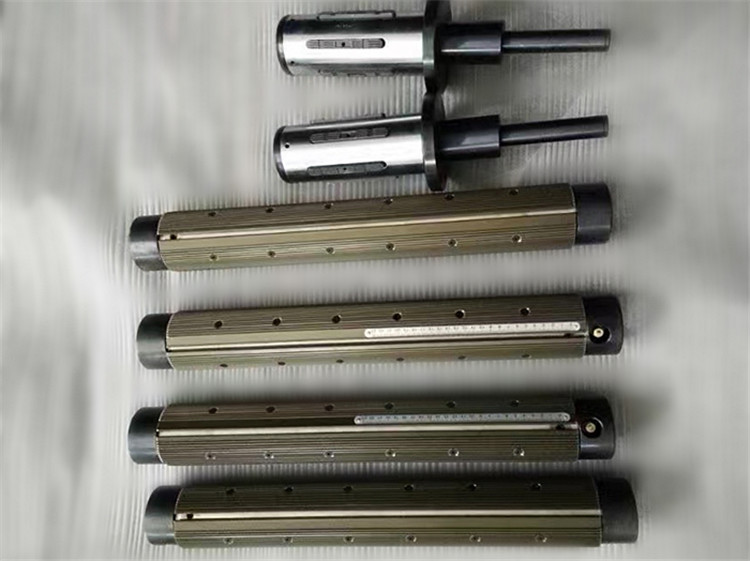

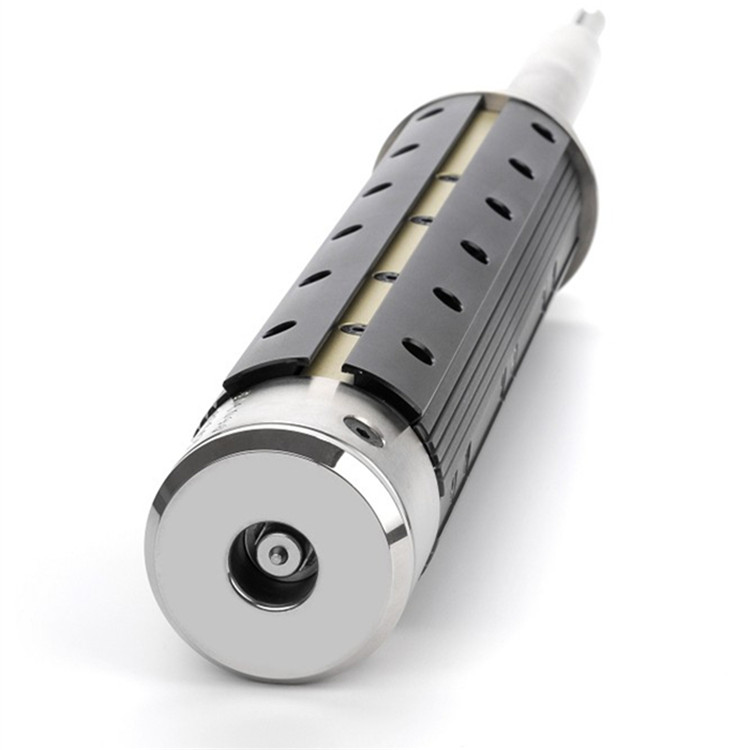

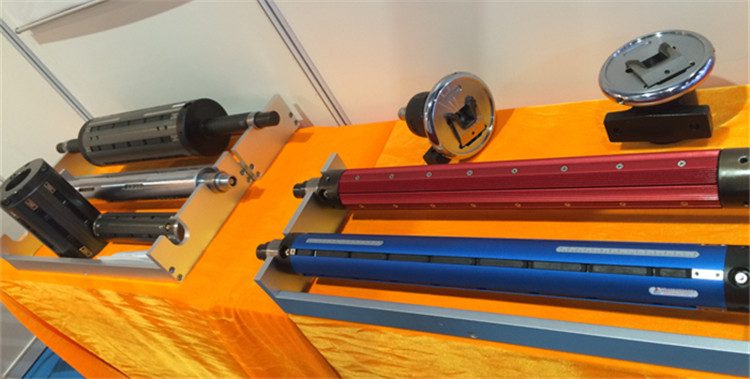

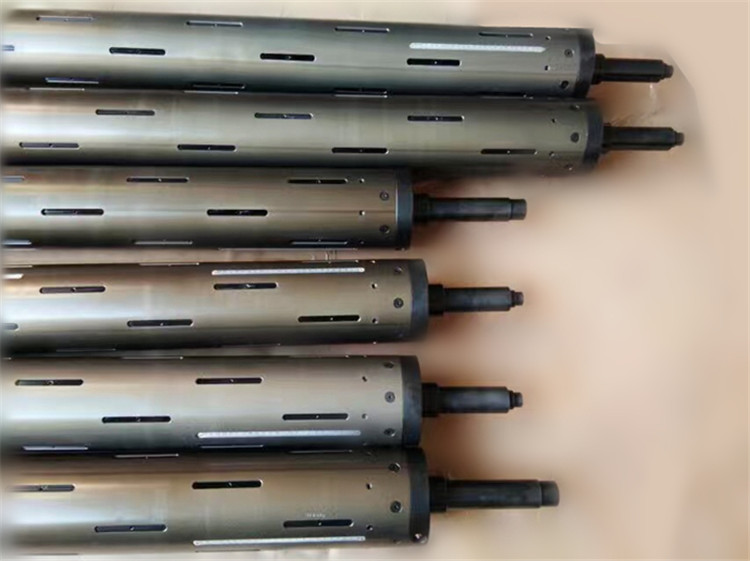

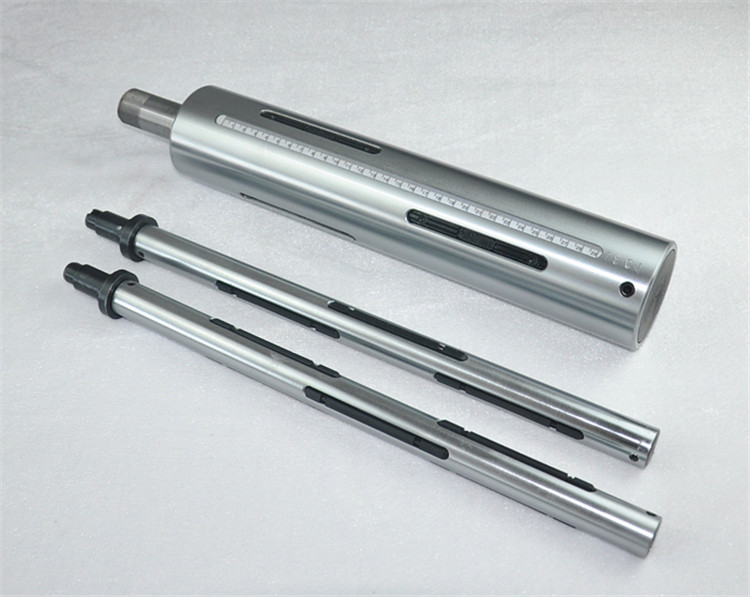

Pictures for air shaft

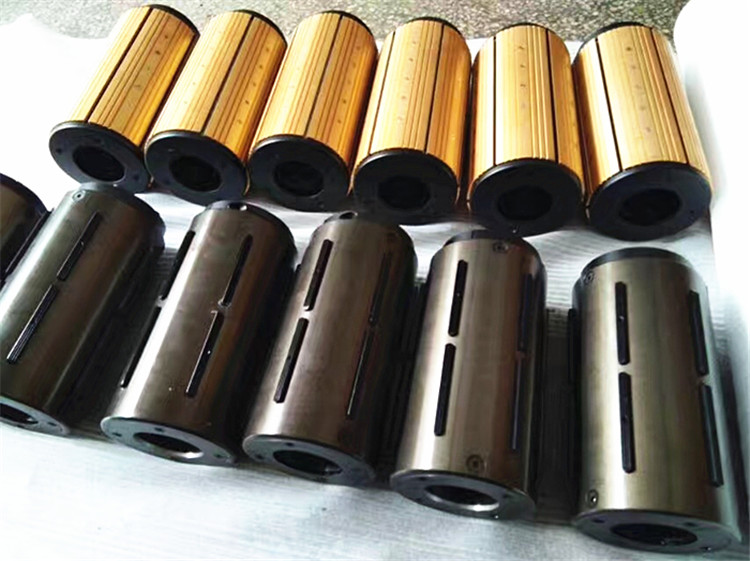

Adapter for air shaft(Air cover)

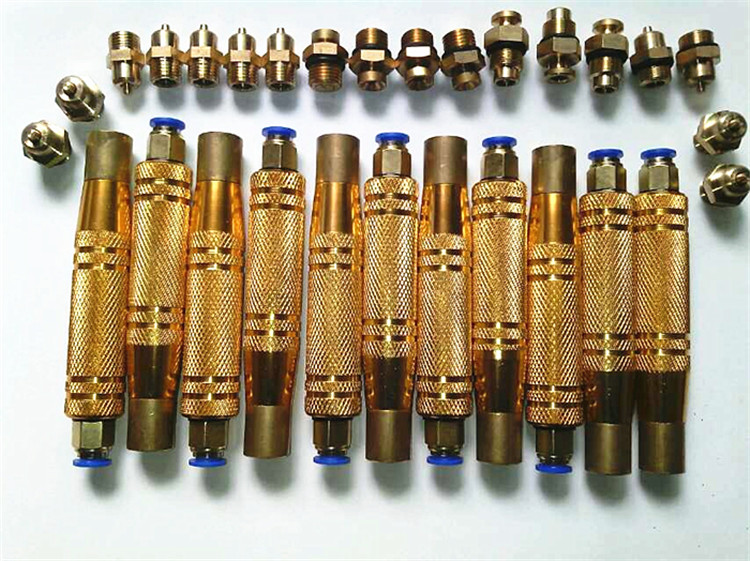

Air valve and Air gun(air inflatable hand)
5.Company Information
