BML-5 pneumatic single diaphragm pump
BML-5 pneumatic single diaphragm pump BML-5 pneumatic single diaphragm pump BML-5 pneumatic single diaphragm pump BML-5 pneumatic single diaphragm pump

BML-5 pneumatic single diaphragm pump

Product ID : GMP-D001
Product Tags :
Product Attributes :

BML series diaphragm pump is a new type of conveying machinery, using compressed air as the power source, can not only exhauste the flow liquid, but also can convey some uneasy flowed medium.It also can be used for corrosive liquids,  liquid particles, high viscosity, volatile, flammable, highly toxic liquid.It has the advantages of submersible pumps, self-priming pumps, impurity pumps, shielding pumps and mud pumps.

Product Description


BML-5 pneumatic single diaphragm pump






Product Description


1. Introduction of diaphragm pump


BML series diaphragm pump is a new type of conveying machinery, using compressed air as the power source, can not only exhauste the flow liquid, but also can convey some uneasy flowed medium.It also can be used for corrosive liquids,  liquid particles, high viscosity, volatile, flammable, highly toxic liquid.It has the advantages of submersible pumps, self-priming pumps, impurity pumps, shielding pumps and mud pumps.


There are 3kinds of diaphragm pump we can supply,PP plastic pneumatic diaphragm pump, stainless steel pneumatic diaphragm pump and BML pneumatic diaphragm pump.



2. Specification of BML series diaphragm pump


TypeBML-5BML--10BML--15BML-20BML-25BML--40BML--50
Diaphragm typeSingleDoubleDoubleDoubleDoubleDoubleDouble
Max Flow Rate10L/min15L/min35L/min54L/min160L/min379L/min568L/min
Connection to Liquid1/4″3/8″1/2″3/4″1″1-1/2″2″
Limit of Slurry2mm2mm2mm3mm3mm4.8mm6.3mm
Suction heigh2m5m7m8m9m10m11m
Lift4m60m70m70m70m70m70m
Max.Discharge Pressure0.5Mpa0.7Mpa0.7Mpa0.7Mpa0.7Mpa0.8Mpa0.8Mpa
Air Supply Pressure Range
(Mpa)
0.2-0.50.2-0.70.2-0.70.2-0.70.2-0.70.2-0.80.2-0.8
Material  of DiaphragmPTFEPTFEPTFEPTFEPTFECR PTFECR PTFE
Body MaterialAluminum AlloyAluminum AlloyAluminum AlloyAluminum AlloyAluminum AlloyAluminum AlloyAluminum Alloy
Net Weight1.8kg3.5kg4.5kg6kg14kg16kg28kg
Ctn Dimension
(mm)
180*180*210270*270*280180*220*280200*230*320240*300*450275*400*540340*460*640



3. Advantages

  • Adopting Japanese technology, with the character of high efficiency,steady and durable.

  • Corrosive,particles containing and high viscosity liquid can be transported.

  • Without dead point or freezing point to ensure running steadily

  • Strong power to make the long-distance liquid transportation easily

  • Easy operation,the liquid transportation can be stepless regulated

  • Using the compressure air as power, anti- explosion and safety


Product Pictures

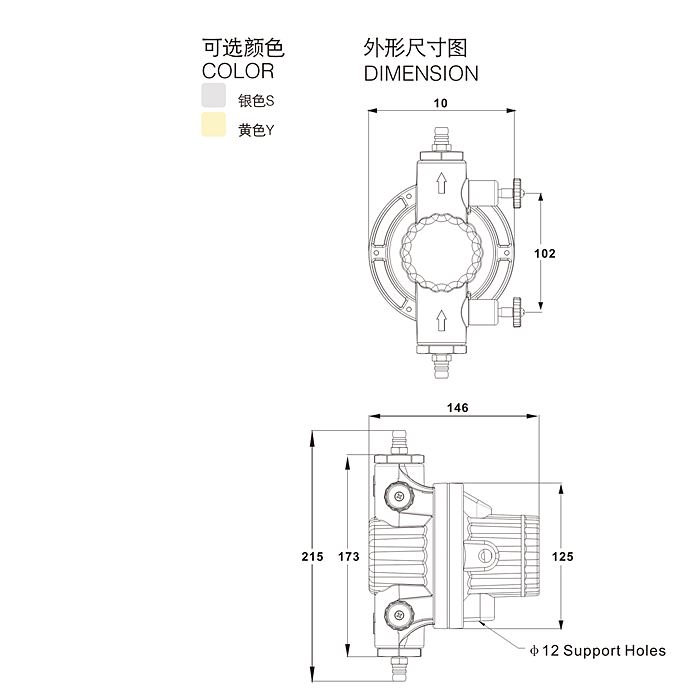

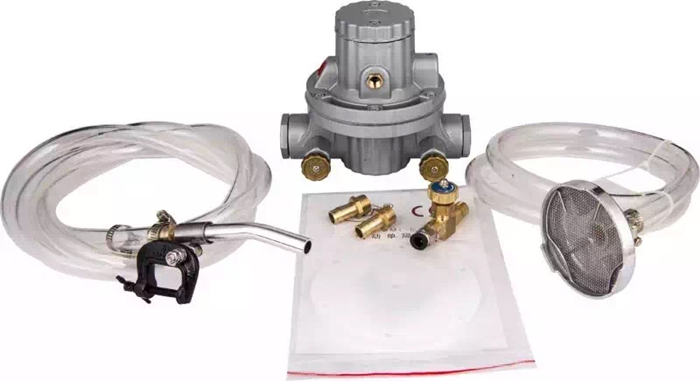

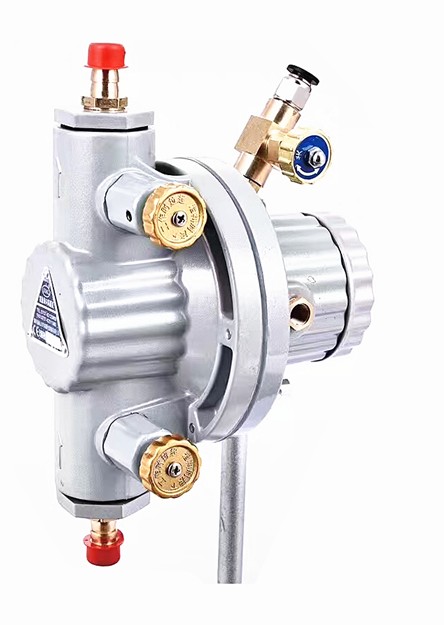

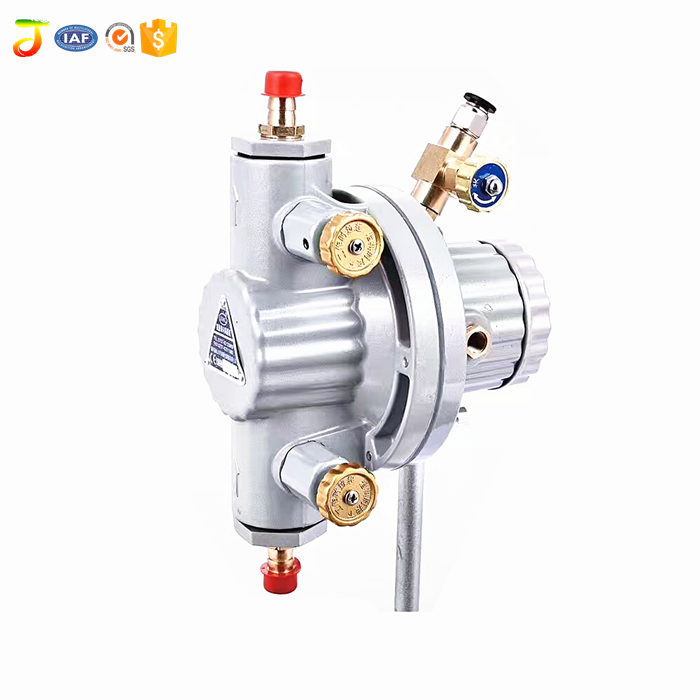

 Pictures of BML-5



Pictures of BML-10


Pictures of BML-15



 Pictures of BML-25


Company Information


Waste Water Pneumatic Diaphragm Pump 2Waste Water Pneumatic Diaphragm Pump 3Waste Water Pneumatic Diaphragm Pump 1







 FAQ


1. Are you manufacturer or Trading company?

We are manufacturer and we have been producing anilox cleaner for many years and our machine are sold to more than 20countries in the world and have good reputation.



2. Do you have quality certificate?

Yes ,we have CE, SGS etc,so you can rely on the quality.



3. What's the delivery time?

Around 10-20 days after pre payment received, however, based on order.



4. Can you provide foreign country machine instation services?

Yes,we have a after service team can provide instation services and engineers are available to solve prolems overseas.
