3 inch  key type friction ring ball style
3 inch  key type friction ring ball style 3 inch  key type friction ring ball style 3 inch  key type friction ring ball style 3 inch  key type friction ring ball style 3 inch  key type friction ring ball style

3 inch key type friction ring ball style

Product ID : JCT-FR-P001
Product Tags :
Product Description



3 inch  key type friction ring ball style





Product Description



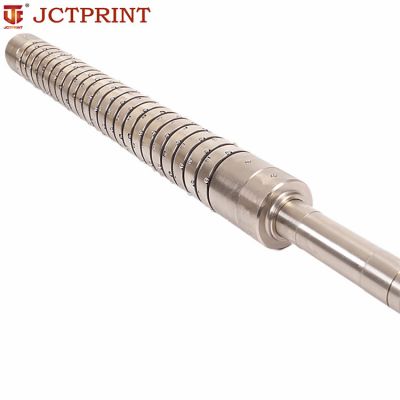

 1.Description of differential shaft ring

The differential shaft ring consists of a plurality of slip rings, which can overcome the problem of unwinding and material damage. The slippage rings are controlled to slip at a certain slip torque (torque), and the amount of slip exactly compensate for the difference in speed, thus it can control the tension of each roll precisely, which ensure the winding quality.



2.The advantages of using differential shaft ring

The use of differential shaft ring improves the speed of the slitter, the accuracy of the winding and the degree of automation.At the same time,it shortens the preparation time and achieve the humanized operation. In particular for polyester thin materials which have poor tensile resistance and big difference in thickness.The use of differential shaft ring can reduce the difficulty of winding.

Besides, using differential shaft ring to wind or unwind precious materials, metal foil and special paper roll, can greatly improve the production yield, reducing the cost of production.



3.Types and Specifications of our differential shaft ring



1) Key type(central air pressure and mechanical side pressure type)

A.3inch

3inch key type friction element

Outside diameter

Φ75.5mm

The maximum action diameter

Φ78mm

Standard width

15,20,25,30,35,40,50mm

Standard internal diamete

Φ45,Φ50,Φ55mm



B.6inch

6 inch key type friction element

Outside diameter

Φ151mm

The maximum action diameter

Φ156mm

Standard width

20,25,30,35,40,50mm

Standard internal diamete

Φ60,Φ75,Φ80mm

C.120mm

  (24)

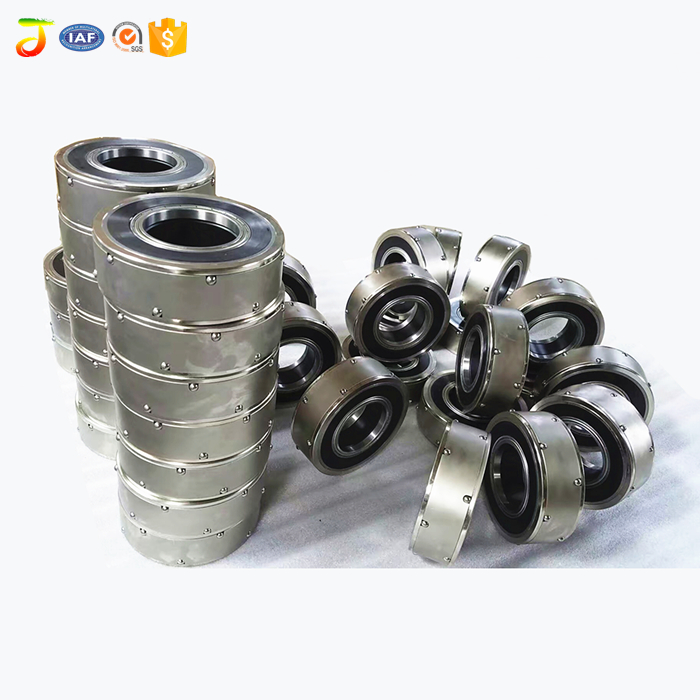

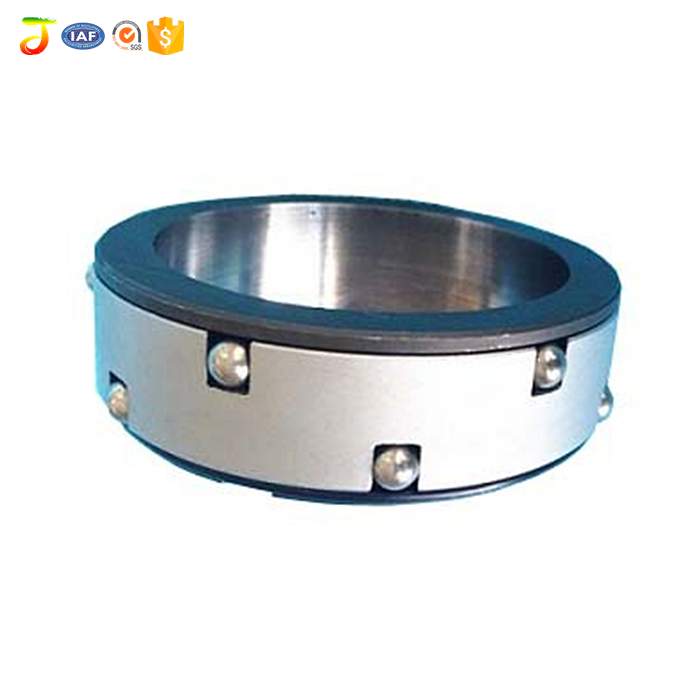

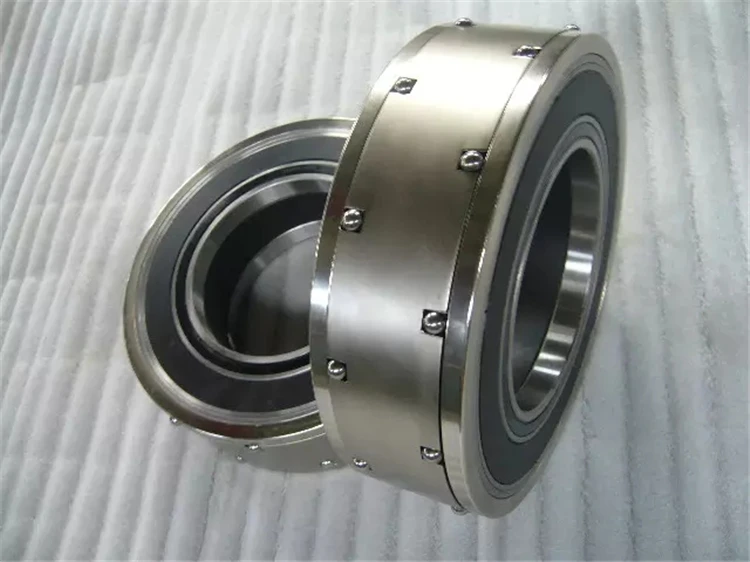

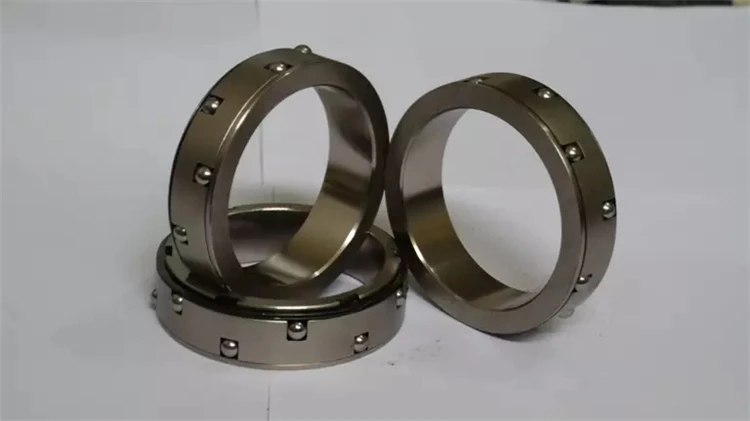

2) Steel ball type

A.8 balls



Type

Outside diameter

The maximum action diameter

Standard width

Standard internal diameter

2 inch
Double row ball

Φ49mm

Φ52.5mm

15,20,25,30mm

Φ25,Φ30,Φ35mm

3 inch
Double row ball

 Φ75.5

Φ78mm

15,20,25,30,35,40,50mm

 Φ50,Φ55

























 (2)

B.12balls



Type

Outside diameter

The maximum action diameter

Standard width

Standard internal

diameter

3 inch
Double row ball

Φ75.5mm

Φ78mm

15,20,25,30,35,40,50mm

Φ50,Φ55,Φ60mm

6 inch
Double row ball

 Φ75.5

Φ78mm

15,20,25,30,35,40,50mm

Φ50,Φ55,Φ60





















 (3)

C. 24balls

10 inch  Steel ball type friction elementDouble row ball (24 beads)

Outside diameter

 Φ253mm

The maximum action diameter

Φ258mm

Standard width

 40,50,60,75mm

Standard internal diamete

Φ100,Φ120,Φ140mm

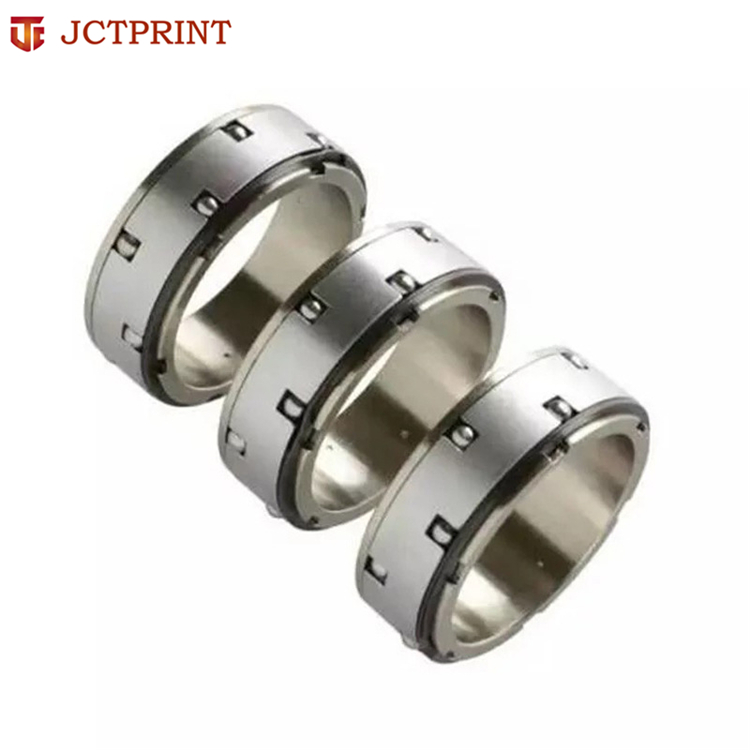

3)New design type(Double balls double keys)

3 inch double balls double keys

Outside diameter

Φ75.5mm

The maximum action diameter

Φ78mm

Standard width

15,20,25,30,35,40,50mm

Standard internal diamete

Φ60mm




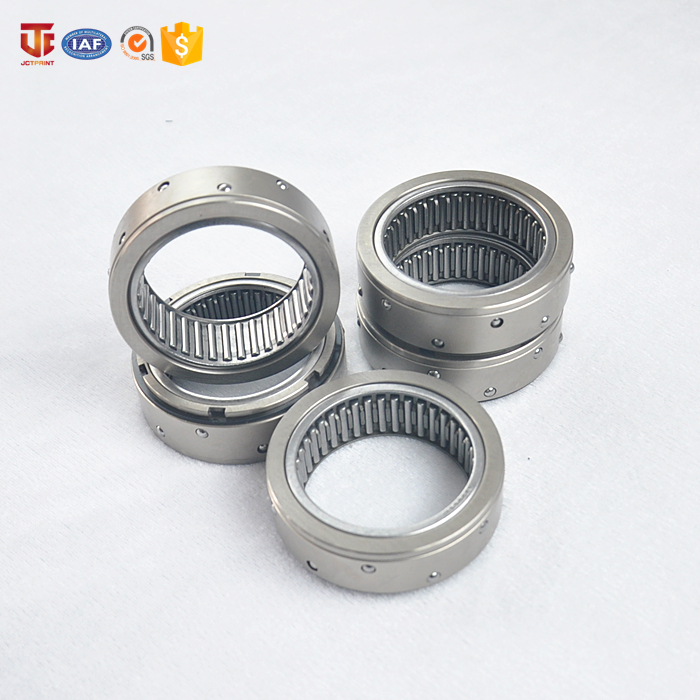

Detailed pictures

   (21)



 (3)

 (2)







 (23)

 (25)





Company Information





750mm

2

-



FAQ





1.   How should I place the order?



For differential air shaft  ring, please send us your drawing, or let us know your request.



2.What is your MOQ?



1 Piece.



3.What material of your shaft is made of?



Aluminum,steel.



4.Can you produce relative product,like adapter,hand shank?



Yes,Sure.
