High Precision Mechanical Friction Air Shaft For High Speed Slitting Machine

High Precision Mechanical Friction Air Shaft For High Speed Slitting Machine

1). Introduction

Differential air shaft is mainly used for sub-section equipment  that has high requirement on final products and fast speed.The differential ring on it can slip independently. Controlled by the tension system, let the compressed air which has a certain pressure come to axle core, so that it will produce friction torque between the friction parts and the slip ring, and realize constant tension coiling and it will help solve the unwinding problems and material damages caused by uneven thickness and tension of each roll material.

2) Classification

A.Pneumatic locking type

B.Mechanical locking type

3) Structure

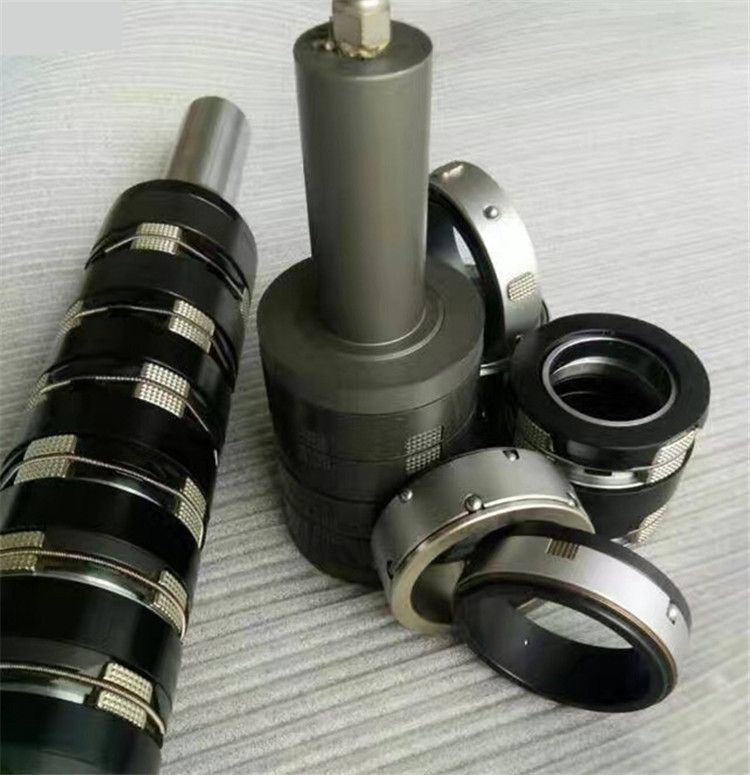

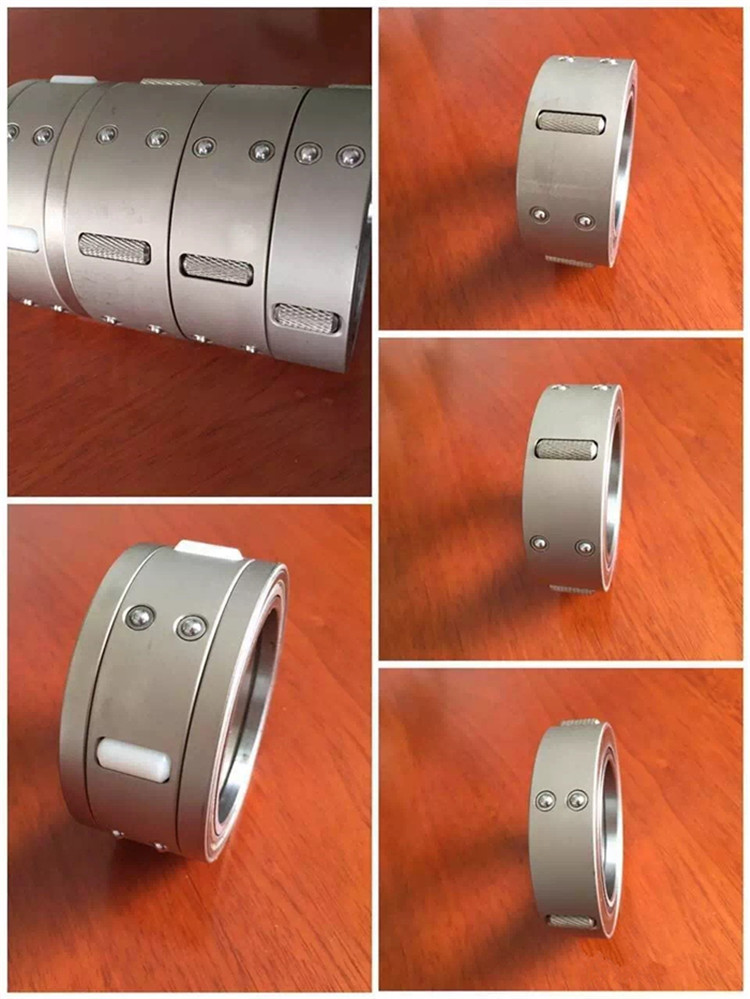

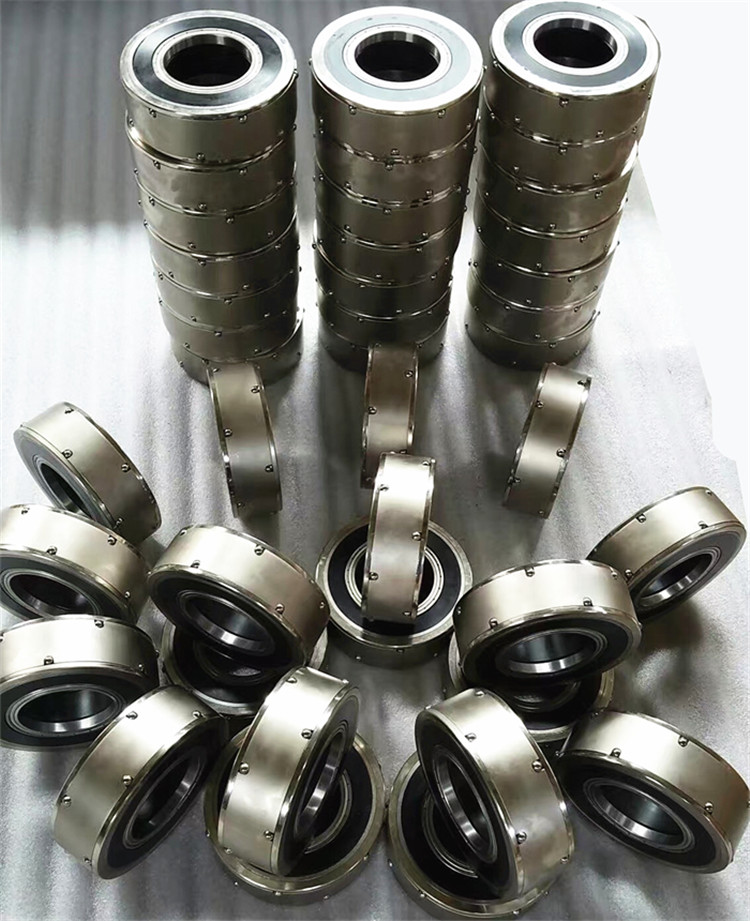

Central air pressure differential shaft are made of core roll, differential ring, airbags, friction parts, sealing rings.

4) The relationship between air pressure and torque

2.Application of differential air shaft

A.The applicable Machine

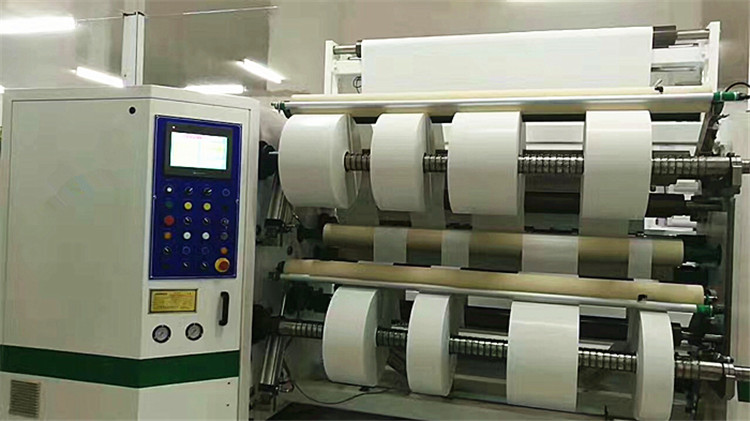

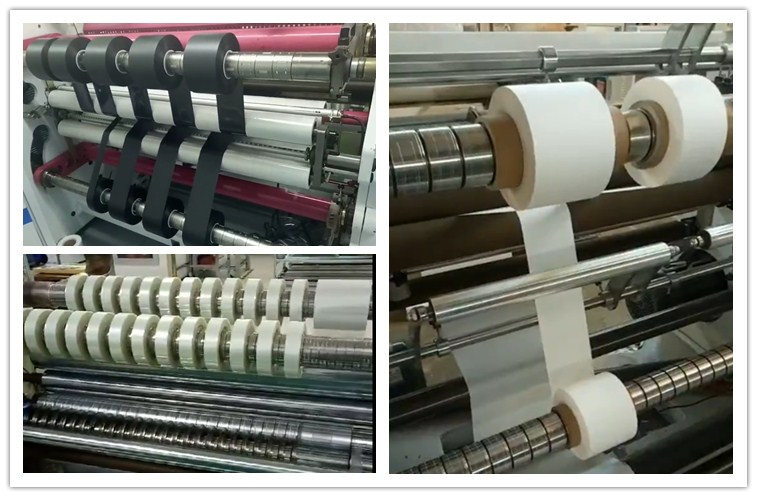

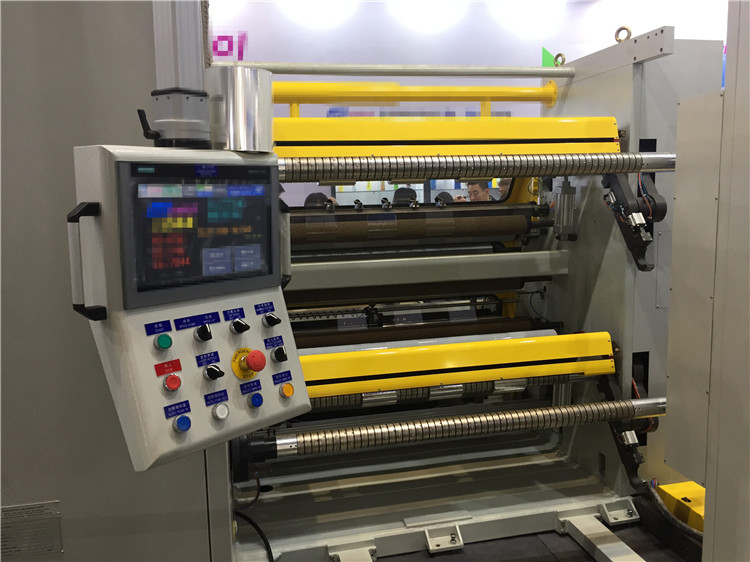

It is used for slitting machine,coating machine,cutting machine,printing machine,compounding machine,paper making machine,bag makeing machine, embossing machine and so on .It can greatly improve the working efficiency and the quality of products.

B.The applicable Material

Differential air shaft has been widely used in plastic film including electronic, capacitor, battery film, plastic wrap, packaging, composite film, metal foil such as copper foil and  aluminum foil, paper and pvc sheet.

3.The advantages of our products

1). Hight quality material for the base shaft and spare parts

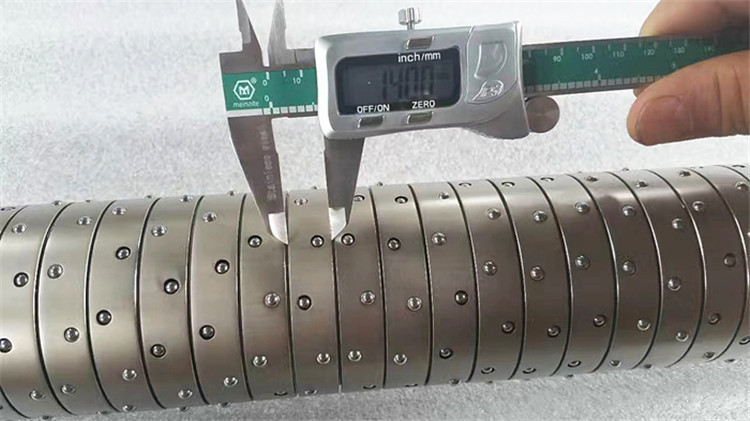

The body of the differential shaft is made from steel or stainless steel.We will check the surface roughness,straightness, dynamic balance,cylindricity and so on to make sure it's qualified to use.

The friction plate can be made from polyurethane, polyethylene,or rubber.They has good consistency of dynamic and static friction coefficient, less affected by temperature ,high wear resistance and long service life.It's good to realize max tension required.And we can customize according to customer’s drawing or special requirement.

2).Surface Treatment

Blacking,polishing,anodize,chrome plating,zinc plating,nickel plating,tinting.
The overall quenching and tempering treatment improve the wear resistance and corrosion resistance,which make it possible to use in a variety of environment.

3). Quality control

We have the quality control system during the whole production fromthe very beginning to the end and our principle is to make sure each shaft is qualified.

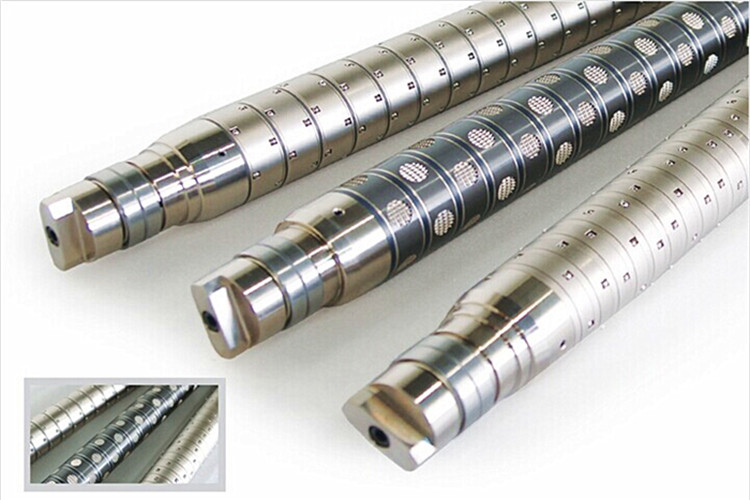

4.Standard size air shaft

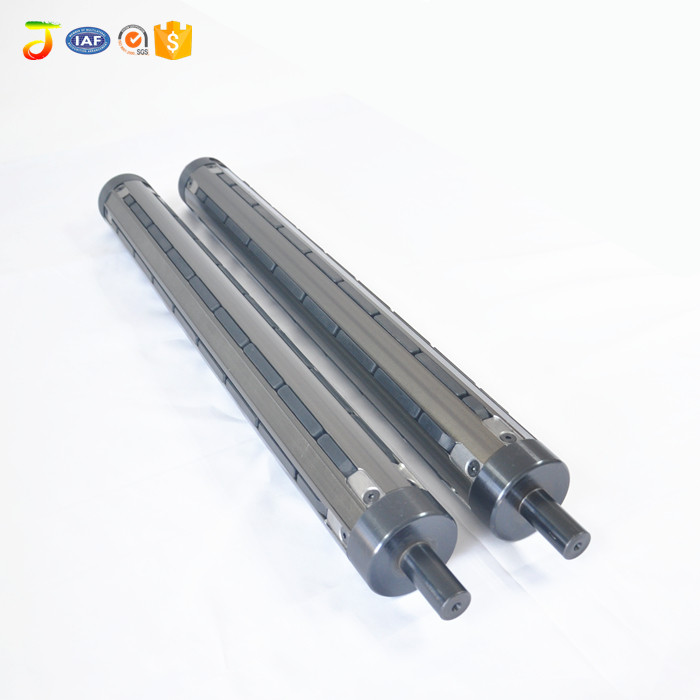

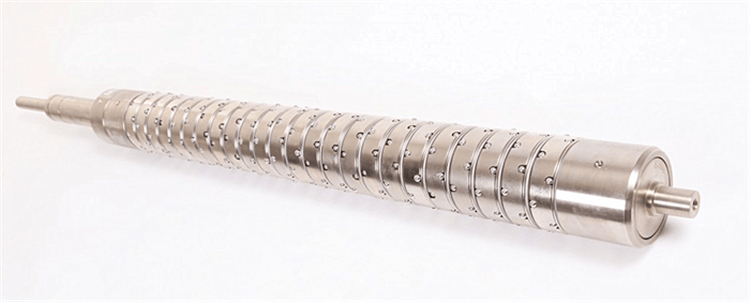

 Axial Inflatable Friction air shaft

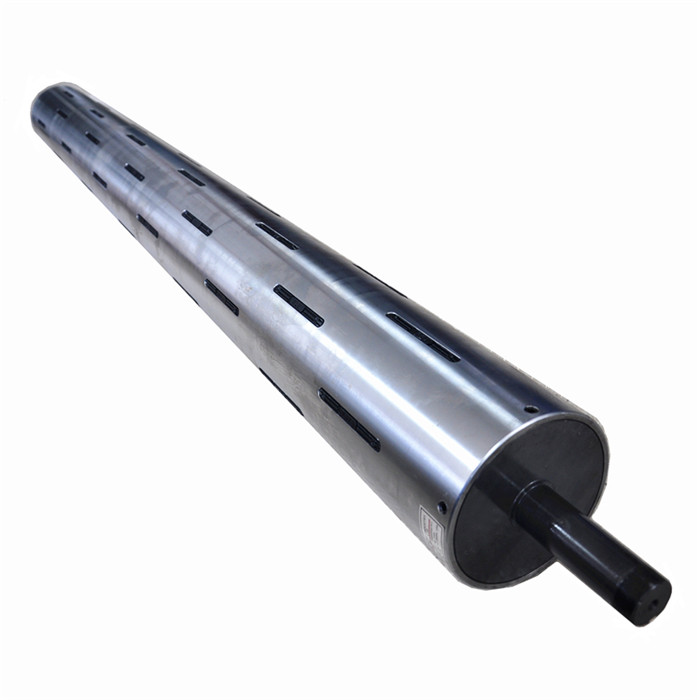

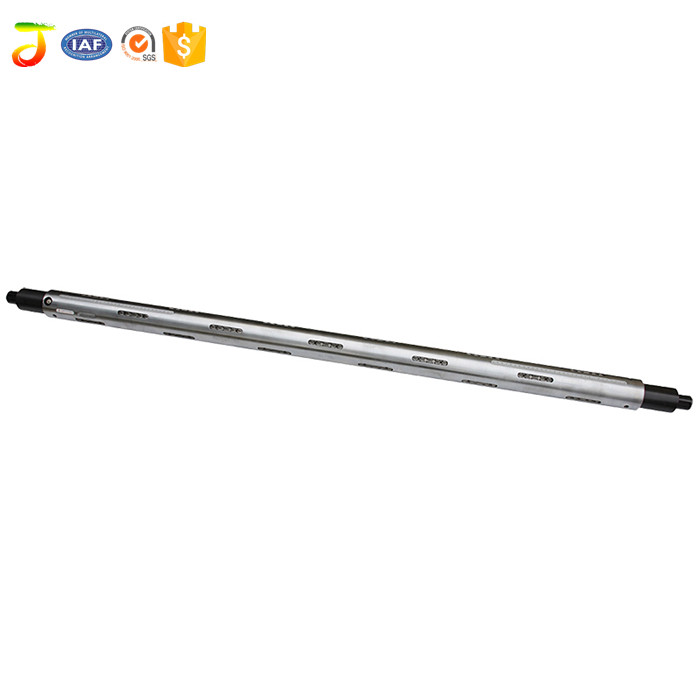

 Radial Inflatable Friction air shaft

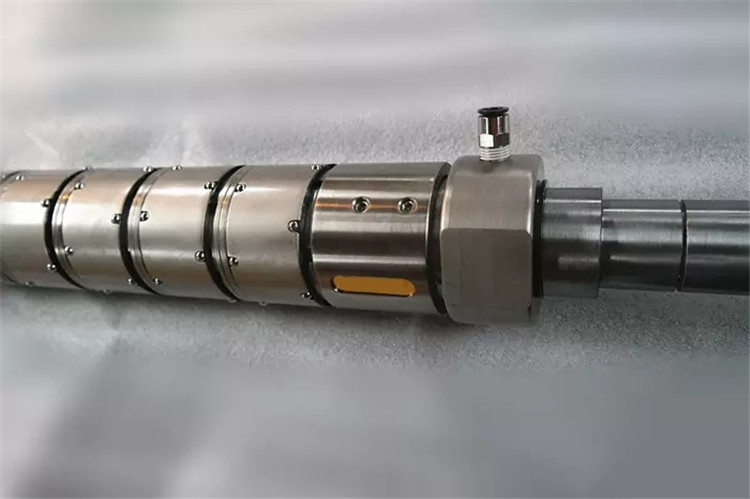

New Design Double Dall Double key air shaft

More products view:

1.   How should I place the order?

For differential air shaft , please send us your drawing and your request.
