One Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine
One Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine One Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine One Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine One Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine One Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine

One Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine

Product ID : A-116
Product Tags :
Product Attributes :

One Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine

Product Description

One Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine





Product Description



Applicable industries:

1. General industry

Lubricating oil, heavy oil,cutting liquid,electrical discharge machining fluid and powder transportation,Mold release agent circulating and spray,etc.

2. Plastic Packing Industry

To be used for ink circulating of Rotogravure printing and flexo printing, glue circulating of laminating and coating.

3. Chemistry

Chemical,emulsion,adhesive glue,stone halide materials and cosmetic transportation,etc.

4. Paint decoration

Paint,cleaning fluid and solvent transportation,Color mixing device and drainage device of the painting room.

5. Ceramic

Mud transportation and circulation,glaze spay and circulation

6. Others

The semiconductor industry ,printing industry,rubber industry,paper industry,textile and furniture industry.



 Specification:



Max.Flow Rate

568L/min

Sunction Lift

7m

Lift

70m

Max.Discharge Pressure

0.8Mpa

Limit of Slurry

6.3mm

Air Supply Pressure Range

0.2-0.8Mpa

Body Material

Aluminum

Material Diaphram

CR PTFE

Screw Thread

BSPT

Connection to Liquid

2”

Air Connection

1/2”

Net weight

26kg

Gross weight

28kg

Carton dimension

340*460*640mm



 Advantage:

1.     Adopting Japanese technology, with the character of high efficiency,steady and durable

2.     Caustic,particles containing and high viscosity liquid can be transported

3.     Without dead point or freezing point to ensure running steadily

4.     Strong power to make the long-distance transportation easily

5.     Easy operation,the liquid transportation can be stepless regulated

6.     Using the compressure air as power to make anti- explosion and safety



More choices:

TypeJCT-5JCT-10JCT-15JCT-20JCT-25JCT-40JCT-50Max Flow Rate10L/min15L/min35L/min54L/min160L/min379L/min568L/minConnection to Liquid1/4″3/8″1/2″3/4″1″1-1/2″2″Limit of Slurry2mm2mm2mm3mm3mm4.8mm6.3mmMaterial  of DiaphragmPTFEPTFEPTFEPTFEPTFECR PTFECR PTFEBody Material AluminumAluminumAluminumAluminumAluminumAluminumAluminumNet Weight1.8kg3.5kg4.5kg6kg14kg16kg28kg

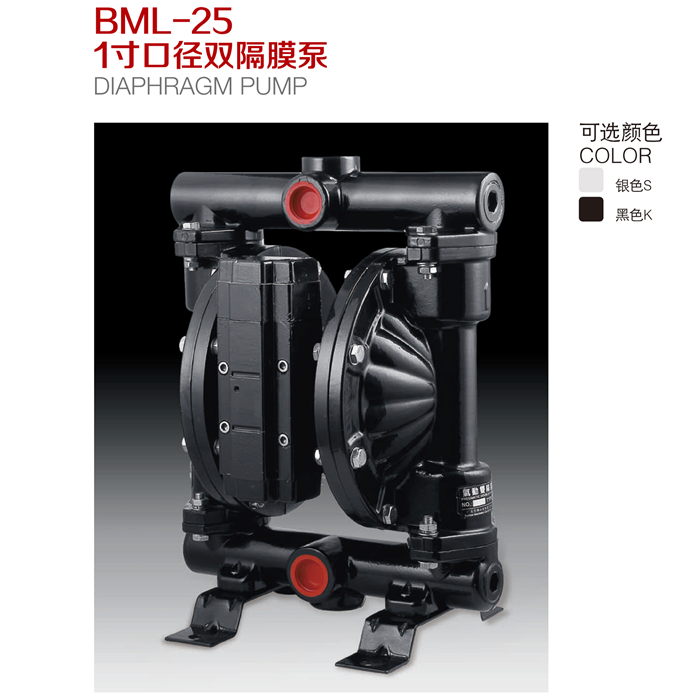

Product picture



 One Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine .pngOne Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine .pngOne Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine 5_.pngOne Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine 5_ (2).pngOne Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine _2.pngOne Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine IMG_3550_.jpgOne Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine bml-25 (1)One Way Pneumatic Diaphragm Pump For Printing Circulate Pumping Machine 9
