The pneumatic diaphragm pump is used in the water-based ink printing machine of the packaging printing industry, the gravure printing machine, the ink lifting circulation system of the flexographic printing surface, and is an indispensable accessory in the ink circulation equipment.
The pneumatic diaphragm pump is used in the water-based ink printing machine of the packaging printing industry, the gravure printing machine, the ink lifting circulation system of the flexographic printing surface, and is an indispensable accessory in the ink circulation equipment.

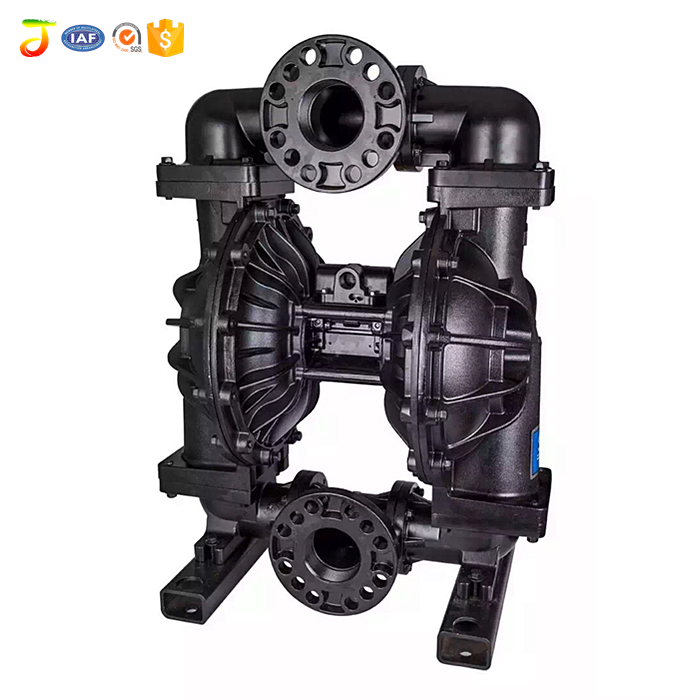

BML series diaphragm pump is a new type of conveying machinery, using compressed air as the power source, can not only exhauste the flow liquid, but also can convey some uneasy flowed medium.It also can be used for corrosive liquids, liquid particles, high viscosity, volatile, flammable, highly toxic liquid.It has the advantages of submersible pumps, self-priming pumps, impurity pumps, shielding pumps and mud pumps.

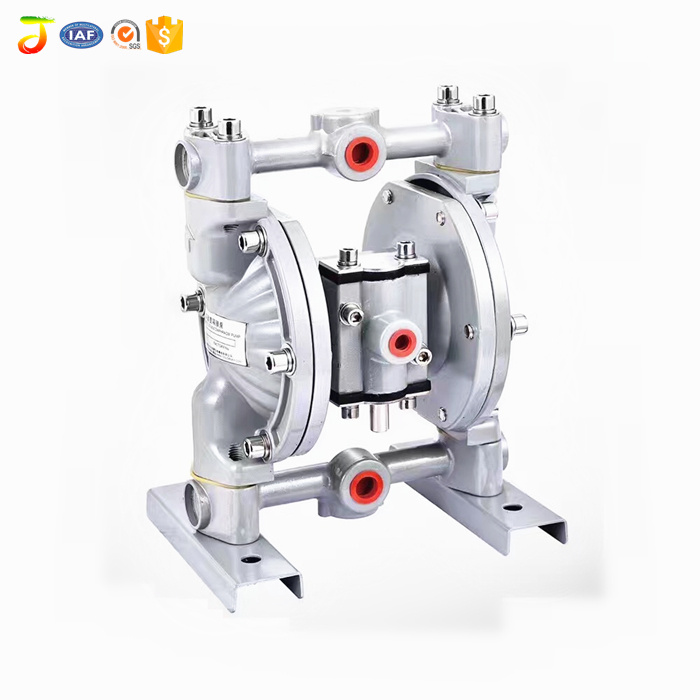

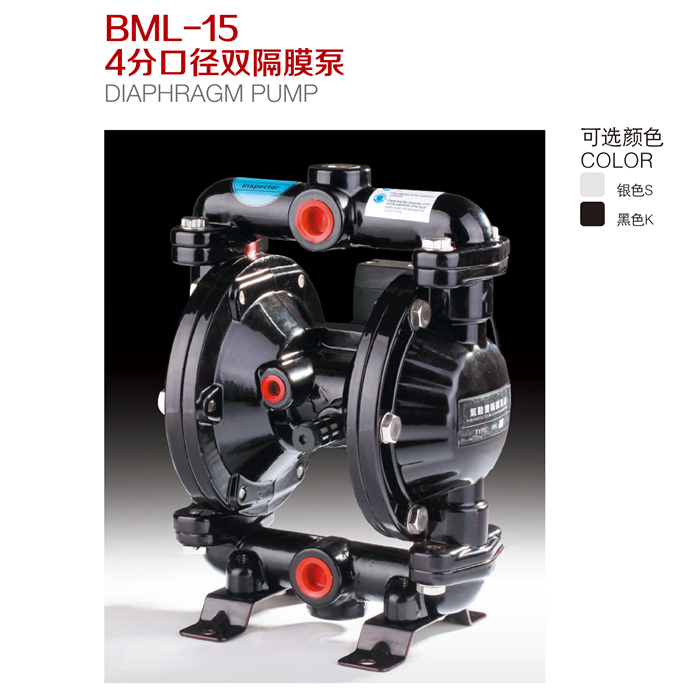

There are 3kinds of diaphragm pump we can supply,PP plastic pneumatic diaphragm pump, stainless steel pneumatic diaphragm pump and BML pneumatic diaphragm pump.
1.Adopting Japanese technology, with the character of high efficiency,steady and durable.
2. Corrosive,particles containing and high viscosity liquid can be transported.
3. Without dead point or freezing point to ensure running steadily
4. Strong power to make the long-distance liquid transportation easily
5. Easy operation,the liquid transportation can be stepless regulated
6. Using the compressure air as power, anti- explosion and safety
Type |
BML-5 |
BML--10 |
BML--15 |
BML-20 |
BML-25 |
BML--40 |
BML--50 |
Diaphragm type |
Single |
Double |
Double |
Double |
Double |
Double |
Double |
Max Flow Rate |
10L/min |
15L/min |
35L/min |
54L/min |
160L/min |
379L/min |
568L/min |
Connection to Liquid |
1/4″ |
3/8″ |
1/2″ |
3/4″ |
1″ |
1-1/2″ |
2″ |
Limit of Slurry |
2mm |
2mm |
2mm |
3mm |
3mm |
4.8mm |
6.3mm |
Suction heigh |
2m |
5m |
7m |
8m |
9m |
10m |
11m |
Lift |
4m |
60m |
70m |
70m |
70m |
70m |
70m |
Max.Discharge Pressure |
0.5Mpa |
0.7Mpa |
0.7Mpa |
0.7Mpa |
0.7Mpa |
0.8Mpa |
0.8Mpa |
Air Supply Pressure Range |
0.2-0.5 |
0.2-0.7 |
0.2-0.7 |
0.2-0.7 |
0.2-0.7 |
0.2-0.8 |
0.2-0.8 |
Material of Diaphragm |
PTFE |
PTFE |
PTFE |
PTFE |
PTFE |
CR PTFE |
CR PTFE |
Body Material |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
Net Weight |
1.8kg |
3.5kg |
4.5kg |
6kg |
14kg |
16kg |
28kg |
Ctn Dimension |
180*180*210 |
270*270*280 |
180*220*280 |
200*230*320 |
240*300*450 |
275*400*540 |
340*460*640 |
