How to Choose the Right Air Shaft for Slitting, Rewinding and Printing Machines

Introduction

Air shafts are important components in printing, slitting, rewinding, and converting machines. A suitable air shaft can improve roll stability, reduce downtime, and ensure smooth material handling.

However, different machines and materials require different air shaft designs. Choosing the right air shaft depends on your machine type, core size, roll weight, and production requirements.

JCTPRINT provides customized pneumatic air shafts for printing and converting industries worldwide.

---

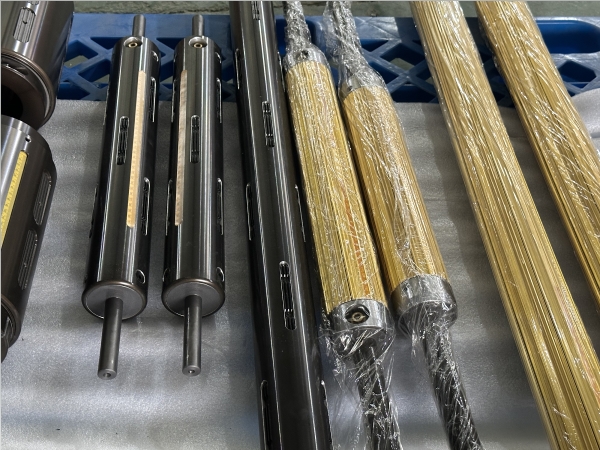

What Is an Air Shaft?

An air shaft, also called a pneumatic air shaft or air expanding shaft, uses compressed air to expand and grip the inside of a roll core.

After inflation, expanding elements securely hold the roll during operation. When deflated, the roll can be removed quickly.

Air shafts are widely used in:

• Printing machines
• Slitting machines
• Rewinding machines
• Laminating machines
• Packaging equipment

---



How to Choose the Right Air Shaft?



1. Check Your Machine Application



Different machines require different air shaft designs.



Printing machines:
Require stable holding performance to maintain accurate tension and printing quality.



Slitting machines:
Require strong gripping force and quick roll changing.



Rewinding machines:
Require stable rotation and consistent tension control.



---



2. Confirm Core Size and Roll Requirements



Before selecting an air shaft, confirm:



• Core diameter
• Working length
• Maximum roll weight
• Material type
• Operating speed



Common core sizes include:



• 3 inch
• 6 inch
• Customized sizes



Correct specifications ensure stable gripping and safe operation.



---



3. Select the Right Expanding Structure



Different applications require different expanding methods.



Lug Type Air Shaft



Suitable for general printing and packaging applications.



Advantages:



• Strong gripping force
• Reliable operation
• Easy maintenance



Strip Type Air Shaft



Suitable for high-speed production lines.



Advantages:



• Uniform expansion
• Better balance
• Stable performance



Leaf Type Air Shaft



Suitable for heavier rolls requiring stronger support.



---



Customized Air Shafts from JCTPRINT



Standard air shafts cannot always meet every machine requirement.



JCTPRINT manufactures customized air shafts according to customer specifications.



Customization includes:



• Shaft diameter
• Working length
• Core size
• Expansion structure
• Load capacity
• Connection design



Customers can provide:



• Machine model
• Shaft drawing
• Photos
• Dimensions



Our technical team can recommend the suitable solution.



---



Applications of JCTPRINT Air Shafts



Our air shafts are used in:



• Flexible packaging production
• Flexographic printing
• Film processing
• Paper converting
• Slitting and rewinding
• Laminating lines



They are designed for reliable roll handling and stable production.



---



Why Choose JCTPRINT?



JCTPRINT specializes in customized components for printing and converting equipment.



Our advantages:



✓ Customized manufacturing according to machine requirements
✓ Professional technical support
✓ Strict quality inspection before shipment
✓ Experience serving global customers



---



Conclusion



Choosing the correct air shaft helps improve production efficiency, reduce material waste, and maintain stable roll handling.



If you need an air shaft for printing machines, slitting machines, or rewinding equipment, send us your machine model, drawing, or shaft dimensions.



JCTPRINT can provide a customized air shaft solution for your application.
