Cellular type magnetic powder clutch for printing machine
Cellular type magnetic powder clutch for printing machine Cellular type magnetic powder clutch for printing machine Cellular type magnetic powder clutch for printing machine Cellular type magnetic powder clutch for printing machine Cellular type magnetic powder clutch for printing machine

Cellular type magnetic powder clutch for printing machine

Product ID : S018
Product Tags :
Product Attributes :

Cellular type magnetic powder clutch for printing machine

Product Description

Cellular type magnetic powder clutch for printing machine





Product Description

1.Introduction of magnetic powder clutch:

Magnetic powder clutchcan transmit torque based on electromagnetic theory and the use of magnetic powder.It has the characteristics which magnetizing current and transmit torque has a linear relationship,It has advantages of fast response,simple structure,no pollution,no noise,no shock and vibration,energy-saving and so on.It is a versatile,superior performance of automatic control components.Magnetic clutch can also be used to buffer starting,overload protection,speed control and so on.

IMG_5078_



2.Features of magnetic powder clutch

1)The transmission torque has a linear relationship with the magnetizing current. The size of the torque can get controlled within large range. Under normal circumstance, the magnetizing current has a linear relationship with transitive torque within range of 5%-100% rated torque.

2)The friction part will generate heat inevitably or even destroyed when it keep continuous sliding. But this device has a complete cooling set, it will not generate a lot of heat after long time running and it has a long service life.



3.Application of magnetic powder clutch

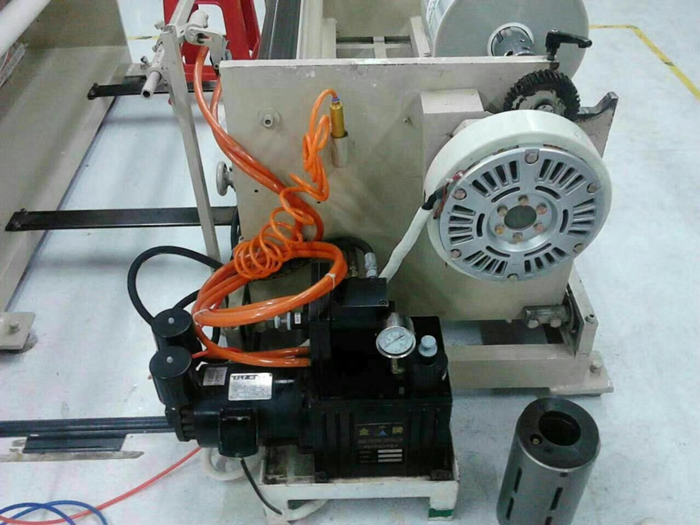

It is widely used in printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire winding machines,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, steel extruders, CNC lathes, specialized machinery and so on.



4.Advantages of magnetic powder clutch

1) High-precision torque control

2) Superior durability,long life

3) The stability of a fixed superior torque characteristics

4) Continuous operation of the use of sliding

5) Ink sleek,non-shock

6) Suitable for high-frequency operation

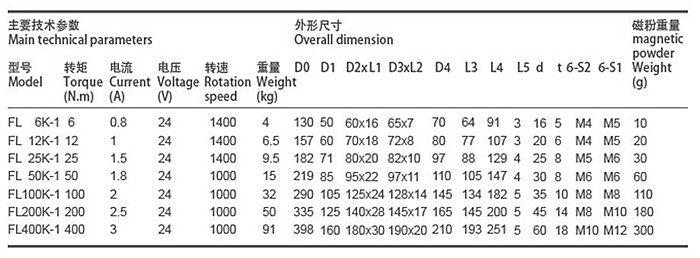

5.Models and specifications of magnetic powder clutch

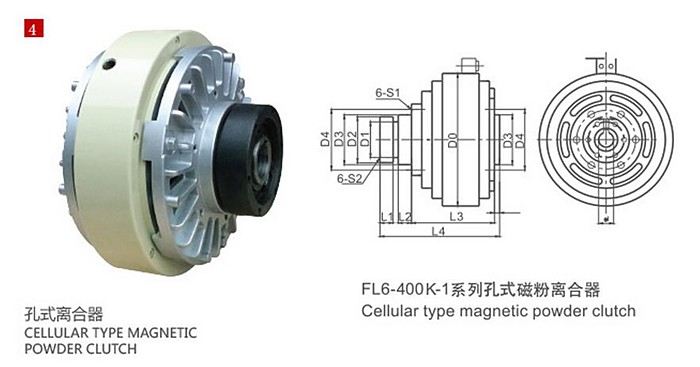

1)cellular type magnetic powder clutch



ModleTorque(N.m)Current(A)   Votage(V)Rotation speed(RPM)

Weight(kg)

FL 6K-160.82414004
FL 12K-11212414006.5
FL 25K-1251.52414009.5
FL 50K-1501.824100015
FL 100K-1100224100032
FL 200K-12002.524100050
FL 400K-1400324100091

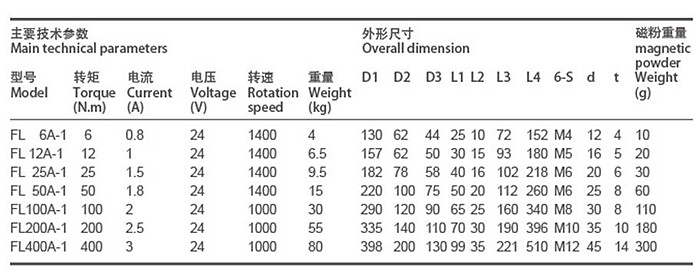

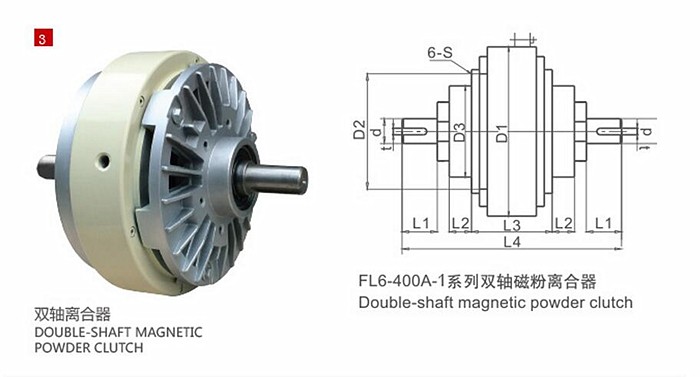

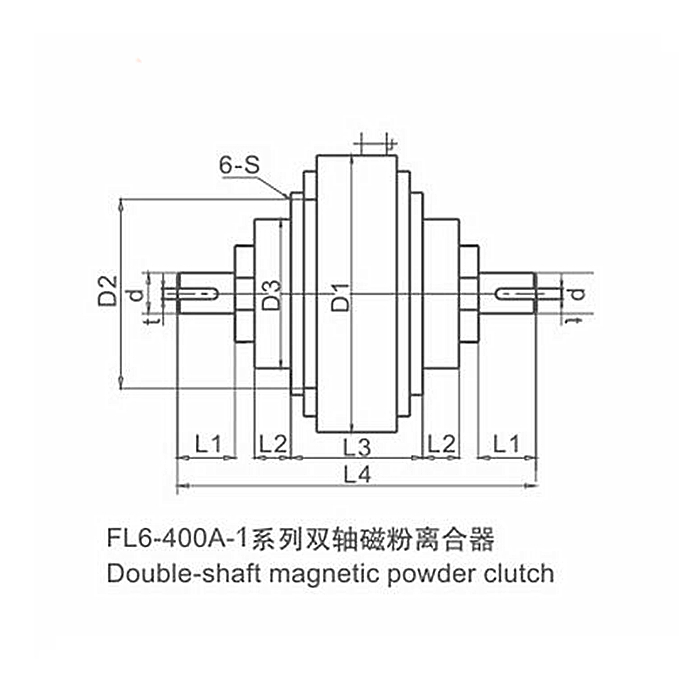

2)Double-shaft type magnetic powder clutch

ModleTorque(N.m)Current(A)   Votage(V)Rotation speed
(RPM)
Weight(kg)
FL 6A-160.82414004
FL 12A-11212414006.5
FL 25A-1251.52414009.5
FL 50A-1501.824140015
FL 100A-1100224100030
FL 200A-12002.524100055
FL 400A-1400324100080

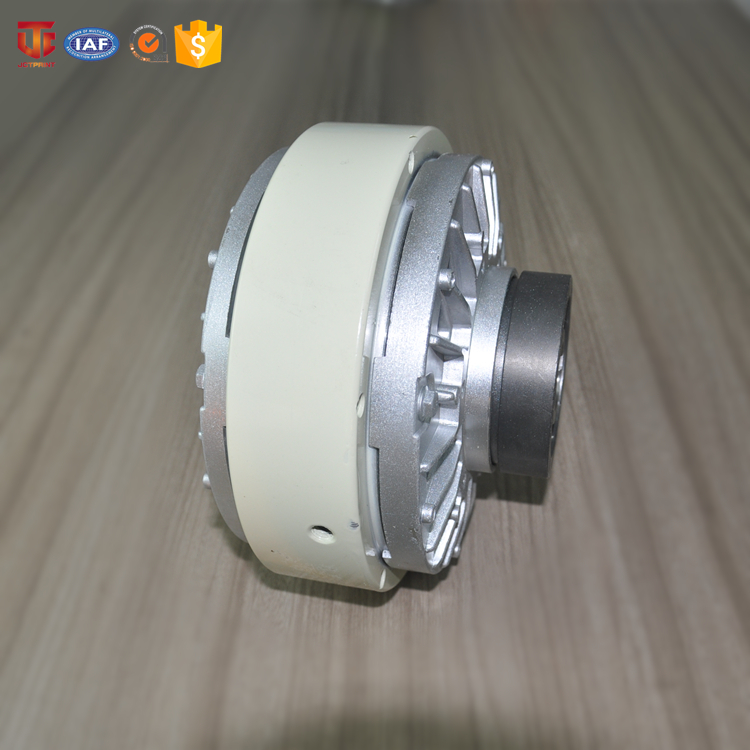

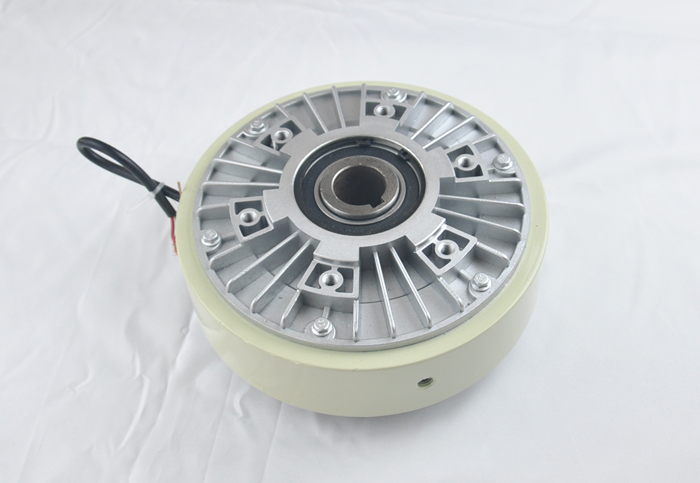

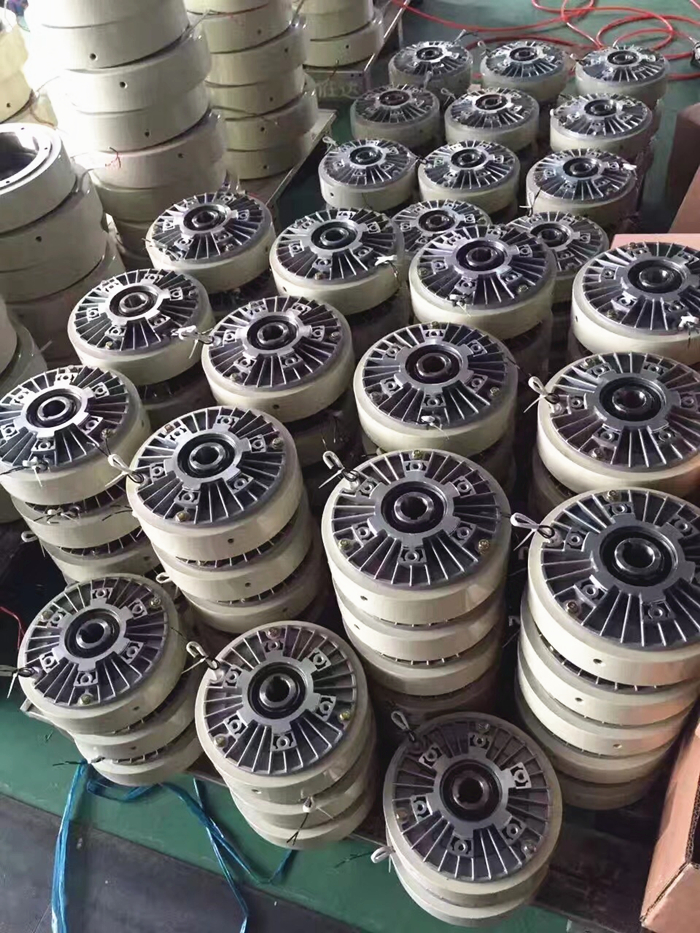

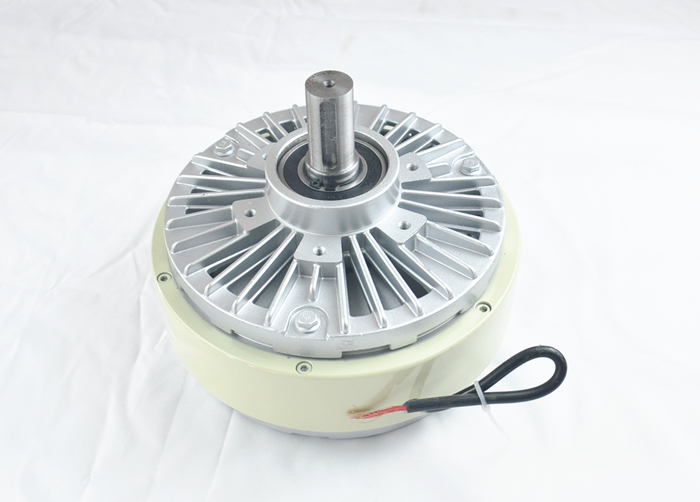

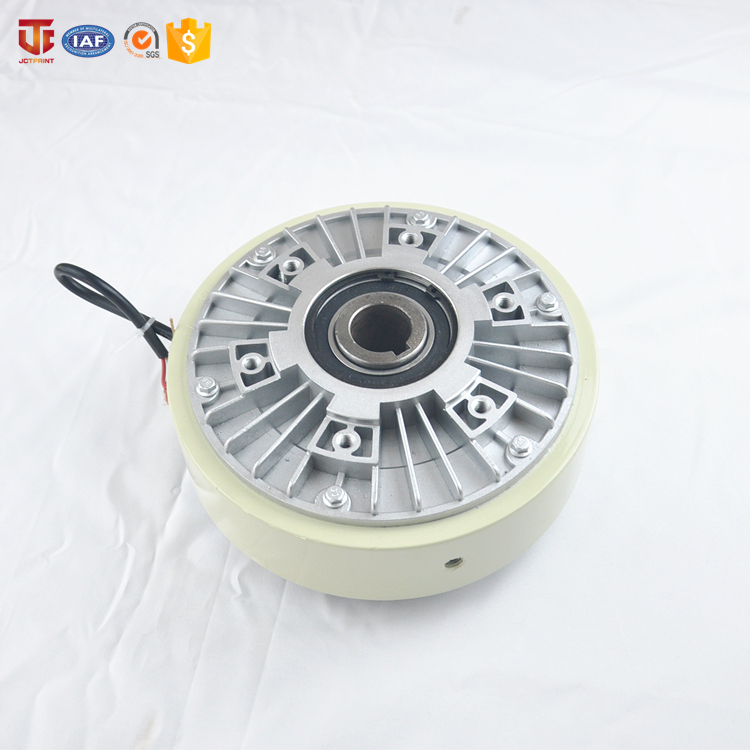

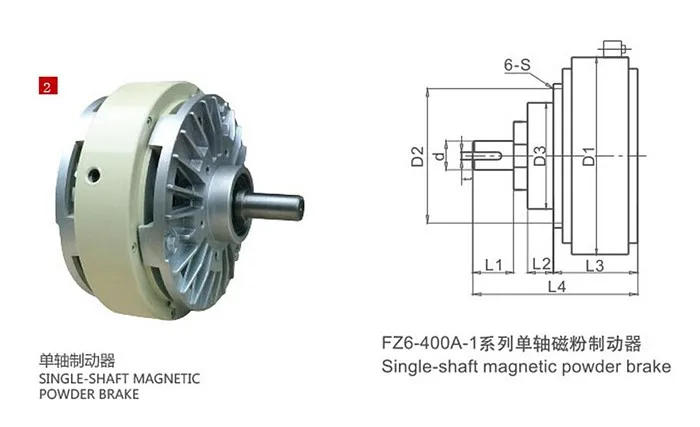

Product Pictures

 1

1

1





 IMG_6354_
