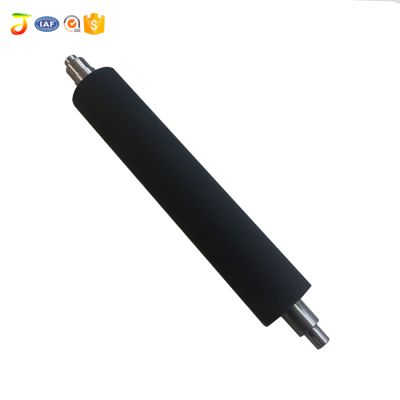

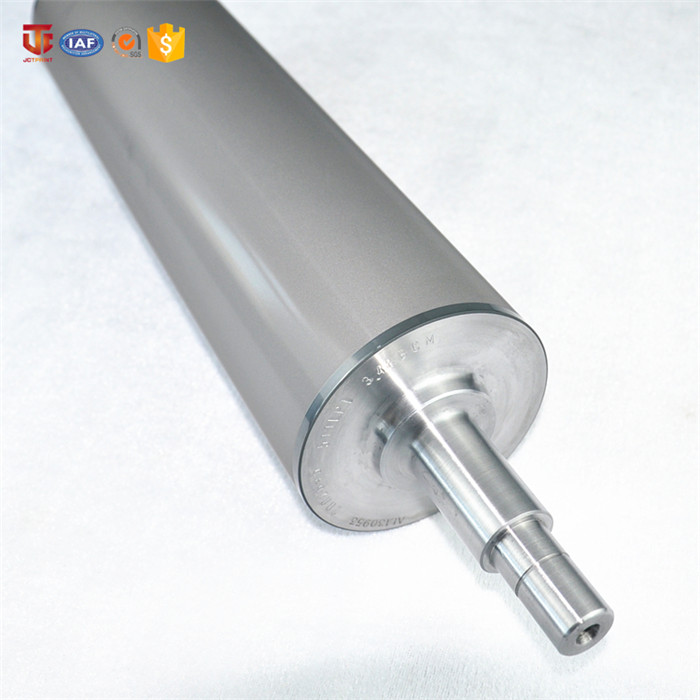

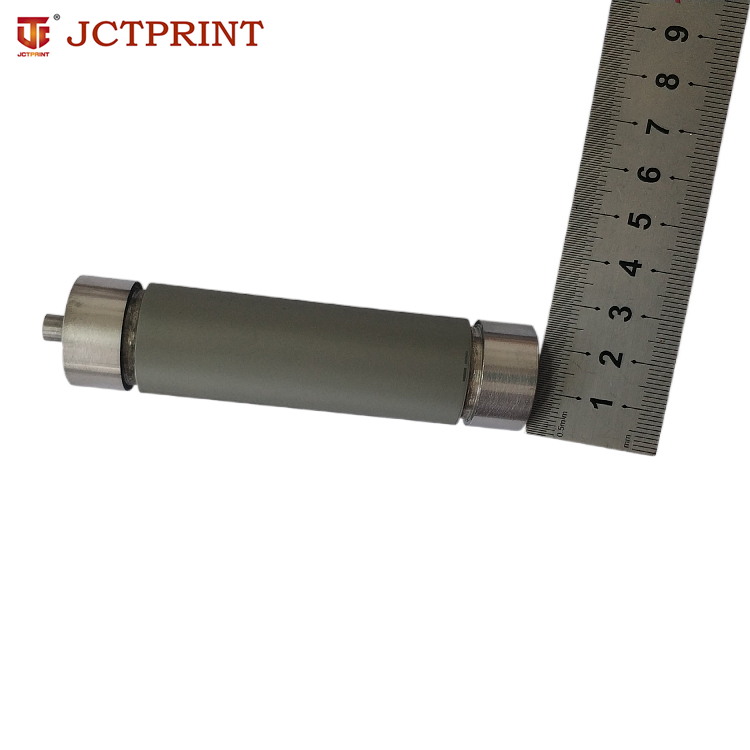

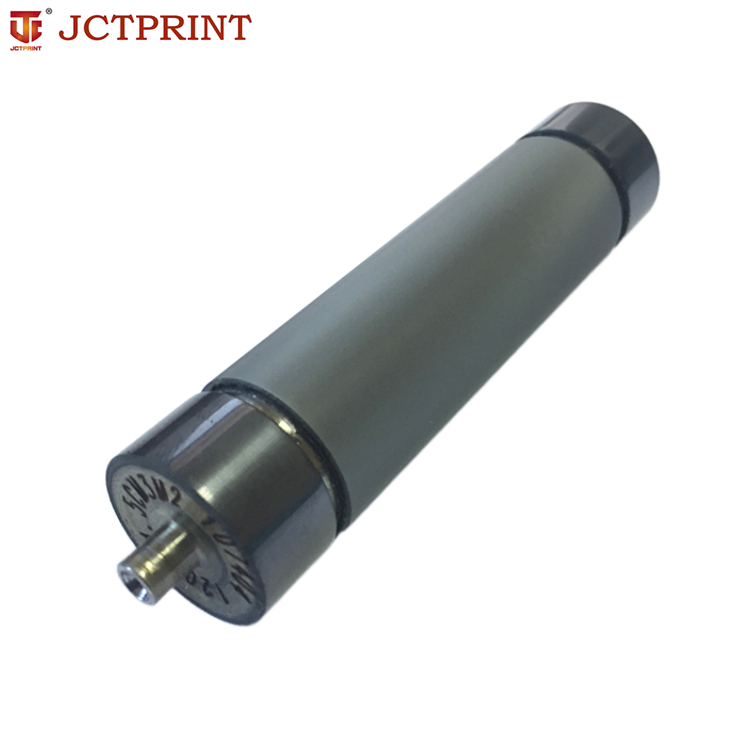

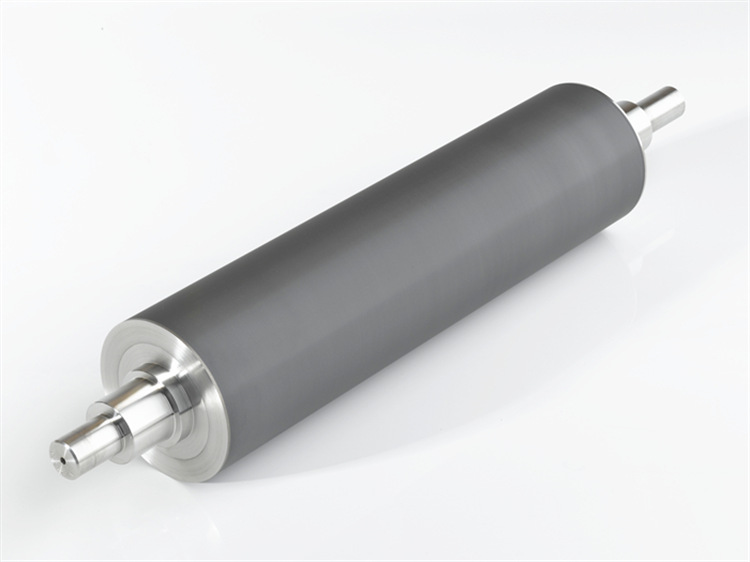

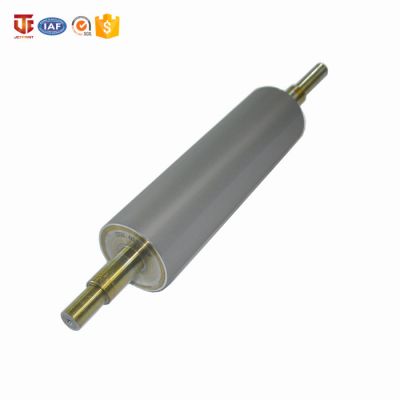

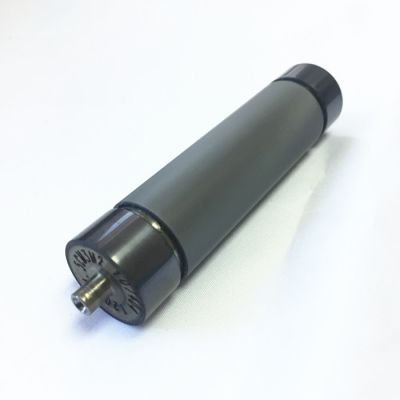

Specifications of Ceramic anilox roller
|Screen count range|
|surface material|| chrome oxide ceramic|
5500mm ( with axis)
|Maximum effective length||3800mm-4250mm|
| Screen angle||1-89 degree||Material of base roller|

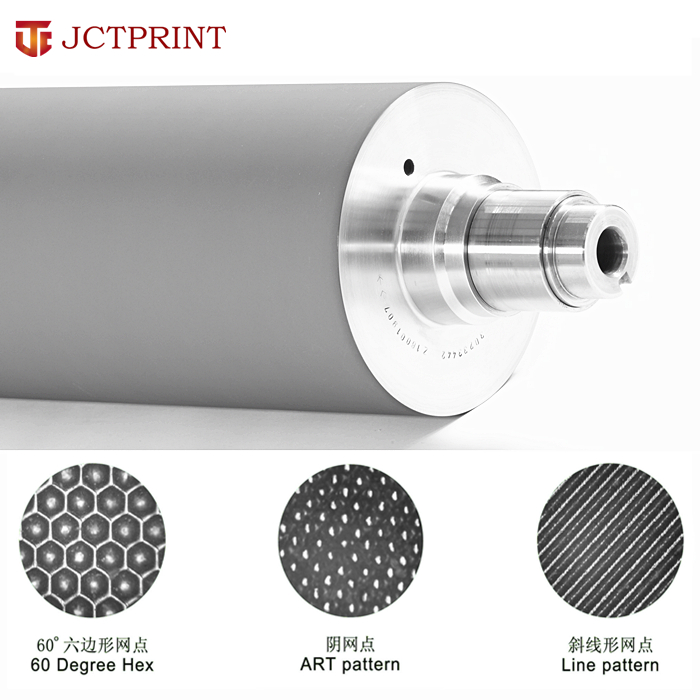

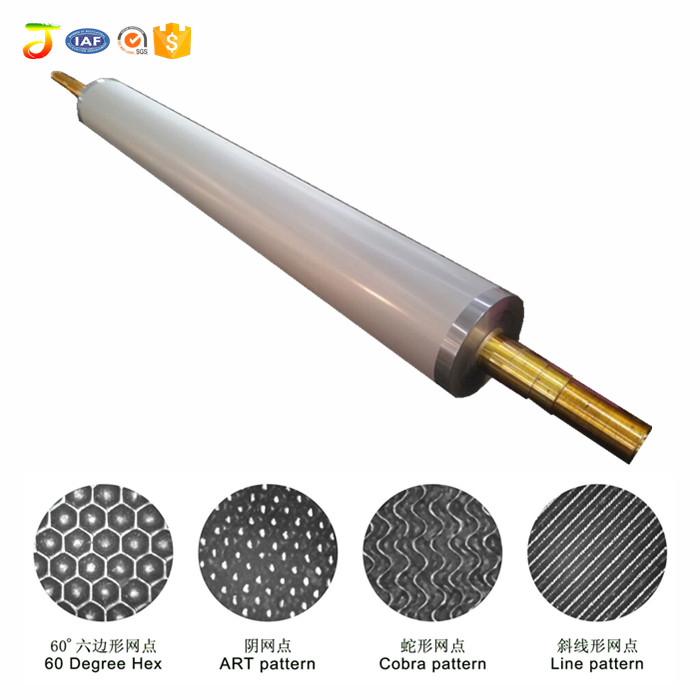

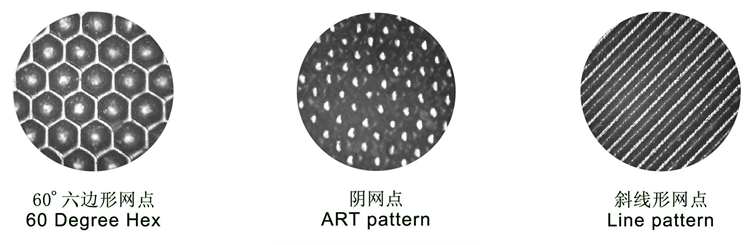

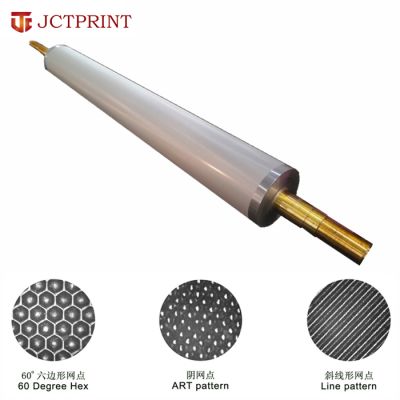

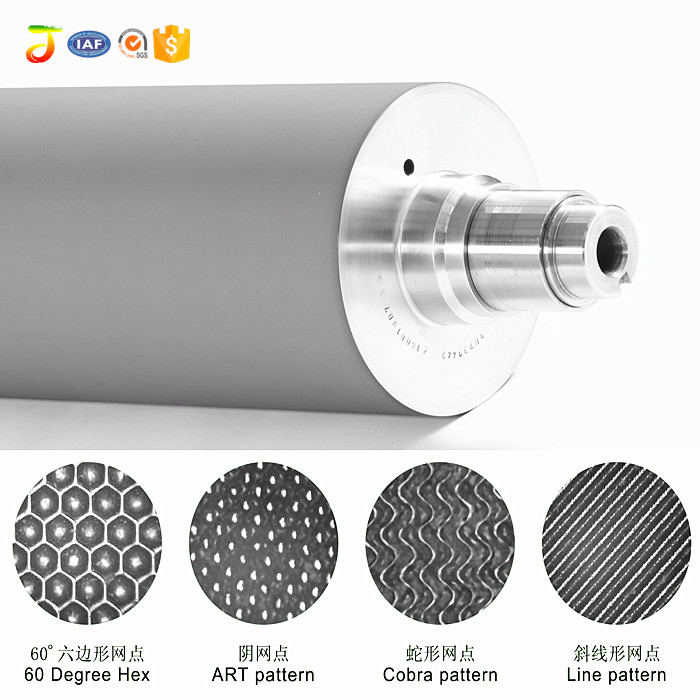

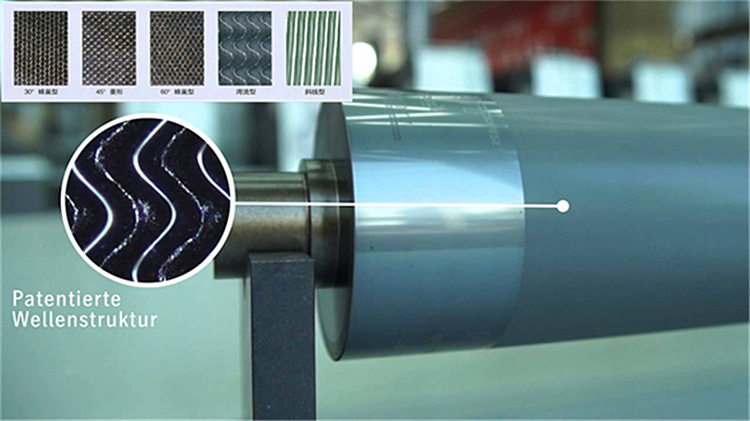

|Cell shape : hexagon , quadrangle and line , etc or according to your actual requirement|
A. Flexo printing machine(unit type ,central cylinder type,cascade type)
B. Gravure printing machine
C. Corrugated water-based ink printing slotting machine
D. Coating and lamination machin
E. Glazing machine ect.
1. Base roller
A. material: 45# steel tube or No5 series aluminum
General performance requiremen: 45# steel tube
lighter weight requirement : No5 series aluminum
B. thickness : 15mm-25mm
We can also make the special thickness according to customers requirement.
C. a strict inspection procedure of base roller:
Incoming inspection including surface roughness,straightness, dynamic balance,cylindricity and so on

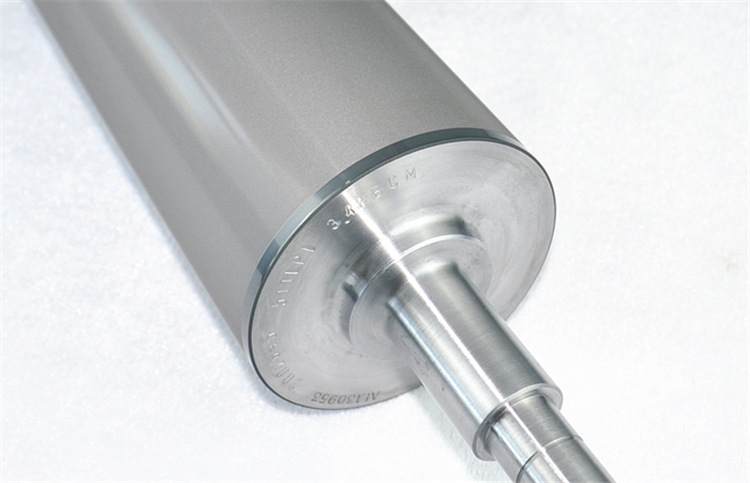

2. Chrome oxide ceramic layer

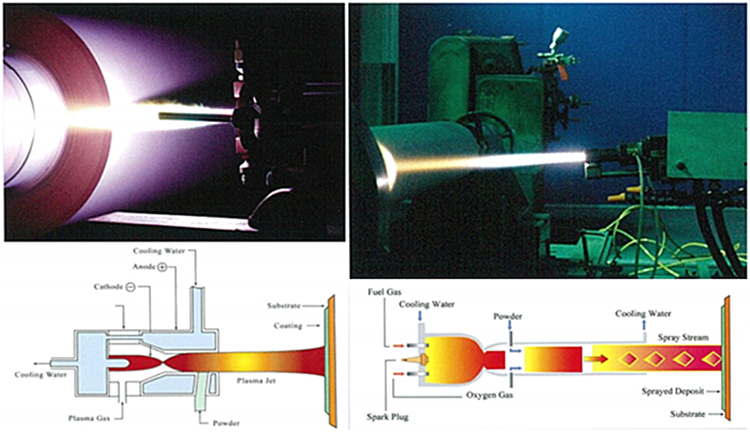

A. Using the famous plasma spraying machine from Switzerland supplier.
B. The evenness of 80% ceramic powder can be controlled between 15u-35u
C. The hardness of chrome oxide ceramics can reach 1200HV.
3. Antiseptic treatment
we use the nanoscopic sealant to coat on the surface of the ceramic which can reach the tiny cell to
protect the base roller from solvent corrosion.
4. Precise delivery on the inks
First, We make trial engraving before the real engraving.
Second, we use the scanner to scan each layer to test the volume of the cell
Third, according to the realationship between the LPI and BCM , we can make sure whether the LPI is ok.
5. Quality Control
We have the quality control system during the whole production from the very beginning to the end
to make sure each roller is qualified. And we will issue the certification for our customers after the
products finished .
6. Service life
Under nomal operation and maintenance,our ceramic anilox rollers can work 8-10years or even longer.

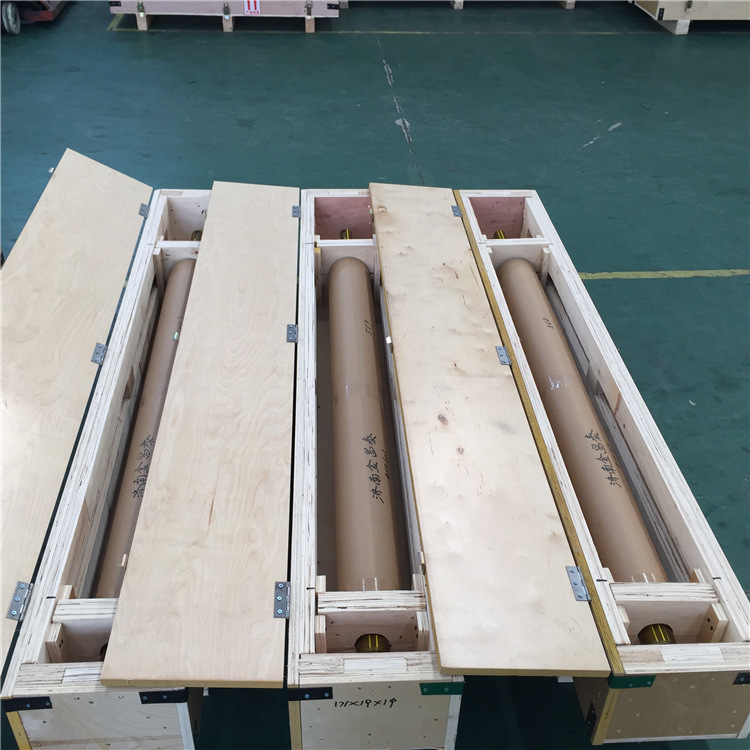

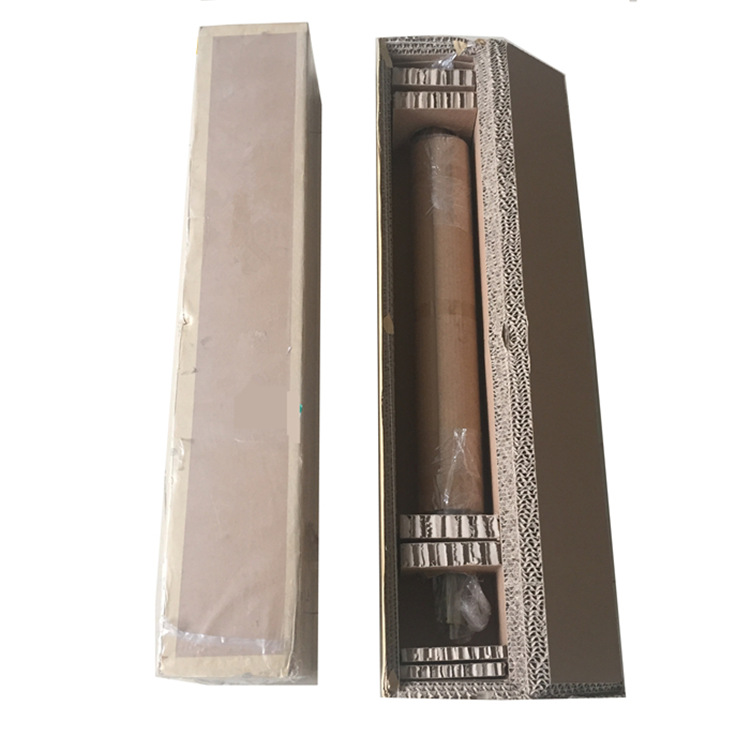

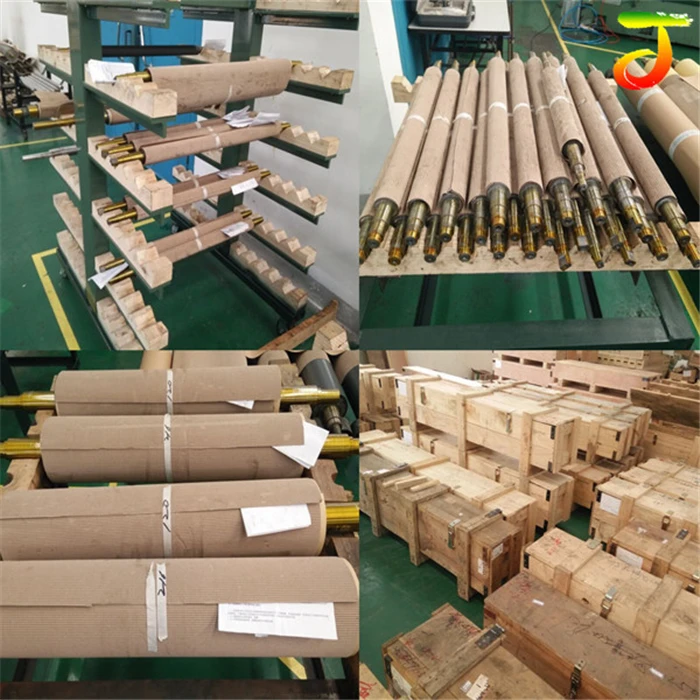

Packaging & Shipping
