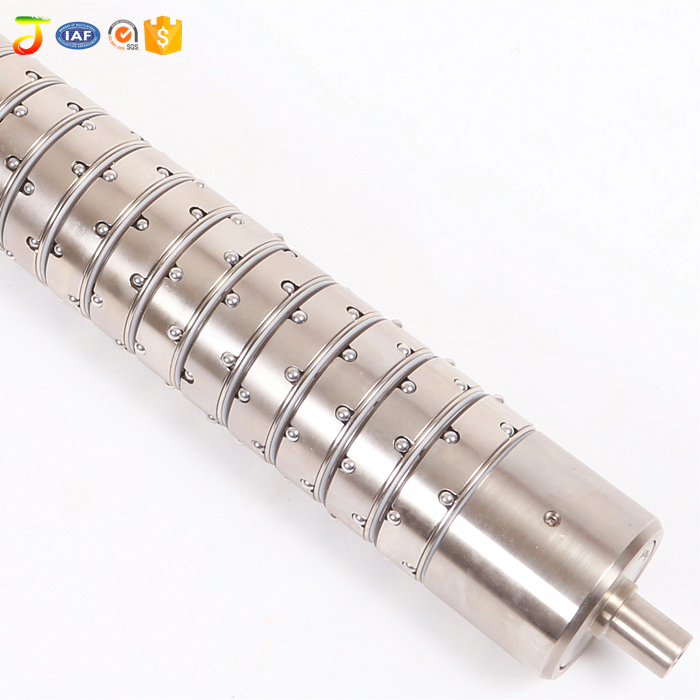

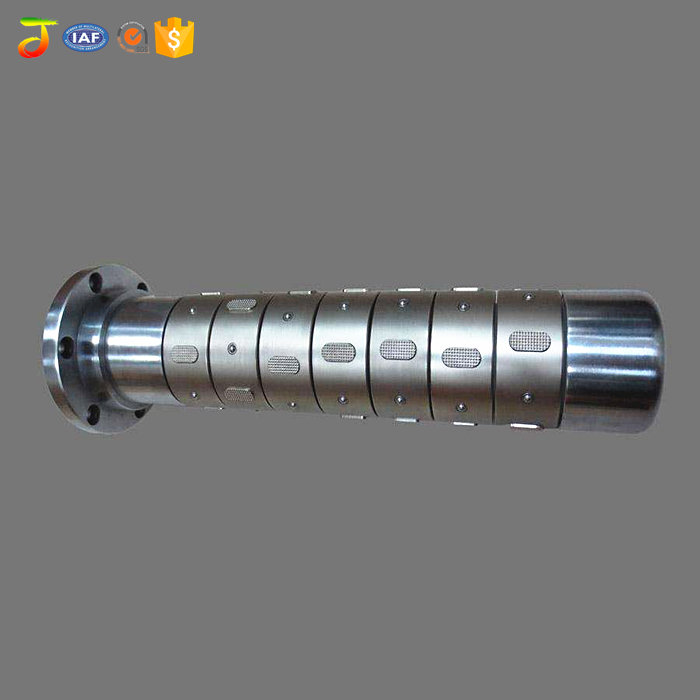

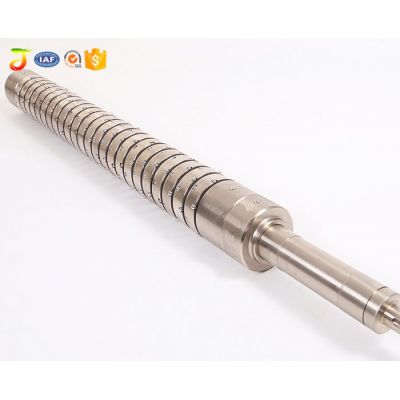

Steel differential cantilevered aluminium air shaft for slitting machine
Steel differential cantilevered aluminium air shaft for slitting machine Steel differential cantilevered aluminium air shaft for slitting machine Steel differential cantilevered aluminium air shaft for slitting machine Steel differential cantilevered aluminium air shaft for slitting machine Steel differential cantilevered aluminium air shaft for slitting machine

Steel differential cantilevered aluminium air shaft for slitting machine

Product ID : JCT-DS-L004
Product Tags :
Product Attributes :

Differential air shaft is mainly used for sub-section equipment  that has high requirement on final products and fast speed.The differential ring on it can slip independently. Controlled by the tension system, let the compressed air which has a certain pressure come to axle core, so that it will produce friction torque between the friction parts and the slip ring, and realize constant tension coiling and it will help solve the unwinding problems and material damages caused by uneven thickness and tension of each roll material.

Product Description

Product description:

 1.Description of differential air shaft

1). Introduction

Differential air shaft is mainly used for sub-section equipment  that has high requirement on final products and fast speed.The differential ring on it can slip independently. Controlled by the tension system, let the compressed air which has a certain pressure come to axle core, so that it will produce friction torque between the friction parts and the slip ring, and realize constant tension coiling and it will help solve the unwinding problems and material damages caused by uneven thickness and tension of each roll material.

2) Classification

A.Pneumatic locking type

B.Mechanical locking type

3) Structure

Central air pressure differential shaft are made of core roll, differential ring, airbags, friction parts, sealing rings.

4) The relationship between air pressure and torque

Air   pressure

Torque

0.1MPa

0.81N.m

 0.2MPa

1.35N.m

0.3MPa

 1.58N.m

 0.4MPa

1.92N.m

0.5MPa

2.25N.m

0.6MPa

2.42N.m

 0.7MPa

2.62N.m

0.8MPa

2.93N.m

2.Application of differential air shaft

A.The applicable Machine

It is used for slitting machine,coating machine,cutting machine,printing machine,compounding machine,paper making machine,bag makeing machine, embossing machine and so on .It can greatly improve the working efficiency and the quality of products.


B.The applicable Material

Differential air shaft has been widely used in plastic film including electronic, capacitor, battery film, plastic wrap, packaging, composite film, metal foil such as copper foil and  aluminum foil, paper and pvc sheet.


3.The advantages of our products

1). Hight quality material for the base shaft and spare parts

The body of the differential shaft is made from steel or stainless steel.We will check the surface roughness,straightness, dynamic balance,cylindricity and so on to make sure it's qualified to use.


The friction plate can be made from polyurethane, polyethylene,or rubber.They has good consistency of dynamic and static friction coefficient, less affected by temperature ,high wear resistance and long service life.It's good to realize max tension required.And we can customize according to customer’s drawing or special requirement.


2).Surface Treatment

Blacking,polishing,anodize,chrome plating,zinc plating,nickel plating,tinting.
The overall quenching and tempering treatment improve the wear resistance and corrosion resistance,which make it possible to use in a variety of environment.


3). Quality control

We have the quality control system during the whole production fromthe very beginning to the end and our principle is to make sure each shaft is qualified.



4.Standard size air shaft



Type of   air shaft

Unaerated diameter of air shaft (ømm)

Inflated diameter of air shaft(ømm)

Applicable paper core tube inner diameter(ømm)

1″

24.8

24.8-28

25-26

1.5″

37

40-42

38-38.5

2″

49

52-54

50-51

3″

74-75

80-82

75.5-78

4″

99-100

104-106

101-102

5″

125

130-133

126-128

6″

150

154-156

151-153

8″

200

206-264

202-204

10″

250

260-264

252-256

12″

300

308-310

302-305

Detailed pictures:


11 (1).jpg




Contact us:

Melody

Jinan Jinchangtai Industry And Trade Co.,Ltd

Add:Lushangshengjing Plaza Building B-1406,No.6 Qingfeng Road,

Jinan Shandong,250014,China

TEL:86 531 61300169   FAX:86 531 61300169
Whatsapp/Phone number +8613884990797
Skype Number:liliangmenglu
Email: Melody@jctprinting.com

http://www.jctprinting.com/



FAQ:

1.    When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2.    How should I place the order?

Please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.Or you need rollers for famous brand machine ,we normally have its drawing,so you just need to tell us your machine model number.

3.    What’s your MOQ basis?

1 piece or 1 set,it depends on your actual requirement.

4.    What about the lead time for production?

Usually 20-25days,but it also depends on the order quantity and the type of our products
