Slitter differential air shaft for plastic film
Slitter differential air shaft for plastic film Slitter differential air shaft for plastic film Slitter differential air shaft for plastic film Slitter differential air shaft for plastic film Slitter differential air shaft for plastic film

Slitter differential air shaft for plastic film

Product ID : K026
Product Tags :
Product Attributes :

Slitter differential air shaft for plastic film

Dimension:1inch-12inch

Working width:600-2000mm

Requirement:drawing specification from customer

Product Description

Slitter differential air shaft for plastic film







Product Description

 Application


   Applicable to the rewinding or slitting of packaging materials such as web, plastic sheet, aluminum foil, PVC, plastic film, insulating material and so on.



    It is an ideal equipment for fine cutting materials.Frame fixed good, small gap, high precision, to ensure the slitting machine can operate in high-speed.

Features



   Clamping reliable, low malfunction rate, the unique design makes it easy to dismount, and can replace the friction keys conveniently with no affection to the rotation accuracy.

Friction key materials are patented formula, good consistency of dynamic and static friction coefficient, less affected by temperature ,high wear resistance and long service life.

Adopting high quality 40 chrome as the shaft ,which greatly improve the bearing capacity of the whole shaft.

   The overall quenching and tempering treatment improve the wear resistance and corrosion resistance,which make it possible to use in a variety of environment.All bearing are imported from Japan,which help extend the overall life.

Steel ball won't drop and the shaft will not bent,even been used 2years.



We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each roller is qualified.





specifications:


    The differential air shaft consists of a plurality of slip rings, which can overcome the problem of unwinding and material damage. The slippage rings are controlled to slip at a certain slip torque (torque), and the amount of slip exactly compensate for the difference in speed, thus it can control the tension of each roll precisely, which ensure the winding quality.



    The use of differential air shaft improves the speed of the slitter, the accuracy of the winding and the degree of automation.At the same time,it shortens the preparation time and achieve the humanized operation. In particular for polyester thin materials which have poor tensile resistance and big difference in thickness.The use of differential air shaft can reduce the difficulty of winding.Besides, using differential air shaft to wind or unwind precious materials, metal foil and special paper roll, can greatly improve the production yield, reducing the cost of production.





structure and size

The maximum expansion diameter :Ø82mm

Shaft diameter: Ø75.4mm

Applicable paper core standard :3 inch paper core

Width of slip differential unit: 15-50mm

The size of the shaft head can be customized according to customers’requirements.



Technical Parameters

Grade of dynamic balance accuracy rating: 6.3

 Pressure sensitivity: 0.01MPa

The difference in torque of the slip differential unit under same air pressure: <5%

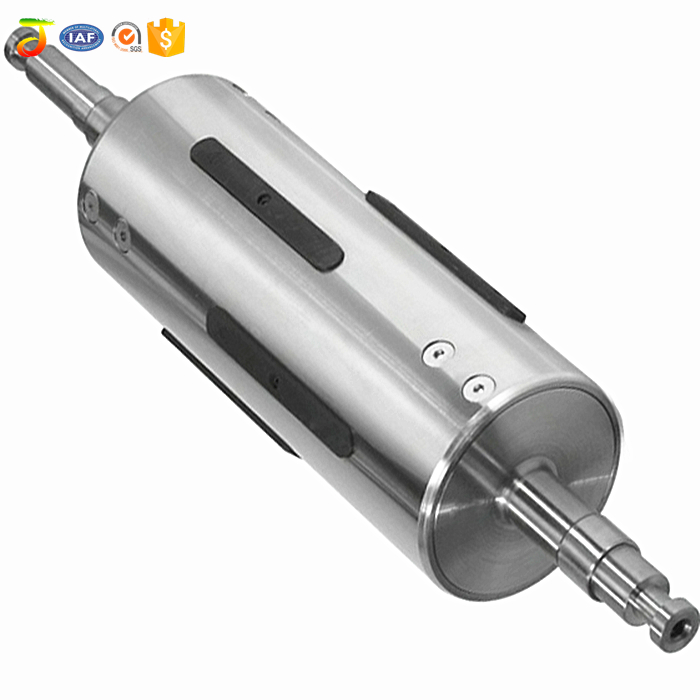

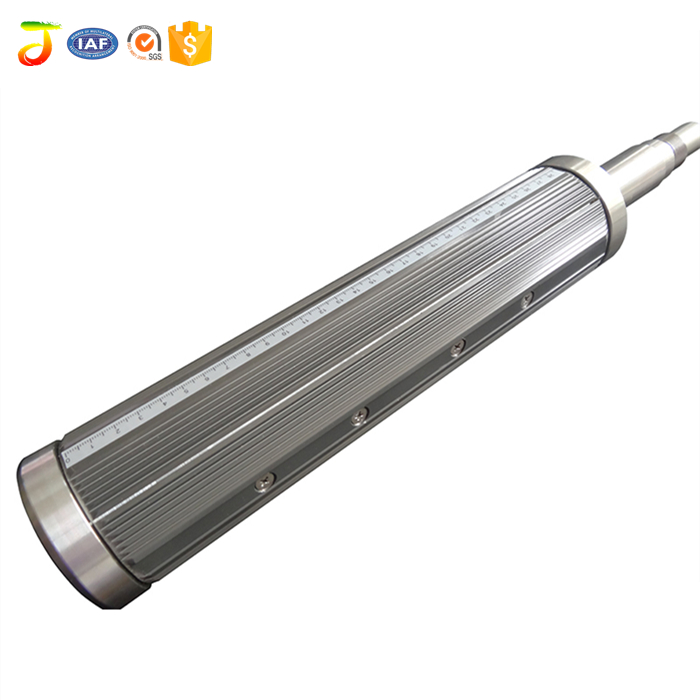

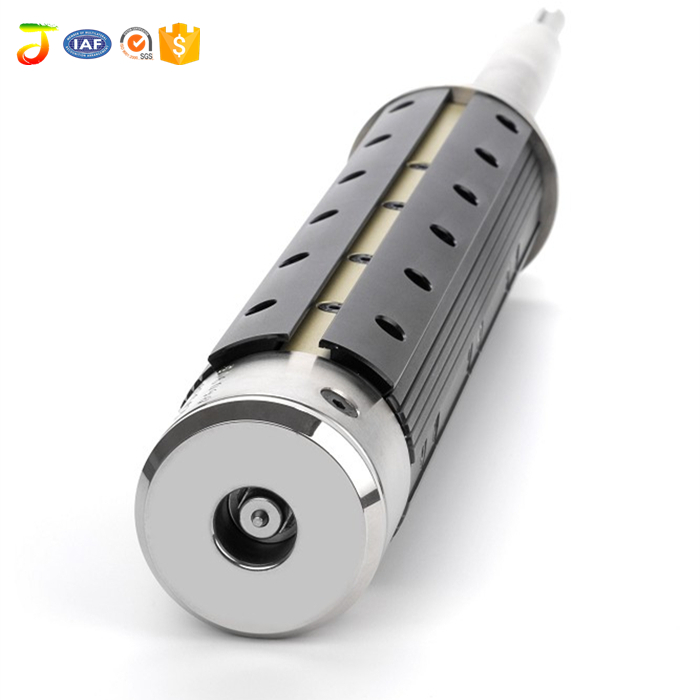

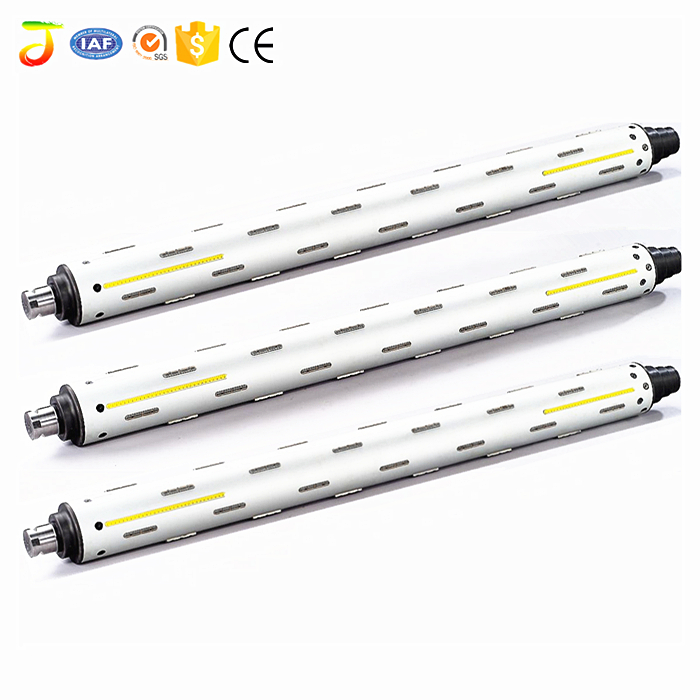

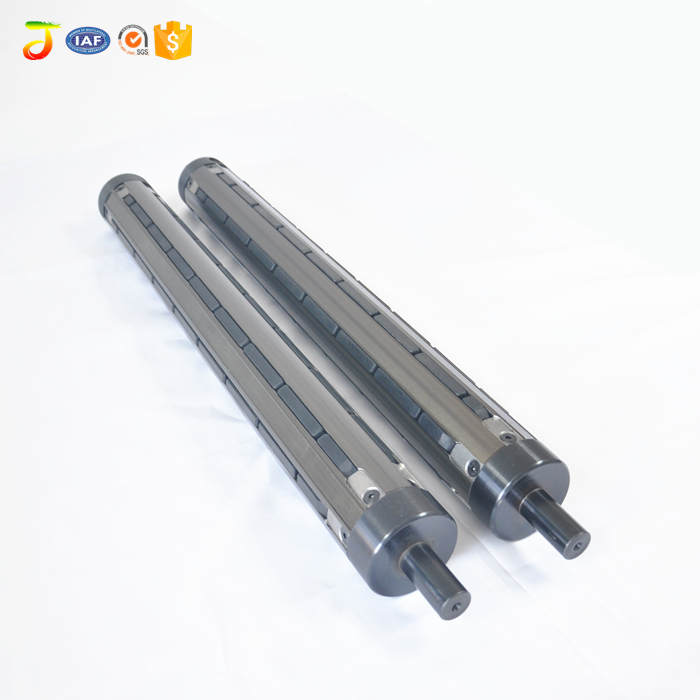

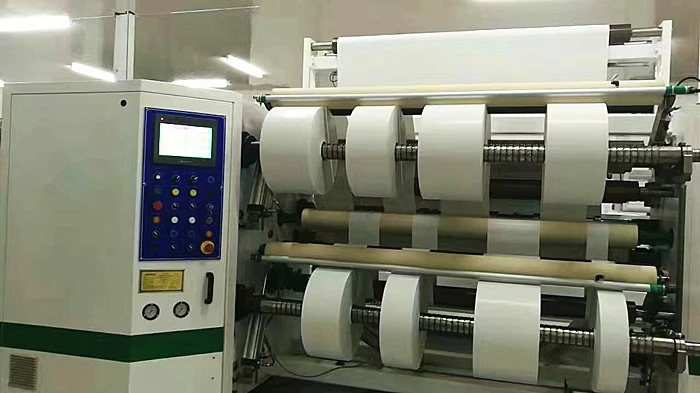

Product picture

 “Slitter







“Slitter





 “Slitter

 “Slitter



 “Slitter

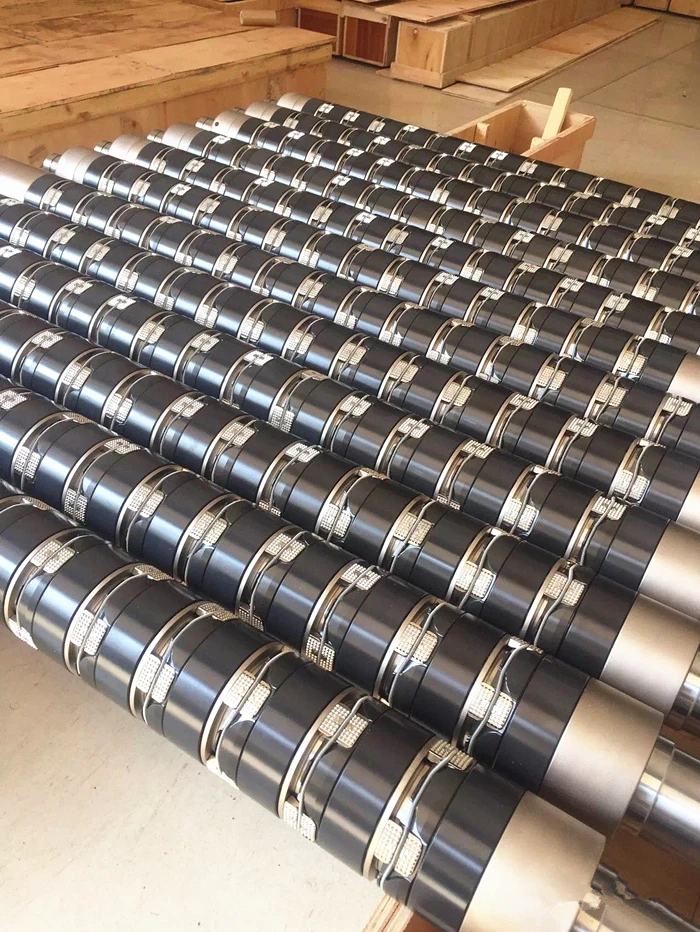

Packaging & Shipping



Package:paper core or customized

  • Delivery time:20days after payment received or depend cargo quantity




  • “Slitter

  • “Slitter

FAQ



1.   How should I place the order?



For air shaft , please send us your drawing, or let us know your request.



2.What is your MOQ?



1 Piece.



3.What material of your shaft is made of?



45# steel ,aluminum.



4.Can you produce relative product,like adapter,hand shank?



Yes,Sure.
