Slip air shaft for slitter
Slip air shaft for slitter Slip air shaft for slitter Slip air shaft for slitter Slip air shaft for slitter Slip air shaft for slitter

Slip air shaft for slitter

Product ID : S005
Product Tags :
Product Attributes :

Slip air shaft for slitter

Applicationslitting   machine printing machine,plastic machinery
Diameter1 inch-12 inch
Colorsliver or others
Seriesair shaft ring
Typedifferential air   shaft ring
Usesupport big roll   material
Working   principleair pressure control
MOQ1 Piece
Packagingwooden case, sea   worthy packaging
Tolerance0.01mm
Payment termTT,Paypal,and so on
LengthCustomized
CoatingsNickel,Black   Oxide,chrome platin
Machining   processCNC Grinding


Product Description

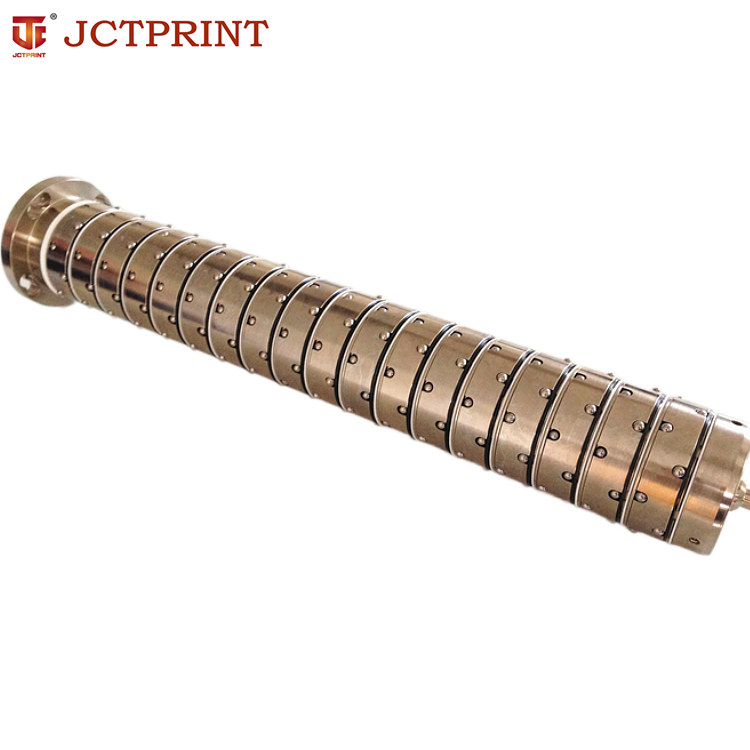

Slip air shaft for slitter





Product Description

 1.Description of differential air shaft

Differential air shaft is mainly used for sub-section equipment  that has high requirement on final products and fast speed.It's made of the special sections which can skid independently.And with the torque setting structure and central air pressure control,it will help solve the unwinding problems and material damages caused by uneven thickness and tension of each roll material.



2.Application of differential air shaft

A.The applicable Machine

It is used for slitting machine,coating machine,cutting machine,printing machine,compounding machine,paper making machine,bag makeing machine, embossing machine and so on .It can greatly improve the working efficiency and the quality of products.

B.The applicable Material

Differential air shaft has been widely used in plastic film including electronic, capacitor, battery film, plastic wrap, packaging, composite film, metal foil such as copper foil and  aluminum foil, paper and pvc sheet.



3.The advantages of our products

1). Hight quality material for the base shaft and spare parts

The body of the differential shaft is made from steel,stainless steel or aluminum. The friction plate can be made from polyurethane, polyethylene, or rubber  to realize max tension required.And we can customize according to customer’s drawing or customer’s special requirement.

2).Surface Treatment

Blacking,polishing,anodize,chrome plating,zinc plating,nickel plating,tinting

3). Quality control

We have the quality control system during the whole production fromthe very beginning to the end and our principle is to make sure each shaft is qualified.

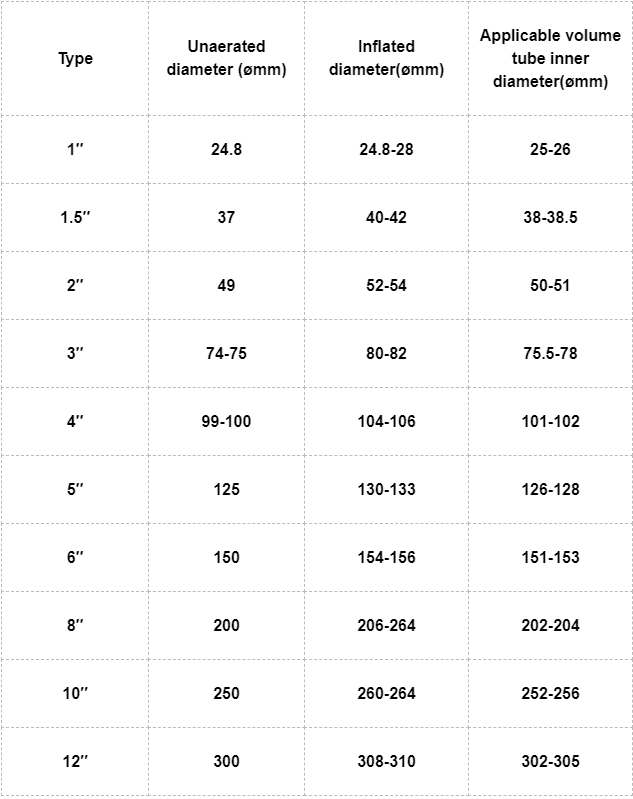

4.Specification for air shaft



Type

Unaerated diameter (ømm)

Inflated diameter(ømm)

Applicable volume tube inner diameter(ømm)

1″

24.8

24.8-28

25-26

1.5″

37

40-42

38-38.5

2″

49

52-54

50-51

3″

74-75

80-82

75.5-78

4″

99-100

104-106

101-102

5″

125

130-133

126-128

6″

150

154-156

151-153

8″

200

206-264

202-204

10″

250

260-264

252-256

12″

300

308-310

302-305

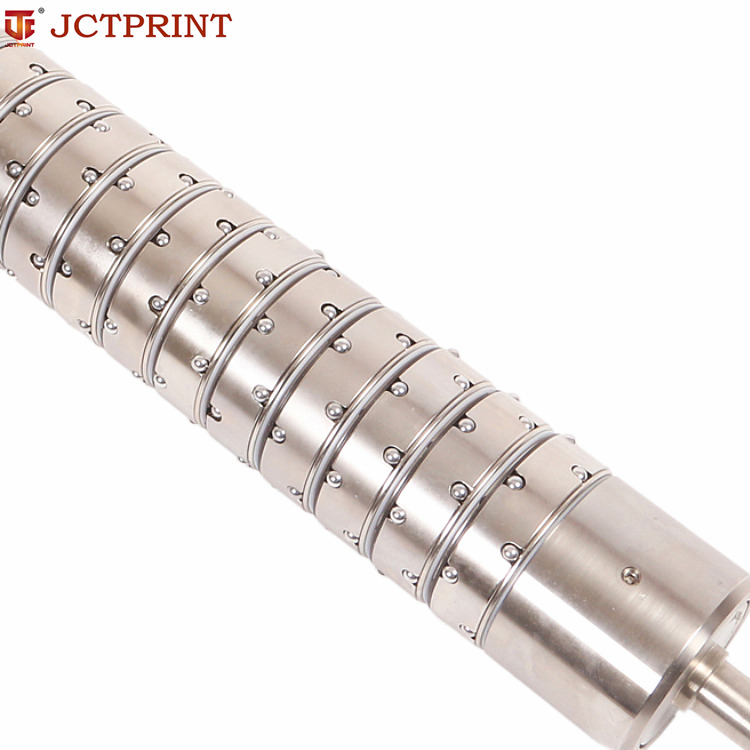

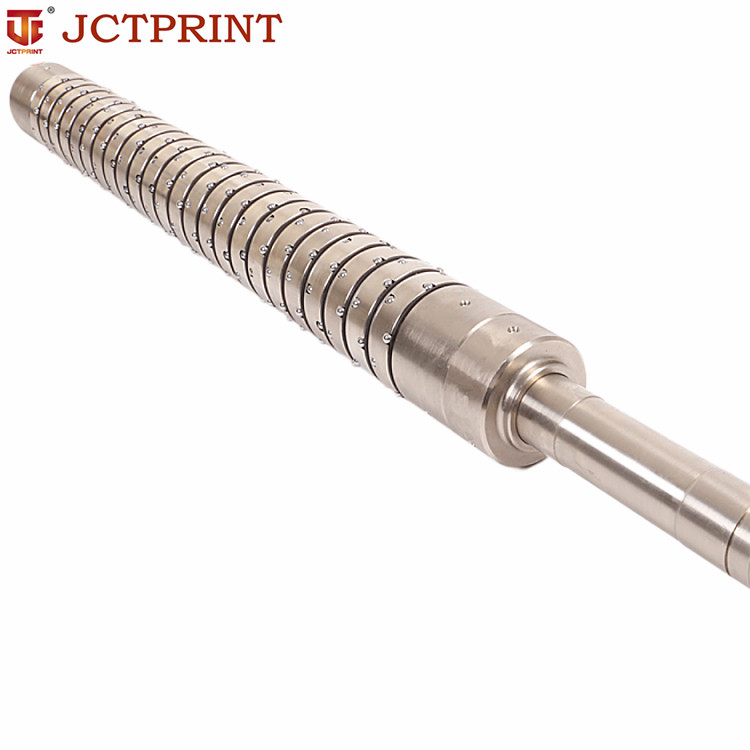

Detailed pictures





“Factory“Factory“Factory“Factory

Company Information

58fae92d7941d_副本.jpgIMG_7556_副本_副本1.jpg 2公司图片.jpg



Contact us







FAQ





1.   How should I place the order?



For air shaft , please send us your drawing, or let us know your request.



2.What is your MOQ?



1 Piece.



3.What material of your shaft is made of?



45# steel ,aluminum.



4.Can you produce relative product,like adapter,hand shank?



Yes,Sure.
