Rubber blanket for offset machine
Rubber blanket for offset machine Rubber blanket for offset machine Rubber blanket for offset machine Rubber blanket for offset machine Rubber blanket for offset machine

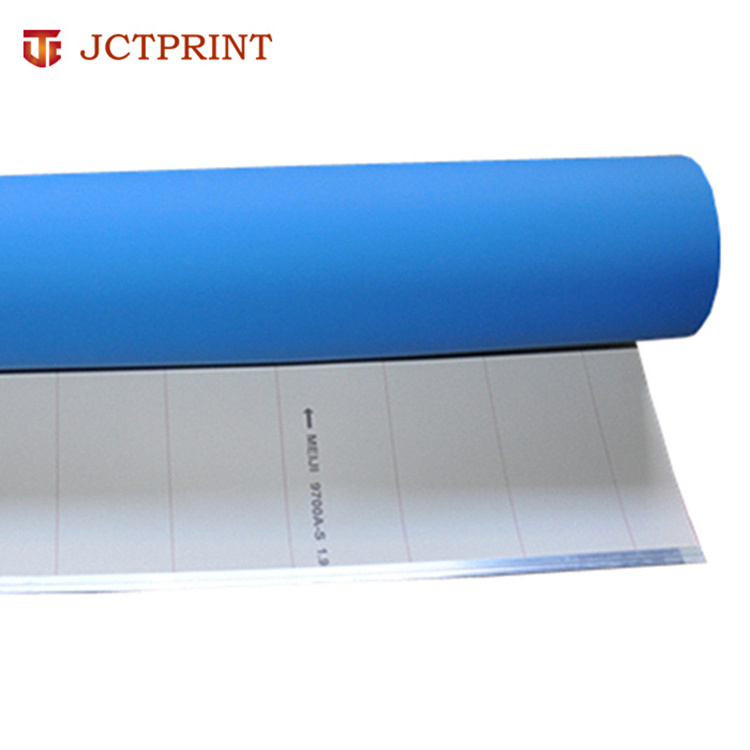

Rubber blanket for offset machine

Product ID : JCT-RB-L001
Product Tags :
Product Attributes :

In the offset printing,rubber blanket is used for transferring the ink from the plate to the substrate.

Product Description

Rubber blanket for offset machine

1.Application:

In the offset printing,rubber blanket is used for transferring the ink from the plate to the substrate.

2.Specification:

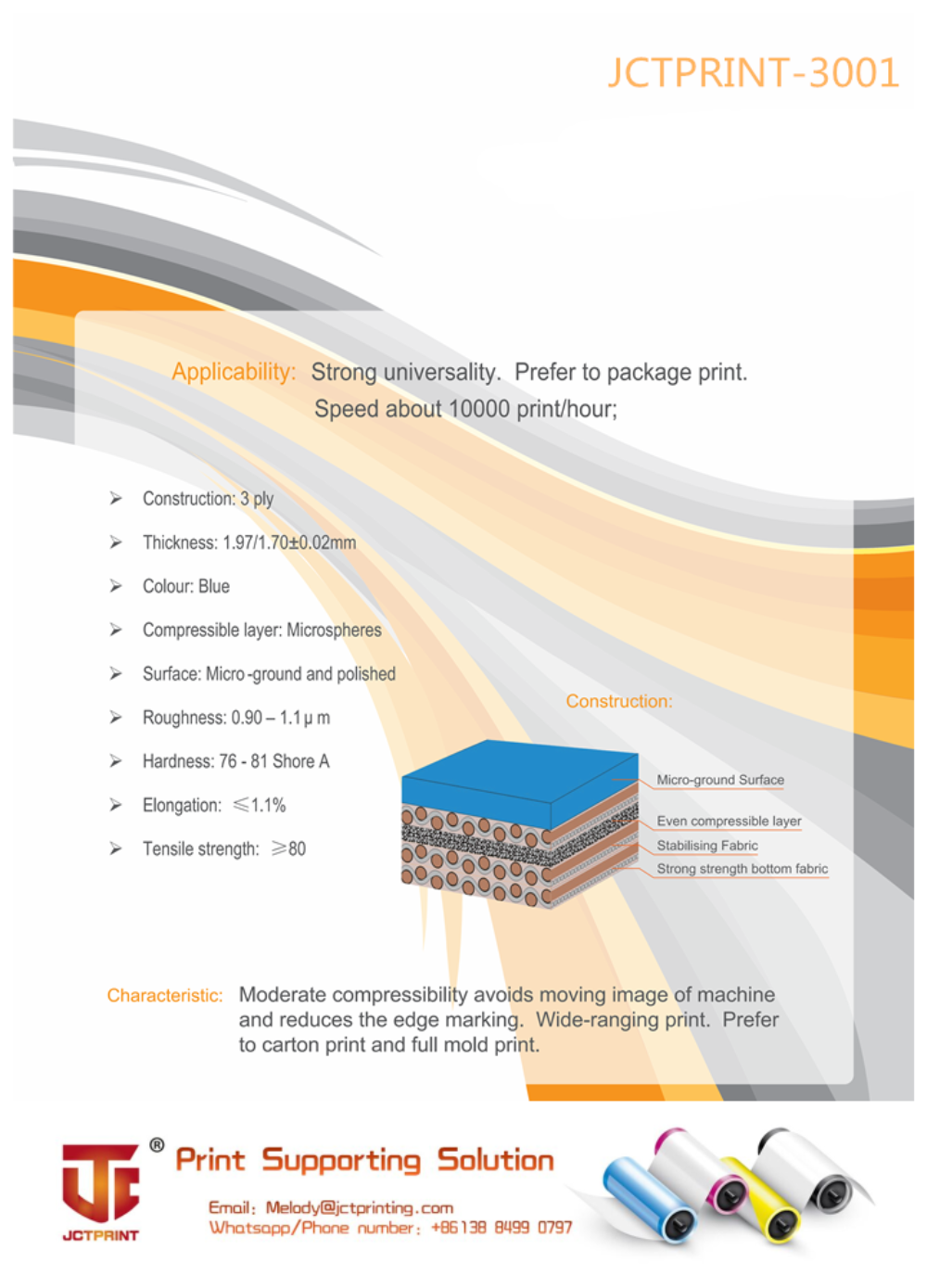

Product model JCT-2001 JCT-3001 JCT-5001
Compressible layer Microspheres Microspheres Microspheres
Construction 3Ply 3Ply 4/3Ply fabric
Surface color Blue Blue Blue/Green
Thickness(mm) 1.97/1.70±0.02mm 1.97/1.70±0.02mm 1.97/1.70±0.02mm
Hardness 76-80 ShoreA 76-81 ShoreA 76-80 ShoreA
Roughness 0.9-1.1μm 0.9-1.1μm 0.8-1.0μm
Elongation ≤1.2% ≤1.1% ≤1.0%
Tensile strength ≥80 ≥80 ≥85
Applicable speed 9000prints/hour 10000prints/hour 15000prints/hour

3.Advantage:

Long service life

Good ink transfer function

Clear printing dot

4.Characteristics:

Moderate compressibility avoids moving image of machine and reduces the edge marking.

Wide-ranging printing.



Suitable for carton print and full mold print.
