Random number order doctor blade made directly from factory
Random number order doctor blade made directly from factory Random number order doctor blade made directly from factory Random number order doctor blade made directly from factory Random number order doctor blade made directly from factory Random number order doctor blade made directly from factory

Random number order doctor blade made directly from factory

Product ID : P006
Product Tags :
Product Attributes :

Place of Origin:Shandong, China (Mainland)

Brand Name:JCT

Model Number:JCT-GD-050

Type:Doctor Blade

Use:All kinds of relative gravure and flexo printing machine

Printing Type:Gravure, flexo printing, coating, color printing, embossing and so on

Thickness:0.07-0.1mm

Height:10-60mm

Printing speed:0-180/min

Hardness:1960N/mm(580HV+/-15)

Length:100m

Usage:Scraping ink

Material:T10, SK4, C100, 20C

Name:MDC doctor blade used in printing machine




Product Description

Random number order doctor blade made directly from factory

Product Description

 Description of printing mdc doctor blade:

Our company is a professional saler of all kinds of soft packaging and printing printing mdc doctor blade, printing equipment, supplies of spare parts, printing raw materials and related technical services to Integrated Company. We own professional technical staff, can provide a full range of solutions in packaging and printing industry related technology equipment for customers. Our company will stick on good faith principle, pragmatic attitude, to provide high-quality products and service for the domestic printing industry.



Our printing mdc doctor blade is made of high quality steel, the technology process is unique and high precision manufacturing, blade is thin and elastic strength and high toughness, smoothness, good special and unique, self sharpening opening to application research, or before the work without turning and grinding, which can ensure the good contact with the surface of the plate, so as to achieve the best scraping effect. Due to the high precision blade manufacturing, durable degree is high, so it can greatly reduce the production cost and save the replacement or turning grinding blade time. This coating printing mdc doctor blade is mainly used in gravure, flexo printing, also suitable for coating, color printing, embossing, metal printing, scraping, pulp industry. We can supply all the dimension according to your requirement.





Technical data sheet of printing mdc doctor blade:



Level

Low speed blade

Middle speed blade

Above the average

High speed blade

Speed

0-80/min

0-120/min

0-150/min

0-180/min

Material

T10

SK4

C100

20C





Specification of printing mdc doctor blade:



Specification

Detail

Hardness

1960N/mm(580HV+/-15)

Edge thickness

0.07mm-0.10mm

Edge height

1.3mm

Blade thickness

0.15mm-1.5mm

Blade height

10-60mm

Length of each box

100m





Dimension of printing mdc doctor blade:



Regular size

30(40,50,60)×0.15

25(30,35,40,50,60)×0.2

10×0.1

17(30,40,50,60)×0.3

60×0.4

50×0.5

Customized



Features of printing mdc doctor blade:



Feature

Detail

1

Good scraping effect &high printing quality

2

Good elasticity & strong layering feeling

3

Durable &Long life





Application :

Printing mdc doctor blade is widely used in gravure packing printing, publication gravure printing, flexography printing, coating printing, offset coating etc.



Delivery:

Delivery in 20 days after payment received





Packaging:

Standard export carton, also can be packaged as customer's requirement.

Detail: According to customer’s requirement

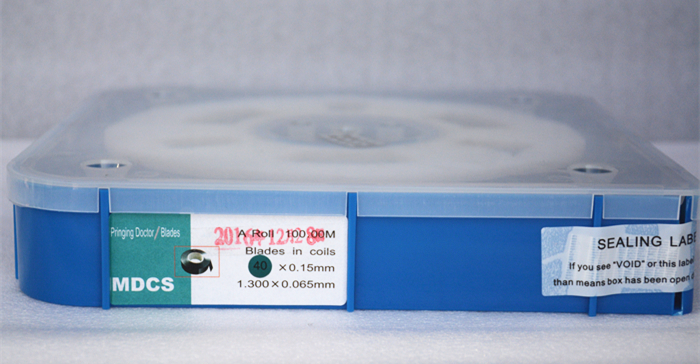

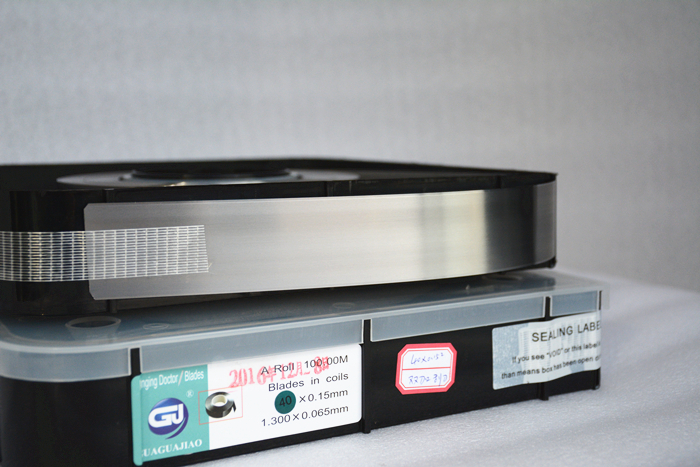

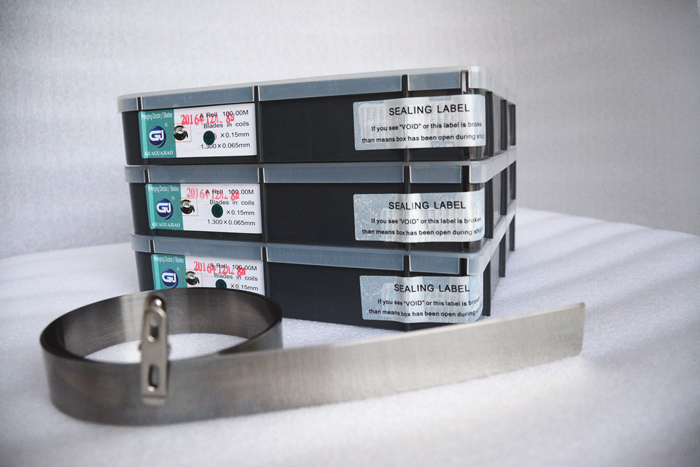

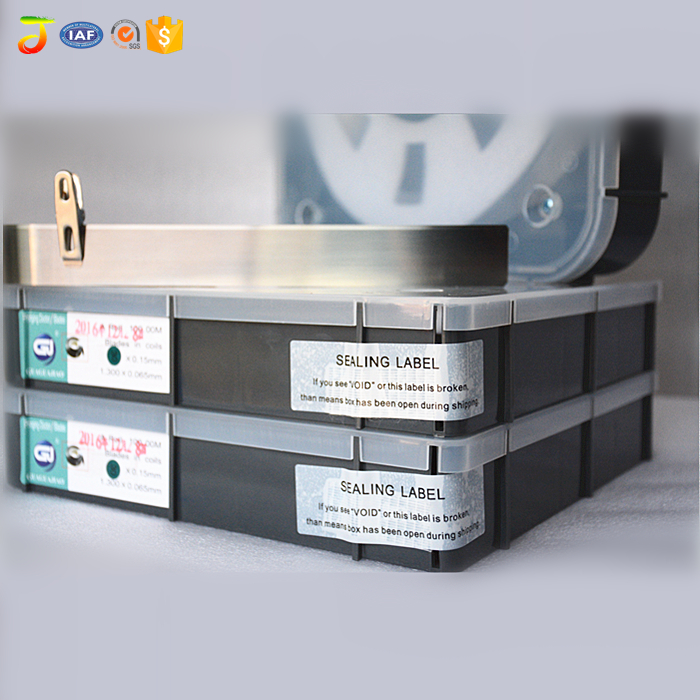

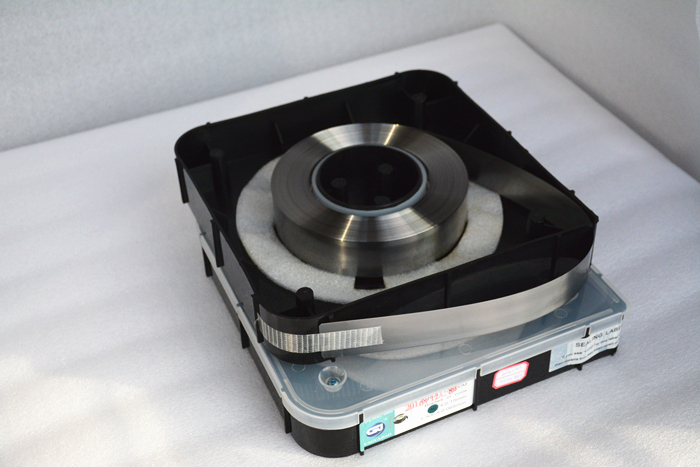

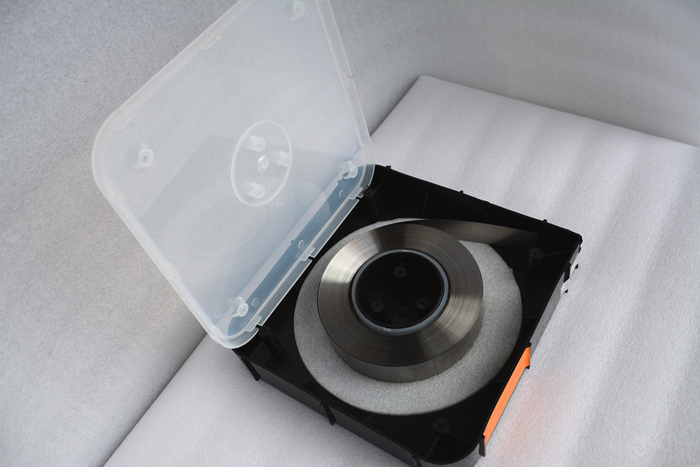

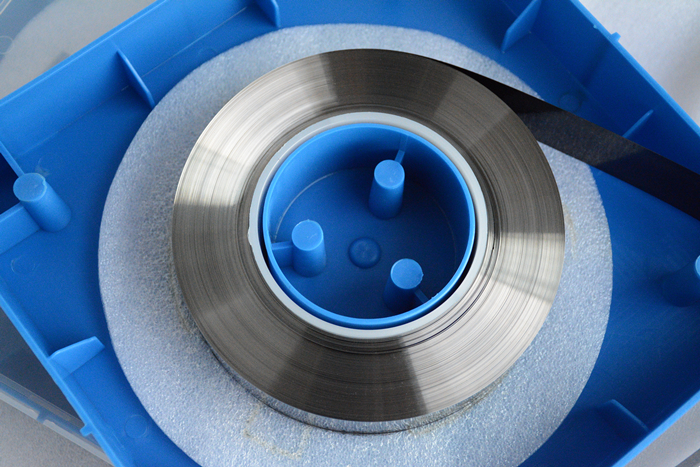

Picture of printing mdc doctor blade:



Random number order doctor blade made directly from factoryRandom number order doctor blade made directly from factory
