Property certificate die cutting machine scrapbooking semi automatic
Property certificate die cutting machine scrapbooking semi automatic Property certificate die cutting machine scrapbooking semi automatic Property certificate die cutting machine scrapbooking semi automatic Property certificate die cutting machine scrapbooking semi automatic Property certificate die cutting machine scrapbooking semi automatic

Property certificate die cutting machine scrapbooking semi automatic

Product ID : L-2
Product Tags :
Product Attributes :

Property certificate die cutting machine scrapbooking semi automatic

ModelYMQ-115
Max.Die-cut size140*140mm
Min.Die-cut size20*20mm
Max.Die-cut height200mm
Working speed12 Time/min
Cutting materialsPaper,plastic card and other   materials
ApplicationIndustrial Paper Cutting Machine
Die-cut pressure3 T
Machine typeDie cutting machine


Product Description






Playing card sticker die cutting machine semi automatic



Product Description

YMQ series label Die Cutting/Punching machine :



This series punching machine is mainly product of our company. It is Suitable for the production of labels, playing cards, aluminum plastic, PP ,PE-foil, self-adhesive foil, envelopes of any design or size.with an average production of about 900.000 production of high precision hourly.
This machine adopts hydraulic pressure system with a push-cubeself-adjusting to every position of the"V"hold where the pack is positioned. The working table has a photoelectric cell which gives maximum safety to the operator and allows a quick change of the following punch and is adaptable both for low and medium production.



The working process is completely stability.The die cutting products surface is smooth, and the size is unified and regular with high precision.

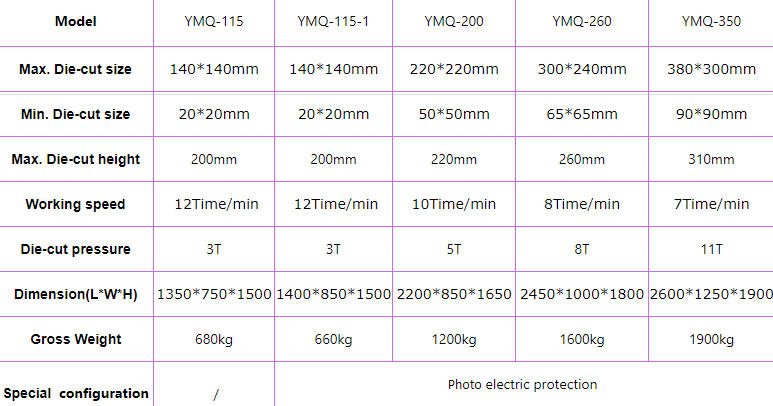

Main parameters:



Model

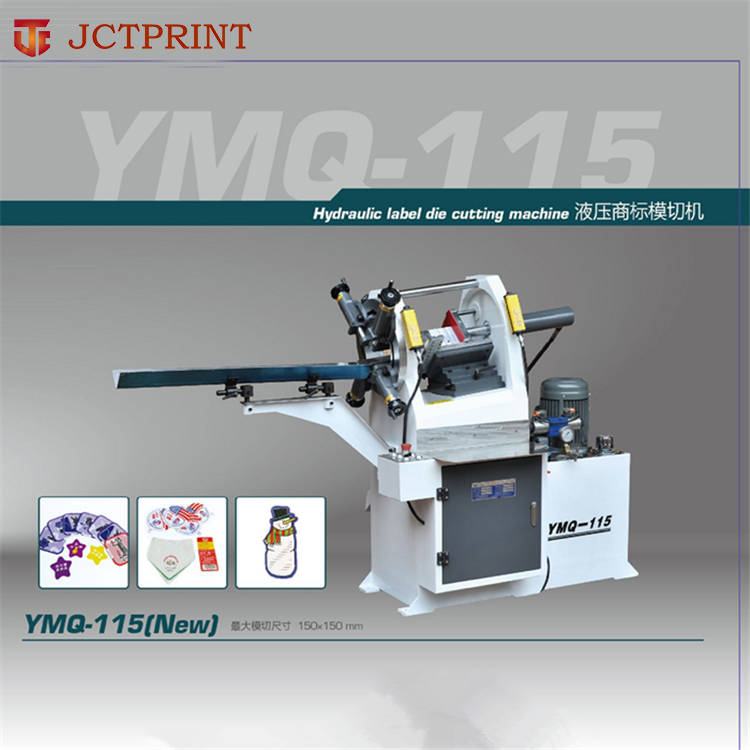

YMQ-115

YMQ-115-1

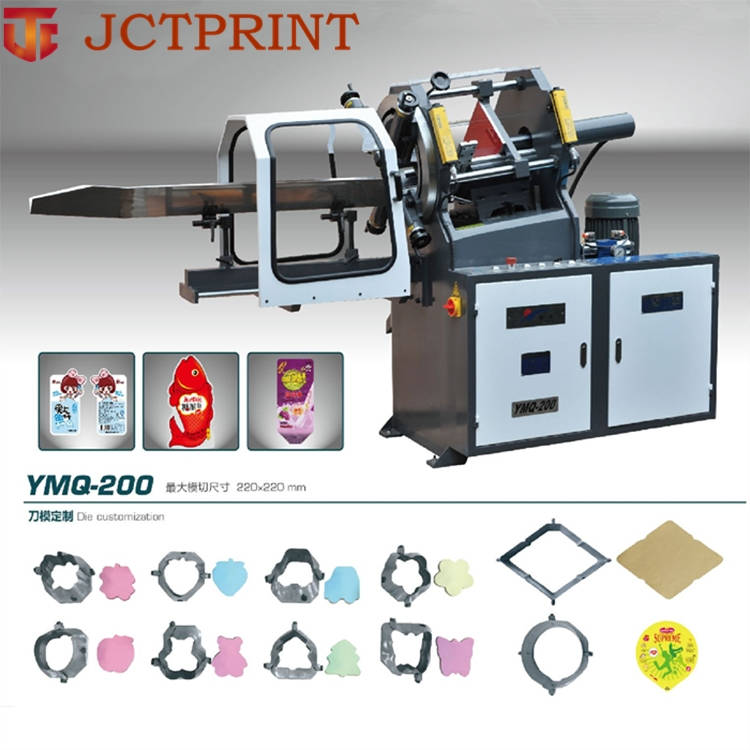

YMQ-200

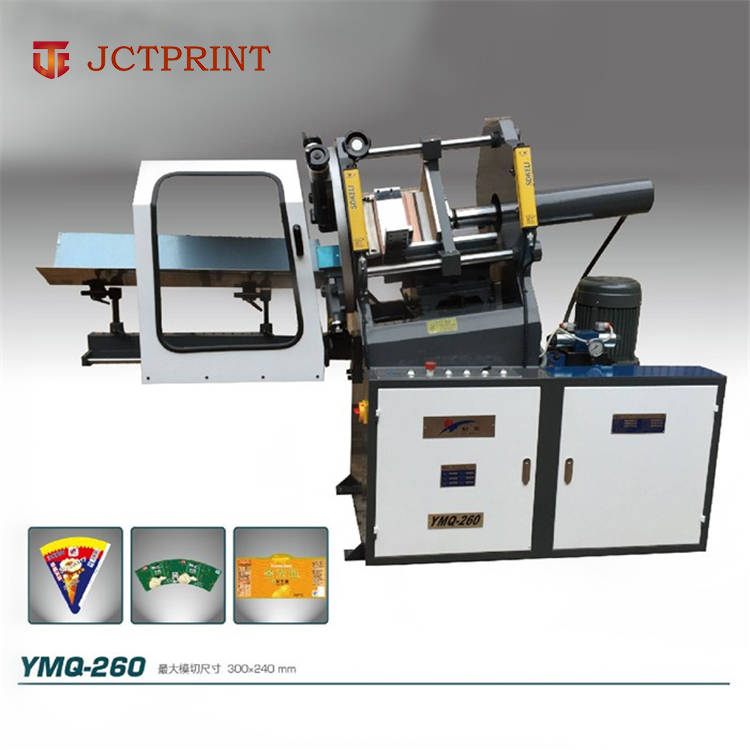

YMQ-260

YMQ-350

Max. Die-cut size

140*140mm

140*140mm

220*220mm

300*240mm

380*300mm

Min. Die-cut size

20*20mm

20*20mm

50*50mm

65*65mm

90*90mm

Max. Die-cut height

200mm

200mm

220mm

260mm

310mm

Working speed

 12Time/min

 12Time/min

10Time/min

8Time/min

7Time/min

Die-cut pressure

3T

3T

5T

8T

11T

Dimension(L*W*H)

1350*750*1500

1400*850*1500

2200*850*1650

2450*1000*1800

2600*1250*1900

Gross Weight

680kg

660kg

1200kg

1600kg

1900kg

Special  configuration

 /

Photo electric protection







Features



Features of our die cutting machine:

1. Widely use: It is Suitable for the production of labels, playing cards, aluminum plastic, New year card, notebook, envelopes of any design or size.
2. High efficiency: with an average production of about 900.000 production of high precision hourly.
3. This machine adopts hydraulic pressure system.
4. With a push-cube self-adjusting to every position of the "V" hold where the pack is positioned
5. The working table has a photoelectric cell which gives maximum safety to the operator and allows
6. The working process stability, products surface is smooth, and the size is unified and regular with high precision



Product Overviews

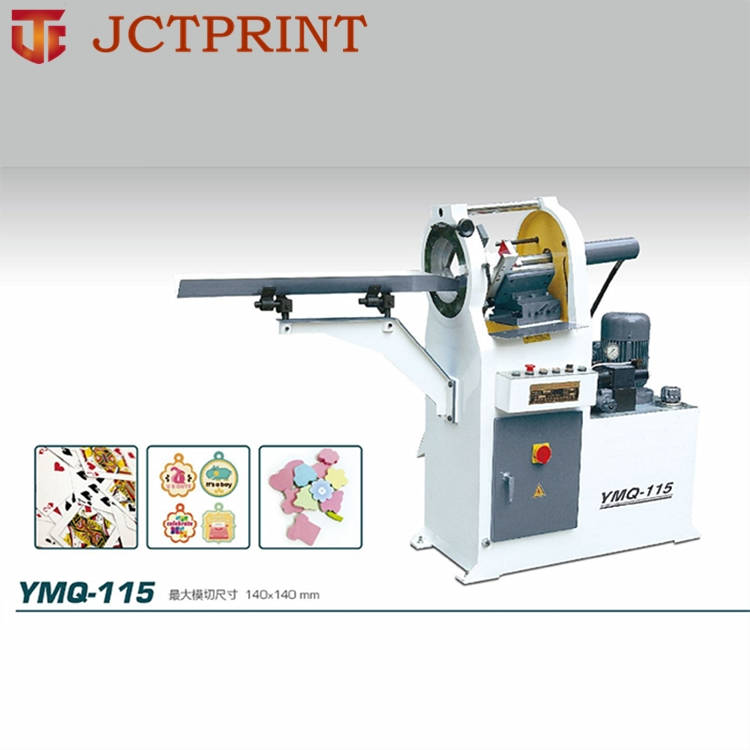

Machine Picture :
Improvement Details:

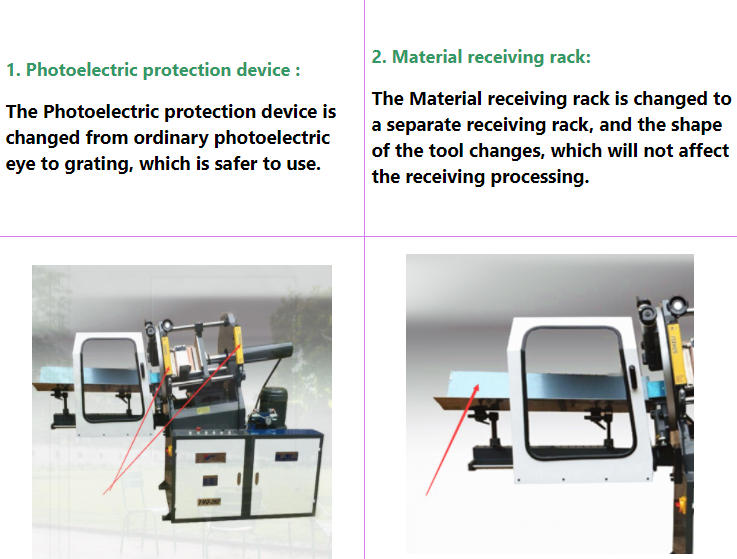

1. Photoelectric protection device :

The Photoelectric protection device is changed from ordinary photoelectric eye to grating, which is safer to use.



2. Material receiving rack:

The Material receiving rack is changed to a separate receiving rack, and the shape of the tool changes, which will not affect the receiving processing.

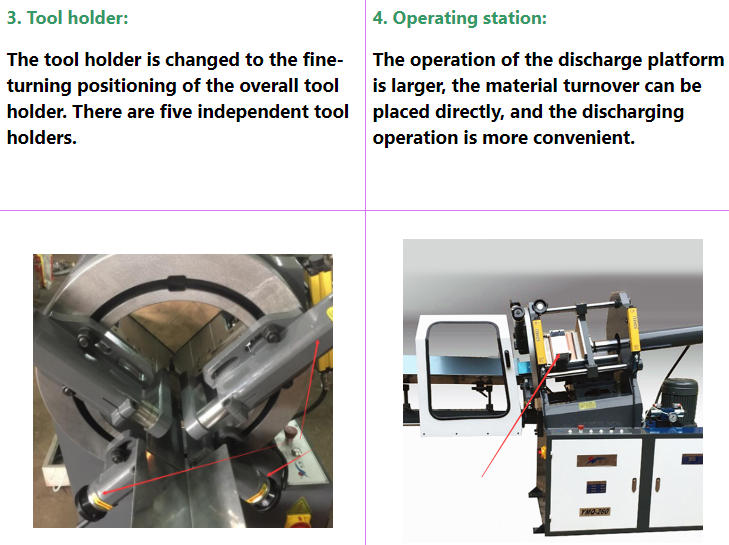

3. Tool holder:

The tool holder is changed to the fine-turning positioning of the overall tool holder. There are five independent tool holders.



4. Operating station:

The operation of the discharge platform is larger, the material turnover can be placed directly, and the discharging operation is more convenient.

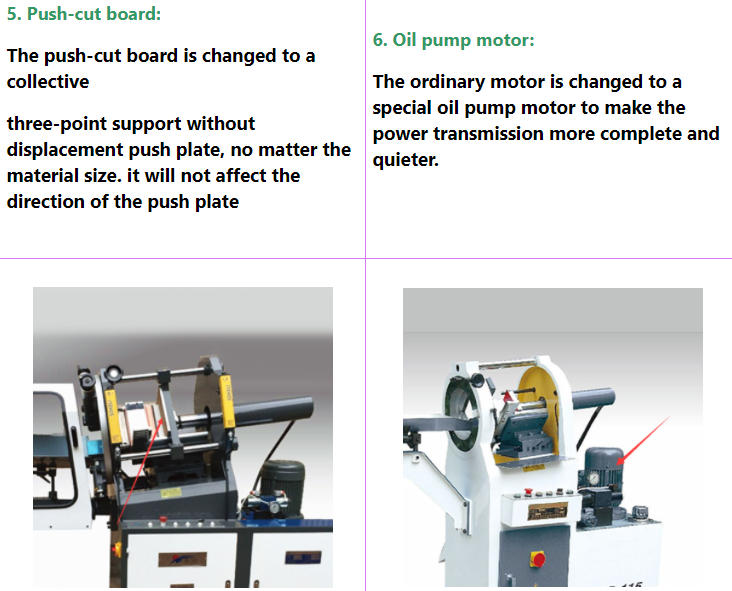

5. Push-cut board:

The push-cut board is changed to a collective

three-point support without displacement push plate, no matter the material size. it will not affect the direction of the push plate



6. Oil pump motor:

The ordinary motor is changed to a special oil pump motor to make the power transmission more complete and quieter.

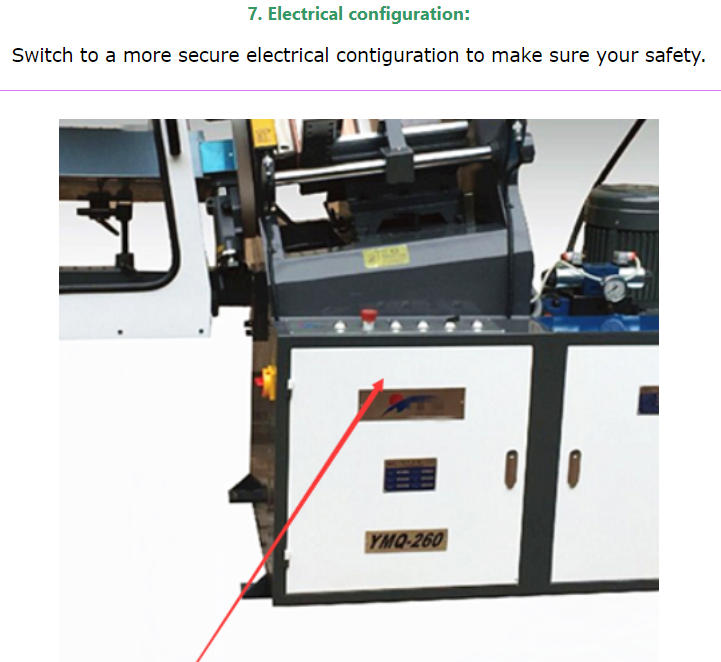

7. Electrical configuration:

Switch to a more secure electrical contiguration to make sure your safety.







Company Information

Paper die cutting machine for residence booklet _20170425090406.png

Our Services



1. Warranty :

1 year limited warranty after installation.

If the spare parts is broken in the warranty period , we will send a free replacement parts to you .



2. Installation and Training :

We can send 1-2 engineers to buyers factory to install and set up the machines and training, but all the charges for the engineers should be paid by buyer.



3. Quotation :

The quotation is available in 60 days

FAQ

 Q1:We are interested in the die cutting machine,Could you quote the latest price to us?



   A1: In order to recommend the suitable machine for you ,please provide following information before we quote price:

          1.What material do you want to die cut?

          2.What's the max.die cutting size?

          3.What's the paper weight? Where will you use it?



Q2: What's the MOQ, Delivery time, and payment terms?

   A2: 1. MOQ: 1 set.

          2. Delivery time: 30 workdays after receiving T/T 30% payment deposit.

          3. Payment Term: T/T 30% as deposit, T/T 70% before shipment or L/C at sight.
